In the realm of networking, the Ethernet Wall Jack stands as a crucial component for ensuring reliable and efficient data transmission. These jacks serve as the interface between your network devices and the wired network infrastructure, providing a stable connection that is essential for both home and business networks. Understanding the importance, types, installation, and troubleshooting of Ethernet Wall Jacks can significantly enhance your network's performance and reliability.
Understanding Ethernet Wall Jacks

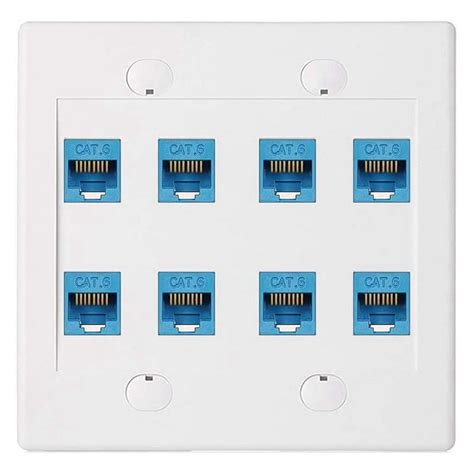

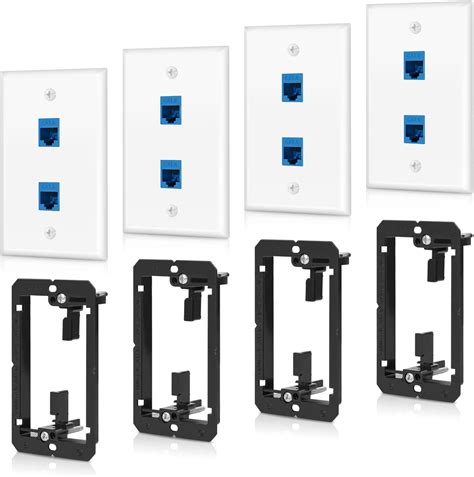

An Ethernet Wall Jack is a wall-mounted receptacle that allows network cables to connect to the network infrastructure. It is typically installed in walls, ceilings, or floors and provides a convenient and organized way to connect devices to the network. These jacks are essential for wired networks, offering a stable and high-speed connection compared to wireless alternatives.
Ethernet Wall Jacks come in various types, each designed to meet different networking needs. The most common types include:
- RJ-45 Jacks: These are the standard jacks used for Ethernet connections. They support various speeds, including 10/100/1000 Mbps (Fast Ethernet and Gigabit Ethernet).
- Cat5e Jacks: These jacks support Category 5e cables and are capable of handling speeds up to 1 Gbps.
- Cat6 Jacks: These jacks support Category 6 cables and offer improved performance with speeds up to 10 Gbps over shorter distances.
- Cat6a Jacks: These jacks support Category 6a cables and provide even higher performance, supporting speeds up to 10 Gbps over longer distances.

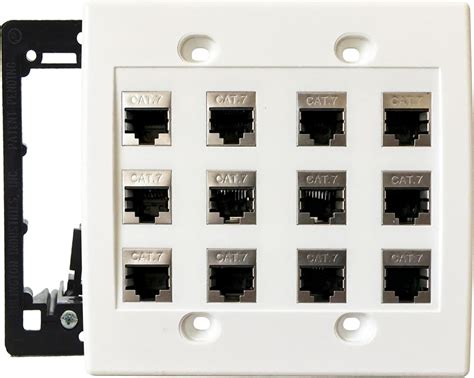

- Cat7 Jacks: These jacks support Category 7 cables and offer even higher performance, supporting speeds up to 10 Gbps and beyond, with improved shielding for better signal integrity.
- Cat8 Jacks: These jacks support Category 8 cables and are designed for data centers and high-performance networking environments, supporting speeds up to 40 Gbps.
Importance of Ethernet Wall Jacks
Ethernet Wall Jacks play a vital role in modern networking for several reasons:
- Reliability: Wired connections are generally more reliable than wireless connections, as they are less susceptible to interference and signal degradation.
- Speed: Ethernet connections can provide higher speeds compared to wireless networks, making them ideal for bandwidth-intensive applications.
- Security: Wired connections are more secure than wireless networks, as they are less vulnerable to hacking and unauthorized access.
- Stability: Ethernet Wall Jacks provide a stable connection, reducing the likelihood of dropped connections and ensuring consistent performance.
Installing Ethernet Wall Jacks
Installing an Ethernet Wall Jack involves several steps, from planning to wiring and testing. Here is a detailed guide to help you through the process:
Planning and Preparation
Before you begin, it's essential to plan your network layout and gather the necessary tools and materials. Here's what you'll need:
- Ethernet Wall Jacks
- Ethernet cables (Cat5e, Cat6, Cat6a, etc.)
- Punch-down tool
- Cable tester
- Drill and drywall saw
- Fish tape or cable puller
- Screwdriver
- Wire strippers
- Cable ties or clips
Plan the locations for your Ethernet Wall Jacks based on where you need network access. Ensure that the locations are easily accessible and close to where devices will be connected.
Wiring the Jack
Once you have your materials and plan in place, you can begin wiring the Ethernet Wall Jack. Follow these steps:
- Cut the Ethernet cable to the desired length, ensuring it reaches from the wall jack to the network switch or router.
- Strip about 1-2 inches of the outer jacket from the cable, exposing the inner wires.
- Untwist the pairs of wires and arrange them in the correct order. The standard wiring scheme for Ethernet cables is T568B, which is as follows:
| Pin | Color |
|---|---|
| 1 | White/Orange |
| 2 | Orange |
| 3 | White/Green |
| 4 | Blue |
| 5 | White/Blue |
| 6 | Green |
| 7 | White/Brown |
| 8 | Brown |
- Insert the wires into the Ethernet Wall Jack, ensuring they are fully seated and in the correct order.
- Use the punch-down tool to secure the wires into the jack. Apply firm pressure to ensure a good connection.
- Trim the excess wire using wire cutters.
🔧 Note: Ensure that the wires are properly seated and trimmed to avoid any loose connections that could affect performance.

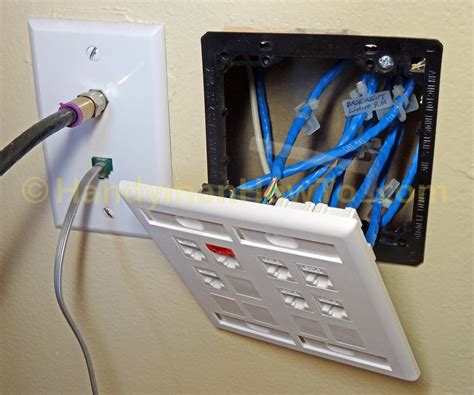

Installing the Jack in the Wall
After wiring the jack, you can install it in the wall. Follow these steps:
- Cut a hole in the wall where you want to install the jack. The hole should be slightly larger than the jack to allow for easy installation.
- Insert the jack into the hole, ensuring it is flush with the wall.
- Secure the jack to the wall using screws or mounting brackets.
- Connect the other end of the Ethernet cable to the network switch or router.
🔧 Note: Ensure that the jack is securely mounted to the wall to prevent any movement or disconnection.
Testing the Connection
Once the jack is installed, it's crucial to test the connection to ensure it is working correctly. Use a cable tester to verify that the wires are properly connected and that the jack is functioning as expected. Follow these steps:
- Connect one end of the cable tester to the Ethernet Wall Jack.
- Connect the other end to the network switch or router.
- Follow the instructions on the cable tester to check the connection. The tester will indicate whether the wires are properly connected and if the jack is functioning correctly.
🔧 Note: If the cable tester indicates any issues, double-check the wiring and ensure that all connections are secure.
Troubleshooting Ethernet Wall Jacks
Even with proper installation, issues can arise with Ethernet Wall Jacks. Here are some common problems and their solutions:
No Connection
If your device is not connecting to the network, check the following:
- Ensure that the Ethernet cable is properly connected to both the jack and the device.
- Verify that the jack is securely mounted to the wall and that there are no loose connections.
- Check the network switch or router to ensure it is functioning correctly and that the port is enabled.
- Use a cable tester to verify that the wires are properly connected and that the jack is functioning as expected.
Intermittent Connection
If your connection is intermittent, it could be due to several factors:
- Check for any physical damage to the Ethernet cable or jack.
- Ensure that the cable is not bent or kinked, as this can affect the connection.
- Verify that the jack is securely mounted to the wall and that there are no loose connections.
- Check for any interference from other electronic devices or sources of electromagnetic interference (EMI).
Slow Connection
If your connection is slow, consider the following:
- Ensure that the Ethernet cable and jack are capable of supporting the desired speed.
- Check for any network congestion or bandwidth limitations.
- Verify that the network switch or router is functioning correctly and that the port is enabled.
- Use a cable tester to verify that the wires are properly connected and that the jack is functioning as expected.
Maintaining Ethernet Wall Jacks
To ensure the longevity and performance of your Ethernet Wall Jacks, regular maintenance is essential. Here are some tips for maintaining your jacks:
- Inspect the jacks regularly for any signs of damage or wear.
- Ensure that the jacks are securely mounted to the wall and that there are no loose connections.
- Keep the jacks clean and free of dust and debris.
- Avoid bending or kinking the Ethernet cables, as this can affect the connection.
- Use cable ties or clips to organize and secure the cables, preventing any unnecessary movement or strain on the jacks.
By following these maintenance tips, you can extend the lifespan of your Ethernet Wall Jacks and ensure reliable network performance.
Ethernet Wall Jacks are an essential component of modern networking, providing reliable, high-speed, and secure connections. Understanding the types, installation, troubleshooting, and maintenance of these jacks can significantly enhance your network’s performance and reliability. Whether you’re setting up a home network or a business infrastructure, investing in quality Ethernet Wall Jacks and proper installation is crucial for optimal network performance.
