Understanding the intricacies of your home's plumbing system can be daunting, but having a clear bathtub plumbing diagram can make the process much easier. Whether you're a DIY enthusiast or a professional plumber, knowing the layout and components of your bathtub plumbing is crucial for maintenance, repairs, and installations. This guide will walk you through the essentials of a bathtub plumbing diagram, helping you navigate the pipes, valves, and fixtures that make up your bathtub's plumbing system.
Understanding the Basics of Bathtub Plumbing

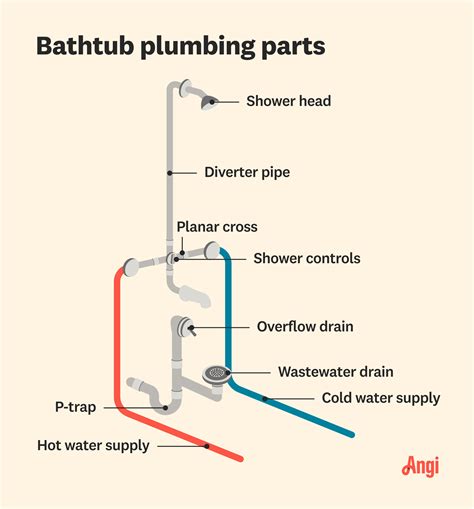

Before diving into the specifics of a bathtub plumbing diagram, it's important to understand the basic components that make up the system. These components include:
- Water supply lines
- Drain pipes
- Overflow pipes
- Faucets and valves
- Trap and vent pipes
Each of these components plays a vital role in ensuring that your bathtub functions correctly. The water supply lines bring fresh water to the faucet, while the drain pipes carry used water away. The overflow pipe prevents the bathtub from overflowing, and the trap and vent pipes ensure proper drainage and ventilation.
Components of a Bathtub Plumbing Diagram
A bathtub plumbing diagram typically includes several key components. Understanding these components will help you read and interpret the diagram accurately.
Water Supply Lines
The water supply lines are responsible for delivering hot and cold water to the bathtub faucet. These lines are usually made of copper, PVC, or PEX tubing and are connected to the main water supply. The hot water line is typically marked with a red or blue label, while the cold water line is marked with a blue label.
Drain Pipes
The drain pipe is connected to the bathtub drain and carries used water away from the bathtub. The drain pipe is usually made of PVC or ABS plastic and is connected to the main drain line. The drain pipe also includes a trap, which prevents sewer gases from entering the bathtub.
Overflow Pipes
The overflow pipe is a safety feature that prevents the bathtub from overflowing. It is connected to the bathtub drain and allows excess water to flow into the drain pipe if the water level in the bathtub rises too high. The overflow pipe is usually made of PVC or ABS plastic and is connected to the drain pipe.
Faucets and Valves
The faucet is the component that controls the flow of water into the bathtub. It is connected to the water supply lines and includes a mixing valve that regulates the temperature of the water. The faucet also includes a spout that directs the water into the bathtub.
The valves control the flow of water through the supply lines. There are typically two valves: one for hot water and one for cold water. These valves can be turned on or off to control the water flow.
Trap and Vent Pipes
The trap is a U-shaped pipe that is connected to the drain pipe. It holds a small amount of water that creates a seal, preventing sewer gases from entering the bathtub. The vent pipe is connected to the trap and allows air to flow into the drain system, ensuring proper drainage.
Reading a Bathtub Plumbing Diagram
Reading a bathtub plumbing diagram involves understanding the symbols and labels used to represent the various components. Here are some common symbols and their meanings:
| Symbol | Component |
|---|---|
| 🔹 | Water supply line |
| 🔹 | Drain pipe |
| 🔹 | Overflow pipe |
| 🔹 | Faucet |
| 🔹 | Valve |
| 🔹 | Trap |
| 🔹 | Vent pipe |
When reading a bathtub plumbing diagram, start by identifying the main components and their locations. Follow the water supply lines from the main water supply to the faucet, and trace the drain pipe from the bathtub drain to the main drain line. Pay attention to the overflow pipe and ensure it is connected to the drain pipe. Check the faucet and valves to ensure they are properly connected to the water supply lines. Finally, locate the trap and vent pipe to ensure proper drainage and ventilation.
🔍 Note: Always refer to the specific diagram provided for your bathtub model, as there may be variations in the layout and components.
Installing a New Bathtub Using a Plumbing Diagram
If you're installing a new bathtub, a bathtub plumbing diagram can be an invaluable tool. Here are the steps to follow:
Step 1: Gather Your Tools and Materials
Before you begin, gather the necessary tools and materials, including:
- New bathtub
- Water supply lines
- Drain pipe
- Overflow pipe
- Faucet and valves
- Trap and vent pipe
- Pipe wrench
- Screwdriver
- Plumber's putty
- Teflon tape
Step 2: Turn Off the Water Supply
Before you start any plumbing work, turn off the water supply to the bathtub. This can usually be done by turning the valves located under the sink or behind the bathtub.
Step 3: Remove the Old Bathtub
If you're replacing an old bathtub, carefully remove it from its location. This may involve disconnecting the water supply lines, drain pipe, and overflow pipe. Use a pipe wrench to loosen the connections and a screwdriver to remove any screws or bolts.
Step 4: Install the New Bathtub
Position the new bathtub in the desired location and secure it to the floor and walls using screws or bolts. Ensure the bathtub is level and properly supported.
Step 5: Connect the Water Supply Lines
Connect the hot and cold water supply lines to the faucet using Teflon tape to ensure a watertight seal. Tighten the connections using a pipe wrench.
Step 6: Install the Drain Pipe
Connect the drain pipe to the bathtub drain and secure it with plumber's putty. Ensure the drain pipe is properly aligned and connected to the main drain line.
Step 7: Install the Overflow Pipe
Connect the overflow pipe to the bathtub drain and ensure it is properly aligned with the drain pipe. Secure the connections with plumber's putty.
Step 8: Install the Faucet and Valves
Install the faucet and valves according to the manufacturer's instructions. Ensure the faucet is properly connected to the water supply lines and that the valves are functioning correctly.
Step 9: Install the Trap and Vent Pipe
Install the trap and vent pipe according to the bathtub plumbing diagram. Ensure the trap is properly aligned with the drain pipe and that the vent pipe is connected to the trap.
Step 10: Test the System
Turn on the water supply and test the bathtub to ensure it is functioning correctly. Check for any leaks or issues and make any necessary adjustments.
🛠️ Note: If you're not comfortable performing these steps yourself, consider hiring a professional plumber to ensure the job is done correctly.
Troubleshooting Common Bathtub Plumbing Issues
Even with a well-designed bathtub plumbing diagram, issues can arise. Here are some common problems and how to troubleshoot them:
Leaking Faucet
A leaking faucet can be caused by a worn-out washer or O-ring. To fix this, turn off the water supply, disassemble the faucet, and replace the worn-out parts. Reassemble the faucet and turn the water supply back on.
Clogged Drain
A clogged drain can be caused by hair, soap scum, or other debris. To clear the clog, use a plunger or a drain snake to dislodge the blockage. If the clog persists, you may need to disassemble the drain pipe and clean it thoroughly.
Low Water Pressure
Low water pressure can be caused by a variety of issues, including mineral buildup in the pipes, a faulty water heater, or a problem with the main water supply. To troubleshoot, check the water pressure in other fixtures in your home. If the issue is isolated to the bathtub, you may need to clean the aerator or replace the faucet.
Overflowing Bathtub
An overflowing bathtub can be caused by a faulty overflow pipe or a clogged drain. To fix this, check the overflow pipe for any blockages and ensure it is properly connected to the drain pipe. If the drain is clogged, clear the blockage using a plunger or drain snake.
🛠️ Note: If you're unsure about how to troubleshoot a plumbing issue, consult a professional plumber to avoid causing further damage.
Maintaining Your Bathtub Plumbing System
Regular maintenance is key to keeping your bathtub plumbing system in good working order. Here are some tips for maintaining your system:
- Inspect the water supply lines, drain pipe, and overflow pipe regularly for any signs of leaks or damage.
- Clean the faucet and valves periodically to remove any mineral buildup or debris.
- Check the trap and vent pipe to ensure they are functioning correctly and are free of blockages.
- Test the bathtub regularly to ensure it is draining properly and that the water pressure is adequate.
- Address any issues promptly to prevent them from becoming more serious problems.
By following these maintenance tips, you can extend the lifespan of your bathtub plumbing system and avoid costly repairs.
🛠️ Note: Regular maintenance can help prevent many common plumbing issues, so it's important to stay on top of it.
Understanding and utilizing a bathtub plumbing diagram is essential for anyone looking to maintain, repair, or install a bathtub plumbing system. By familiarizing yourself with the components and layout of your bathtub plumbing, you can ensure that your system functions correctly and efficiently. Whether you’re a DIY enthusiast or a professional plumber, having a clear and accurate bathtub plumbing diagram is a valuable tool that can save you time and money in the long run.
