Y Sinx Graph

Understanding the Y Sinx Graph is fundamental for anyone delving into trigonometry and its applications. The graph of the sine function, often denoted as Y = Sin(x), is a periodic wave that oscillates between -1 and 1. This function is crucial in various fields, including physics, engineering, and computer science, where it is used to model wave phenomena, signal processing, and more.

Table of Contents

Understanding the Sine Function

The sine function, Y = Sin(x), is a trigonometric function that relates an angle to the ratio of the length of the opposite side to the hypotenuse in a right-angled triangle. The function is periodic, meaning it repeats its values in regular intervals. The period of the sine function is 2π, which means the graph repeats every 2π units along the x-axis.

Key Properties of the Y Sinx Graph

The Y Sinx Graph has several key properties that are essential to understand:

Amplitude: The maximum distance from the centerline to the peak or trough of the wave. For Y = Sin(x), the amplitude is 1.
Period: The distance over which the wave’s shape repeats. For Y = Sin(x), the period is 2π.
Frequency: The number of cycles the wave completes in a given interval. For Y = Sin(x), the frequency is 1/2π.
Phase Shift: The horizontal shift of the wave from its standard position. For Y = Sin(x), there is no phase shift.

Graphing the Y Sinx Function

To graph the Y Sinx Graph, follow these steps:

Draw the x-axis and y-axis on a coordinate plane.
Mark the points where the sine function equals zero. These points occur at multiples of π (e.g., 0, π, 2π, 3π, etc.).
Identify the peaks and troughs of the sine function. The peaks occur at (π/2 + 2kπ, 1) and the troughs at (3π/2 + 2kπ, -1), where k is an integer.
Connect the points with a smooth, continuous curve.

📝 Note: The sine function is symmetric about the origin, meaning it is an odd function. This property is reflected in the graph, where the curve is mirrored across the origin.

Transformations of the Y Sinx Graph

The Y Sinx Graph can be transformed in various ways to model different types of waves. Some common transformations include:

Vertical Stretch/Compression: Multiplying the sine function by a constant A changes the amplitude. For example, Y = A Sin(x) has an amplitude of |A|.
Horizontal Stretch/Compression: Multiplying the x-value by a constant B changes the period. For example, Y = Sin(Bx) has a period of 2π/|B|.
Vertical Shift: Adding a constant C to the sine function shifts the graph vertically. For example, Y = Sin(x) + C shifts the graph up by C units.
Horizontal Shift: Adding a constant D to the x-value inside the sine function shifts the graph horizontally. For example, Y = Sin(x + D) shifts the graph left by D units.

Applications of the Y Sinx Graph

The Y Sinx Graph has numerous applications in various fields. Some of the most notable applications include:

Physics: The sine function is used to model wave phenomena, such as sound waves, light waves, and water waves. It is also used in the study of simple harmonic motion.
Engineering: In electrical engineering, the sine function is used to model alternating current (AC) signals. It is also used in signal processing and control systems.
Computer Science: The sine function is used in computer graphics to create smooth animations and transitions. It is also used in image processing and data analysis.

Examples of Y Sinx Graph Transformations

Let’s look at some examples of transformed Y Sinx Graphs and their properties:

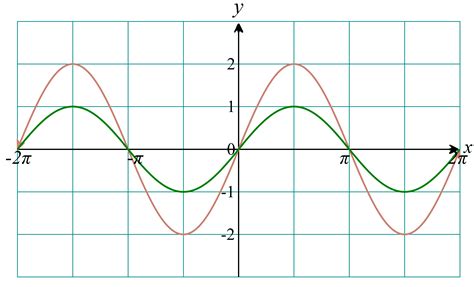

Example 1: Vertical Stretch

Consider the function Y = 2 Sin(x). This function has an amplitude of 2 and a period of 2π. The graph will stretch vertically by a factor of 2 compared to the standard sine function.

Example 2: Horizontal Compression

Consider the function Y = Sin(2x). This function has an amplitude of 1 and a period of π. The graph will compress horizontally by a factor of 2 compared to the standard sine function.

Example 3: Vertical and Horizontal Shift

Consider the function Y = Sin(x + π/4) + 1. This function has an amplitude of 1 and a period of 2π. The graph will shift left by π/4 units and up by 1 unit compared to the standard sine function.

Comparing Y Sinx Graph with Other Trigonometric Functions

The Y Sinx Graph can be compared with other trigonometric functions, such as the cosine function (Y = Cos(x)) and the tangent function (Y = Tan(x)). Each of these functions has unique properties and applications.

Cosine Function

The cosine function, Y = Cos(x), is also a periodic function with a period of 2π. However, it is an even function, meaning it is symmetric about the y-axis. The cosine function starts at its maximum value of 1 when x = 0 and decreases to 0 at x = π/2.

Tangent Function

The tangent function, Y = Tan(x), is a periodic function with a period of π. It is an odd function and is symmetric about the origin. The tangent function has vertical asymptotes at x = (2k+1)π/2, where k is an integer, and it repeats its values every π units.

Summary of Key Points

The Y Sinx Graph is a fundamental concept in trigonometry with wide-ranging applications. Understanding its properties, transformations, and comparisons with other trigonometric functions is crucial for various fields, including physics, engineering, and computer science. By mastering the sine function, one can model and analyze a wide range of wave phenomena and periodic processes.
