Worm Wheel Gear

In the realm of mechanical engineering, the Worm Wheel Gear stands out as a critical component in various applications, from industrial machinery to automotive systems. This type of gear system is renowned for its ability to transmit power between non-intersecting shafts at right angles, making it indispensable in scenarios where space is limited and precise motion control is required.

Table of Contents

Understanding Worm Wheel Gears

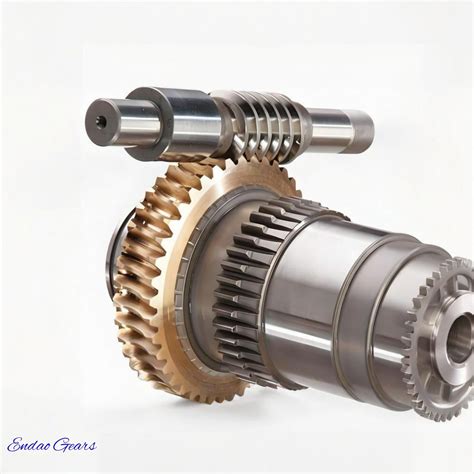

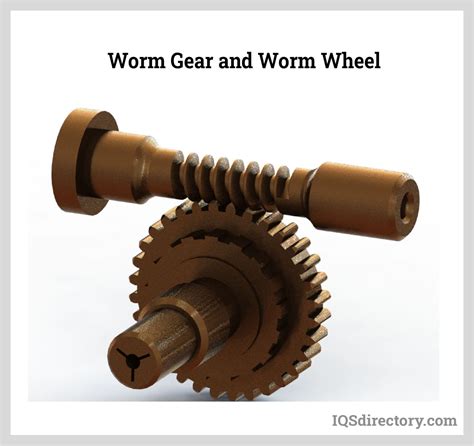

A Worm Wheel Gear system consists of two main components: the worm and the worm wheel. The worm is essentially a screw with a helical thread, while the worm wheel is a gear with teeth that mesh with the worm's thread. This configuration allows for a high gear reduction ratio, meaning the output shaft can rotate at a much slower speed than the input shaft, with a corresponding increase in torque.

Types of Worm Wheel Gears

Worm Wheel Gears come in various types, each designed for specific applications. The most common types include:

Single Start Worm Gears: These have a single thread on the worm, providing a straightforward and efficient power transmission.
Multi-Start Worm Gears: These have multiple threads on the worm, allowing for higher speed reductions and smoother operation.

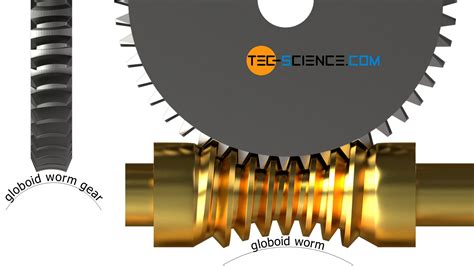

Double Enveloped Worm Gears: These feature a worm that is completely enclosed by the worm wheel, offering higher load capacities and improved efficiency.

Applications of Worm Wheel Gears

The versatility of Worm Wheel Gears makes them suitable for a wide range of applications. Some of the most common uses include:

Industrial Machinery: Used in conveyor systems, packaging equipment, and other machinery where precise control and high torque are required.
Automotive Systems: Found in power steering systems, where they help in converting the rotational motion of the steering wheel into the linear motion needed to turn the wheels.
Elevators and Lifts: Utilized in the control mechanisms to ensure smooth and safe vertical movement.
Robotics: Employed in robotic arms and other automated systems for precise and controlled movements.

Advantages of Worm Wheel Gears

Worm Wheel Gears offer several advantages that make them a preferred choice in many mechanical systems:

High Gear Reduction: They can achieve high gear reduction ratios in a compact space, making them ideal for applications where space is limited.
Self-Locking Capability: In many configurations, the worm wheel cannot drive the worm, providing a self-locking mechanism that prevents back-driving.
Smooth Operation: The helical design of the worm and worm wheel ensures smooth and quiet operation, reducing wear and tear on the system.
High Torque Transmission: They can transmit high torque efficiently, making them suitable for heavy-duty applications.

Disadvantages of Worm Wheel Gears

Despite their advantages, Worm Wheel Gears also have some drawbacks that need to be considered:

Inefficiency: Worm Wheel Gears can be less efficient compared to other types of gears, especially at high speeds, due to the sliding action between the worm and worm wheel.
Heat Generation: The sliding action can also generate heat, which may require additional cooling mechanisms in high-load applications.
Limited Speed: They are generally not suitable for high-speed applications due to the potential for excessive wear and heat generation.

Design Considerations for Worm Wheel Gears

When designing a system that incorporates Worm Wheel Gears, several factors need to be considered to ensure optimal performance:

Material Selection: Choosing the right materials for the worm and worm wheel is crucial. Common materials include bronze for the worm wheel and steel for the worm, due to their compatibility and wear resistance.
Lubrication: Proper lubrication is essential to reduce friction and heat generation. The type of lubricant and its application method should be carefully selected based on the operating conditions.
Load Capacity: The gear system must be designed to handle the expected load without excessive wear or failure. This involves calculating the required torque and selecting gears with appropriate load ratings.
Speed and Ratio: The speed reduction ratio and the operating speed of the gears should be carefully considered to ensure smooth and efficient operation.

Maintenance of Worm Wheel Gears

Maintaining Worm Wheel Gears is crucial for their longevity and performance. Regular maintenance tasks include:

Lubrication: Regularly checking and replenishing the lubricant to ensure smooth operation and reduce wear.
Inspection: Periodically inspecting the gears for signs of wear, damage, or misalignment.
Cleaning: Keeping the gears clean to prevent the buildup of debris that could affect their performance.
Alignment: Ensuring that the gears are properly aligned to prevent excessive wear and noise.

🛠️ Note: Regular maintenance can significantly extend the lifespan of Worm Wheel Gears and prevent costly repairs.

Common Issues with Worm Wheel Gears

Despite their robustness, Worm Wheel Gears can encounter several issues. Some of the most common problems include:

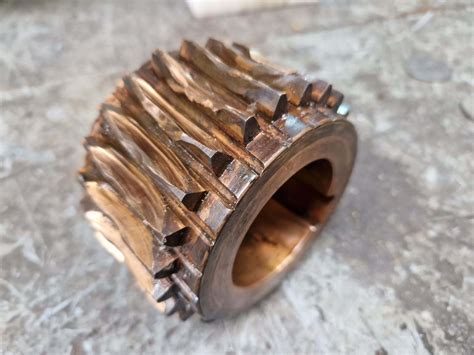

Wear and Tear: Over time, the sliding action between the worm and worm wheel can cause wear, leading to reduced efficiency and increased noise.
Heat Generation: Excessive heat can degrade the lubricant and cause thermal expansion, affecting the gear's performance.
Misalignment: Improper alignment can cause uneven wear, increased noise, and reduced efficiency.
Lubrication Failure: Insufficient or contaminated lubricant can lead to increased friction, wear, and heat generation.

Troubleshooting Worm Wheel Gears

When issues arise with Worm Wheel Gears, it's important to troubleshoot effectively to identify and resolve the problem. Here are some steps to follow:

Check Lubrication: Ensure that the gears are properly lubricated and that the lubricant is in good condition.
Inspect for Wear: Look for signs of wear on the worm and worm wheel, such as pitting, scoring, or excessive clearance.
Verify Alignment: Check that the gears are properly aligned and that there is no play or backlash.
Monitor Temperature: Use a thermometer to monitor the temperature of the gears during operation and ensure it stays within acceptable limits.

🛠️ Note: Regular inspections and timely maintenance can help prevent many common issues with Worm Wheel Gears.

Future Trends in Worm Wheel Gear Technology

The field of Worm Wheel Gear technology is continually evolving, driven by advancements in materials science, manufacturing techniques, and design software. Some of the emerging trends include:

Advanced Materials: The development of new materials with improved wear resistance, strength, and thermal properties.
Precision Manufacturing: The use of advanced manufacturing techniques, such as CNC machining and 3D printing, to produce gears with higher precision and consistency.
Smart Gears: The integration of sensors and IoT technology to monitor the performance and condition of gears in real-time, enabling predictive maintenance.
Eco-Friendly Lubricants: The development of environmentally friendly lubricants that reduce the environmental impact of gear systems.

In conclusion, Worm Wheel Gears are a vital component in many mechanical systems, offering high torque transmission, self-locking capability, and smooth operation. While they have some limitations, such as inefficiency and heat generation, proper design, maintenance, and troubleshooting can mitigate these issues. As technology advances, the future of Worm Wheel Gears looks promising, with innovations in materials, manufacturing, and smart technology paving the way for even more efficient and reliable gear systems.
