Wheelchair Ramp Slope

Accessibility is a critical aspect of modern architecture and design, ensuring that spaces are usable by everyone, regardless of their physical abilities. One of the most essential elements in achieving this goal is the installation of wheelchair ramps. These ramps provide a safe and convenient way for individuals using wheelchairs, walkers, or other mobility aids to navigate different levels of a building or outdoor space. Understanding the importance of the wheelchair ramp slope is crucial for creating compliant and user-friendly environments.

Table of Contents

Understanding Wheelchair Ramp Slope

The wheelchair ramp slope refers to the incline or gradient of a ramp designed for wheelchair access. The slope is typically measured as the ratio of the vertical rise to the horizontal run. For example, a 1:12 slope means that for every inch of vertical rise, there are 12 inches of horizontal run. This measurement is vital for ensuring that the ramp is safe and easy to use for individuals with mobility impairments.

Importance of Proper Wheelchair Ramp Slope

A properly designed wheelchair ramp slope is essential for several reasons:

Safety: A ramp that is too steep can be dangerous, as it increases the risk of falls and accidents. A gentle slope ensures that users can navigate the ramp safely and with ease.
Comfort: A ramp with an appropriate slope reduces the physical effort required to ascend or descend, making the experience more comfortable for users.
Compliance: Adhering to the recommended wheelchair ramp slope ensures that the ramp meets accessibility standards and regulations, such as the Americans with Disabilities Act (ADA) guidelines.

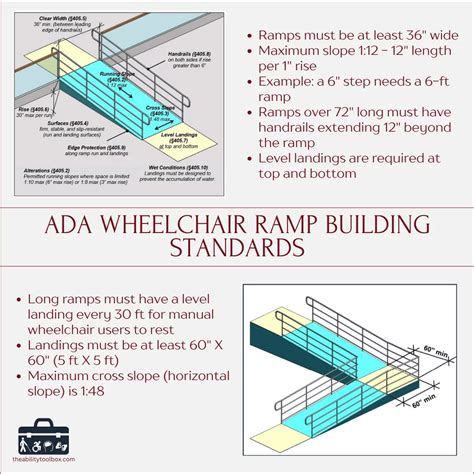

ADA Guidelines for Wheelchair Ramp Slope

The ADA provides specific guidelines for the design of wheelchair ramps to ensure they are accessible and safe. According to the ADA, the maximum slope for a wheelchair ramp should not exceed 1:12. This means that for every inch of vertical rise, there should be at least 12 inches of horizontal run. Additionally, the ADA recommends that ramps should have level landings at the top and bottom, as well as at intervals along the ramp if it is longer than 30 feet.

Here is a summary of the key ADA guidelines for wheelchair ramp slope:

Guideline	Specification
Maximum Slope	1:12 (1 inch rise for every 12 inches of run)
Minimum Width	36 inches
Landings	Level landings at the top and bottom, and at intervals of 30 feet or less
Handrails	Required on both sides of the ramp

📝 Note: These guidelines are essential for ensuring that wheelchair ramps are safe and accessible for all users. Always consult local building codes and regulations in addition to ADA guidelines.

Designing a Wheelchair Ramp

Designing a wheelchair ramp involves several key considerations to ensure it meets accessibility standards and user needs. Here are the steps to design an effective wheelchair ramp:

Measure the Vertical Rise: Determine the total vertical distance that the ramp needs to cover. This is the difference in height between the two levels.
Calculate the Horizontal Run: Using the ADA guideline of a 1:12 slope, calculate the horizontal run required. For example, if the vertical rise is 24 inches, the horizontal run should be at least 288 inches (24 inches x 12).
Determine the Length of the Ramp: The length of the ramp is the sum of the horizontal run and any additional space needed for landings.
Plan the Layout: Consider the available space and the best location for the ramp. Ensure that the ramp does not obstruct other pathways or entrances.
Include Landings: Design level landings at the top and bottom of the ramp, as well as at intervals of 30 feet or less if the ramp is longer.
Add Handrails: Install handrails on both sides of the ramp to provide support and stability for users.

Here is an example of how to calculate the wheelchair ramp slope and dimensions:

Suppose you need a ramp to cover a vertical rise of 30 inches. Using the ADA guideline of a 1:12 slope:

Horizontal Run = Vertical Rise x 12
Horizontal Run = 30 inches x 12
Horizontal Run = 360 inches (30 feet)

Therefore, the ramp should have a horizontal run of at least 360 inches to achieve a 1:12 slope.

📝 Note: Always double-check your calculations and consult with a professional if necessary to ensure the ramp meets all accessibility standards.

Materials for Wheelchair Ramps

The choice of materials for a wheelchair ramp is crucial for durability, safety, and aesthetics. Common materials used for wheelchair ramps include:

Concrete: Durable and long-lasting, concrete ramps are suitable for permanent installations. They can be customized to match the surrounding architecture.
Wood: Wooden ramps are cost-effective and can be easily constructed. However, they require regular maintenance to prevent rot and ensure safety.

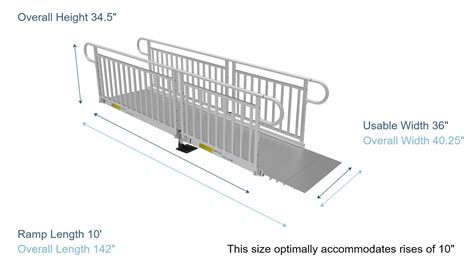

Metal: Metal ramps, such as aluminum or steel, are strong and durable. They are often used for temporary or portable ramps and can be easily adjusted or relocated.
Composite Materials: Composite ramps combine the benefits of wood and metal, offering durability, low maintenance, and a natural appearance.

When selecting materials, consider factors such as cost, durability, maintenance requirements, and the intended use of the ramp.

Installing a Wheelchair Ramp

Installing a wheelchair ramp involves several steps to ensure it is safe, stable, and compliant with accessibility standards. Here is a general guide to installing a wheelchair ramp:

Site Preparation: Clear the area where the ramp will be installed. Ensure the surface is level and stable.
Foundation: Lay a solid foundation for the ramp. This may involve pouring concrete, installing support beams, or using gravel for drainage.
Frame Construction: Build the frame of the ramp using the chosen materials. Ensure the frame is level and securely fastened.
Surface Installation: Install the surface material, such as wood, metal, or composite, on top of the frame. Ensure the surface is smooth and free of obstacles.
Handrails: Install handrails on both sides of the ramp. Ensure they are securely fastened and meet ADA guidelines for height and spacing.
Final Inspection: Inspect the ramp for any issues or safety concerns. Make any necessary adjustments to ensure it meets accessibility standards.

Here is an example of how to install a wooden wheelchair ramp:

Site Preparation: Clear the area and ensure the surface is level.
Foundation: Lay a layer of gravel for drainage and stability.
Frame Construction: Build the frame using pressure-treated lumber. Ensure the frame is level and securely fastened with screws or bolts.
Surface Installation: Install wooden planks on top of the frame. Ensure the planks are securely fastened and the surface is smooth.
Handrails: Install wooden handrails on both sides of the ramp. Ensure they are securely fastened and meet ADA guidelines.
Final Inspection: Inspect the ramp for any issues and make necessary adjustments.

📝 Note: Always follow local building codes and regulations when installing a wheelchair ramp. Consult with a professional if necessary to ensure the ramp is safe and compliant.

Maintaining a Wheelchair Ramp

Maintaining a wheelchair ramp is essential for ensuring its longevity and safety. Regular maintenance helps prevent issues such as wear and tear, damage, and safety hazards. Here are some tips for maintaining a wheelchair ramp:

Regular Inspections: Inspect the ramp regularly for any signs of damage, such as cracks, loose bolts, or worn-out surfaces.
Cleaning: Keep the ramp clean and free of debris, such as leaves, dirt, or snow. This ensures a safe and smooth surface for users.
Repairs: Address any issues promptly to prevent further damage. Replace worn-out materials, tighten loose bolts, and repair cracks or holes.
Seasonal Maintenance: Perform seasonal maintenance, such as applying sealant to wooden ramps or removing snow and ice in winter.

Here is an example of a maintenance checklist for a wooden wheelchair ramp:

Inspect for Cracks or Rot: Check the wooden planks and frame for any signs of cracks, rot, or damage.
Tighten Bolts and Screws: Ensure all bolts and screws are securely fastened.
Apply Sealant: Apply a waterproof sealant to protect the wood from moisture and weathering.
Clean the Surface: Remove any debris, dirt, or leaves from the ramp surface.
Check Handrails: Ensure the handrails are securely fastened and in good condition.

📝 Note: Regular maintenance is key to extending the lifespan of a wheelchair ramp and ensuring it remains safe and accessible for users.

Common Mistakes to Avoid

When designing, installing, or maintaining a wheelchair ramp, it is essential to avoid common mistakes that can compromise safety and accessibility. Here are some mistakes to avoid:

Incorrect Slope: Ensure the wheelchair ramp slope does not exceed the recommended 1:12 ratio. A steeper slope can be dangerous and difficult to navigate.
Inadequate Width: The ramp should be at least 36 inches wide to accommodate wheelchairs and other mobility aids comfortably.
Lack of Handrails: Handrails are essential for providing support and stability. Ensure they are installed on both sides of the ramp.
Poor Surface Material: Choose a durable and non-slip surface material to ensure safety and ease of use.
Insufficient Landings: Include level landings at the top and bottom of the ramp, as well as at intervals of 30 feet or less if the ramp is longer.

By avoiding these common mistakes, you can ensure that your wheelchair ramp is safe, accessible, and compliant with accessibility standards.

Here is an example of a poorly designed wheelchair ramp:

Steep Slope: A ramp with a slope steeper than 1:12 can be dangerous and difficult to navigate.
Narrow Width: A ramp that is too narrow can be uncomfortable and unsafe for users.
No Handrails: A ramp without handrails can be unstable and unsafe for users.
Slippery Surface: A ramp with a slippery surface can increase the risk of falls and accidents.
Inadequate Landings: A ramp without level landings can be difficult to navigate and unsafe for users.

📝 Note: Always consult with a professional if you are unsure about the design or installation of a wheelchair ramp. Ensuring compliance with accessibility standards is crucial for safety and usability.

In conclusion, understanding the importance of the wheelchair ramp slope is essential for creating accessible and safe environments. By following ADA guidelines, choosing appropriate materials, and performing regular maintenance, you can ensure that your wheelchair ramp meets the needs of all users. Whether you are designing a new ramp or maintaining an existing one, prioritizing safety and accessibility will enhance the overall experience for individuals with mobility impairments.
