What Is Voltage Drop

Understanding electrical systems involves grasping various concepts, one of the most fundamental being what is voltage drop. Voltage drop refers to the decrease in electrical potential along the path of a current flowing in an electrical circuit. This phenomenon is crucial for ensuring the efficient and safe operation of electrical systems. Whether you are an electrical engineer, a hobbyist, or someone interested in understanding how electrical devices work, comprehending voltage drop is essential.

Table of Contents

Understanding Voltage Drop

Voltage drop occurs due to the resistance in the conductors through which the current flows. According to Ohm’s Law, the voltage drop (V) across a resistor is given by the formula:

V = I * R

where I is the current flowing through the conductor and R is the resistance of the conductor. This simple equation highlights the direct relationship between current, resistance, and voltage drop.

Factors Affecting Voltage Drop

Several factors influence the voltage drop in an electrical circuit. Understanding these factors can help in designing and troubleshooting electrical systems effectively.

Conductor Material: Different materials have varying resistivities. For example, copper has a lower resistivity compared to aluminum, making it a better conductor with less voltage drop.
Conductor Size: The cross-sectional area of the conductor affects its resistance. Larger conductors have lower resistance and thus lower voltage drop.
Length of the Conductor: Longer conductors have higher resistance, leading to a greater voltage drop.
Temperature: The resistance of a conductor increases with temperature, which can affect the voltage drop.

Calculating Voltage Drop

To calculate the voltage drop in a circuit, you need to know the current flowing through the conductor and the resistance of the conductor. Here is a step-by-step guide to calculating voltage drop:

Determine the current (I) flowing through the conductor. This can be measured using an ammeter or calculated based on the circuit’s design.
Calculate the resistance ® of the conductor. This can be done using the formula R = ρ * (L/A), where ρ is the resistivity of the material, L is the length of the conductor, and A is the cross-sectional area of the conductor.
Apply Ohm’s Law to find the voltage drop (V): V = I * R.

💡 Note: Always ensure that the units are consistent when performing calculations. For example, if the current is in amperes and the resistance is in ohms, the voltage drop will be in volts.

Importance of Voltage Drop in Electrical Systems

Voltage drop is a critical consideration in the design and maintenance of electrical systems. Here are some key reasons why:

Efficiency: High voltage drop can lead to significant power losses, reducing the overall efficiency of the system. Minimizing voltage drop ensures that more power is delivered to the load.
Equipment Performance: Many electrical devices require a specific voltage to function correctly. Excessive voltage drop can cause these devices to malfunction or operate inefficiently.
Safety: High voltage drop can indicate issues such as overheating or short circuits, which pose safety risks. Monitoring voltage drop helps in identifying and addressing these issues promptly.

Minimizing Voltage Drop

To minimize voltage drop in electrical systems, consider the following strategies:

Use Appropriate Conductor Size: Select conductors with a larger cross-sectional area to reduce resistance and voltage drop.
Choose Low-Resistivity Materials: Opt for materials with lower resistivity, such as copper, for conductors.
Keep Conductors Short: Minimize the length of conductors to reduce resistance and voltage drop.
Maintain Proper Temperature: Ensure that conductors operate within their recommended temperature range to avoid increased resistance.

Voltage Drop in Series and Parallel Circuits

Voltage drop behaves differently in series and parallel circuits. Understanding these differences is crucial for designing and analyzing electrical systems.

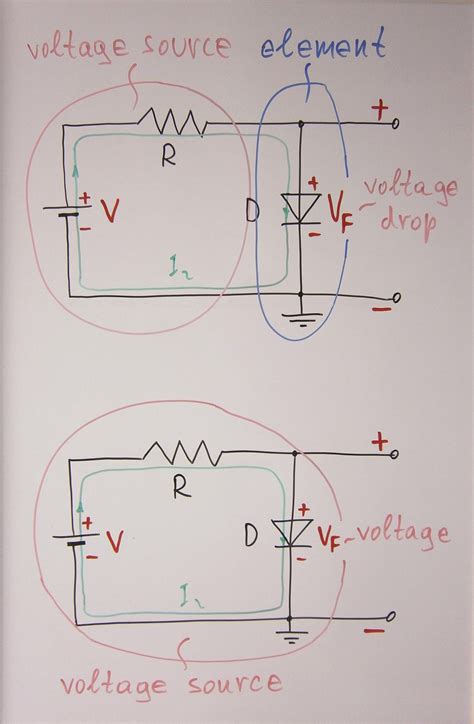

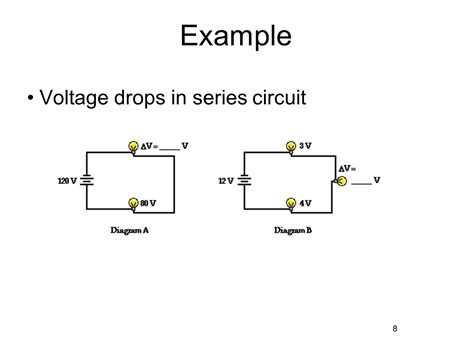

Series Circuits

In a series circuit, the same current flows through all components. The total voltage drop across the circuit is the sum of the voltage drops across each component. The formula for the total voltage drop (V_total) in a series circuit is:

V_total = V₁ + V₂ + … + V_n

where V₁, V₂, …, V_n are the voltage drops across each component.

Parallel Circuits

In a parallel circuit, the voltage drop across each branch is the same, but the current flowing through each branch may differ. The total current (I_total) is the sum of the currents flowing through each branch. The formula for the total current in a parallel circuit is:

I_total = I₁ + I₂ + … + I_n

where I₁, I₂, …, I_n are the currents flowing through each branch.

Practical Applications of Voltage Drop

Understanding what is voltage drop has numerous practical applications in various fields. Here are a few examples:

Electrical Wiring: Proper wiring design takes into account voltage drop to ensure that electrical devices receive the required voltage.
Power Distribution: In power distribution systems, minimizing voltage drop is crucial for efficient power delivery over long distances.
Automotive Electronics: In vehicles, voltage drop can affect the performance of electrical components, such as lights and sensors.
Renewable Energy Systems: In solar and wind power systems, voltage drop can impact the efficiency of power generation and storage.

Common Mistakes to Avoid

When dealing with voltage drop, it’s essential to avoid common mistakes that can lead to inefficiencies and safety issues. Here are some pitfalls to watch out for:

Ignoring Conductor Size: Using conductors that are too small can result in high resistance and significant voltage drop.
Overlooking Material Properties: Choosing materials with high resistivity can increase voltage drop and reduce efficiency.
Neglecting Temperature Effects: Operating conductors at high temperatures can increase resistance and voltage drop.
Incorrect Calculations: Errors in calculating current, resistance, or voltage drop can lead to inaccurate designs and potential failures.

Case Study: Voltage Drop in a Residential Wiring System

Consider a residential wiring system where a 12-gauge copper wire is used to supply power to a light fixture. The wire is 50 feet long, and the current flowing through it is 10 amperes. To determine the voltage drop, follow these steps:

Calculate the resistance of the wire using the formula R = ρ * (L/A). For copper, the resistivity (ρ) is approximately 1.68 x 10^-8 ohm-meters. The cross-sectional area (A) of a 12-gauge wire is about 3.31 x 10^-6 square meters, and the length (L) is 50 feet (15.24 meters).
Substitute the values into the formula: R = 1.68 x 10^-8 * (15.24 / 3.31 x 10^-6).
Calculate the resistance: R ≈ 0.77 ohms.
Apply Ohm’s Law to find the voltage drop: V = I * R = 10 * 0.77 = 7.7 volts.

In this case, the voltage drop is 7.7 volts, which is significant and may affect the performance of the light fixture. To minimize the voltage drop, consider using a larger gauge wire or reducing the length of the wire.

💡 Note: Always verify the calculations and consider the specific requirements of the electrical system to ensure accurate results.

Voltage Drop in DC and AC Circuits

Voltage drop can occur in both direct current (DC) and alternating current (AC) circuits, but the behavior and calculations differ slightly.

DC Circuits

In DC circuits, the voltage drop is straightforward and can be calculated using Ohm’s Law. The current flows in one direction, and the voltage drop across each component is constant.

AC Circuits

In AC circuits, the voltage drop can be more complex due to the presence of reactance. The total impedance (Z) of the circuit is the combination of resistance ® and reactance (X). The formula for voltage drop in an AC circuit is:

V = I * Z

where Z = √(R² + X²). The reactance (X) can be inductive or capacitive, depending on the components in the circuit.

Voltage Drop in Power Transmission

In power transmission systems, voltage drop is a critical consideration for ensuring efficient power delivery over long distances. The following table summarizes the key factors affecting voltage drop in power transmission:

Factor	Description
Conductor Material	Materials with lower resistivity, such as aluminum or copper, are preferred to minimize voltage drop.
Conductor Size	Larger conductors have lower resistance and thus lower voltage drop.
Length of the Transmission Line	Longer transmission lines have higher resistance, leading to greater voltage drop.
Load Current	Higher load currents result in higher voltage drop.
Temperature	Operating at higher temperatures increases resistance and voltage drop.

To minimize voltage drop in power transmission, engineers use techniques such as:

Using high-voltage transmission lines to reduce current and thus voltage drop.
Employing conductors with low resistivity and large cross-sectional areas.
Installing intermediate substations to step up and step down voltages, reducing the overall voltage drop.

Understanding what is voltage drop and its implications is crucial for designing efficient and reliable power transmission systems.

Voltage drop is a fundamental concept in electrical engineering that plays a vital role in the design, operation, and maintenance of electrical systems. By understanding the factors affecting voltage drop, calculating it accurately, and implementing strategies to minimize it, engineers can ensure the efficient and safe delivery of electrical power. Whether in residential wiring, power distribution, or renewable energy systems, comprehending voltage drop is essential for achieving optimal performance and reliability.
