What Is Vga Port

In the realm of computer hardware, understanding the various ports and connectors is crucial for anyone looking to build, upgrade, or troubleshoot a system. One of the most enduring and widely recognized ports is the VGA port. But what is a VGA port, and why has it remained relevant despite the advent of newer technologies? This post delves into the history, functionality, and current relevance of the VGA port, providing a comprehensive guide for both novice and experienced users.

Table of Contents

What Is a VGA Port?

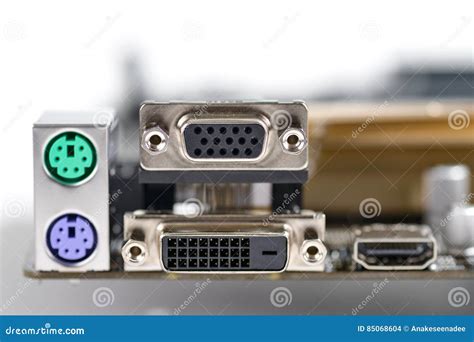

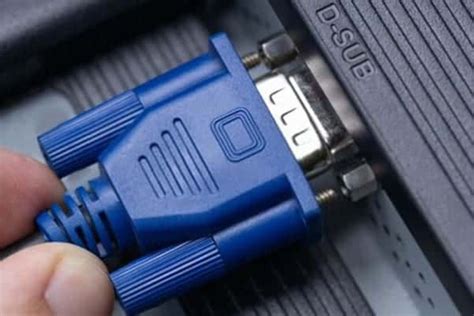

The VGA port, short for Video Graphics Array, is a standard interface used to connect a computer to a display device, such as a monitor or projector. Introduced by IBM in 1987, the VGA port has been a staple in the world of computing for decades. It is characterized by its distinctive 15-pin D-subminiature connector, which has become an iconic symbol of early computer graphics.

The VGA port supports analog video signals, which means it can transmit both color and monochrome information. This makes it versatile for a wide range of applications, from basic text displays to high-resolution graphics. However, it is important to note that the VGA port does not support digital signals, which limits its use in modern high-definition displays.

History and Evolution of the VGA Port

The VGA port was introduced as part of IBM's PS/2 line of personal computers. At the time, it represented a significant advancement in graphics technology, offering higher resolution and better color support compared to its predecessors. The VGA standard quickly became the de facto standard for computer displays, and it remained so for many years.

Over time, the VGA port has seen several iterations and improvements. The original VGA standard supported resolutions up to 640x480 pixels with 16 colors. Later enhancements, such as Super VGA (SVGA), extended this to higher resolutions and more colors, making it suitable for a broader range of applications.

Despite its longevity, the VGA port has faced competition from newer technologies. The advent of digital interfaces like DVI, HDMI, and DisplayPort has led to a decline in the use of VGA ports in modern systems. However, the VGA port remains relevant in certain contexts, particularly in legacy systems and educational settings.

How the VGA Port Works

The VGA port transmits analog video signals through its 15-pin connector. Each pin serves a specific function, such as carrying red, green, and blue color signals, horizontal and vertical sync signals, and ground connections. The analog nature of the VGA port allows it to support a wide range of resolutions and refresh rates, making it flexible for various display needs.

Here is a breakdown of the 15 pins and their functions:

Pin Number	Function
1	Red
2	Green
3	Blue
4	ID2 (Monitor ID bit 2)
5	Ground
6	Red Ground
7	Green Ground
8	Blue Ground
9	Key (for keying the connector)
10	Sync Ground
11	ID0 (Monitor ID bit 0)
12	ID1 (Monitor ID bit 1)
13	Horizontal Sync
14	Vertical Sync
15	ID3 (Monitor ID bit 3)

Understanding the pin configuration is essential for troubleshooting and ensuring proper connections. Each pin plays a crucial role in transmitting the video signal accurately.

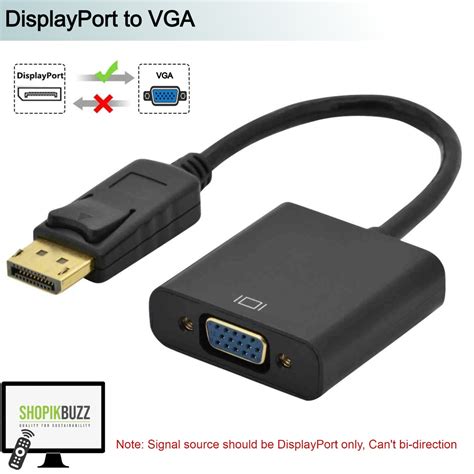

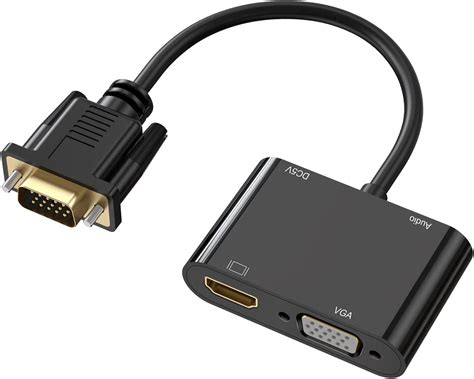

🔍 Note: While the VGA port is analog, it can still support digital signals through the use of adapters and converters. However, the quality of the digital signal may not be as high as that of native digital interfaces.

Advantages and Disadvantages of the VGA Port

The VGA port has several advantages that have contributed to its enduring popularity:

Compatibility: The VGA port is widely compatible with a vast array of display devices, making it a versatile choice for many users.
Flexibility: It supports a wide range of resolutions and refresh rates, allowing for flexibility in display settings.
Cost-Effective: VGA cables and adapters are generally inexpensive, making it a cost-effective solution for many users.
Legacy Support: Many older systems and devices still rely on VGA ports, making it essential for maintaining compatibility with legacy hardware.

However, the VGA port also has its drawbacks:

Analog Signal: The analog nature of the VGA port can result in lower image quality compared to digital interfaces, especially at higher resolutions.
Limited Bandwidth: The VGA port has limited bandwidth, which can result in signal degradation over long cable lengths.
Outdated Technology: With the advent of digital interfaces like HDMI and DisplayPort, the VGA port is increasingly seen as outdated and less capable of meeting modern display needs.

When to Use a VGA Port

Despite its limitations, the VGA port remains relevant in certain scenarios:

Legacy Systems: Older computers and displays that do not support digital interfaces may still rely on VGA ports.
Educational Settings: Schools and universities often use VGA ports for connecting projectors and other display devices in classrooms and lecture halls.
Cost Constraints: For users on a tight budget, VGA cables and adapters are a cost-effective solution for connecting displays.
Temporary Connections: In situations where a temporary display connection is needed, such as presentations or demonstrations, VGA ports can be a convenient option.

In these contexts, the VGA port continues to serve a valuable purpose, ensuring compatibility and flexibility for a wide range of users.

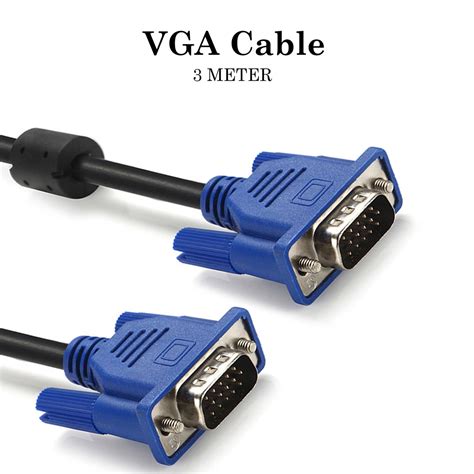

🔍 Note: When using a VGA port, it is important to ensure that the cable is of high quality to minimize signal degradation. Additionally, keeping the cable length as short as possible can help maintain signal integrity.

Alternatives to the VGA Port

As technology has advanced, several alternatives to the VGA port have emerged, offering improved performance and features. Some of the most popular alternatives include:

DVI (Digital Visual Interface): DVI supports both analog and digital signals, making it a versatile choice for connecting displays. It offers higher resolutions and better image quality compared to VGA.
HDMI (High-Definition Multimedia Interface): HDMI is a digital interface that supports high-definition video and audio signals. It is widely used in modern displays, including TVs, monitors, and projectors.
DisplayPort: DisplayPort is a digital interface that supports high resolutions and refresh rates. It is commonly used in high-end displays and graphics cards.
USB-C: USB-C is a versatile connector that supports video, audio, and data transfer. It is increasingly being used in modern laptops and displays.

Each of these alternatives offers unique advantages and is suited to different use cases. For users looking for the best image quality and performance, digital interfaces like HDMI and DisplayPort are generally the preferred choices.

Troubleshooting VGA Port Issues

While the VGA port is generally reliable, users may encounter issues from time to time. Here are some common problems and their solutions:

No Display: If the display is not showing any image, check the following:
- Ensure that the VGA cable is securely connected to both the computer and the display.
- Verify that the display is turned on and set to the correct input source.
- Check the computer's display settings to ensure that the correct resolution and refresh rate are selected.
Distorted Image: If the image appears distorted or fuzzy, try the following:
- Adjust the display settings on the computer to match the native resolution of the display.
- Ensure that the VGA cable is of high quality and not damaged.
- Keep the cable length as short as possible to minimize signal degradation.
Interference: If there is interference or noise in the image, consider the following:
- Move the VGA cable away from other cables and electronic devices to reduce interference.
- Use a shielded VGA cable to minimize electromagnetic interference.

By following these troubleshooting steps, users can often resolve common issues with the VGA port and ensure a stable and clear display.

🔍 Note: If troubleshooting steps do not resolve the issue, it may be necessary to test the VGA port and cable with a different display or computer to determine if the problem lies with the port, cable, or display device.

In conclusion, the VGA port has been a cornerstone of computer graphics for decades, offering a reliable and versatile solution for connecting displays. While newer technologies have emerged, the VGA port remains relevant in certain contexts, particularly for legacy systems and educational settings. Understanding the functionality, advantages, and limitations of the VGA port can help users make informed decisions about their display connections and troubleshoot common issues effectively. As technology continues to evolve, the VGA port may eventually become obsolete, but its legacy will endure as a testament to the early days of computer graphics.
