Electrical wiring is a critical component of any building's infrastructure, ensuring that power is safely and efficiently distributed throughout the structure. One of the most commonly used types of electrical wiring in residential and commercial settings is Romex wire. Understanding what is Romex wire, its types, applications, and safety considerations is essential for anyone involved in electrical work or home improvement projects.
What Is Romex Wire?
Romex wire, also known as Non-Metallic Sheathed Cable (NM or NMC), is a type of electrical cable used for residential and light commercial wiring. It consists of two or more insulated conductors enclosed in a non-metallic sheath, typically made of PVC (Polyvinyl Chloride). The term “Romex” is a trademarked name owned by Southwire Company, but it has become a generic term for this type of wiring in the United States and Canada.

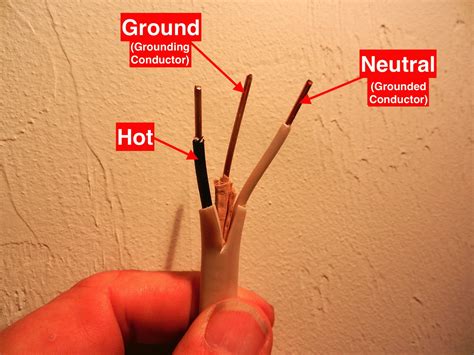

Components of Romex Wire
Romex wire is composed of several key components:
- Conductors: These are the individual wires that carry electrical current. They are usually made of copper or aluminum and are insulated with PVC.
- Ground Wire: A bare copper wire that provides a safe path for electrical current to flow to the ground in case of a short circuit or other electrical fault.
- Sheathing: The outer layer of the cable, made of PVC, which protects the conductors and ground wire from physical damage and environmental factors.
Types of Romex Wire
Romex wire comes in various types, each designed for specific applications and environments. The most common types include:
- Romex NM-B: This is the standard type used in most residential and light commercial applications. It is suitable for both exposed and concealed wiring.
- Romex NM-C: This type is designed for use in dry locations and is typically used in residential and commercial settings where the cable will not be exposed to moisture.
- Romex UF-B: This type is designed for underground and direct burial applications. It has a thicker PVC jacket and is suitable for use in wet locations.
- Romex AC: This type is designed for use in air conditioning and refrigeration applications. It has a thicker insulation and is suitable for use in high-temperature environments.
Applications of Romex Wire
Romex wire is versatile and can be used in a variety of applications, including:

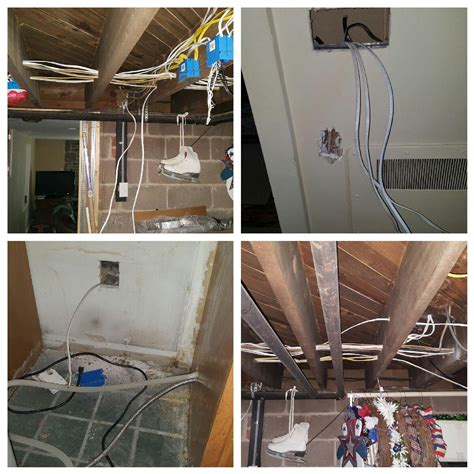

- Residential Wiring: Romex wire is commonly used in residential buildings for lighting, outlets, and appliance circuits.
- Commercial Wiring: It is also used in light commercial settings, such as offices and retail spaces, for similar applications.
- Renovation Projects: Romex wire is ideal for renovation projects where new wiring needs to be installed in existing structures.
- Outdoor Wiring: With the appropriate type, such as UF-B, Romex wire can be used for outdoor wiring applications, including landscaping and outdoor lighting.
Safety Considerations
When working with Romex wire, it is crucial to follow safety guidelines to prevent electrical hazards. Here are some important safety considerations:
- Proper Installation: Ensure that Romex wire is installed correctly, following local electrical codes and standards. This includes proper grounding and securing the cable to prevent damage.
- Avoid Overloading: Do not overload circuits by connecting too many devices to a single circuit. This can cause overheating and potential fires.
- Use Appropriate Gauge: Choose the correct gauge of Romex wire for the application. The gauge determines the wire’s current-carrying capacity and is crucial for safety.
- Protect from Physical Damage: Protect Romex wire from physical damage by using conduit or other protective measures, especially in areas where the cable may be exposed to impact or abrasion.
Gauge Sizes and Ampacity
Romex wire is available in various gauge sizes, each with a specific ampacity (current-carrying capacity). The most common gauge sizes and their corresponding ampacities are:
| Gauge Size | Ampacity (Amperes) |
|---|---|
| 14 AWG | 15 |
| 12 AWG | 20 |
| 10 AWG | 30 |
| 8 AWG | 40 |
| 6 AWG | 55 |
🔧 Note: Always refer to the National Electrical Code (NEC) for the most accurate and up-to-date information on gauge sizes and ampacities.

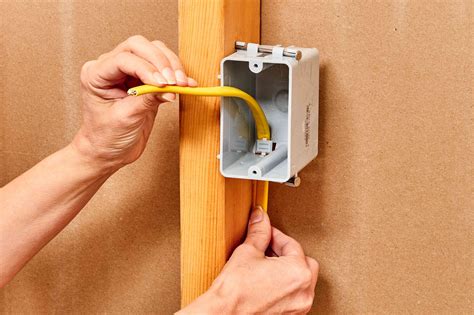

Installation Tips
Proper installation of Romex wire is essential for ensuring safety and reliability. Here are some tips for installing Romex wire:
- Plan the Route: Plan the route of the wire before installation to avoid obstacles and ensure a straight path.
- Use Cable Clamps: Use cable clamps to secure the wire to studs or joists, ensuring it is held firmly in place.
- Avoid Sharp Bends: Avoid sharp bends in the wire, as this can damage the insulation and conductors.
- Proper Termination: Ensure that the wire is properly terminated at outlets, switches, and other devices. Use wire nuts or other approved connectors to secure the connections.
🛠️ Note: Always turn off the power at the circuit breaker before working with electrical wiring to prevent electrical shock.
Common Mistakes to Avoid
When working with Romex wire, it is important to avoid common mistakes that can compromise safety and performance. Some of these mistakes include:
- Overloading Circuits: Connecting too many devices to a single circuit can cause overheating and potential fires.
- Improper Grounding: Failing to properly ground the wire can lead to electrical shocks and other hazards.
- Using the Wrong Gauge: Using a wire gauge that is too small for the application can cause overheating and potential fires.
- Exposing Wire to Physical Damage: Failing to protect the wire from physical damage can lead to insulation breakdown and electrical hazards.
⚠️ Note: Always follow local electrical codes and standards when installing Romex wire to ensure safety and compliance.
Maintenance and Inspection
Regular maintenance and inspection of Romex wire are essential for ensuring its longevity and safety. Here are some tips for maintaining and inspecting Romex wire:
- Visual Inspection: Regularly inspect the wire for signs of damage, such as cracks, cuts, or fraying.
- Check Connections: Ensure that all connections are secure and free of corrosion.
- Test for Continuity: Use a multimeter to test for continuity and ensure that the wire is functioning properly.
- Replace Damaged Wire: If any damage is detected, replace the damaged section of the wire immediately.
🔍 Note: Regular maintenance and inspection can help prevent electrical hazards and ensure the safe operation of electrical systems.
In summary, Romex wire is a versatile and widely used type of electrical wiring that plays a crucial role in residential and commercial electrical systems. Understanding what is Romex wire, its components, types, applications, and safety considerations is essential for anyone involved in electrical work or home improvement projects. By following proper installation techniques, avoiding common mistakes, and performing regular maintenance, you can ensure the safe and reliable operation of your electrical systems.
