Understanding fluid dynamics is crucial in various fields, from aerospace engineering to civil engineering. One of the fundamental concepts in this area is the Reynolds number. This dimensionless quantity helps predict flow patterns in different fluid flow situations. Whether you're designing an aircraft, a bridge, or a plumbing system, knowing what is Reynolds number and how to calculate it can provide valuable insights into the behavior of fluids.
What Is Reynolds Number?

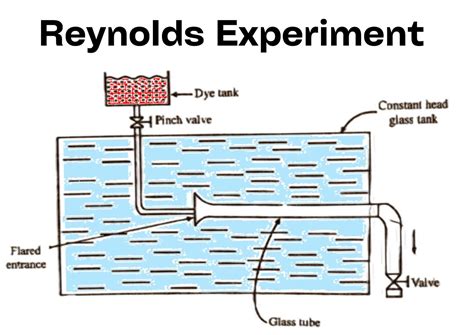

The Reynolds number is a dimensionless quantity that helps predict flow patterns in different fluid flow situations. It is named after Osborne Reynolds, a British engineer and physicist who introduced the concept in the late 19th century. The Reynolds number is used to determine whether a flow is laminar or turbulent. Laminar flow is smooth and orderly, while turbulent flow is chaotic and irregular.
Importance of Reynolds Number
The importance of the Reynolds number lies in its ability to predict the transition from laminar to turbulent flow. This transition is critical in many engineering applications, as it affects factors such as drag, heat transfer, and mixing. By understanding the Reynolds number, engineers can design systems that operate efficiently under different flow conditions.
How to Calculate Reynolds Number
The Reynolds number is calculated using the formula:
Re = ρvd/μ
Where:
- ρ is the density of the fluid (kg/m³)
- v is the velocity of the fluid (m/s)
- d is the characteristic linear dimension (m)
- μ is the dynamic viscosity of the fluid (Pa·s)
For example, if you are dealing with water flowing through a pipe, the characteristic linear dimension d would be the diameter of the pipe.
Factors Affecting Reynolds Number
Several factors influence the Reynolds number, including:
- Fluid Density: The density of the fluid affects the Reynolds number. Denser fluids have higher Reynolds numbers.
- Fluid Velocity: The velocity of the fluid is directly proportional to the Reynolds number. Faster-moving fluids have higher Reynolds numbers.
- Characteristic Linear Dimension: The size of the object or the diameter of the pipe affects the Reynolds number. Larger dimensions result in higher Reynolds numbers.
- Dynamic Viscosity: The viscosity of the fluid affects the Reynolds number. More viscous fluids have lower Reynolds numbers.
Applications of Reynolds Number
The Reynolds number has wide-ranging applications in various fields. Some of the key areas where it is used include:
- Aerospace Engineering: In the design of aircraft, the Reynolds number helps predict the behavior of air flowing over the wings and other surfaces.
- Civil Engineering: In the design of bridges and other structures, the Reynolds number helps understand the flow of water around piers and other components.
- Mechanical Engineering: In the design of pumps, turbines, and other fluid-handling equipment, the Reynolds number helps optimize performance.
- Chemical Engineering: In the design of reactors and other chemical processing equipment, the Reynolds number helps ensure efficient mixing and heat transfer.
Interpreting Reynolds Number
The Reynolds number provides valuable insights into the nature of fluid flow. Here are some general guidelines for interpreting the Reynolds number:
| Reynolds Number Range | Flow Type |
|---|---|
| Re < 2300 | Laminar Flow |
| 2300 < Re < 4000 | Transition Flow |
| Re > 4000 | Turbulent Flow |
It’s important to note that these ranges are approximate and can vary depending on the specific conditions of the flow.
💡 Note: The transition from laminar to turbulent flow can be influenced by factors such as surface roughness and the presence of obstacles.
Examples of Reynolds Number in Action
To better understand the concept of the Reynolds number, let’s look at a few examples:
Example 1: Water Flowing Through a Pipe
Consider water flowing through a pipe with a diameter of 0.1 meters at a velocity of 2 m/s. The density of water is approximately 1000 kg/m³, and its dynamic viscosity is 0.001 Pa·s. The Reynolds number can be calculated as follows:
Re = (1000 kg/m³ * 2 m/s * 0.1 m) / 0.001 Pa·s = 200,000
Since the Reynolds number is greater than 4000, the flow is turbulent.
Example 2: Air Flow Over an Aircraft Wing
Consider air flowing over an aircraft wing with a characteristic length of 1 meter at a velocity of 100 m/s. The density of air is approximately 1.225 kg/m³, and its dynamic viscosity is 1.8 x 10^-5 Pa·s. The Reynolds number can be calculated as follows:
Re = (1.225 kg/m³ * 100 m/s * 1 m) / 1.8 x 10^-5 Pa·s = 6.8 x 10^6
Since the Reynolds number is much greater than 4000, the flow is turbulent.
Example 3: Oil Flowing Through a Pipe
Consider oil flowing through a pipe with a diameter of 0.05 meters at a velocity of 0.5 m/s. The density of oil is approximately 850 kg/m³, and its dynamic viscosity is 0.1 Pa·s. The Reynolds number can be calculated as follows:
Re = (850 kg/m³ * 0.5 m/s * 0.05 m) / 0.1 Pa·s = 21.25
Since the Reynolds number is less than 2300, the flow is laminar.
💡 Note: The examples above illustrate how the Reynolds number can be used to predict the nature of fluid flow in different scenarios.
Challenges and Limitations
While the Reynolds number is a powerful tool, it has its limitations. One of the main challenges is that the transition from laminar to turbulent flow is not always sharp and can be influenced by various factors. Additionally, the Reynolds number does not account for all aspects of fluid flow, such as compressibility and non-Newtonian behavior.
Another limitation is that the Reynolds number is based on idealized conditions and may not always accurately predict real-world flow behavior. Factors such as surface roughness, temperature variations, and the presence of obstacles can all affect the flow and make it more complex than the Reynolds number alone can describe.
Despite these limitations, the Reynolds number remains a valuable tool for understanding and predicting fluid flow behavior. By using it in conjunction with other analytical and experimental methods, engineers can gain a more comprehensive understanding of fluid dynamics and design more efficient and effective systems.
In summary, the Reynolds number is a fundamental concept in fluid dynamics that helps predict flow patterns and transition points between laminar and turbulent flow. By understanding what is Reynolds number and how to calculate it, engineers can design systems that operate efficiently under different flow conditions. Whether you’re working in aerospace, civil, mechanical, or chemical engineering, the Reynolds number is a crucial tool for optimizing performance and ensuring reliability.
