What Is Program Counter

Understanding the fundamental components of a computer's architecture is crucial for anyone delving into the world of programming and computer science. One such component is the program counter (PC), a critical register in the central processing unit (CPU) that plays a pivotal role in the execution of instructions. This post will explore what is program counter, its functions, and its significance in the overall operation of a computer system.

Table of Contents

What Is Program Counter?

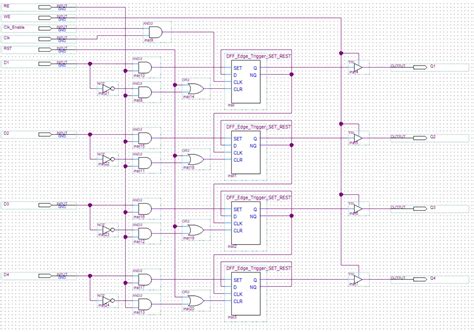

The program counter is a special-purpose register in the CPU that indicates the address of the next instruction to be executed. It is often referred to as the instruction pointer or instruction address register. The PC is essential for the sequential execution of instructions in a program, ensuring that the CPU knows which instruction to fetch and execute next.

Functions of the Program Counter

The primary function of the program counter is to keep track of the address of the next instruction to be fetched from memory. Here are some key functions of the PC:

Instruction Fetching: The PC holds the address of the next instruction to be fetched from memory. The CPU uses this address to retrieve the instruction and place it in the instruction register.
Sequential Execution: The PC increments automatically after each instruction fetch, allowing the CPU to execute instructions in a sequential manner.
Branch and Jump Operations: During branch and jump operations, the PC is updated with the target address of the branch or jump instruction, enabling the CPU to execute instructions out of sequence.
Loop Control: The PC is crucial for loop control, as it helps the CPU return to the beginning of a loop after completing a set of instructions.

How the Program Counter Works

The operation of the program counter can be understood through a simple example. Consider a program with the following instructions stored in memory:

Address	Instruction
0x00	LOAD R1, #10
0x01	ADD R2, R1, #5
0x02	STORE R2, [0x10]
0x03	JUMP 0x00

Initially, the PC is set to the starting address of the program, say 0x00. The CPU fetches the instruction at address 0x00, executes it, and then increments the PC to 0x01. This process continues until the CPU encounters the JUMP instruction at address 0x03, which sets the PC back to 0x00, creating a loop.

Importance of the Program Counter

The program counter is vital for the proper functioning of a computer system. Its importance can be highlighted through the following points:

Sequential Control: The PC ensures that instructions are executed in the correct order, maintaining the flow of the program.
Branch and Loop Control: The PC enables the CPU to handle branch and loop instructions, allowing for conditional execution and iterative processes.
Error Detection: The PC helps in detecting errors such as infinite loops or incorrect branch targets, aiding in debugging and program verification.
Performance Optimization: Efficient use of the PC can lead to performance optimizations, such as pipelining and branch prediction, which enhance the overall speed of instruction execution.

Program Counter in Different Architectures

The implementation of the program counter can vary across different CPU architectures. Here are some examples:

x86 Architecture: In x86 architecture, the program counter is known as the Instruction Pointer (IP) in 16-bit and 32-bit modes, and as the Instruction Pointer (RIP) in 64-bit mode. The IP/RIP register holds the offset of the next instruction to be executed.
ARM Architecture: In ARM architecture, the program counter is referred to as the Program Status Register (PSR). The PSR includes the PC field, which holds the address of the next instruction.
RISC-V Architecture: In RISC-V architecture, the program counter is simply called the PC. It is a 32-bit or 64-bit register that holds the address of the next instruction to be fetched.

💡 Note: The specific implementation and naming of the program counter can vary between different CPU architectures, but its fundamental role remains consistent across all systems.

Program Counter and Instruction Pipeline

In modern CPUs, the program counter plays a crucial role in the instruction pipeline, a technique used to enhance performance by overlapping the fetch, decode, execute, and write-back stages of instruction processing. Here’s how the PC fits into the pipeline:

Fetch Stage: The PC provides the address of the next instruction to be fetched from memory. The instruction is then loaded into the instruction register.
Decode Stage: The fetched instruction is decoded to determine the operation to be performed and the operands involved.
Execute Stage: The decoded instruction is executed using the appropriate execution unit.
Write-Back Stage: The result of the execution is written back to the register file or memory.

The PC is updated at the end of the fetch stage, ensuring that the next instruction is ready for the pipeline. This continuous flow allows the CPU to process multiple instructions simultaneously, improving overall performance.

Program Counter and Branch Prediction

Branch prediction is a technique used to improve the performance of modern CPUs by speculatively executing instructions along the predicted path of a branch. The program counter is integral to this process:

Branch Instruction: When the CPU encounters a branch instruction, it uses the PC to determine the target address of the branch.
Prediction: The CPU makes a prediction about whether the branch will be taken or not taken based on historical data.
Speculative Execution: The CPU speculatively executes instructions along the predicted path, updating the PC accordingly.
Verification: If the prediction is correct, the CPU continues execution along the predicted path. If the prediction is incorrect, the CPU discards the speculatively executed instructions and updates the PC to the correct target address.

Branch prediction helps in reducing the performance penalty associated with branch instructions, allowing the CPU to maintain a high instruction throughput.

💡 Note: Branch prediction is a complex process that involves sophisticated algorithms and hardware support. The effectiveness of branch prediction can significantly impact the overall performance of a CPU.

Program Counter and Interrupt Handling

Interrupts are signals that notify the CPU of an event that requires immediate attention, such as a hardware failure or a user input. The program counter plays a key role in interrupt handling:

Interrupt Occurrence: When an interrupt occurs, the CPU saves the current value of the PC to a stack or a special register.
Interrupt Service Routine (ISR): The CPU jumps to the interrupt service routine (ISR) associated with the interrupt, updating the PC to the address of the ISR.
ISR Execution: The ISR is executed to handle the interrupt event.
Return from Interrupt: After completing the ISR, the CPU restores the saved PC value and resumes execution of the interrupted program.

This process ensures that the CPU can handle interrupts efficiently without losing the context of the interrupted program.

💡 Note: Proper handling of interrupts is crucial for the stability and responsiveness of a computer system. The program counter is essential for maintaining the integrity of the interrupted program's execution flow.

Program Counter and Debugging

Debugging is the process of identifying and fixing errors in a program. The program counter is a valuable tool for debugging, as it provides insights into the program’s execution flow. Here’s how the PC aids in debugging:

Breakpoints: Debuggers use the PC to set breakpoints, which are specific points in the program where execution should pause. When the PC reaches a breakpoint, the debugger halts execution and allows the developer to inspect the program’s state.
Step-by-Step Execution: Debuggers can use the PC to execute instructions step-by-step, allowing developers to observe the program’s behavior in detail.
Call Stack: The PC helps in constructing the call stack, which shows the sequence of function calls leading to the current point of execution. This is useful for understanding the program’s control flow and identifying the source of errors.

By providing a clear view of the program’s execution, the PC enables developers to diagnose and fix issues more effectively.

💡 Note: Effective use of the program counter in debugging can significantly reduce the time and effort required to identify and fix errors in a program.

In conclusion, the program counter is a fundamental component of a computer’s architecture, playing a crucial role in the execution of instructions. Its functions, including instruction fetching, sequential execution, and branch control, are essential for the proper operation of a CPU. Understanding the program counter and its significance can provide valuable insights into the inner workings of a computer system, aiding in both programming and debugging efforts.
