What Is Physical Volume

Understanding the fundamentals of storage management is crucial for anyone working with Linux systems. One of the key concepts in this area is the physical volume. A physical volume is a fundamental building block in the Logical Volume Manager (LVM) system, which provides a flexible and powerful way to manage disk storage. This post will delve into what a physical volume is, how it works, and why it is essential for efficient storage management.

What Is Physical Volume?

A physical volume (PV) is a basic storage unit in the LVM system. It represents a physical disk or a partition that has been initialized for use with LVM. Physical volumes can be created on various types of storage devices, including hard drives, SSDs, and even RAID arrays. The primary purpose of a physical volume is to provide a flexible and scalable storage solution that can be easily managed and expanded.

Understanding Logical Volume Manager (LVM)

Before diving deeper into physical volumes, it's important to understand the broader context of LVM. LVM is a powerful disk management tool that allows administrators to manage disk space more efficiently. It provides several key features:

• Flexibility: LVM allows you to resize logical volumes and file systems without downtime.
• Scalability: You can easily add more storage to your system by adding new physical volumes.
• Snapshots: LVM supports snapshots, which are point-in-time copies of your data. This is useful for backups and testing.
• Data Migration: LVM enables you to move data from one physical volume to another without disrupting services.

LVM consists of three main components:

• Physical Volumes (PVs): The basic storage units.
• Volume Groups (VGs): Collections of physical volumes.
• Logical Volumes (LVs): Virtual partitions created from volume groups.

Creating a Physical Volume

Creating a physical volume is the first step in setting up LVM. Here are the steps to create a physical volume:

1. Identify the Disk or Partition: Determine which disk or partition you want to use as a physical volume. You can use tools like lsblk or fdisk to list available disks and partitions.
2. Initialize the Physical Volume: Use the pvcreate command to initialize the disk or partition as a physical volume. For example, to initialize /dev/sdb1, you would run:

sudo pvcreate /dev/sdb1

This command will prepare the disk or partition for use with LVM by writing the necessary metadata.

Managing Physical Volumes

Once you have created a physical volume, you can manage it using various LVM commands. Here are some common tasks:

Displaying Physical Volume Information

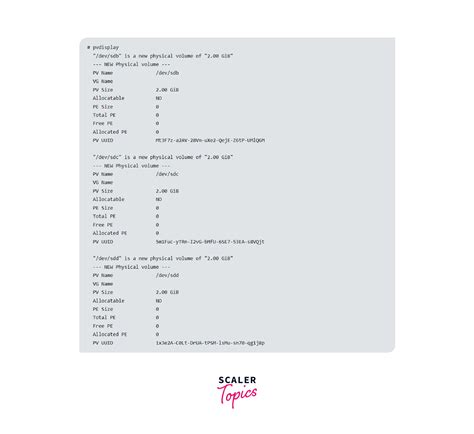

To display information about a physical volume, use the pvdisplay command. For example:

sudo pvdisplay /dev/sdb1

This command will show details such as the physical volume name, size, and the volume group it belongs to.

Removing a Physical Volume

If you need to remove a physical volume, you can use the pvremove command. For example:

sudo pvremove /dev/sdb1

This command will remove the physical volume metadata from the disk or partition, making it available for other uses.

📝 Note: Be cautious when removing physical volumes, as this action will delete all data on the volume.

Resizing a Physical Volume

Resizing a physical volume is not a common task, as physical volumes are typically fixed in size. However, you can resize the underlying disk or partition and then update the physical volume metadata. For example, if you have extended a partition, you can use the pvresize command to update the physical volume:

sudo pvresize /dev/sdb1

This command will resize the physical volume to match the new size of the underlying partition.

Physical Volumes in Volume Groups

Physical volumes are combined into volume groups, which are logical containers for storage. A volume group can contain one or more physical volumes, and it provides a pool of storage that can be allocated to logical volumes. Here’s how physical volumes fit into the broader LVM structure:

To create a volume group, you can use the vgcreate command. For example, to create a volume group named myvg from the physical volume /dev/sdb1, you would run:

sudo vgcreate myvg /dev/sdb1

Once the volume group is created, you can add more physical volumes to it using the vgextend command. For example:

sudo vgextend myvg /dev/sdc1

This command will add the physical volume /dev/sdc1 to the volume group myvg, increasing the available storage pool.

Benefits of Using Physical Volumes

Using physical volumes in LVM offers several benefits:

• Flexibility: Physical volumes can be easily added or removed from volume groups, allowing for dynamic storage management.
• Scalability: You can scale your storage by adding more physical volumes to a volume group without disrupting services.
• Efficiency: LVM allows for efficient use of disk space by allocating storage only as needed.
• Data Protection: LVM supports features like snapshots and mirroring, which can enhance data protection and availability.

Best Practices for Managing Physical Volumes

To ensure optimal performance and reliability, follow these best practices when managing physical volumes:

• Plan Your Storage: Carefully plan your storage requirements and allocate physical volumes accordingly.
• Monitor Usage: Regularly monitor the usage of your physical volumes and volume groups to ensure you have sufficient storage.
• Backup Data: Always backup important data before making changes to physical volumes or volume groups.
• Document Changes: Keep detailed documentation of all changes made to physical volumes and volume groups.

By following these best practices, you can effectively manage your physical volumes and ensure the reliability and performance of your storage system.

Physical volumes are a cornerstone of the LVM system, providing the foundation for flexible and scalable storage management. Understanding what a physical volume is and how to manage it is essential for anyone working with Linux systems. By leveraging the power of LVM, you can optimize your storage infrastructure, enhance data protection, and ensure efficient use of resources.
