Understanding pressure measurements is crucial in various fields, from engineering and manufacturing to meteorology and medicine. One of the key concepts in this realm is what is gauge pressure. Gauge pressure is a fundamental measurement that helps us understand the pressure relative to atmospheric pressure. This blog post will delve into the intricacies of gauge pressure, its applications, and how it differs from other types of pressure measurements.
Understanding Pressure Measurements
Before diving into what is gauge pressure, it’s essential to grasp the basics of pressure measurements. Pressure is defined as the force applied perpendicular to the surface of an object per unit area over which that force is distributed. It is typically measured in units such as pascals (Pa), pounds per square inch (psi), or bars.
There are several types of pressure measurements, each serving different purposes:
- Absolute Pressure: This is the pressure measured relative to a perfect vacuum. It includes atmospheric pressure and any additional pressure applied.
- Gauge Pressure: This is the pressure measured relative to atmospheric pressure. It is the focus of this post.
- Differential Pressure: This is the difference in pressure between two points.
- Atmospheric Pressure: This is the pressure exerted by the Earth's atmosphere at a given point. It is often used as a reference point for other pressure measurements.
What Is Gauge Pressure?
Gauge pressure is the pressure relative to the ambient atmospheric pressure. It is the pressure you would read on a gauge, such as a tire pressure gauge or a pressure gauge on a boiler. This type of pressure is particularly useful in applications where the atmospheric pressure is not a significant factor.
For example, when you check the pressure in your car tires, you are measuring the gauge pressure. The tire pressure gauge reads the pressure inside the tire relative to the outside atmospheric pressure. This is why tire pressure is typically specified in psi (pounds per square inch) gauge pressure.
How Gauge Pressure Is Measured
Gauge pressure is measured using various instruments, depending on the application. Some common devices include:

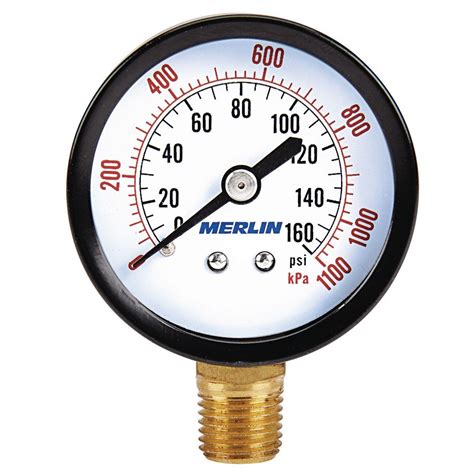

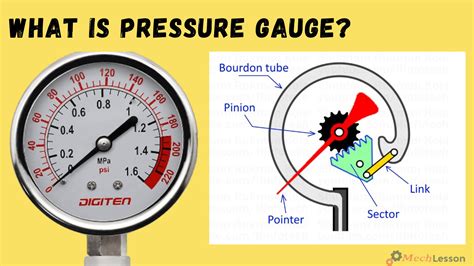

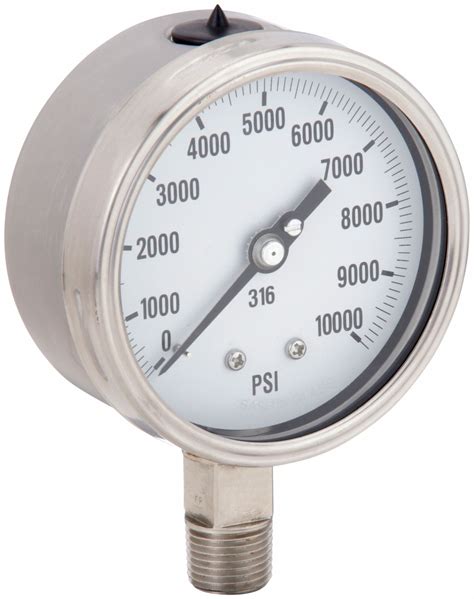

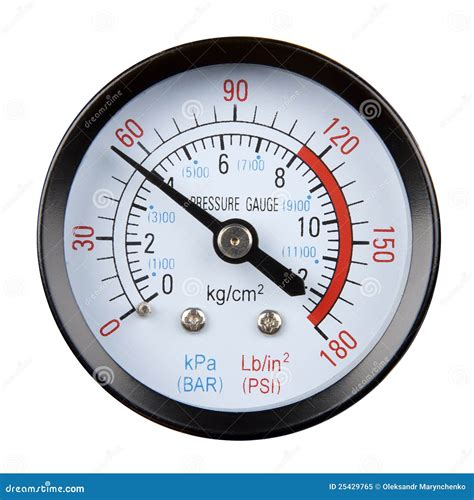

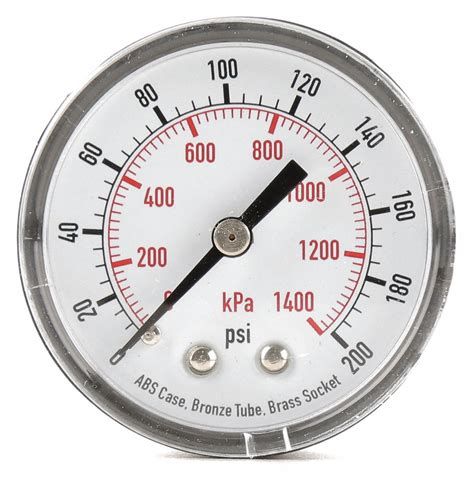

- Bourdon Tube Gauges: These are mechanical devices that use a curved tube to measure pressure. The tube straightens as pressure increases, moving a pointer on a dial.
- Diaphragm Gauges: These use a flexible diaphragm that deflects under pressure, moving a pointer or activating an electrical signal.
- Electronic Pressure Transducers: These convert pressure into an electrical signal, which can be read by a digital display or transmitted to a control system.
Each of these devices has its advantages and is chosen based on the specific requirements of the application, such as the range of pressures to be measured, the accuracy needed, and the environmental conditions.
Applications of Gauge Pressure
Gauge pressure is used in a wide range of applications across various industries. Some of the most common uses include:
- Automotive Industry: Tire pressure, fuel system pressure, and brake system pressure are all measured using gauge pressure.
- Manufacturing: In processes like injection molding, extrusion, and hydraulic systems, gauge pressure is used to monitor and control the pressure of fluids.
- HVAC Systems: In heating, ventilation, and air conditioning systems, gauge pressure is used to measure the pressure of refrigerants and other gases.
- Medical Devices: Blood pressure monitors and other medical devices use gauge pressure to measure the pressure within the body.
Gauge Pressure vs. Absolute Pressure
Understanding the difference between gauge pressure and absolute pressure is crucial for accurate measurements and calculations. Absolute pressure includes atmospheric pressure, while gauge pressure does not. This distinction is important in applications where the atmospheric pressure can vary significantly, such as in high-altitude environments or underwater.
For example, if you are measuring the pressure in a sealed container at sea level, the absolute pressure would be the sum of the gauge pressure and the atmospheric pressure. At sea level, atmospheric pressure is approximately 14.7 psi. If the gauge pressure in the container is 50 psi, the absolute pressure would be 64.7 psi.
Conversely, if you are measuring the pressure in the same container at a high altitude where the atmospheric pressure is lower, the absolute pressure would be different even if the gauge pressure remains the same.
Here is a simple table to illustrate the relationship between gauge pressure, absolute pressure, and atmospheric pressure:
| Gauge Pressure (psi) | Atmospheric Pressure (psi) | Absolute Pressure (psi) |
|---|---|---|
| 0 | 14.7 | 14.7 |
| 50 | 14.7 | 64.7 |
| 100 | 14.7 | 114.7 |
💡 Note: The atmospheric pressure can vary with altitude and weather conditions, so it's important to consider these factors when converting between gauge pressure and absolute pressure.
Importance of Accurate Gauge Pressure Measurements
Accurate gauge pressure measurements are critical in many applications to ensure safety, efficiency, and performance. For example, in the automotive industry, maintaining the correct tire pressure is essential for fuel efficiency, handling, and safety. In manufacturing, accurate pressure control is necessary for consistent product quality and process efficiency.
Inaccurate gauge pressure measurements can lead to various issues, including:
- Equipment failure due to overpressure or underpressure.
- Reduced efficiency and increased energy consumption.
- Safety hazards, such as explosions or leaks.
- Poor product quality and increased waste.
To ensure accurate gauge pressure measurements, it's important to:
- Use calibrated and well-maintained pressure gauges.
- Consider the environmental conditions and adjust for any variations in atmospheric pressure.
- Regularly inspect and replace pressure gauges as needed.
- Train personnel on proper measurement techniques and safety procedures.
Calculating Gauge Pressure
Calculating gauge pressure involves understanding the relationship between gauge pressure, absolute pressure, and atmospheric pressure. The formula for converting between these pressures is:
Absolute Pressure = Gauge Pressure + Atmospheric Pressure
For example, if you know the absolute pressure and the atmospheric pressure, you can calculate the gauge pressure as follows:
Gauge Pressure = Absolute Pressure - Atmospheric Pressure
Here is an example to illustrate the calculation:
If the absolute pressure in a system is 80 psi and the atmospheric pressure is 14.7 psi, the gauge pressure would be:
Gauge Pressure = 80 psi - 14.7 psi = 65.3 psi
Conversely, if you know the gauge pressure and the atmospheric pressure, you can calculate the absolute pressure:
Absolute Pressure = 65.3 psi + 14.7 psi = 80 psi
These calculations are essential for ensuring accurate pressure measurements and maintaining the safety and efficiency of various systems.
💡 Note: Always double-check your calculations and consider the environmental conditions when converting between gauge pressure and absolute pressure.
Conclusion
Understanding what is gauge pressure is fundamental for anyone working with pressure measurements. Gauge pressure provides a relative measure of pressure that is essential in various applications, from automotive and manufacturing to medical devices. By accurately measuring and calculating gauge pressure, you can ensure the safety, efficiency, and performance of your systems. Whether you are checking tire pressure, monitoring a manufacturing process, or designing a medical device, a solid grasp of gauge pressure is crucial for success.
