What Is Delta V

Understanding the concept of What Is Delta V is crucial for anyone involved in aerospace engineering, astrophysics, or even space enthusiasts. Delta V, often denoted as Δv, is a measure of the impulse per unit of mass that is needed to perform a maneuver such as launching from, or landing on a planet or moon, or an in-space orbital maneuver. It is a fundamental concept in astrodynamics and mission planning, providing a quantitative measure of the effort required to change the velocity of a spacecraft.

Table of Contents

Understanding Delta V

Delta V is essentially the change in velocity that a spacecraft must achieve to perform a specific maneuver. It is calculated by integrating the magnitude of the acceleration produced by the spacecraft's engines over time. The total Delta V required for a mission is the sum of all the individual Delta V maneuvers needed to complete the mission.

For example, launching a spacecraft from Earth's surface to low Earth orbit (LEO) requires a significant Delta V to overcome Earth's gravity and atmospheric drag. Similarly, transferring from LEO to a higher orbit, such as geostationary orbit (GEO), or escaping Earth's gravity entirely to travel to another planet, each require specific Delta V values.

Calculating Delta V

The calculation of Delta V involves several factors, including the mass of the spacecraft, the thrust of the engines, and the duration of the burn. The basic formula for Delta V is:

Δv = v_f - v_i

Where:

v_f is the final velocity
v_i is the initial velocity

However, in practice, the calculation is more complex and often involves the rocket equation, which takes into account the mass of the propellant and the specific impulse (I_sp) of the engines. The rocket equation is given by:

Δv = v_e * ln(m₀/m_f)

Where:

v_e is the effective exhaust velocity
m₀ is the initial mass of the spacecraft
m_f is the final mass of the spacecraft

This equation shows that to achieve a higher Delta V, a spacecraft needs either a higher exhaust velocity or a larger mass ratio (the ratio of the initial mass to the final mass).

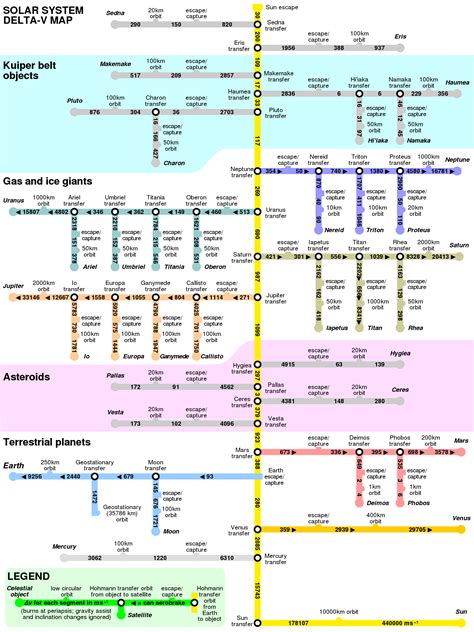

Delta V Requirements for Different Maneuvers

Different space missions require different Delta V values depending on the maneuvers involved. Here are some common maneuvers and their typical Delta V requirements:

Maneuver	Delta V (km/s)
Launch to LEO	9.4
LEO to GEO	4.2
Escape Earth's Gravity	11.2
Mars Transfer	6.0
Lunar Transfer	3.1

These values are approximate and can vary based on the specific trajectory and mission profile. For example, a Hohmann transfer orbit, which is an elliptical orbit used to transfer between two circular orbits in the same plane, requires a specific Delta V to enter and exit the transfer orbit.

Optimizing Delta V

Optimizing Delta V is a critical aspect of mission planning. Engineers use various techniques to minimize the Delta V required for a mission, thereby reducing the amount of propellant needed and increasing the payload capacity. Some common techniques include:

Gravitational Assists: Using the gravity of planets or moons to change the velocity of a spacecraft without using propellant. This technique, also known as a slingshot maneuver, can significantly reduce the Delta V required for interplanetary missions.
Low-Thrust Trajectories: Using low-thrust engines, such as ion drives, to gradually change the velocity of a spacecraft over a long period. This approach can be more fuel-efficient than high-thrust maneuvers but requires more time.
Optimized Trajectories: Designing trajectories that minimize the Delta V required for maneuvers. This can involve complex calculations and simulations to find the most efficient path.

For example, the Cassini-Huygens mission to Saturn used multiple gravitational assists from Venus, Earth, and Jupiter to reach its destination with a lower Delta V requirement. Similarly, the Dawn mission to the asteroid belt used ion propulsion to achieve its objectives with a minimal amount of propellant.

💡 Note: Optimizing Delta V often involves trade-offs between mission duration, propellant usage, and payload capacity. Engineers must carefully balance these factors to achieve the mission objectives.

Delta V and Propellant Mass Fraction

The propellant mass fraction is the ratio of the propellant mass to the initial mass of the spacecraft. It is a critical parameter in determining the Delta V that a spacecraft can achieve. The relationship between Delta V and the propellant mass fraction is given by the rocket equation:

Δv = v_e * ln(1/(1 - m_p/m₀))

Where:

m_p is the propellant mass
m₀ is the initial mass of the spacecraft

This equation shows that to achieve a higher Delta V, a spacecraft needs a higher propellant mass fraction. However, increasing the propellant mass fraction also increases the overall mass of the spacecraft, which can make it more difficult and expensive to launch.

For example, a spacecraft with a propellant mass fraction of 0.9 (90% propellant by mass) and an effective exhaust velocity of 3,000 m/s can achieve a Delta V of approximately 6.9 km/s. In contrast, a spacecraft with a propellant mass fraction of 0.5 (50% propellant by mass) and the same effective exhaust velocity can only achieve a Delta V of approximately 1.8 km/s.

💡 Note: The propellant mass fraction is a key design parameter for spacecraft. Engineers must carefully balance the need for high Delta V with the constraints of launch vehicle capacity and mission requirements.

Delta V and Mission Planning

Understanding What Is Delta V is essential for mission planning. Mission planners use Delta V to determine the trajectory, propulsion requirements, and overall feasibility of a mission. They must consider factors such as the launch window, the target destination, and the available propulsion systems.

For example, a mission to Mars must consider the launch window, which occurs approximately every 26 months when Earth and Mars are in the correct alignment. The Delta V required for the transfer orbit, as well as the entry, descent, and landing (EDL) phase, must be carefully calculated to ensure a successful mission.

Similarly, a mission to the Moon must consider the Delta V required for the lunar transfer orbit, as well as the Delta V required for the lunar orbit insertion and landing. Mission planners must also consider the Delta V required for the return trip to Earth, if applicable.

In addition to the Delta V required for the primary mission objectives, mission planners must also consider the Delta V required for contingency maneuvers, such as aborts or trajectory corrections. These maneuvers can significantly impact the overall Delta V budget and must be carefully planned.

💡 Note: Mission planning is a complex process that involves many factors, including Delta V. Engineers must carefully balance these factors to achieve the mission objectives while minimizing risks and costs.

Delta V and Future Space Missions

As space exploration continues to advance, the concept of Delta V will remain a critical factor in mission planning. Future missions to the Moon, Mars, and beyond will require innovative approaches to optimize Delta V and minimize propellant usage.

For example, the Artemis program aims to return humans to the Moon and establish a sustainable presence there. This will require careful planning of Delta V for lunar transfer, orbit insertion, and landing, as well as the return trip to Earth. The use of in-situ resource utilization (ISRU), where resources on the Moon are used to produce propellant, could significantly reduce the Delta V required for future missions.

Similarly, missions to Mars will require innovative approaches to optimize Delta V. The use of aerocapture, where a spacecraft uses the atmosphere of Mars to slow down and enter orbit, could reduce the Delta V required for orbit insertion. The use of nuclear propulsion, which provides a higher specific impulse than chemical propulsion, could also reduce the Delta V required for interplanetary travel.

In addition to these technological advancements, future missions will also benefit from improved mission planning and optimization techniques. The use of advanced simulations and optimization algorithms can help mission planners find the most efficient trajectories and minimize the Delta V required for maneuvers.

💡 Note: Future space missions will require innovative approaches to optimize Delta V and minimize propellant usage. Advances in technology and mission planning will play a crucial role in achieving these goals.

Delta V is a fundamental concept in astrodynamics and mission planning. It provides a quantitative measure of the effort required to change the velocity of a spacecraft and is essential for understanding the propulsion requirements and feasibility of space missions. By optimizing Delta V, engineers can minimize propellant usage, reduce costs, and increase the payload capacity of spacecraft. As space exploration continues to advance, the concept of Delta V will remain a critical factor in mission planning and the success of future space missions.
