Understanding the intricacies of vehicle dynamics is crucial for anyone interested in automotive performance and safety. One of the key concepts in this field is the caster angle. This angle plays a significant role in how a vehicle handles and steers, affecting both stability and control. In this post, we will delve into what is caster angle, its importance, how it is measured, and its impact on vehicle performance.
What Is Caster Angle?

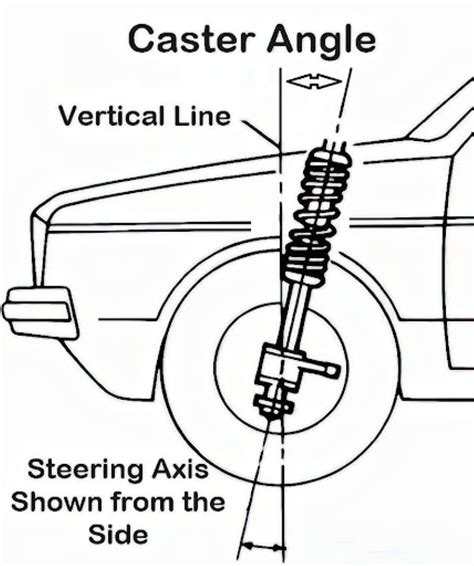

The caster angle is the angle between the steering pivot (the point around which the wheel rotates) and a vertical line when viewed from the side of the vehicle. It is a critical geometric parameter that influences the steering characteristics and stability of a vehicle. The caster angle can be positive, negative, or zero, each having different effects on the vehicle's behavior.
Importance of Caster Angle
The caster angle is vital for several reasons:
- Steering Stability: A positive caster angle helps in maintaining straight-line stability. It ensures that the wheels return to their original position after a turn, reducing the effort required to keep the vehicle on course.
- Self-Centering: Positive caster angle aids in the self-centering of the steering wheel, making it easier for the driver to maintain control, especially at high speeds.
- Cornering Performance: The caster angle affects how the vehicle handles corners. A well-adjusted caster angle can improve cornering stability and responsiveness.
- Tire Wear: Proper caster angle settings can reduce uneven tire wear, extending the lifespan of the tires and improving overall vehicle performance.
Measuring Caster Angle
Measuring the caster angle requires specialized equipment and a thorough understanding of vehicle geometry. Here are the steps involved in measuring the caster angle:
- Prepare the Vehicle: Ensure the vehicle is on a level surface and the tires are properly inflated. The vehicle should be in a neutral position with the steering wheel centered.
- Use a Caster Gauge: A caster gauge is a tool designed to measure the caster angle. Place the gauge on the wheel and align it with the steering pivot.
- Read the Angle: The gauge will display the caster angle. Ensure the reading is accurate by checking it from both sides of the vehicle.
- Adjust if Necessary: If the caster angle is not within the manufacturer's specifications, adjustments may be needed. This typically involves modifying the suspension components.
🔧 Note: Always refer to the vehicle's manual for the recommended caster angle settings. Incorrect adjustments can lead to handling issues and safety concerns.
Impact of Caster Angle on Vehicle Performance
The caster angle significantly impacts various aspects of vehicle performance. Understanding these impacts can help in optimizing the vehicle's handling characteristics.
Positive Caster Angle
A positive caster angle means the steering pivot is tilted backward from the vertical line. This configuration provides several benefits:
- Improved Stability: Positive caster angle enhances straight-line stability, making the vehicle feel more planted on the road.
- Reduced Steering Effort: It reduces the effort required to keep the vehicle on course, especially at high speeds.
- Better Self-Centering: The steering wheel returns to the center position more easily after a turn, improving control.
Negative Caster Angle
A negative caster angle means the steering pivot is tilted forward from the vertical line. This configuration is less common but can be beneficial in certain situations:
- Increased Steering Sensitivity: Negative caster angle can make the steering more responsive, which is useful in off-road or rally conditions.
- Reduced Stability: However, it can also reduce straight-line stability, making the vehicle feel less secure at high speeds.
Zero Caster Angle
A zero caster angle means the steering pivot is perfectly vertical. This configuration is rare and generally not recommended for most vehicles:
- Neutral Handling: Zero caster angle provides neutral handling characteristics, neither enhancing nor reducing stability.
- Increased Steering Effort: It can increase the effort required to keep the vehicle on course, making it less suitable for high-speed driving.
Adjusting Caster Angle
Adjusting the caster angle involves modifying the suspension components to achieve the desired angle. This process requires specialized tools and knowledge. Here are the general steps involved:
- Lift the Vehicle: Use a lift or jack to raise the vehicle and ensure it is securely supported.
- Locate the Adjustment Points: Identify the points on the suspension where the caster angle can be adjusted. This may involve adjusting the strut or control arm.
- Make the Adjustment: Use the appropriate tools to adjust the caster angle. This may involve turning bolts or using shims.
- Measure the Angle: After making the adjustment, use a caster gauge to measure the new angle and ensure it is within the recommended range.
- Test Drive: Conduct a test drive to evaluate the handling characteristics and make any necessary fine-tuning.
🛠️ Note: Adjusting the caster angle can be complex and should be done by a professional mechanic or someone with extensive automotive knowledge. Incorrect adjustments can lead to handling issues and safety concerns.
Common Issues Related to Caster Angle
Several issues can arise if the caster angle is not properly set. Recognizing these problems can help in diagnosing and correcting the underlying causes.
- Uneven Tire Wear: Incorrect caster angle can cause uneven tire wear, leading to reduced tire lifespan and potential safety issues.
- Steering Pull: The vehicle may pull to one side while driving, indicating an imbalance in the caster angle settings.
- Difficulty in Steering: The steering wheel may feel heavy or unresponsive, making it difficult to control the vehicle.
- Vibration: Excessive vibration in the steering wheel or seat can be a sign of improper caster angle settings.
Caster Angle vs. Camber and Toe
While the caster angle is crucial, it is not the only geometric parameter affecting vehicle handling. Camber and toe are two other important angles that work in conjunction with the caster angle to influence vehicle performance.
Camber Angle
The camber angle is the angle between the vertical axis of the wheels and the vertical axis of the vehicle when viewed from the front. It affects how the tires make contact with the road:
- Positive Camber: The top of the tire is tilted outward from the vehicle.
- Negative Camber: The top of the tire is tilted inward toward the vehicle.
- Zero Camber: The tire is perfectly vertical.
Toe Angle
The toe angle is the angle between the longitudinal axis of the vehicle and the line of the tires when viewed from above. It affects the direction in which the tires point:
- Toe-In: The front of the tires points inward toward the centerline of the vehicle.
- Toe-Out: The front of the tires points outward away from the centerline of the vehicle.
- Zero Toe: The tires are perfectly parallel to the longitudinal axis of the vehicle.
Understanding the relationship between caster, camber, and toe angles is essential for optimizing vehicle handling and performance. Each angle plays a unique role in how the vehicle responds to steering inputs and road conditions.
Caster Angle Settings for Different Vehicles
The optimal caster angle settings can vary depending on the type of vehicle and its intended use. Here are some general guidelines for different vehicle types:
| Vehicle Type | Recommended Caster Angle |
|---|---|
| Passenger Cars | 3-5 degrees positive |
| SUVs and Trucks | 4-6 degrees positive |
| Sports Cars | 5-7 degrees positive |
| Racing Cars | 7-9 degrees positive |
These are general recommendations, and the actual settings may vary based on the specific make and model of the vehicle. Always refer to the manufacturer's specifications for the most accurate information.
📏 Note: Regularly checking and adjusting the caster angle can help maintain optimal vehicle performance and safety. It is an essential part of routine vehicle maintenance.
In conclusion, understanding what is caster angle and its impact on vehicle performance is crucial for anyone interested in automotive dynamics. The caster angle plays a significant role in steering stability, self-centering, cornering performance, and tire wear. Proper measurement and adjustment of the caster angle can enhance vehicle handling and safety, making it an essential aspect of vehicle maintenance and tuning. By recognizing the signs of improper caster angle settings and addressing them promptly, vehicle owners can ensure their vehicles perform at their best, providing a safe and enjoyable driving experience.
