In the dynamic world of energy management, understanding the intricacies of what is ancillary services is crucial for maintaining the stability and reliability of the power grid. Ancillary services play a pivotal role in ensuring that the supply of electricity meets the demand at all times, providing the necessary support to keep the grid balanced and efficient. This blog post delves into the fundamentals of ancillary services, their importance, types, and how they contribute to the overall functioning of the power system.
Understanding Ancillary Services
Ancillary services refer to the additional services required to support the transmission of electric power from seller to purchaser while maintaining reliable operation of the transmission system. These services are essential for maintaining the quality and reliability of the power supply. They ensure that the grid can handle fluctuations in demand and supply, prevent blackouts, and maintain the frequency and voltage within acceptable limits.
Importance of Ancillary Services
Ancillary services are vital for several reasons:
- Grid Stability: They help maintain the balance between supply and demand, ensuring that the grid remains stable.
- Reliability: By providing quick responses to changes in load or generation, ancillary services enhance the reliability of the power system.
- Quality of Power: They ensure that the voltage and frequency of the power supply remain within acceptable limits, which is crucial for the proper functioning of electrical equipment.
- Efficiency: Ancillary services optimize the use of resources, reducing waste and improving the overall efficiency of the power system.
Types of Ancillary Services
Ancillary services can be categorized into several types, each serving a specific purpose in maintaining grid stability and reliability. The main types include:

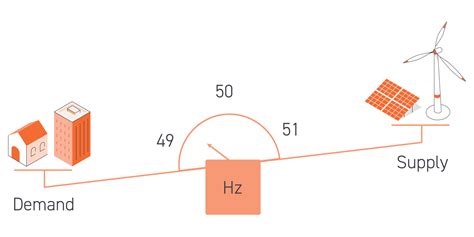

Frequency Regulation
Frequency regulation involves adjusting the output of generators to match the real-time demand for electricity. This service is crucial for maintaining the system frequency within a narrow band around the nominal value (typically 60 Hz in the United States and 50 Hz in many other countries). Frequency regulation services are provided by generators that can quickly ramp up or down their output in response to changes in demand.
Synchronized Reserve
Synchronized reserve, also known as spinning reserve, refers to the generation capacity that is already synchronized with the grid and can be called upon to increase output within a short period. This type of reserve is essential for handling sudden increases in demand or the loss of a generating unit. Synchronized reserve ensures that the grid can quickly respond to unexpected events, maintaining stability and reliability.
Operating Reserve
Operating reserve includes both spinning and non-spinning reserves. Spinning reserve, as mentioned earlier, is the generation capacity that is already synchronized with the grid. Non-spinning reserve, on the other hand, is the generation capacity that can be brought online within a short period but is not currently synchronized with the grid. Operating reserve is crucial for handling both short-term and long-term fluctuations in demand and supply.
Voltage Support
Voltage support services help maintain the voltage levels within acceptable limits across the grid. This is achieved through the use of reactive power, which is the imaginary component of complex power. Reactive power is essential for maintaining the voltage levels and ensuring the proper functioning of electrical equipment. Voltage support services are provided by generators, capacitors, and other devices that can inject or absorb reactive power as needed.
Black Start Capability
Black start capability refers to the ability of a generating unit to start up without relying on the external power supply. This service is crucial for restoring power to the grid after a blackout. Generators with black start capability can be used to initiate the restart process, gradually bringing other generating units and the grid back online.
Ramp Rate Control
Ramp rate control involves managing the rate at which the output of a generating unit can be increased or decreased. This service is essential for handling rapid changes in demand or supply, ensuring that the grid can respond quickly to fluctuations without compromising stability. Ramp rate control is particularly important for renewable energy sources, such as wind and solar, which can experience sudden changes in output due to weather conditions.
Market Structures for Ancillary Services
Ancillary services are typically procured through competitive markets, where generators and other service providers bid to supply these services. The market structures for ancillary services can vary depending on the region and regulatory framework. Some common market structures include:
- Day-Ahead Market: In this market, ancillary services are procured through a day-ahead auction, where generators and service providers submit bids for the following day. The market operator then selects the most cost-effective bids to meet the anticipated demand for ancillary services.
- Real-Time Market: The real-time market operates in real-time, allowing generators and service providers to adjust their bids based on actual demand and supply conditions. This market is crucial for handling unexpected events and ensuring that the grid remains stable and reliable.
- Capacity Market: In some regions, ancillary services are procured through a capacity market, where generators and service providers are paid for their ability to provide these services, regardless of whether they are actually called upon. This market structure helps ensure that sufficient capacity is available to meet future demand.
Challenges in Providing Ancillary Services
Providing ancillary services presents several challenges, including:
- Integration of Renewable Energy: The increasing integration of renewable energy sources, such as wind and solar, poses challenges for ancillary services. These sources can experience sudden changes in output due to weather conditions, requiring rapid adjustments in generation and demand.
- Market Design: The design of ancillary service markets can impact the availability and cost of these services. Market structures that do not adequately incentivize the provision of ancillary services can lead to shortages and increased costs.
- Technological Limitations: Some generating units may have technological limitations that prevent them from providing certain ancillary services. For example, some renewable energy sources may not be able to provide frequency regulation or voltage support services.
- Regulatory Frameworks: The regulatory frameworks governing ancillary services can vary widely between regions, creating challenges for service providers and market operators. Harmonizing regulatory frameworks can help ensure that ancillary services are provided efficiently and cost-effectively.
📝 Note: The integration of renewable energy sources into the grid requires advanced forecasting and control systems to manage the variability in output and ensure that ancillary services can respond effectively to changes in demand and supply.
Future Trends in Ancillary Services
As the energy landscape continues to evolve, several trends are emerging in the provision of ancillary services:
- Advanced Technologies: The development of advanced technologies, such as energy storage systems and smart grid technologies, is enhancing the ability to provide ancillary services. These technologies can help manage the variability of renewable energy sources and improve the overall efficiency of the power system.
- Data Analytics: The use of data analytics and machine learning is enabling more accurate forecasting and optimization of ancillary services. By analyzing historical data and real-time information, market operators can better predict demand and supply conditions, ensuring that ancillary services are provided efficiently.
- Market Integration: The integration of ancillary service markets across regions is facilitating the more efficient provision of these services. By allowing generators and service providers to participate in multiple markets, market integration can help ensure that ancillary services are provided cost-effectively and reliably.
- Regulatory Reforms: Regulatory reforms are being implemented to better incentivize the provision of ancillary services. These reforms aim to create market structures that encourage investment in ancillary service capacity and ensure that these services are provided at a reasonable cost.
Ancillary services are essential for maintaining the stability and reliability of the power grid. By understanding the types, importance, and challenges associated with ancillary services, we can better appreciate their role in ensuring a secure and efficient energy supply. As the energy landscape continues to evolve, the provision of ancillary services will remain a critical component of modern power systems.
In conclusion, ancillary services play a vital role in the functioning of the power grid, ensuring that the supply of electricity meets the demand at all times. From frequency regulation to voltage support, these services are essential for maintaining grid stability, reliability, and efficiency. As the energy landscape continues to evolve, the provision of ancillary services will remain a critical component of modern power systems, supported by advanced technologies, data analytics, and regulatory reforms. By understanding and addressing the challenges associated with ancillary services, we can ensure a secure and efficient energy supply for future generations.
