What Is An Venturi

Understanding the principles behind fluid dynamics and airflow is crucial in various engineering and scientific fields. One fundamental concept that plays a significant role in these areas is the Venturi effect. But what is a Venturi? A Venturi is a constricted section of a pipe or tube that causes a fluid (liquid or gas) to accelerate as it passes through. This acceleration results in a decrease in pressure, a principle that has wide-ranging applications in industries such as aerospace, automotive, and medical fields.

Table of Contents

Understanding the Venturi Effect

The Venturi effect is named after Giovanni Battista Venturi, an Italian physicist who first described the phenomenon in the late 18th century. The effect is based on the principle of conservation of energy, which states that the total energy of a fluid remains constant as it flows through a system. When a fluid passes through a constricted section, its velocity increases, and its pressure decreases. This relationship is described by Bernoulli's principle, which is a fundamental equation in fluid dynamics.

Applications of the Venturi Effect

The Venturi effect has numerous practical applications across various industries. Some of the most notable applications include:

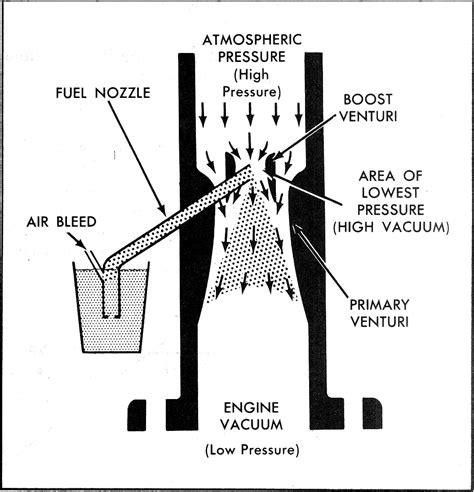

Carburetors in Internal Combustion Engines: In carburetors, the Venturi effect is used to mix air and fuel. As air flows through a constricted section, its velocity increases, creating a low-pressure area that draws fuel into the airstream.

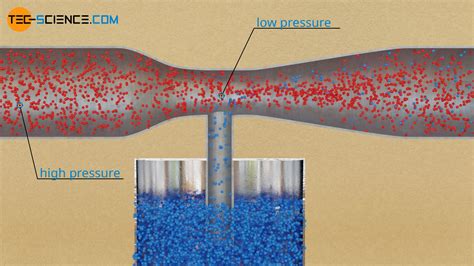

Atomizers and Spray Nozzles: Venturi tubes are used in atomizers and spray nozzles to create fine mist or spray. The high-velocity airflow through the constricted section draws liquid into the airstream, breaking it into tiny droplets.
Medical Devices: Venturi masks are used in medical settings to deliver oxygen to patients. The Venturi effect ensures a precise and controlled flow of oxygen, which is crucial for patients with respiratory issues.
Aerospace and Aviation: In aircraft design, the Venturi effect is used to create lift. The shape of an airplane wing is designed to create a constricted section over the top surface, resulting in lower pressure and higher velocity, which generates lift.
Water Treatment: Venturi tubes are used in water treatment systems to inject chemicals or gases into the water stream. The high-velocity flow through the constricted section ensures thorough mixing and efficient treatment.

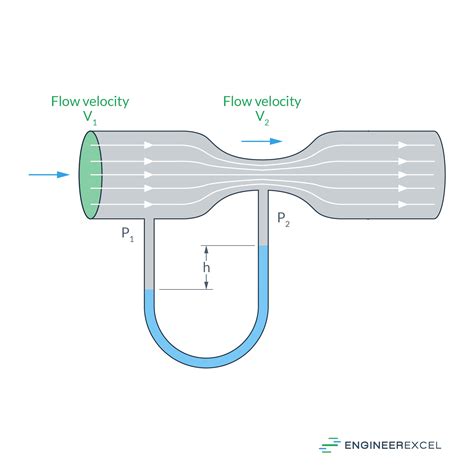

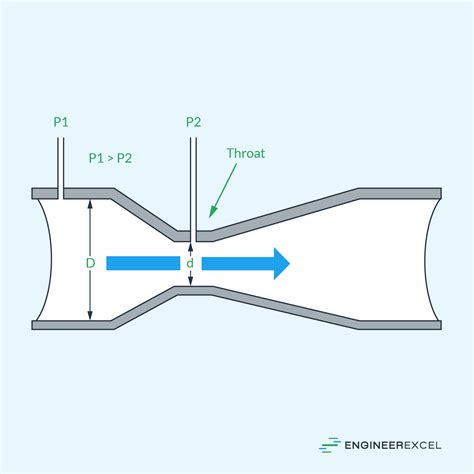

How a Venturi Tube Works

A Venturi tube is a simple device that consists of a tube with a constricted section in the middle. As fluid flows through the tube, it accelerates as it passes through the constricted section, resulting in a decrease in pressure. This pressure difference can be measured and used for various applications.

Here is a step-by-step explanation of how a Venturi tube works:

Fluid Entry: The fluid enters the tube at a certain velocity and pressure.
Converging Section: As the fluid approaches the constricted section, it begins to accelerate due to the narrowing of the tube.
Throat: At the narrowest point (throat), the fluid reaches its maximum velocity and minimum pressure.
Diverging Section: As the fluid exits the constricted section, it begins to decelerate, and its pressure increases.
Exit: The fluid exits the tube at a velocity and pressure similar to its entry conditions.

💡 Note: The pressure difference created by the Venturi effect can be used to measure flow rates, as the flow rate is directly proportional to the pressure difference.

Design Considerations for Venturi Tubes

Designing an effective Venturi tube involves several considerations to ensure optimal performance. Some key design factors include:

Tube Material: The material of the tube should be compatible with the fluid being used. Common materials include stainless steel, plastic, and glass.
Converging and Diverging Angles: The angles of the converging and diverging sections affect the flow characteristics. Typically, the converging angle is smaller than the diverging angle to minimize pressure losses.
Throat Diameter: The diameter of the throat determines the maximum velocity and minimum pressure. It should be carefully selected based on the desired flow rate and pressure difference.
Length of the Tube: The overall length of the tube should be sufficient to allow for proper flow development and measurement. However, it should not be excessively long to avoid unnecessary pressure losses.

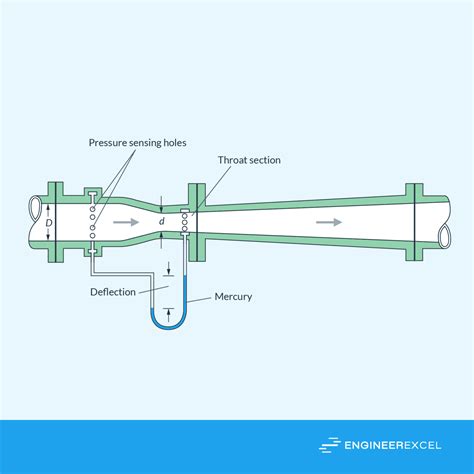

Calculating Flow Rate Using a Venturi Tube

One of the primary uses of a Venturi tube is to measure flow rates. The flow rate can be calculated using the pressure difference created by the Venturi effect. The formula for calculating the flow rate (Q) is:

Q = A₂ * √[2 * (P₁ - P₂) / (ρ * (1 - (A₂/A₁)²))]

Where:

Symbol	Description
A₁	Cross-sectional area of the inlet
A₂	Cross-sectional area of the throat
P₁	Pressure at the inlet
P₂	Pressure at the throat
ρ	Density of the fluid

This formula allows for the accurate measurement of flow rates in various applications, from industrial processes to scientific research.

💡 Note: The accuracy of flow rate measurements using a Venturi tube depends on the precision of the pressure measurements and the design of the tube.

Advantages and Disadvantages of Venturi Tubes

Venturi tubes offer several advantages and disadvantages that should be considered when choosing them for specific applications.

Advantages

High Accuracy: Venturi tubes provide highly accurate flow measurements, making them suitable for precise applications.
Low Maintenance: Due to their simple design, Venturi tubes require minimal maintenance and have a long service life.
Versatility: They can be used with a wide range of fluids, including liquids and gases, making them versatile for various industries.
No Moving Parts: The absence of moving parts reduces the risk of wear and tear, ensuring reliable performance over time.

Disadvantages

Pressure Loss: Venturi tubes can cause significant pressure losses, which may be undesirable in some applications.
Cost: The initial cost of Venturi tubes can be higher compared to other flow measurement devices, especially for large-scale applications.
Space Requirements: Venturi tubes require sufficient space for installation, which may be a limitation in compact systems.

Understanding these advantages and disadvantages can help in making informed decisions about the use of Venturi tubes in specific applications.

💡 Note: The choice of a Venturi tube should be based on the specific requirements of the application, including accuracy, cost, and space constraints.

Conclusion

In summary, the Venturi effect is a fundamental principle in fluid dynamics that has wide-ranging applications across various industries. Understanding what is a Venturi and how it works is crucial for engineers and scientists involved in fields such as aerospace, automotive, and medical devices. The Venturi effect enables precise flow measurements, efficient mixing, and controlled delivery of fluids, making it an invaluable tool in modern technology. By leveraging the principles of the Venturi effect, industries can achieve higher efficiency, accuracy, and reliability in their processes.
