What Is An Orifice

Understanding the intricacies of industrial and mechanical systems often involves delving into the specifics of various components. One such component that plays a crucial role in many applications is the orifice. But what is an orifice? An orifice is essentially an opening or hole through which a fluid (liquid or gas) can pass. This seemingly simple definition belies the complexity and importance of orifices in various engineering and industrial processes.

Table of Contents

Understanding Orifices

Orifices are used in a wide range of applications, from controlling the flow of liquids in pipelines to regulating the pressure in gas systems. They are designed to create a specific flow rate or pressure drop, making them essential in industries such as oil and gas, chemical processing, and water treatment.

Types of Orifices

Orifices come in various types, each designed for specific applications. The most common types include:

Sharp-Edged Orifices: These have a sharp edge around the opening, which helps in creating a precise flow rate. They are often used in flow meters and other measurement devices.
Square-Edged Orifices: These have a square edge around the opening and are used in applications where a more uniform flow is required.
Concentric Orifices: These have a circular opening and are used in applications where the flow needs to be symmetrical.
Eccentric Orifices: These have an off-center opening and are used in applications where the flow needs to be directed in a specific direction.

Applications of Orifices

Orifices are used in a variety of applications across different industries. Some of the most common applications include:

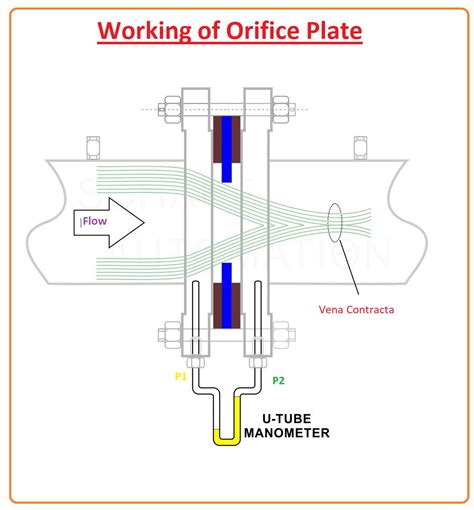

Flow Measurement: Orifices are often used in flow meters to measure the flow rate of liquids and gases. By creating a pressure drop, the flow rate can be calculated using the orifice's dimensions and the pressure difference.
Pressure Regulation: Orifices are used to regulate the pressure in pipelines and other systems. By controlling the size of the orifice, the pressure can be maintained at a desired level.
Mixing and Blending: Orifices are used in mixing and blending applications to ensure that different fluids are combined uniformly. This is particularly important in chemical processing and food manufacturing.
Spray Nozzles: Orifices are used in spray nozzles to create a fine mist or spray. This is commonly seen in applications such as irrigation, cleaning, and cooling systems.

Design Considerations for Orifices

Designing an orifice involves several considerations to ensure it performs as intended. Some of the key design considerations include:

Size and Shape: The size and shape of the orifice are crucial in determining the flow rate and pressure drop. The dimensions must be carefully calculated based on the specific application requirements.
Material Selection: The material of the orifice must be compatible with the fluid being used. Common materials include stainless steel, brass, and plastic, each chosen based on factors such as corrosion resistance and durability.
Edge Finish: The finish of the orifice edge can affect the flow characteristics. A sharp edge is often preferred for precise flow measurement, while a smoother edge may be used for applications requiring a more uniform flow.
Installation Orientation: The orientation of the orifice in the system can impact its performance. For example, an orifice installed vertically may behave differently than one installed horizontally.

Calculating Flow Through an Orifice

Calculating the flow rate through an orifice involves using specific formulas and equations. The most commonly used equation is the orifice flow equation, which is derived from the principles of fluid dynamics. The basic form of the equation is:

Q = C_d * A * √(2 * g * h)

Where:

Q is the volumetric flow rate
C_d is the discharge coefficient
A is the cross-sectional area of the orifice
g is the acceleration due to gravity
h is the pressure head

This equation can be adjusted for different units and conditions, but it provides a fundamental understanding of how flow rate is calculated through an orifice.

Factors Affecting Orifice Performance

Several factors can affect the performance of an orifice, including:

Fluid Properties: The viscosity, density, and compressibility of the fluid can impact the flow rate and pressure drop through the orifice.
Pressure Drop: The pressure difference across the orifice affects the flow rate. A higher pressure drop generally results in a higher flow rate.
Temperature: Changes in temperature can affect the viscosity and density of the fluid, which in turn affects the flow characteristics.
Orifice Wear and Tear: Over time, orifices can become worn or corroded, which can alter their performance. Regular maintenance and inspection are essential to ensure optimal performance.

Maintenance and Troubleshooting

Maintaining orifices is crucial for ensuring their long-term performance. Regular inspection and cleaning can help prevent issues such as clogging and corrosion. If problems do arise, troubleshooting steps may include:

Checking for blockages or debris in the orifice.
Inspecting the orifice for signs of wear or corrosion.
Verifying the pressure and flow rate to ensure they are within the expected range.
Adjusting the orifice size or shape if necessary to achieve the desired performance.

🛠️ Note: Regular maintenance can extend the lifespan of orifices and ensure they continue to perform as intended.

Safety Considerations

Working with orifices, especially in high-pressure systems, requires adherence to safety protocols. Some key safety considerations include:

Wearing appropriate personal protective equipment (PPE) when handling orifices.
Ensuring the system is properly vented to prevent pressure buildup.
Following proper procedures for installing and removing orifices to avoid accidents.
Regularly inspecting the system for leaks or other potential hazards.

⚠️ Note: Always follow manufacturer guidelines and industry standards when working with orifices to ensure safety.

Case Studies

To better understand the practical applications of orifices, let's look at a few case studies:

Case Study 1: Oil and Gas Industry

In the oil and gas industry, orifices are used to measure the flow rate of crude oil and natural gas. Accurate measurement is crucial for billing and operational efficiency. Orifices are installed in pipelines, and the pressure drop across the orifice is measured to calculate the flow rate. This data is then used to optimize production and ensure compliance with regulatory requirements.

Case Study 2: Chemical Processing

In chemical processing, orifices are used to control the flow of reactants into a reaction vessel. Precise control of the flow rate is essential for maintaining the desired reaction conditions and ensuring product quality. Orifices are designed to handle the specific properties of the chemicals being used, including viscosity and corrosiveness.

Case Study 3: Water Treatment

In water treatment facilities, orifices are used to regulate the flow of water through various treatment processes. This includes filtration, disinfection, and chemical dosing. Orifices help ensure that the water treatment process is efficient and effective, providing clean and safe water for consumption.

These case studies illustrate the versatility and importance of orifices in various industries. By understanding what is an orifice and how it functions, engineers and technicians can design and implement systems that are efficient, reliable, and safe.

In conclusion, orifices play a vital role in many industrial and mechanical systems. From controlling flow rates to regulating pressure, orifices are essential components that ensure the smooth operation of various processes. Understanding the types, applications, design considerations, and maintenance requirements of orifices is crucial for anyone working in fields that rely on fluid dynamics. By adhering to best practices and safety protocols, orifices can be effectively utilized to achieve optimal performance and reliability in any system.
