What Is Abnormal Ecg

An electrocardiogram (ECG) is a crucial diagnostic tool used to assess the electrical activity of the heart. It provides valuable insights into the heart's rhythm, rate, and overall function. Understanding what is abnormal ECG is essential for healthcare professionals to identify potential cardiac issues and take appropriate actions. This blog post delves into the intricacies of abnormal ECGs, their causes, and the significance of recognizing these abnormalities.

Table of Contents

Understanding the Basics of ECG

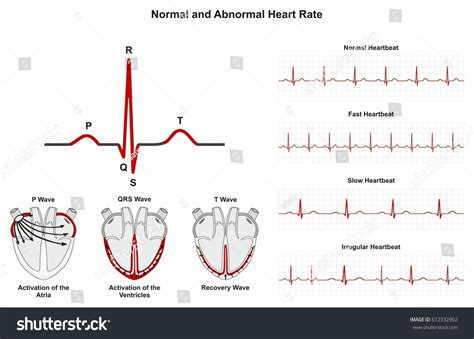

Before diving into what is abnormal ECG, it’s important to grasp the basics of a normal ECG. An ECG records the electrical impulses generated by the heart as it beats. These impulses are represented as waves on a graph, with each wave corresponding to a specific phase of the heart’s electrical cycle. The key components of a normal ECG include:

P wave: Represents atrial depolarization.
QRS complex: Represents ventricular depolarization.
T wave: Represents ventricular repolarization.

Each of these components plays a critical role in the heart’s electrical activity, and any deviation from the normal pattern can indicate an underlying issue.

What Is Abnormal ECG?

An abnormal ECG refers to any deviation from the standard pattern of electrical activity in the heart. These abnormalities can range from minor irregularities to severe conditions that require immediate medical attention. Recognizing what is abnormal ECG is crucial for early detection and treatment of cardiac diseases.

Common Types of Abnormal ECGs

There are several types of abnormal ECGs, each with its own set of characteristics and implications. Some of the most common types include:

Arrhythmias

Arrhythmias are irregular heart rhythms that can be either too fast (tachycardia) or too slow (bradycardia). They can originate from the atria (supraventricular arrhythmias) or the ventricles (ventricular arrhythmias). Common types of arrhythmias include:

Atrial fibrillation: Characterized by rapid and irregular atrial contractions.
Ventricular tachycardia: Rapid heart rate originating from the ventricles.
Bradycardia: Slow heart rate, often below 60 beats per minute.

Conduction Abnormalities

Conduction abnormalities occur when the electrical impulses do not travel properly through the heart’s conduction system. These can include:

Bundle branch block: Delayed or blocked conduction in the bundle branches.
Atrioventricular (AV) block: Delayed or blocked conduction between the atria and ventricles.

Ischemia and Infarction

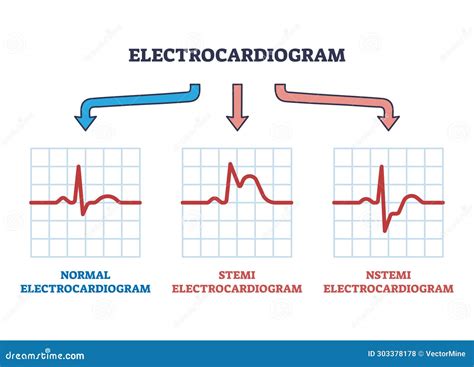

Ischemia refers to a lack of blood flow to the heart muscle, which can lead to an infarction (heart attack). ECG changes associated with ischemia and infarction include:

ST-segment elevation: Indicative of an acute myocardial infarction.
ST-segment depression: Often seen in ischemia or non-ST-elevation myocardial infarction.
T-wave inversion: Can indicate ischemia or other cardiac issues.

Electrolyte Imbalances

Electrolyte imbalances, such as abnormalities in potassium, calcium, or magnesium levels, can also affect the ECG. These imbalances can cause:

Prolonged QT interval: Often seen in hypocalcemia or hypomagnesemia.
Peaked T waves: Common in hyperkalemia.

Interpreting Abnormal ECGs

Interpreting what is abnormal ECG requires a thorough understanding of the ECG components and their normal ranges. Healthcare professionals use specific criteria to identify abnormalities. For example:

Rate: Assess the heart rate by counting the number of QRS complexes in a 10-second strip and multiplying by 6.
Rhythm: Determine if the rhythm is regular or irregular.
Axis: Evaluate the direction of the electrical impulses.
Intervals: Measure the duration of the P-R interval, QRS complex, and QT interval.
Morphology: Examine the shape and size of the waves.

Clinical Significance of Abnormal ECGs

Recognizing what is abnormal ECG is vital for diagnosing and managing various cardiac conditions. Abnormal ECGs can provide early indications of:

Coronary artery disease: Often detected through ischemia or infarction patterns.
Heart failure: May show signs of ventricular hypertrophy or conduction abnormalities.
Electrolyte imbalances: Can be identified through specific wave changes.
Cardiomyopathies: May present with abnormal QRS complexes or T waves.

Diagnostic Workup for Abnormal ECGs

When an abnormal ECG is detected, further diagnostic workup is often necessary to confirm the underlying cause. This may include:

Blood tests: To check for electrolyte imbalances or markers of heart damage.
Echocardiogram: To assess heart structure and function.
Stress test: To evaluate the heart’s response to exercise.
Cardiac catheterization: To visualize the coronary arteries and assess blood flow.

Management and Treatment

The management and treatment of abnormal ECGs depend on the underlying cause. Common approaches include:

Medications: Such as antiarrhythmic drugs, beta-blockers, or diuretics.
Lifestyle modifications: Including diet, exercise, and stress management.
Device therapy: Such as pacemakers or implantable cardioverter-defibrillators (ICDs).
Interventional procedures: Such as angioplasty or coronary artery bypass grafting (CABG).

Preventive Measures

Preventing abnormal ECGs involves maintaining overall heart health. Key preventive measures include:

Regular exercise: To improve cardiovascular fitness.
Healthy diet: Rich in fruits, vegetables, and whole grains.
Avoiding tobacco and excessive alcohol: To reduce the risk of heart disease.
Managing stress: Through techniques such as meditation or yoga.
Regular check-ups: To monitor heart health and detect any abnormalities early.

📝 Note: Regular monitoring and early detection of abnormal ECGs can significantly improve outcomes and reduce the risk of complications.

Case Studies and Examples

To better understand what is abnormal ECG, let’s consider a few case studies:

Case Study 1: Atrial Fibrillation

A 65-year-old patient presents with palpitations and shortness of breath. The ECG shows an irregularly irregular rhythm with no discernible P waves and a rapid ventricular response. This pattern is characteristic of atrial fibrillation, a common arrhythmia that requires anticoagulation and rate control.

Case Study 2: Acute Myocardial Infarction

A 50-year-old patient complains of chest pain radiating to the left arm. The ECG reveals ST-segment elevation in the anterior leads, indicating an acute myocardial infarction. Immediate reperfusion therapy, such as thrombolysis or primary percutaneous coronary intervention (PCI), is crucial to restore blood flow and minimize heart damage.

Case Study 3: Hyperkalemia

A 70-year-old patient with chronic kidney disease presents with muscle weakness and fatigue. The ECG shows peaked T waves and a widened QRS complex, suggestive of hyperkalemia. Prompt treatment with calcium gluconate, insulin, and glucose, along with dialysis, is necessary to correct the electrolyte imbalance.

Future Directions in ECG Analysis

Advances in technology are revolutionizing the field of ECG analysis. Artificial intelligence (AI) and machine learning algorithms are being developed to enhance the accuracy and efficiency of ECG interpretation. These tools can help identify subtle abnormalities that may be missed by human eyes, leading to earlier detection and treatment of cardiac conditions.

Additionally, wearable devices and mobile health applications are making ECG monitoring more accessible. These devices allow for continuous monitoring of heart rhythm, enabling early detection of arrhythmias and other abnormalities. The integration of these technologies into clinical practice holds promise for improving patient outcomes and reducing healthcare costs.

In conclusion, understanding what is abnormal ECG is crucial for the early detection and management of cardiac diseases. By recognizing the various types of abnormalities and their clinical significance, healthcare professionals can provide timely and effective treatment. Regular monitoring, preventive measures, and advancements in technology will continue to enhance our ability to diagnose and manage abnormal ECGs, ultimately improving patient outcomes and quality of life.
