Understanding the mechanics of bicycles, motorcycles, and various machinery often leads to the question, "What is a sprocket?" Sprockets are essential components in many mechanical systems, playing a crucial role in power transmission and motion control. This blog post delves into the intricacies of sprockets, their types, applications, and maintenance tips to provide a comprehensive understanding of these vital mechanical parts.
What is a Sprocket?
A sprocket is a toothed wheel designed to engage with a chain, track, or other perforated or indented material. It is commonly used in conjunction with a chain to transmit power and motion from one shaft to another. Sprockets are integral to various mechanical systems, including bicycles, motorcycles, and industrial machinery. Their primary function is to convert rotational motion into linear motion or vice versa, making them indispensable in many applications.
Types of Sprockets

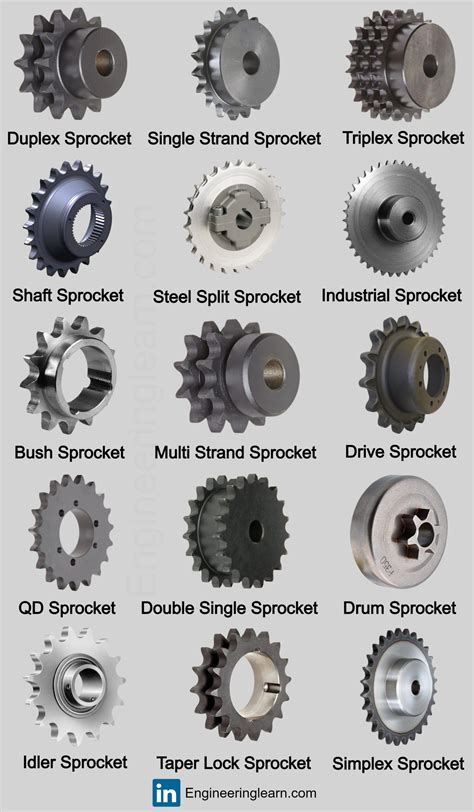

Sprockets come in various types, each designed for specific applications. Understanding the different types of sprockets can help in selecting the right one for a particular mechanical system.

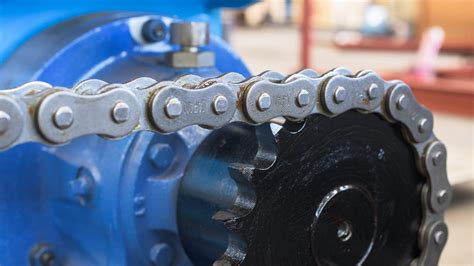

Chain Sprockets
Chain sprockets are the most common type and are used in conjunction with roller chains. They are widely employed in bicycles, motorcycles, and industrial machinery. Chain sprockets are classified based on the number of teeth and the pitch of the chain they engage with.
Silent Chain Sprockets
Silent chain sprockets are designed to work with silent chains, which are characterized by their smooth and quiet operation. These sprockets have curved teeth that engage with the chain’s links, reducing noise and vibration. Silent chain sprockets are often used in automotive engines and industrial machinery where noise reduction is crucial.
Timing Sprockets
Timing sprockets are used in conjunction with timing belts or chains to synchronize the rotation of two or more shafts. They are commonly found in automotive engines, where they ensure the precise timing of the camshaft and crankshaft. Timing sprockets have teeth that mesh with the timing belt or chain, maintaining accurate synchronization.
Idler Sprockets
Idler sprockets are used to guide and tension chains in mechanical systems. They do not transmit power but play a crucial role in maintaining proper chain tension and alignment. Idler sprockets are often used in conveyor systems, bicycles, and motorcycles to ensure smooth chain operation.
Applications of Sprockets
Sprockets are used in a wide range of applications, from simple bicycles to complex industrial machinery. Their versatility and efficiency make them an essential component in various mechanical systems.

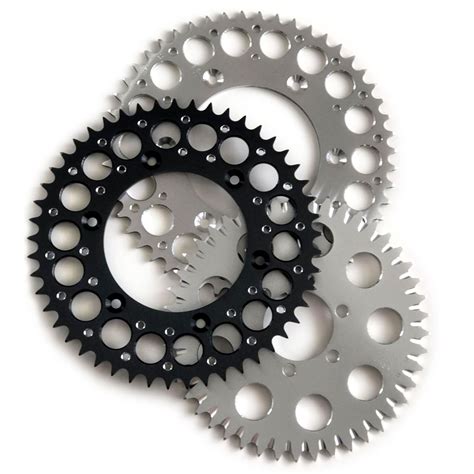

Bicycles and Motorcycles
In bicycles and motorcycles, sprockets are used to transmit power from the pedals or engine to the wheels. The front sprocket, also known as the chainring, is connected to the pedals or engine, while the rear sprocket is attached to the rear wheel. The chain engages with both sprockets, transferring power and motion.
Automotive Engines
In automotive engines, timing sprockets are used to synchronize the rotation of the camshaft and crankshaft. This ensures that the engine’s valves open and close at the correct times, allowing for efficient combustion and power output. Timing sprockets are crucial for the smooth operation of the engine and its overall performance.
Industrial Machinery
In industrial machinery, sprockets are used in conveyor systems, manufacturing equipment, and other mechanical systems. They help transmit power and motion, ensuring the efficient operation of machinery. Chain sprockets and silent chain sprockets are commonly used in industrial applications due to their durability and reliability.
Maintenance Tips for Sprockets
Maintaining sprockets is essential for ensuring their longevity and efficient operation. Regular maintenance can prevent wear and tear, reduce the risk of failure, and extend the lifespan of the mechanical system. Here are some maintenance tips for sprockets:
- Regular Inspection: Inspect sprockets regularly for signs of wear, damage, or misalignment. Look for worn teeth, cracks, or excessive play in the chain.
- Lubrication: Ensure that the chain and sprockets are properly lubricated. Use a high-quality chain lubricant to reduce friction and wear. Regular lubrication can extend the lifespan of the sprockets and chain.
- Tension Adjustment: Maintain proper chain tension to prevent excessive wear on the sprockets. A loose chain can cause the sprockets to wear unevenly, while a tight chain can put unnecessary stress on the system.
- Alignment: Ensure that the sprockets are properly aligned to prevent uneven wear and chain skipping. Misaligned sprockets can cause the chain to jump off the teeth, leading to damage and potential failure.
- Cleaning: Keep the sprockets and chain clean to prevent the buildup of dirt and debris. Regular cleaning can help maintain the efficiency and longevity of the mechanical system.
🛠️ Note: Always follow the manufacturer's guidelines for maintenance and replacement of sprockets. Regular inspection and maintenance can prevent costly repairs and downtime.
Sprocket Selection Guide
Selecting the right sprocket for a specific application involves considering several factors. Here is a guide to help you choose the appropriate sprocket for your mechanical system.
Chain Type
The type of chain you are using will determine the type of sprocket needed. Ensure that the sprocket’s pitch and tooth profile match the chain’s specifications.
Material
Sprockets are made from various materials, including steel, stainless steel, and plastic. The choice of material depends on the application and the environment in which the sprocket will operate. For example, stainless steel sprockets are suitable for corrosive environments, while plastic sprockets are ideal for lightweight applications.
Number of Teeth
The number of teeth on a sprocket affects its speed and torque. A sprocket with more teeth will provide higher torque but lower speed, while a sprocket with fewer teeth will provide higher speed but lower torque. Choose the number of teeth based on the desired speed and torque for your application.
Pitch
The pitch of a sprocket refers to the distance between the centers of adjacent teeth. It must match the pitch of the chain to ensure proper engagement and smooth operation. Common pitch sizes include 1⁄4”, 3⁄8”, and 1⁄2”.

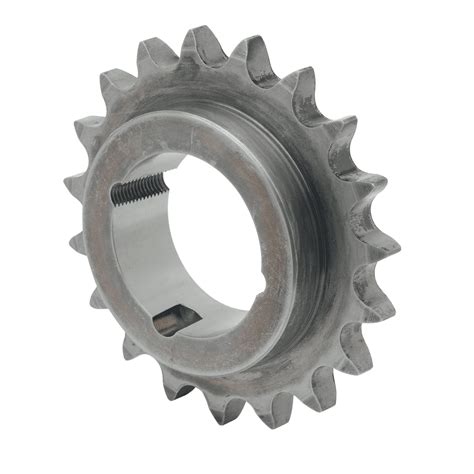

Bore Size
The bore size of a sprocket is the diameter of the hole in the center, which determines the shaft size it can fit on. Ensure that the bore size matches the shaft diameter to prevent slippage and ensure proper alignment.
Sprocket Terminology
Understanding the terminology associated with sprockets can help in selecting the right component and ensuring proper maintenance. Here are some common terms related to sprockets:
| Term | Definition |
|---|---|
| Pitch | The distance between the centers of adjacent teeth on a sprocket. |
| Bore | The diameter of the hole in the center of the sprocket. |
| Teeth | The protruding parts of the sprocket that engage with the chain. |
| Chain Pitch | The distance between the centers of adjacent rollers on a chain. |
| Chain Width | The width of the chain, measured from the outer edges of the side plates. |
| Roller Diameter | The diameter of the rollers on a chain. |
🛠️ Note: Familiarizing yourself with these terms can help in understanding sprocket specifications and selecting the right component for your application.
Common Issues with Sprockets
Despite their durability, sprockets can encounter various issues that affect their performance. Understanding these common problems can help in diagnosing and resolving issues promptly.
Wear and Tear
Over time, sprockets can experience wear and tear due to friction and constant engagement with the chain. This can lead to worn teeth, reduced efficiency, and potential failure. Regular inspection and maintenance can help prevent excessive wear and extend the lifespan of the sprockets.
Misalignment
Misaligned sprockets can cause the chain to skip or jump off the teeth, leading to uneven wear and potential damage. Ensure that the sprockets are properly aligned to maintain smooth operation and prevent premature failure.
Chain Stretch
As chains age, they can stretch due to wear and elongation of the pins and bushings. This can cause the chain to become loose, leading to slippage and reduced efficiency. Regular inspection and adjustment of chain tension can help prevent chain stretch and maintain proper operation.
Corrosion
In corrosive environments, sprockets can rust and corrode, leading to reduced performance and potential failure. Using corrosion-resistant materials, such as stainless steel, and applying protective coatings can help prevent corrosion and extend the lifespan of the sprockets.
Conclusion
Sprockets are essential components in various mechanical systems, playing a crucial role in power transmission and motion control. Understanding what is a sprocket, their types, applications, and maintenance tips can help in selecting the right component and ensuring efficient operation. Regular inspection, lubrication, and alignment are key to maintaining the longevity and performance of sprockets. By following the guidelines and tips outlined in this blog post, you can ensure that your mechanical systems operate smoothly and efficiently, minimizing downtime and maximizing productivity.
