What Is A Rafter

Understanding the structural components of a building is crucial for anyone involved in construction, architecture, or home improvement. One of the fundamental elements in roofing is the rafter. So, what is a rafter? A rafter is a structural beam that forms the skeleton of a roof. It supports the roof deck and the weight of the roofing materials, ensuring the roof's stability and durability. This blog post will delve into the details of rafters, their types, functions, and installation processes.

Table of Contents

What Is A Rafter and Its Importance

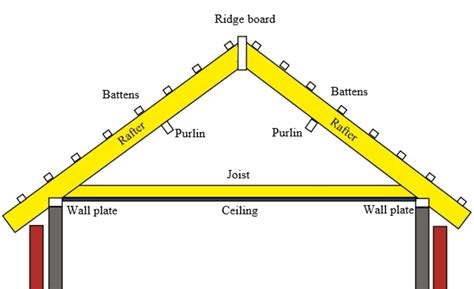

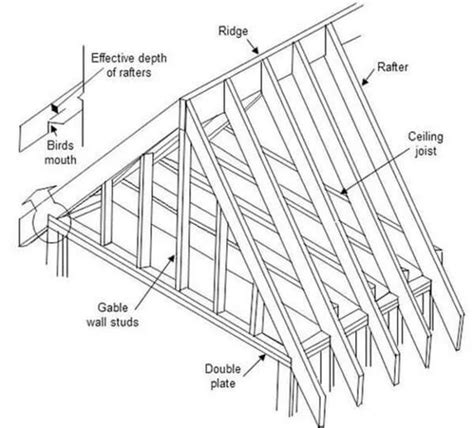

A rafter is a critical component of a roof's structure. It runs from the ridge (the highest point of the roof) to the eaves (the lower edge of the roof). Rafters are typically made of wood, but they can also be made of metal or engineered wood products. Their primary function is to support the roof deck, which in turn supports the roofing materials such as shingles, tiles, or metal sheets.

Rafters play a vital role in the overall stability and durability of a roof. They distribute the weight of the roof evenly across the walls, preventing sagging and ensuring that the roof can withstand various weather conditions. Properly installed rafters also contribute to the roof's ability to resist wind uplift and other external forces.

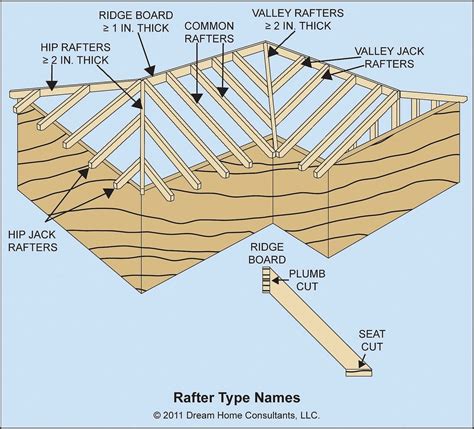

Types of Rafters

There are several types of rafters, each designed for specific roof styles and structural requirements. Understanding the different types can help in choosing the right rafters for a particular project.

Common Rafters

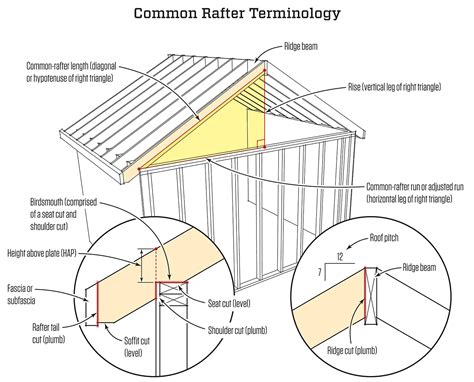

Common rafters are the most basic type and are used in simple gable roofs. They run from the ridge to the wall plate and are spaced evenly along the roof. Common rafters are typically cut at an angle to match the roof's pitch and are supported by the ridge board and the wall plate.

Hip Rafters

Hip rafters are used in hip roofs, where all sides slope downwards to the walls. These rafters run from the ridge to the corner of the wall and are more complex to install than common rafters. Hip rafters require precise measurements and cuts to ensure a proper fit and structural integrity.

Valley Rafters

Valley rafters are used in roofs with valleys, where two sloping sides meet. These rafters run from the ridge to the valley and are cut at an angle to match the roof's pitch. Valley rafters are crucial for directing water away from the roof and preventing leaks.

Jack Rafters

Jack rafters are shorter rafters that run from a hip or valley rafter to the wall plate. They are used to fill in the spaces between the main rafters and provide additional support to the roof structure. Jack rafters are often used in complex roof designs with multiple valleys and hips.

Functions of Rafters

Rafters serve several important functions in a roof's structure. Understanding these functions can help in appreciating the role of rafters in maintaining the roof's integrity and longevity.

Support the Roof Deck: Rafters provide the primary support for the roof deck, which is the layer of material (usually plywood or oriented strand board) that covers the rafters and supports the roofing materials.
Distribute Weight: Rafters distribute the weight of the roof evenly across the walls, preventing sagging and ensuring that the roof can withstand various weather conditions.
Resist Wind Uplift: Properly installed rafters help resist wind uplift, which is the force exerted by wind on the roof. This is crucial for preventing the roof from being lifted off the building during high winds.
Provide Structural Stability: Rafters contribute to the overall structural stability of the roof, ensuring that it can withstand the weight of snow, rain, and other external forces.

Installing Rafters

Installing rafters is a critical step in constructing a roof. The process involves several steps, each requiring precision and attention to detail. Here is a step-by-step guide to installing rafters:

Step 1: Measure and Cut the Ridge Board

The ridge board is the horizontal board that runs along the peak of the roof. It supports the rafters and helps distribute their weight evenly. Measure the length of the ridge board based on the roof's width and cut it to size.

Step 2: Install the Ridge Board

Install the ridge board at the peak of the roof, ensuring it is level and securely fastened to the supporting walls. Use nails or screws to attach the ridge board to the walls, spacing them evenly along the length of the board.

Step 3: Measure and Cut the Rafters

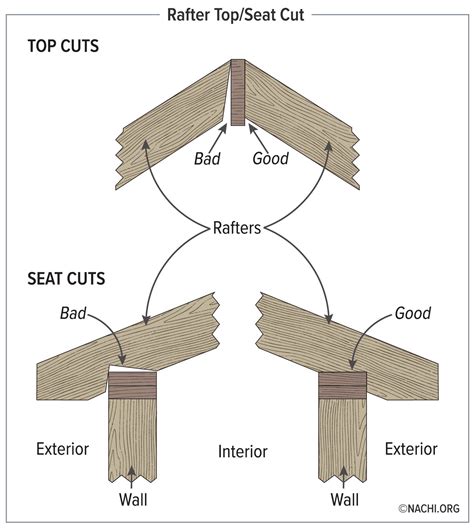

Measure the length of the rafters based on the roof's pitch and the distance from the ridge to the wall plate. Cut the rafters to size, ensuring they are all the same length. Use a framing square to mark the bird's mouth (the notch at the bottom of the rafter that fits over the wall plate) and the plumb cut (the vertical cut at the top of the rafter that fits against the ridge board).

Step 4: Install the Rafters

Start by installing the first rafter at one end of the ridge board. Place the bird's mouth over the wall plate and secure it with nails or screws. Ensure the rafter is plumb and level before securing it. Repeat this process for the remaining rafters, spacing them evenly along the ridge board.

Step 5: Install the Valley and Hip Rafters

If the roof design includes valleys or hips, install the valley and hip rafters next. These rafters require precise measurements and cuts to ensure a proper fit. Use a framing square to mark the cuts and a saw to cut the rafters to size. Secure the valley and hip rafters with nails or screws, ensuring they are level and plumb.

Step 6: Install the Jack Rafters

If the roof design includes jack rafters, install them next. Jack rafters fill in the spaces between the main rafters and provide additional support to the roof structure. Measure and cut the jack rafters to size, ensuring they fit snugly between the main rafters. Secure the jack rafters with nails or screws, ensuring they are level and plumb.

🛠️ Note: Always follow local building codes and regulations when installing rafters. Ensure that the rafters are properly spaced and secured to provide adequate support for the roof structure.

Common Mistakes to Avoid When Installing Rafters

Installing rafters can be a challenging task, and there are several common mistakes that can compromise the roof's structural integrity. Here are some mistakes to avoid:

Incorrect Measurements: Incorrect measurements can lead to rafters that are too short or too long, compromising the roof's stability. Always double-check measurements before cutting rafters.

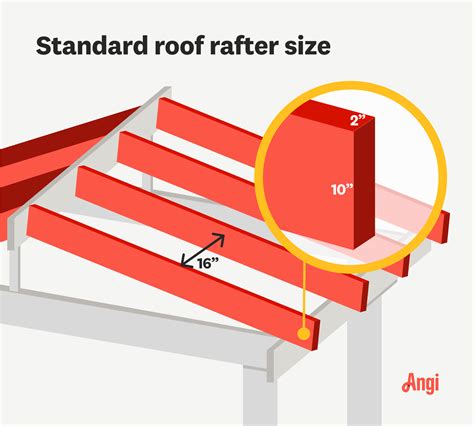

Improper Spacing: Rafters should be spaced evenly along the ridge board to distribute weight evenly. Improper spacing can lead to sagging and other structural issues.
Inadequate Support: Rafters should be securely fastened to the ridge board and wall plate to provide adequate support. Inadequate support can lead to the roof collapsing under heavy loads.
Ignoring Building Codes: Always follow local building codes and regulations when installing rafters. Ignoring these codes can result in fines and other penalties.

Maintaining Rafters

Maintaining rafters is essential for ensuring the longevity and stability of the roof. Regular inspections and maintenance can help identify and address potential issues before they become major problems. Here are some tips for maintaining rafters:

Regular Inspections: Inspect the rafters regularly for signs of damage, such as cracks, rot, or insect infestations. Address any issues promptly to prevent further damage.
Proper Ventilation: Ensure that the attic is properly ventilated to prevent moisture buildup, which can lead to rot and other damage. Install vents or fans as needed to improve airflow.
Pest Control: Implement pest control measures to prevent insects and rodents from damaging the rafters. Regularly inspect the attic for signs of pest activity and address any issues promptly.
Repair Damage Promptly: If you notice any damage to the rafters, repair it promptly to prevent further damage. Use appropriate materials and techniques to ensure a durable repair.

Rafters are a critical component of a roof's structure, providing support and stability. Understanding what is a rafter, their types, functions, and installation processes can help in ensuring a durable and stable roof. Regular maintenance and inspections can help identify and address potential issues, ensuring the longevity of the roof.

By following the guidelines and tips outlined in this blog post, you can ensure that your rafters are properly installed and maintained, providing a stable and durable roof for years to come.
