What Is A Electromagnet

Electromagnets are a fundamental component in modern technology, powering everything from simple doorbells to complex medical equipment. Understanding what is an electromagnet and how it works can provide insights into the principles of electromagnetism and its applications. This post will delve into the basics of electromagnets, their construction, working principles, and various applications.

Table of Contents

What Is An Electromagnet?

An electromagnet is a type of magnet in which the magnetic field is produced by an electric current. Unlike permanent magnets, which retain their magnetic properties indefinitely, electromagnets only exhibit magnetic properties when an electric current is passed through them. This makes electromagnets highly versatile and controllable, suitable for a wide range of applications.

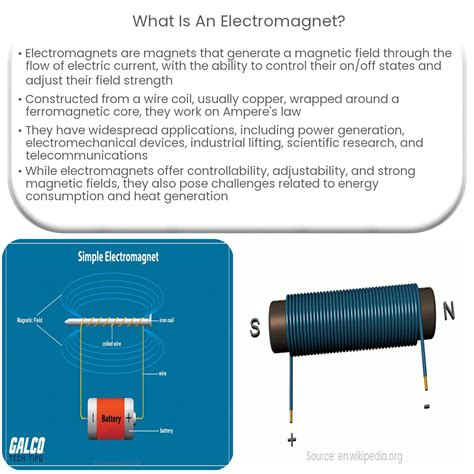

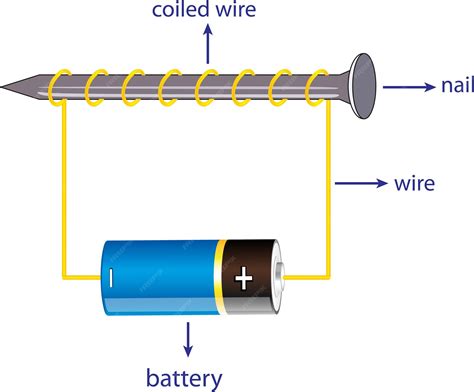

Construction of an Electromagnet

An electromagnet typically consists of the following components:

Wire Coil: A length of insulated copper wire wound into a coil. The number of turns in the coil affects the strength of the magnetic field.
Core: A material, often iron or another ferromagnetic substance, placed inside the coil to enhance the magnetic field. The core concentrates the magnetic flux, making the electromagnet more powerful.
Power Source: A battery or other electrical power source to supply the current that flows through the wire coil.
Switch: A device to control the flow of current, allowing the electromagnet to be turned on and off.

Working Principle of an Electromagnet

The working principle of an electromagnet is based on the relationship between electricity and magnetism, as described by Ampere’s Law. When an electric current flows through a wire, it creates a magnetic field around the wire. Winding the wire into a coil concentrates this magnetic field, and placing a ferromagnetic core inside the coil further enhances it.

The strength of the magnetic field generated by an electromagnet can be calculated using the formula:

B = μ₀ * N * I / L

Where:

B is the magnetic field strength.
μ₀ is the permeability of free space.
N is the number of turns in the coil.
I is the current flowing through the wire.
L is the length of the coil.

By adjusting these variables, the strength of the magnetic field can be controlled.

Applications of Electromagnets

Electromagnets have a wide range of applications across various industries. Some of the most common uses include:

Electric Motors and Generators: Electromagnets are used in the construction of electric motors and generators, where they convert electrical energy into mechanical energy and vice versa.
Magnetic Levitation (Maglev) Trains: These high-speed trains use electromagnets to levitate above the tracks, reducing friction and allowing for faster speeds.
Medical Equipment: Electromagnets are used in medical imaging devices such as MRI (Magnetic Resonance Imaging) machines, where they generate strong magnetic fields to produce detailed images of the body.
Industrial Machinery: Electromagnets are used in cranes and other lifting equipment to move heavy objects. They are also used in sorting and separating systems to handle ferrous materials.
Electronic Devices: Electromagnets are found in various electronic devices, including speakers, microphones, and hard drives, where they convert electrical signals into sound or mechanical motion.

Types of Electromagnets

Electromagnets can be classified into several types based on their design and application. Some of the most common types include:

Solenoid Electromagnets: These are simple electromagnets consisting of a coil of wire wrapped around a cylindrical core. They are commonly used in valves, switches, and other control devices.
Permanent Magnet Electromagnets: These combine a permanent magnet with an electromagnet to create a hybrid device that can generate a strong magnetic field even when the electric current is turned off.
Superconducting Electromagnets: These use superconducting materials to generate extremely strong magnetic fields with minimal energy loss. They are used in applications such as particle accelerators and MRI machines.

Advantages and Disadvantages of Electromagnets

Electromagnets offer several advantages over permanent magnets, but they also have some drawbacks. Understanding these can help in choosing the right type of magnet for a specific application.

Advantages

Controllable Magnetic Field: The magnetic field of an electromagnet can be turned on and off by controlling the electric current, making it highly versatile.
Adjustable Strength: The strength of the magnetic field can be adjusted by varying the current or the number of turns in the coil.
No Residual Magnetism: Unlike permanent magnets, electromagnets do not retain any residual magnetism when the current is turned off.

Disadvantages

Power Consumption: Electromagnets require a continuous supply of electrical power to maintain their magnetic field, which can be a disadvantage in applications where power efficiency is crucial.
Heat Generation: The flow of electric current through the wire can generate heat, which may require additional cooling mechanisms.
Complexity: The construction and control of electromagnets can be more complex compared to permanent magnets, requiring additional components such as power supplies and switches.

Safety Considerations

When working with electromagnets, it is important to consider safety precautions to avoid potential hazards. Some key safety considerations include:

Electrical Safety: Ensure that the electrical connections are secure and that the power supply is properly grounded to prevent electrical shocks.
Heat Management: Monitor the temperature of the electromagnet to prevent overheating, which can damage the wire insulation and other components.
Magnetic Interference: Be aware of the potential for magnetic interference with other electronic devices and equipment in the vicinity.

🔧 Note: Always follow manufacturer guidelines and safety protocols when handling and operating electromagnets to ensure safe and efficient use.

Future Trends in Electromagnet Technology

The field of electromagnet technology is continually evolving, driven by advancements in materials science and electrical engineering. Some of the emerging trends include:

Advanced Materials: The development of new materials, such as high-temperature superconductors, is enabling the creation of more powerful and efficient electromagnets.
Miniaturization: Advances in microfabrication techniques are allowing for the production of smaller, more compact electromagnets suitable for use in portable and wearable devices.
Integration with IoT: The integration of electromagnets with Internet of Things (IoT) devices is enabling new applications in smart homes, industrial automation, and healthcare.

Electromagnets are a cornerstone of modern technology, enabling a wide range of applications from simple household devices to complex industrial machinery. Understanding what is an electromagnet, its construction, working principles, and applications can provide valuable insights into the principles of electromagnetism and its potential for future innovations.
