Understanding the intricacies of HVAC systems can be daunting, but one component that plays a crucial role in maintaining comfort and efficiency is the damper. So, what is a damper? A damper is a mechanical device used to regulate the flow of air within a duct system. It can control the direction, volume, and temperature of the air, making it an essential part of any heating, ventilation, and air conditioning (HVAC) system. This blog post will delve into the types, functions, and importance of dampers in HVAC systems, providing a comprehensive guide for both homeowners and professionals.
What Is A Damper and Its Importance in HVAC Systems?
A damper is a critical component in HVAC systems that controls the airflow within ducts. By adjusting the position of the damper, you can direct air to specific areas of a building, ensuring that each room receives the appropriate amount of heated or cooled air. This not only enhances comfort but also improves energy efficiency by preventing overcooling or overheating of certain areas.
Dampers are essential for several reasons:
- Energy Efficiency: By controlling airflow, dampers help reduce energy consumption by preventing the HVAC system from working harder than necessary.
- Comfort: Proper airflow management ensures that every room in a building maintains a comfortable temperature.
- Air Quality: Dampers can help distribute fresh air more evenly, improving indoor air quality.
- System Longevity: By reducing the strain on the HVAC system, dampers can extend the lifespan of the equipment.
Types of Dampers in HVAC Systems
There are several types of dampers used in HVAC systems, each serving a specific purpose. Understanding these types can help in selecting the right damper for your needs.
Manual Dampers
Manual dampers are the simplest and most cost-effective type. They are operated by hand and are typically used in residential settings where precise control is not critical. These dampers are easy to install and maintain, making them a popular choice for homeowners.
Automatic Dampers
Automatic dampers are controlled by a motor or actuator and can be integrated with the building's HVAC control system. They offer precise control over airflow and can be programmed to adjust based on temperature, humidity, or other environmental factors. Automatic dampers are commonly used in commercial buildings where energy efficiency and comfort are paramount.

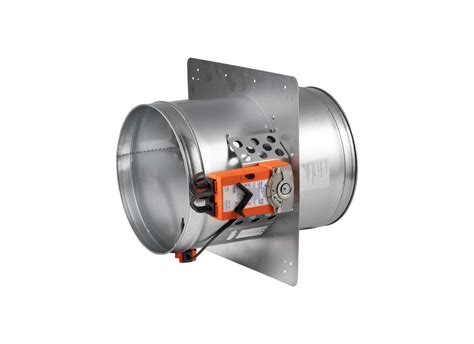

Fire Dampers
Fire dampers are designed to prevent the spread of fire and smoke through ductwork. They automatically close when a fire is detected, creating a barrier that helps contain the fire. Fire dampers are a critical safety feature in commercial and industrial buildings and are often required by building codes.

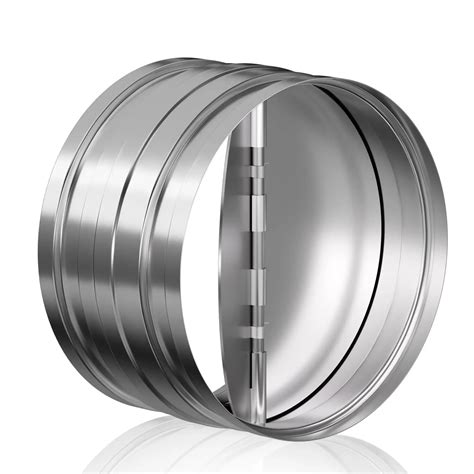

Backdraft Dampers
Backdraft dampers are used to prevent the backflow of air into the HVAC system. They open when the fan is running and close when the fan is off, ensuring that air flows in the correct direction. Backdraft dampers are essential for maintaining the efficiency and performance of the HVAC system.
Balancing Dampers
Balancing dampers are used to adjust the airflow in different branches of the ductwork. They help ensure that each room receives the correct amount of air, balancing the system for optimal performance. Balancing dampers are often used during the installation or maintenance of HVAC systems to fine-tune airflow.
Volume Control Dampers
Volume control dampers are designed to regulate the volume of air flowing through the ductwork. They can be manually or automatically controlled and are used to maintain consistent airflow and pressure within the system. Volume control dampers are essential for ensuring that the HVAC system operates efficiently and effectively.
How Dampers Work in HVAC Systems

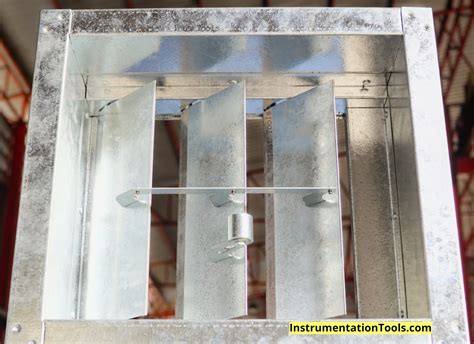

Dampers work by adjusting the position of a blade or set of blades within the ductwork. The blades can be opened or closed to control the airflow. In manual dampers, this is done by hand, while in automatic dampers, it is controlled by a motor or actuator. The position of the blades determines the amount of air that can pass through, allowing for precise control over airflow.
Here is a simple table to illustrate the different types of dampers and their functions:
| Type of Damper | Function | Common Use |
|---|---|---|
| Manual Damper | Hand-operated airflow control | Residential settings |
| Automatic Damper | Motor-controlled airflow regulation | Commercial buildings |
| Fire Damper | Fire and smoke containment | Commercial and industrial buildings |
| Backdraft Damper | Prevent backflow of air | HVAC systems |
| Balancing Damper | Adjust airflow in duct branches | HVAC installation and maintenance |
| Volume Control Damper | Regulate airflow volume | HVAC systems |
Installation and Maintenance of Dampers
Proper installation and maintenance of dampers are crucial for ensuring their effectiveness and longevity. Here are some key steps and considerations for installing and maintaining dampers:
Installation Steps
Installing a damper involves several steps, including measuring the ductwork, selecting the appropriate damper, and securing it in place. Here is a general guide to installing a damper:
- Measure the Ductwork: Determine the size of the ductwork where the damper will be installed. This will help you select the correct size damper.
- Select the Damper: Choose a damper that is compatible with your HVAC system and meets your specific needs. Consider factors such as the type of damper, material, and control method.
- Prepare the Ductwork: Cut the ductwork to the appropriate size and shape to accommodate the damper. Ensure that the edges are smooth and free of debris.
- Install the Damper: Place the damper in the ductwork and secure it using screws, clamps, or other fasteners. Ensure that the damper is properly aligned and sealed to prevent air leaks.
- Connect the Control System: If you are installing an automatic damper, connect it to the building's HVAC control system. Follow the manufacturer's instructions for wiring and programming the damper.
- Test the Damper: Once the damper is installed, test it to ensure that it is functioning correctly. Adjust the blades to verify that they open and close smoothly.
🔧 Note: Always follow the manufacturer's instructions for installing and maintaining dampers. Improper installation can lead to air leaks, reduced efficiency, and potential safety hazards.
Maintenance Tips
Maintaining dampers is essential for ensuring their long-term performance. Regular inspections and cleaning can help prevent issues and extend the lifespan of the damper. Here are some maintenance tips:
- Inspect Regularly: Check the damper for signs of wear, damage, or debris. Look for any cracks, rust, or misalignment that could affect its performance.
- Clean the Damper: Remove any dirt, dust, or debris from the damper blades and housing. Use a soft brush or compressed air to clean the damper thoroughly.
- Lubricate Moving Parts: Apply a small amount of lubricant to the moving parts of the damper to ensure smooth operation. Follow the manufacturer's recommendations for the type and frequency of lubrication.
- Check Seals: Inspect the seals around the damper to ensure they are intact and free of damage. Replace any worn or damaged seals to prevent air leaks.
- Test the Control System: If you have an automatic damper, test the control system to ensure it is functioning correctly. Verify that the damper responds to commands and adjusts the airflow as expected.
🛠️ Note: Regular maintenance can help prevent costly repairs and extend the lifespan of your damper. Schedule routine inspections and cleaning to keep your damper in optimal condition.
Common Issues with Dampers
Despite their importance, dampers can encounter various issues that affect their performance. Understanding these common problems can help you identify and address them promptly.
Air Leaks
Air leaks around the damper can reduce its effectiveness and compromise the efficiency of the HVAC system. Leaks can occur due to worn seals, improper installation, or damage to the damper housing. Regular inspections and maintenance can help prevent air leaks and ensure that the damper operates correctly.
Sticking or Binding
Dampers with moving parts can sometimes stick or bind, making it difficult to adjust the airflow. This can be caused by a lack of lubrication, debris buildup, or mechanical wear. Regular cleaning and lubrication can help prevent sticking and ensure smooth operation.
Misalignment
Misalignment of the damper blades can affect airflow and reduce the damper's effectiveness. This can occur due to improper installation, mechanical wear, or damage. Regular inspections can help identify misalignment issues, and adjustments can be made to restore proper operation.
Control System Failures
Automatic dampers rely on a control system to adjust the airflow. Failures in the control system can prevent the damper from functioning correctly. Regular testing and maintenance of the control system can help prevent failures and ensure reliable operation.
🛠️ Note: Addressing common issues promptly can help maintain the performance and efficiency of your damper. Regular inspections and maintenance are key to preventing problems and extending the lifespan of the damper.
Conclusion
Understanding what is a damper and its role in HVAC systems is essential for maintaining comfort, energy efficiency, and air quality. Dampers come in various types, each serving a specific purpose, and proper installation and maintenance are crucial for their effectiveness. By addressing common issues and following best practices, you can ensure that your dampers operate efficiently and contribute to the overall performance of your HVAC system. Whether you are a homeowner or a professional, knowing how to select, install, and maintain dampers can help you achieve optimal results and enhance the comfort and efficiency of your building.
