What Is A Cantilever

Understanding the concept of a cantilever is essential for anyone involved in engineering, architecture, or construction. A cantilever is a structural element that is anchored at only one end, with the other end extending freely into space. This design allows for unique and innovative structures, but it also presents specific challenges and considerations. This post will delve into the fundamentals of what is a cantilever, its applications, design principles, and the mathematical principles behind its stability.

Table of Contents

What Is A Cantilever?

A cantilever is a beam or structure that is supported at one end and carries a load at the other end or along its length. The term "cantilever" comes from the Latin words "cantilever," which means "to lean." This type of structure is commonly used in various applications, from bridges and buildings to everyday objects like shelves and balconies. The key characteristic of a cantilever is its ability to distribute loads efficiently, making it a versatile choice for many engineering projects.

Applications of Cantilevers

Cantilevers are used in a wide range of applications due to their unique properties. Some of the most common uses include:

Bridges: Cantilever bridges are designed to span large distances without the need for intermediate supports. This makes them ideal for crossing valleys, rivers, and other obstacles.

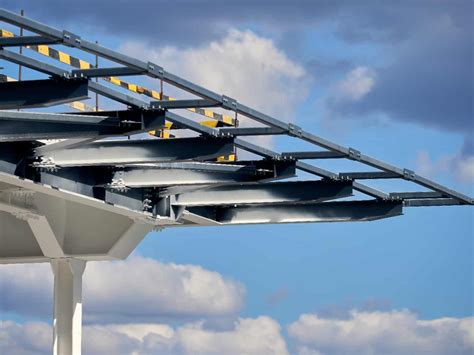

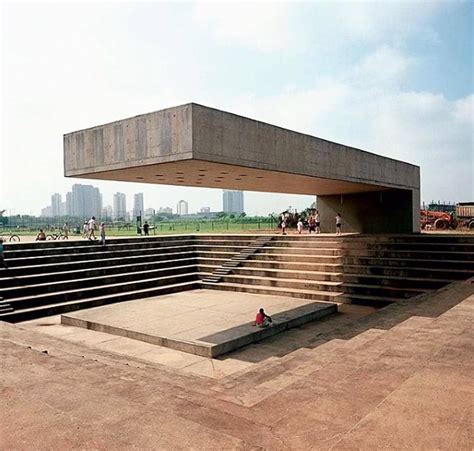

Buildings: Cantilevered structures are often used in modern architecture to create overhanging balconies, canopies, and other features that add aesthetic appeal and functionality.
Shelves and Furniture: In everyday life, cantilevers are used in furniture design, such as wall-mounted shelves and cantilever chairs, which provide support without the need for additional legs or brackets.
Aircraft Wings: The wings of aircraft are often designed as cantilevers, allowing them to extend outward from the fuselage without the need for external bracing.

Design Principles of Cantilevers

Designing a cantilever involves careful consideration of several factors to ensure stability and safety. The primary design principles include:

Load Distribution: The load on a cantilever is distributed along its length, with the maximum stress occurring at the fixed end. Engineers must calculate the load distribution to ensure the structure can withstand the forces acting on it.
Material Selection: The choice of material is crucial for the strength and durability of a cantilever. Common materials include steel, concrete, and composite materials, each with its own advantages and limitations.
Geometric Configuration: The shape and dimensions of the cantilever affect its performance. Engineers must optimize the geometry to minimize deflection and maximize stability.
Support Conditions: The type of support at the fixed end, such as a fixed support or a pinned support, influences the behavior of the cantilever. Proper support conditions are essential for maintaining structural integrity.

Mathematical Principles Behind Cantilevers

The stability and performance of a cantilever are governed by mathematical principles, particularly those related to beam theory. The key equations and concepts include:

Deflection: The deflection of a cantilever under a load can be calculated using beam deflection formulas. For a cantilever with a point load at the free end, the deflection (δ) is given by:

📝 Note: The deflection formula for a cantilever with a point load at the free end is δ = (PL³) / (3EI), where P is the load, L is the length of the cantilever, E is the modulus of elasticity, and I is the moment of inertia.

Shear Force and Bending Moment: The shear force and bending moment diagrams are essential for understanding the internal forces acting on a cantilever. These diagrams help engineers determine the critical sections where the structure is most likely to fail.
Stress Analysis: The stress in a cantilever can be analyzed using the flexure formula, which relates the bending moment to the stress in the beam. The formula is σ = (M * y) / I, where σ is the stress, M is the bending moment, y is the distance from the neutral axis, and I is the moment of inertia.

Types of Cantilevers

Cantilevers can be classified into different types based on their design and application. The most common types include:

Simple Cantilever: This is the basic type of cantilever, supported at one end and carrying a load at the other end. It is commonly used in bridges and buildings.
Cantilever Truss: A cantilever truss is a structural framework that combines the principles of trusses and cantilevers. It is often used in bridge construction to span large distances.
Cantilever Beam: A cantilever beam is a structural element that extends horizontally from a support. It is used in various applications, including balconies, canopies, and aircraft wings.
Cantilever Slab: A cantilever slab is a reinforced concrete slab that extends beyond its support. It is commonly used in building construction for creating overhanging balconies and terraces.

Challenges and Considerations

While cantilevers offer numerous advantages, they also present specific challenges and considerations. Some of the key factors to consider include:

Deflection: Cantilevers are prone to deflection under load, which can affect their performance and stability. Engineers must design cantilevers to minimize deflection and ensure they remain within acceptable limits.
Vibration: Cantilevers can be susceptible to vibration, especially under dynamic loads. Proper design and damping mechanisms are essential to mitigate vibration and ensure structural integrity.
Wind and Seismic Loads: Cantilevers must be designed to withstand wind and seismic loads, which can exert significant forces on the structure. Engineers must consider these loads in their design calculations to ensure the cantilever can withstand extreme conditions.
Material Fatigue: Repeated loading and unloading can cause material fatigue in cantilevers, leading to cracks and eventual failure. Engineers must select materials and design cantilevers to minimize the risk of fatigue.

Case Studies of Cantilever Structures

To better understand the applications and design principles of cantilevers, let's examine a few case studies of notable cantilever structures:

Quebec Bridge: The Quebec Bridge in Canada is a cantilever truss bridge that spans the St. Lawrence River. Completed in 1917, it is one of the longest cantilever bridges in the world, with a main span of 549 meters.
Royal Gorge Bridge: The Royal Gorge Bridge in Colorado, USA, is a cantilever truss bridge that crosses the Arkansas River. Built in 1929, it was the highest bridge in the world at the time of its construction, with a height of 359 meters above the river.
Millau Viaduct: The Millau Viaduct in France is a cable-stayed bridge that features cantilevered sections. Completed in 2004, it is one of the tallest bridges in the world, with a maximum height of 343 meters.

These case studies illustrate the versatility and innovation of cantilever structures, showcasing their ability to span large distances and withstand significant loads.

Designing a Cantilever: Step-by-Step Guide

Designing a cantilever involves several steps, from conceptualization to final construction. Here is a step-by-step guide to designing a cantilever:

Define the Requirements: Determine the purpose and requirements of the cantilever, including the load it needs to support, the span length, and any environmental factors.
Select the Material: Choose a suitable material for the cantilever based on its strength, durability, and cost. Common materials include steel, concrete, and composite materials.
Calculate the Loads: Perform load calculations to determine the forces acting on the cantilever, including dead loads, live loads, wind loads, and seismic loads.
Design the Geometry: Optimize the geometry of the cantilever to minimize deflection and maximize stability. Consider factors such as the cross-sectional shape, length, and support conditions.
Analyze the Stress: Use stress analysis techniques to determine the internal forces and stresses in the cantilever. Ensure that the design meets the required safety factors and performance criteria.
Create Detailed Drawings: Develop detailed drawings and specifications for the cantilever, including dimensions, material properties, and construction details.
Conduct Tests: Perform tests and simulations to validate the design and ensure it meets the required performance standards. Make any necessary adjustments based on the test results.
Construct the Cantilever: Follow the detailed drawings and specifications to construct the cantilever, ensuring that all components are properly installed and secured.

📝 Note: It is essential to follow local building codes and regulations when designing and constructing cantilevers. Consult with structural engineers and other professionals to ensure compliance and safety.

Cantilever Design Software

Designing a cantilever can be complex and time-consuming, but modern software tools can simplify the process. Some popular cantilever design software includes:

AutoCAD: AutoCAD is a widely used software for creating detailed drawings and specifications for cantilevers. It offers tools for 2D and 3D modeling, as well as analysis and simulation.
STAAD Pro: STAAD Pro is a structural analysis and design software that can be used to analyze cantilevers and other structural elements. It offers advanced features for load calculations, stress analysis, and optimization.
ETabs: ETabs is a comprehensive software for structural analysis and design, including cantilevers. It provides tools for modeling, analysis, and design, as well as integration with other engineering software.

These software tools can help engineers design cantilevers more efficiently and accurately, ensuring that they meet the required performance standards and safety criteria.

Cantilever Design Examples

To illustrate the design process, let's consider a few examples of cantilever design:

Cantilever Beam Example: Design a cantilever beam with a length of 5 meters, supporting a point load of 10 kN at the free end. The beam is made of steel with a modulus of elasticity (E) of 200 GPa and a moment of inertia (I) of 80 x 10^-6 m^4.

Using the deflection formula for a cantilever with a point load at the free end, we can calculate the deflection (δ) as follows:

δ = (10 kN * (5 m)³) / (3 * 200 GPa * 80 x 10^-6 m^4) = 0.0208 m or 20.8 mm

This calculation shows that the cantilever beam will deflect by 20.8 mm under the applied load.

Cantilever Truss Example: Design a cantilever truss with a span of 10 meters, supporting a uniformly distributed load of 5 kN/m. The truss is made of steel with a modulus of elasticity (E) of 200 GPa and a moment of inertia (I) of 120 x 10^-6 m^4.

To design the cantilever truss, we need to calculate the shear force and bending moment diagrams, as well as the deflection. The shear force (V) and bending moment (M) at any point along the truss can be calculated using the following formulas:

📝 Note: The shear force formula for a cantilever truss with a uniformly distributed load is V = w * (L - x), where w is the load per unit length, L is the length of the truss, and x is the distance from the free end. The bending moment formula is M = w * (L - x)² / 2.

For example, at the fixed end (x = 0), the shear force is V = 5 kN/m * 10 m = 50 kN, and the bending moment is M = 5 kN/m * (10 m)² / 2 = 250 kN·m.

These examples illustrate the design process for cantilevers, highlighting the importance of load calculations, stress analysis, and deflection analysis.

Cantilever Design Considerations

When designing cantilevers, it is essential to consider several factors to ensure their stability and performance. Some key considerations include:

Load Distribution: Properly distribute the load along the cantilever to minimize deflection and maximize stability. Consider both static and dynamic loads, as well as environmental factors such as wind and seismic activity.
Material Selection: Choose a suitable material for the cantilever based on its strength, durability, and cost. Consider factors such as corrosion resistance, fatigue resistance, and thermal expansion.
Geometric Configuration: Optimize the geometry of the cantilever to minimize deflection and maximize stability. Consider factors such as the cross-sectional shape, length, and support conditions.
Support Conditions: Properly design the support conditions at the fixed end to ensure the cantilever remains stable under load. Consider factors such as the type of support, the material properties, and the connection details.
Safety Factors: Incorporate appropriate safety factors in the design to account for uncertainties and variations in load, material properties, and environmental conditions. Ensure the cantilever meets the required performance standards and safety criteria.

By considering these factors, engineers can design cantilevers that are stable, durable, and efficient, meeting the required performance standards and safety criteria.

Cantilever Design Standards

Designing cantilevers involves adhering to specific standards and guidelines to ensure safety and performance. Some of the key standards and guidelines include:

American Society of Civil Engineers (ASCE): ASCE provides guidelines and standards for the design and construction of cantilevers, including load calculations, stress analysis, and deflection analysis.
American Institute of Steel Construction (AISC): AISC offers standards and specifications for the design and construction of steel cantilevers, including material properties, connection details, and fabrication requirements.
International Building Code (IBC): The IBC provides guidelines and standards for the design and construction of buildings, including cantilevers. It covers factors such as load calculations, material properties, and safety criteria.

Adhering to these standards and guidelines ensures that cantilevers are designed and constructed to meet the required performance standards and safety criteria.

Cantilever Design Calculations

Designing a cantilever involves performing various calculations to ensure its stability and performance. Some of the key calculations include:

Load Calculations: Calculate the loads acting on the cantilever, including dead loads, live loads, wind loads, and seismic loads. Use these calculations to determine the shear force and bending moment diagrams.
Stress Analysis: Perform stress analysis to determine the internal forces and stresses in the cantilever. Use the flexure formula to relate the bending moment to the stress in the beam.
Deflection Analysis: Calculate the deflection of the cantilever under load using beam deflection formulas. Ensure that the deflection remains within acceptable limits to maintain stability and performance.

These calculations are essential for designing cantilevers that are stable, durable, and efficient, meeting the required performance standards and safety criteria.

Cantilever Design Examples

To further illustrate the design process, let's consider a few more examples of cantilever design:

Cantilever Slab Example: Design a cantilever slab with a length of 3 meters, supporting a uniformly distributed load of 3 kN/m. The slab is made of reinforced concrete with a modulus of elasticity (E) of 25 GPa and a moment of inertia (I) of 50 x 10^-6 m^4.

Using the deflection formula for a cantilever with a uniformly distributed load, we can calculate the deflection (δ) as follows:

📝 Note: The deflection formula for a cantilever with a uniformly distributed load is δ = (wL^4) / (8EI), where w is the load per unit length, L is the length of the cantilever, E is the modulus of elasticity, and I is the moment of inertia.

δ = (3 kN/m * (3 m)⁴) / (8 * 25 GPa * 50 x 10^-6 m^4) = 0.00648 m or 6.48 mm

This calculation shows that the cantilever slab will deflect by 6.48 mm under the applied load.

Cantilever Beam with Distributed Load Example: Design a cantilever beam with a length of 4 meters, supporting a uniformly distributed load of 2 kN/m. The beam is made of steel with a modulus of elasticity (E) of 200 GPa and a moment of inertia (I) of 60 x 10^-6 m^4.

Using the deflection formula for a cantilever with a uniformly distributed load, we can calculate the deflection (δ) as follows:

δ = (2 kN/m * (4 m)⁴) / (8 * 200 GPa * 60 x 10^-6 m^4) = 0.00853 m or 8.53 mm
