What Is A Beam

In the realm of structural engineering and architecture, the term What Is A Beam often comes up. Beams are fundamental components in construction, providing essential support and stability to buildings and other structures. Understanding what a beam is, its types, and its applications is crucial for anyone involved in construction, engineering, or architecture.

Table of Contents

Understanding Beams

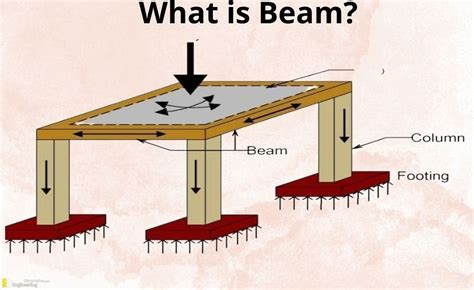

A beam is a structural element that primarily resists loads applied laterally to the beam's axis. Beams are designed to support loads, such as the weight of a building or the forces exerted by occupants and equipment. They transfer these loads to columns, walls, or other supporting structures. The primary function of a beam is to distribute the weight evenly, ensuring the stability and safety of the structure.

Types of Beams

Beams come in various types, each designed for specific applications and load-bearing requirements. The most common types include:

Simply Supported Beam: This type of beam is supported at both ends and is free to rotate. It is commonly used in bridges and simple structures.
Cantilever Beam: Supported at one end and free at the other, cantilever beams are often used in balconies and overhanging structures.
Continuous Beam: Supported by more than two supports, continuous beams are used in multi-span structures like bridges and buildings.
Overhanging Beam: Similar to a simply supported beam but with one or both ends extending beyond the supports, these beams are used in cantilevered structures.

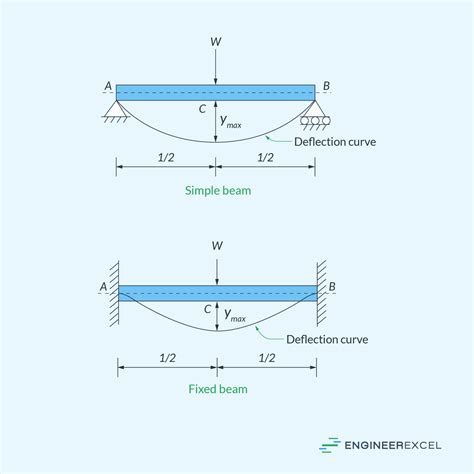

Fixed Beam: Supported and restrained at both ends, fixed beams are used in structures where rigidity is crucial.

Materials Used for Beams

The choice of material for a beam depends on the specific requirements of the structure, including load-bearing capacity, durability, and cost. Common materials used for beams include:

Wood: Traditional and cost-effective, wooden beams are often used in residential construction.
Steel: Known for its high strength-to-weight ratio, steel beams are commonly used in commercial and industrial buildings.
Concrete: Reinforced concrete beams provide excellent compressive strength and are widely used in large-scale construction projects.
Composite Materials: Modern composite materials, such as fiber-reinforced polymers, offer high strength and durability, making them suitable for specialized applications.

Design Considerations for Beams

Designing a beam involves several critical considerations to ensure it can safely support the intended loads. Key factors include:

Load Analysis: Determining the types and magnitudes of loads the beam will bear, including dead loads (permanent loads) and live loads (temporary loads).
Material Properties: Understanding the strength, stiffness, and durability of the chosen material.
Cross-Sectional Shape: Selecting the appropriate shape (e.g., rectangular, I-beam, T-beam) to optimize strength and stability.
Span Length: Calculating the distance between supports to ensure the beam can safely span the required distance.
Deflection Limits: Ensuring the beam does not deflect excessively under load, which could compromise the structure's integrity.

Additionally, beams must comply with building codes and standards, which specify minimum requirements for strength, deflection, and safety.

Applications of Beams

Beams are used in a wide range of applications across various industries. Some common uses include:

Building Construction: Beams are essential in the construction of residential, commercial, and industrial buildings, providing support for floors, roofs, and walls.
Bridge Construction: Beams are crucial in the design of bridges, where they support the deck and distribute the weight of vehicles and pedestrians.
Infrastructure Projects: Beams are used in the construction of tunnels, dams, and other infrastructure projects, ensuring stability and durability.
Mechanical Engineering: In mechanical systems, beams are used to support machinery, equipment, and other components.

Beams are also used in specialized applications, such as in the aerospace industry, where lightweight and high-strength materials are required.

Beam Design Standards and Codes

Beam design must adhere to various standards and codes to ensure safety and compliance. Some of the key standards include:

American Institute of Steel Construction (AISC): Provides guidelines for the design and construction of steel beams.
American Concrete Institute (ACI): Offers standards for the design of reinforced concrete beams.
International Building Code (IBC): Sets minimum requirements for beam design and construction in buildings.
Eurocode: A set of European standards for the design of structures, including beams.

These standards provide detailed specifications for beam design, including material properties, load calculations, and safety factors.

Common Beam Shapes and Their Uses

Beams come in various shapes, each designed for specific applications. Some of the most common beam shapes include:

Beam Shape	Description	Common Uses
Rectangular Beam	A simple beam with a rectangular cross-section.	Used in residential construction for floors and roofs.

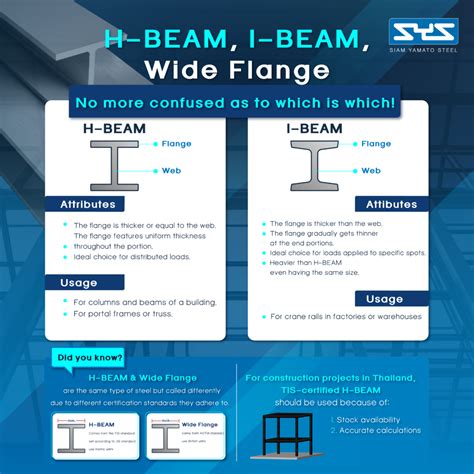

I-Beam	A beam with an I-shaped cross-section, providing high strength and rigidity.	Commonly used in commercial and industrial buildings.
T-Beam	A beam with a T-shaped cross-section, often used in reinforced concrete structures.	Used in bridge construction and large-scale buildings.
Channel Beam	A beam with a C-shaped cross-section, providing good strength and flexibility.	Used in mechanical systems and light construction.
Box Beam	A beam with a hollow rectangular cross-section, offering high strength and rigidity.	Used in aerospace and automotive industries.

Each beam shape has its advantages and is chosen based on the specific requirements of the project.

📝 Note: The choice of beam shape and material should be based on a thorough analysis of the load requirements, structural integrity, and cost considerations.

Beam Deflection and Stress Analysis

Understanding beam deflection and stress is crucial for ensuring the safety and longevity of a structure. Deflection refers to the bending or deformation of a beam under load, while stress refers to the internal forces acting within the beam. Key concepts include:

Deflection Formula: The deflection of a beam can be calculated using formulas that consider the beam's length, material properties, and applied loads.
Stress Analysis: Stress in a beam is analyzed using principles of mechanics, including bending stress, shear stress, and axial stress.
Safety Factors: Designers apply safety factors to account for uncertainties and ensure the beam can withstand loads beyond the expected maximum.

Advanced software tools, such as finite element analysis (FEA), are often used to perform detailed deflection and stress analysis, providing accurate predictions of beam behavior under various loading conditions.

Beam deflection and stress analysis are essential for ensuring that beams can safely support the intended loads without excessive deformation or failure.

📝 Note: Regular inspections and maintenance are crucial for identifying and addressing any issues related to beam deflection and stress over time.

Innovations in Beam Technology

The field of beam technology is continually evolving, with new materials and design techniques emerging to enhance performance and efficiency. Some recent innovations include:

Advanced Composites: Materials like carbon fiber-reinforced polymers (CFRP) offer high strength-to-weight ratios and are used in aerospace and automotive applications.
Smart Beams: Incorporating sensors and actuators, smart beams can monitor their own structural health and respond to changing loads in real-time.
3D Printing: Additive manufacturing techniques allow for the creation of complex beam shapes and structures, enabling customized solutions for specific applications.
Nanotechnology: Nanomaterials are being explored for their potential to enhance the strength and durability of beams, offering new possibilities for structural engineering.

These innovations are driving the development of more efficient, durable, and sustainable beam solutions, pushing the boundaries of what is possible in structural engineering.

Innovations in beam technology are transforming the way structures are designed and built, offering new possibilities for efficiency, durability, and sustainability.

📝 Note: Staying updated with the latest advancements in beam technology can provide valuable insights and opportunities for improving structural design and performance.

In conclusion, understanding What Is A Beam is fundamental to the field of structural engineering and architecture. Beams play a crucial role in supporting and stabilizing structures, and their design and application require careful consideration of various factors, including load analysis, material properties, and design standards. With ongoing innovations in beam technology, the future of structural engineering looks promising, offering new possibilities for efficiency, durability, and sustainability.
