What Are Valves

Valves are essential components in various industries, from plumbing and HVAC to automotive and aerospace. Understanding what are valves, their types, functions, and applications is crucial for anyone involved in these fields. This blog post will delve into the world of valves, exploring their importance, different types, and how they are used in various applications.

What Are Valves?

Valves are mechanical devices that control the flow and pressure of liquids, gases, or slurries by opening, closing, or partially obstructing various passageways. They are used in a wide range of applications, from simple household plumbing to complex industrial processes. Valves can regulate the flow direction, rate, and pressure, making them indispensable in many systems.

Types of Valves

There are numerous types of valves, each designed for specific applications. Here are some of the most common types:

Ball Valves

Ball valves use a spherical disc with a hole through the middle to control flow. When the valve is open, the hole aligns with the flow path, allowing fluid to pass through. When closed, the ball rotates to block the flow. Ball valves are known for their durability and ability to handle high pressures and temperatures.

Gate Valves

Gate valves use a gate or wedge to control flow. The gate moves perpendicular to the flow path, either allowing or blocking the flow. These valves are ideal for applications where a straight-line flow of fluid and minimum flow restriction are required. They are commonly used in water and gas pipelines.

Globe Valves

Globe valves have a movable disk that can be raised or lowered to control flow. The disk moves perpendicular to the seat, providing precise control over the flow rate. Globe valves are often used in applications where throttling is required, such as in steam systems and cooling water systems.

Butterfly Valves

Butterfly valves use a disc that rotates on a shaft to control flow. When the disc is parallel to the flow, the valve is open; when perpendicular, it is closed. Butterfly valves are compact and lightweight, making them suitable for large-diameter pipelines. They are commonly used in water treatment plants and HVAC systems.

Check Valves

Check valves allow fluid to flow in only one direction, preventing backflow. They are essential in systems where backflow could cause contamination or damage. Check valves are used in various applications, including water supply systems, chemical processing, and oil and gas pipelines.

Needle Valves

Needle valves have a small port and a threaded, needle-shaped plunger that precisely controls flow. They are ideal for applications requiring fine flow control, such as in laboratory equipment and instrumentation.

Plug Valves

Plug valves use a cylindrical or conical plug with a bored passage to control flow. The plug can be rotated to align the passage with the flow path or to block it. Plug valves are known for their quick operation and are commonly used in oil and gas pipelines.

Diaphragm Valves

Diaphragm valves use a flexible diaphragm to control flow. The diaphragm is pressed against the seat to close the valve and lifted to open it. These valves are ideal for handling corrosive or abrasive fluids, as the diaphragm isolates the fluid from the valve’s internal components. They are commonly used in chemical processing and food and beverage industries.

Safety Valves

Safety valves, also known as relief valves, are designed to open automatically when the pressure in a system exceeds a predetermined level, protecting equipment and personnel from overpressure. They are crucial in systems where pressure control is critical, such as in boilers, pressure vessels, and pipelines.

Applications of Valves

Valves are used in a wide range of industries and applications. Here are some of the most common uses:

Plumbing

In residential and commercial plumbing, valves control the flow of water and other fluids. Common types include:

• Ball valves for water supply lines
• Gate valves for main water lines
• Check valves to prevent backflow
• Pressure-reducing valves to regulate water pressure

HVAC Systems

In heating, ventilation, and air conditioning (HVAC) systems, valves control the flow of refrigerant, water, and air. Common types include:

• Butterfly valves for large-diameter ducts
• Globe valves for precise flow control
• Solenoid valves for automatic control

Automotive

In automotive applications, valves control the flow of fuel, oil, and coolant. Common types include:

• Fuel injectors (a type of valve) for precise fuel delivery
• Thermostat valves to regulate engine temperature
• Check valves to prevent backflow in the cooling system

Aerospace

In aerospace, valves control the flow of fuel, hydraulic fluid, and pneumatic systems. Common types include:

• Solenoid valves for automatic control
• Check valves to prevent backflow
• Pressure-reducing valves to regulate system pressure

Oil and Gas

In the oil and gas industry, valves control the flow of crude oil, natural gas, and other hydrocarbons. Common types include:

• Ball valves for high-pressure applications
• Gate valves for main pipelines
• Check valves to prevent backflow
• Safety valves to protect against overpressure

Chemical Processing

In chemical processing, valves control the flow of corrosive and hazardous fluids. Common types include:

• Diaphragm valves for handling corrosive fluids
• Globe valves for precise flow control
• Check valves to prevent backflow
• Safety valves to protect against overpressure

Selection Criteria for Valves

Choosing the right valve for a specific application involves considering several factors:

Material Compatibility

The valve material must be compatible with the fluid being handled to prevent corrosion and contamination. Common materials include:

• Stainless steel for corrosive fluids
• Brass for water and general-purpose applications
• PVC for chemical processing
• PTFE for high-purity applications

Pressure and Temperature Ratings

The valve must be rated for the maximum pressure and temperature of the system to ensure safe and reliable operation. Valves are typically rated in terms of:

• Pressure rating (e.g., PSI, bar)
• Temperature rating (e.g., °C, °F)

Flow Characteristics

The valve’s flow characteristics must match the requirements of the application. Key considerations include:

• Flow rate
• Pressure drop
• Turbulence

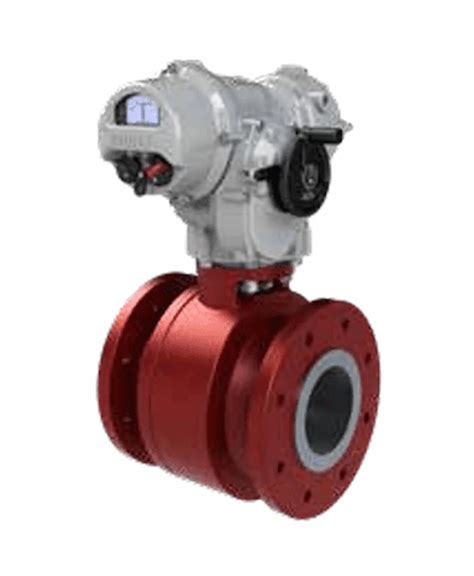

Actuation Method

Valves can be manually operated or automated using various actuation methods, such as:

• Manual lever or wheel
• Electric actuator
• Pneumatic actuator
• Hydraulic actuator

Maintenance Requirements

The valve’s maintenance requirements should be considered to ensure long-term reliability and minimize downtime. Factors to consider include:

• Frequency of maintenance
• Ease of access for maintenance
• Availability of spare parts

Maintenance and Troubleshooting of Valves

Maintaining valves is crucial for ensuring their longevity and reliability. Regular inspection, cleaning, and lubrication can prevent many common issues. Here are some tips for maintaining and troubleshooting valves:

Maintenance Tips

• Inspect valves regularly for signs of wear, corrosion, or damage.
• Clean valves to remove debris and prevent buildup.
• Lubricate moving parts to ensure smooth operation.
• Replace seals and gaskets as needed to prevent leaks.
• Test valves periodically to ensure they are functioning correctly.

Common Issues and Troubleshooting

Here are some common issues that can occur with valves and how to troubleshoot them:

🔧 Note: Always follow the manufacturer's guidelines for maintenance and troubleshooting specific valve types.

Safety Considerations for Valves

Working with valves involves handling high pressures and potentially hazardous fluids. Safety should always be a top priority. Here are some key safety considerations:

Personal Protective Equipment (PPE)

Wear appropriate PPE, including:

• Safety glasses or goggles
• Gloves
• Protective clothing
• Safety shoes

Pressure Relief

Always relieve pressure in a system before opening or closing valves to prevent sudden releases of energy that could cause injury.

Proper Handling

Handle valves carefully to avoid damage to the valve or injury to personnel. Use proper tools and techniques for opening, closing, and adjusting valves.

Regular Inspection

Inspect valves regularly for signs of wear, corrosion, or damage. Replace or repair valves as needed to ensure safe operation.

Training

Ensure that personnel are properly trained in the safe operation and maintenance of valves. Provide ongoing training to keep skills up-to-date.

Future Trends in Valve Technology

The valve industry is continually evolving, driven by advancements in materials, manufacturing techniques, and digital technologies. Some of the future trends in valve technology include:

Smart Valves

Smart valves integrate sensors and communication capabilities, allowing for real-time monitoring and control. These valves can provide data on flow rates, pressure, temperature, and other parameters, enabling predictive maintenance and improved system performance.

Advanced Materials

New materials, such as advanced polymers and composites, are being developed to improve valve performance, durability, and resistance to corrosion and wear. These materials can extend valve life and reduce maintenance requirements.

Additive Manufacturing

Additive manufacturing, or 3D printing, is being used to produce complex valve components with improved performance and reduced lead times. This technology allows for the creation of custom valve designs tailored to specific applications.

Digital Twins

Digital twins are virtual replicas of physical valves that can be used to simulate and optimize valve performance. By integrating data from smart valves and other sources, digital twins can help identify potential issues and improve system efficiency.

Automation and IoT

The integration of valves with automation systems and the Internet of Things (IoT) enables remote monitoring and control. This allows for more efficient operation and quicker response to issues, reducing downtime and improving overall system performance.

Valves are indispensable components in various industries, playing a crucial role in controlling the flow and pressure of fluids. Understanding what are valves, their types, functions, and applications is essential for anyone involved in these fields. By selecting the right valve for the application, maintaining it properly, and following safety guidelines, you can ensure reliable and efficient operation. As valve technology continues to evolve, staying informed about the latest trends and advancements will help you make the most of these critical components.
