Weight Of Pipe Calculation

Understanding the Weight Of Pipe Calculation is crucial for engineers, architects, and anyone involved in construction or industrial projects. Pipes are essential components in various systems, from plumbing to oil and gas pipelines, and knowing their weight is vital for design, transportation, and installation. This blog post will guide you through the process of calculating the weight of pipes, the factors involved, and the importance of accurate measurements.

Table of Contents

Understanding Pipe Weight

Pipe weight refers to the mass of the pipe material per unit length. It is typically measured in pounds per foot (lb/ft) or kilograms per meter (kg/m). The weight of a pipe depends on several factors, including the material, diameter, wall thickness, and length. Accurate Weight Of Pipe Calculation is essential for ensuring structural integrity, cost estimation, and logistics planning.

Factors Affecting Pipe Weight

Several factors influence the weight of a pipe. Understanding these factors is the first step in accurate Weight Of Pipe Calculation.

Material: Different materials have different densities. Common pipe materials include steel, PVC, copper, and aluminum. Each material has a specific weight per unit volume.
Diameter: The outer diameter of the pipe affects its weight. Larger diameters generally mean more material and, consequently, more weight.
Wall Thickness: The thickness of the pipe wall also impacts its weight. Thicker walls require more material, increasing the overall weight.
Length: The length of the pipe directly affects its weight. Longer pipes will naturally weigh more than shorter ones.

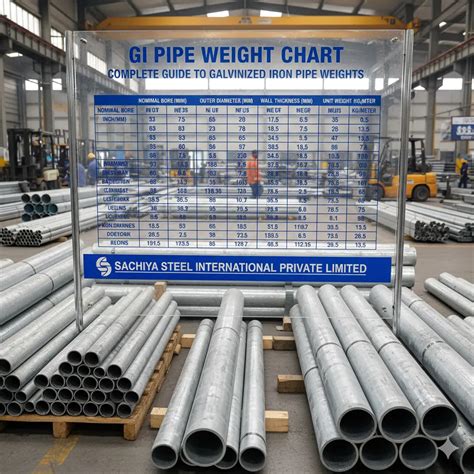

Formulas for Weight Of Pipe Calculation

The weight of a pipe can be calculated using various formulas, depending on the shape and material of the pipe. For cylindrical pipes, the most common formula is based on the volume of the pipe material.

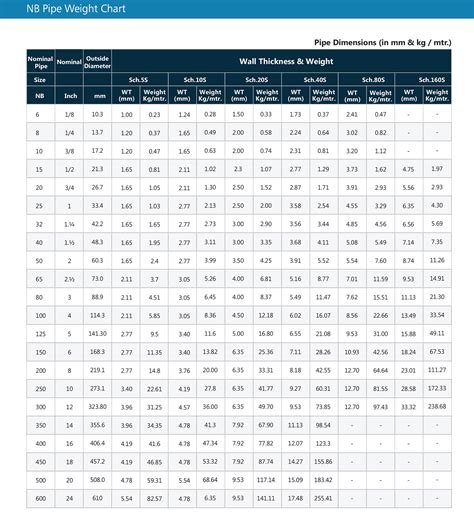

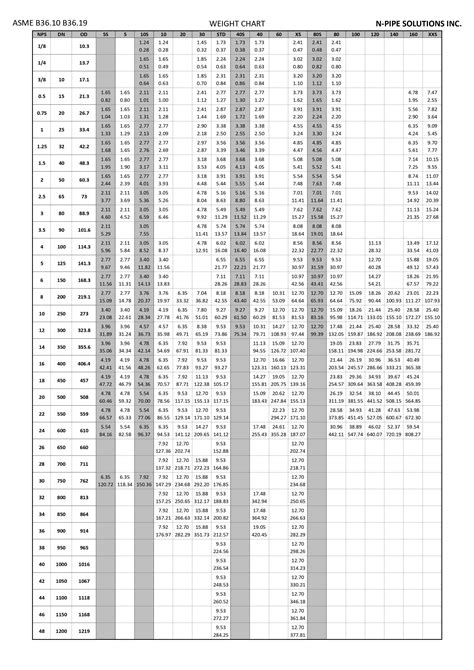

Formula for Steel Pipes

For steel pipes, the weight can be calculated using the following formula:

Weight (lb/ft) = (π/4) * (D² - d²) * L * ρ

Where:

D = Outer diameter of the pipe (inches)
d = Inner diameter of the pipe (inches)
L = Length of the pipe (feet)
ρ = Density of the material (lb/in³)

For example, if you have a steel pipe with an outer diameter of 10 inches, an inner diameter of 9 inches, a length of 10 feet, and a density of 0.283 lb/in³, the weight calculation would be:

Weight = (π/4) * (10² - 9²) * 10 * 0.283

Weight = (π/4) * (100 - 81) * 10 * 0.283

Weight = (π/4) * 19 * 10 * 0.283

Weight ≈ 42.4 lb/ft

This calculation gives you the weight of the pipe per foot. To find the total weight, multiply by the length of the pipe.

📝 Note: Ensure that all measurements are in consistent units. For example, if using metric units, convert inches to millimeters and pounds to kilograms.

Formula for PVC Pipes

For PVC pipes, the formula is similar, but the density of PVC is different. The density of PVC is approximately 0.054 lb/in³. The formula remains:

Weight (lb/ft) = (π/4) * (D² - d²) * L * ρ

Using the same dimensions as the steel pipe example, but with the density of PVC:

Weight = (π/4) * (10² - 9²) * 10 * 0.054

Weight ≈ 8.1 lb/ft

Formula for Copper Pipes

For copper pipes, the density is approximately 0.323 lb/in³. The formula is the same:

Weight (lb/ft) = (π/4) * (D² - d²) * L * ρ

Using the same dimensions:

Weight = (π/4) * (10² - 9²) * 10 * 0.323

Weight ≈ 50.0 lb/ft

Weight Of Pipe Calculation for Different Shapes

While cylindrical pipes are the most common, pipes can also have other shapes, such as rectangular or square cross-sections. The Weight Of Pipe Calculation for these shapes requires different formulas.

Rectangular Pipes

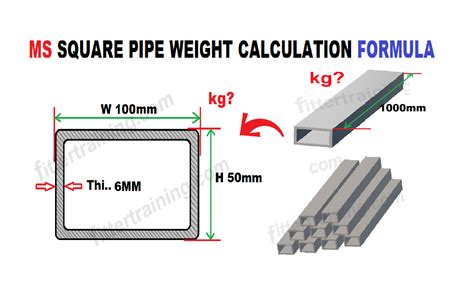

For rectangular pipes, the weight can be calculated using the formula:

Weight (lb/ft) = (Width * Height - (Width - 2*Thickness) * (Height - 2*Thickness)) * L * ρ

Where:

Width = Width of the pipe (inches)
Height = Height of the pipe (inches)
Thickness = Wall thickness (inches)
L = Length of the pipe (feet)
ρ = Density of the material (lb/in³)

Square Pipes

For square pipes, the formula is similar to that of rectangular pipes, but with equal width and height:

Weight (lb/ft) = (Side² - (Side - 2*Thickness)²) * L * ρ

Where:

Side = Side length of the pipe (inches)
Thickness = Wall thickness (inches)
L = Length of the pipe (feet)
ρ = Density of the material (lb/in³)

Importance of Accurate Weight Of Pipe Calculation

Accurate Weight Of Pipe Calculation is crucial for several reasons:

Structural Integrity: Knowing the weight of the pipes ensures that the supporting structures can handle the load, preventing failures and accidents.
Cost Estimation: Accurate weight calculations help in estimating the cost of materials and transportation, ensuring budget adherence.
Logistics Planning: Understanding the weight of pipes is essential for planning transportation and handling, ensuring efficient logistics.
Safety: Proper weight calculations contribute to the overall safety of the project, reducing the risk of accidents and ensuring compliance with safety standards.

Common Mistakes in Weight Of Pipe Calculation

Several common mistakes can lead to inaccurate Weight Of Pipe Calculation. Being aware of these mistakes can help avoid errors:

Incorrect Units: Using inconsistent units can lead to significant errors. Ensure all measurements are in the same units.
Ignoring Wall Thickness: The wall thickness is a critical factor in weight calculation. Ignoring it can result in inaccurate weights.
Incorrect Density Values: Using incorrect density values for the material can lead to errors. Always use the correct density for the specific material.
Overlooking Length: The length of the pipe directly affects its weight. Ensure accurate measurements of the pipe length.

📝 Note: Double-check all measurements and calculations to ensure accuracy. Use reliable sources for material densities and other necessary data.

Practical Examples of Weight Of Pipe Calculation

Let’s look at some practical examples to illustrate the Weight Of Pipe Calculation process.

Example 1: Steel Pipe

Calculate the weight of a steel pipe with the following specifications:

Outer diameter: 12 inches
Inner diameter: 10 inches
Length: 20 feet
Density of steel: 0.283 lb/in³

Using the formula:

Weight = (π/4) * (12² - 10²) * 20 * 0.283

Weight = (π/4) * (144 - 100) * 20 * 0.283

Weight = (π/4) * 44 * 20 * 0.283

Weight ≈ 80.8 lb/ft

Example 2: PVC Pipe

Calculate the weight of a PVC pipe with the following specifications:

Outer diameter: 8 inches
Inner diameter: 7 inches
Length: 15 feet
Density of PVC: 0.054 lb/in³

Using the formula:

Weight = (π/4) * (8² - 7²) * 15 * 0.054

Weight = (π/4) * (64 - 49) * 15 * 0.054

Weight = (π/4) * 15 * 15 * 0.054

Weight ≈ 11.8 lb/ft

Conclusion

Accurate Weight Of Pipe Calculation is essential for various applications, from construction to industrial projects. Understanding the factors that affect pipe weight, using the correct formulas, and avoiding common mistakes are key to ensuring precise calculations. Whether you are working with steel, PVC, copper, or other materials, knowing how to calculate the weight of pipes will help you in design, cost estimation, and logistics planning. By following the guidelines and examples provided, you can ensure that your pipe weight calculations are accurate and reliable.
