Understanding the intricacies of aviation safety is crucial for anyone involved in the industry. One of the most critical aspects of flight safety is the Weight And Balance Sheet. This document ensures that an aircraft is loaded correctly, maintaining its center of gravity within safe limits. Proper weight and balance are essential for the stability and control of the aircraft, affecting its performance and safety during flight.
Understanding the Weight And Balance Sheet
The Weight And Balance Sheet is a detailed document that outlines the weight distribution of an aircraft. It includes information about the aircraft's empty weight, the weight of the fuel, passengers, cargo, and any additional equipment. The primary goal is to ensure that the aircraft's center of gravity (CG) remains within the specified limits, which are crucial for safe flight operations.
Importance of Weight And Balance
Proper weight and balance are vital for several reasons:
- Stability and Control: An aircraft with a balanced weight distribution is easier to control and more stable in flight.
- Performance: Correct weight and balance can enhance the aircraft's performance, including takeoff, climb, and landing capabilities.
- Safety: Ensuring the aircraft is within its weight and balance limits reduces the risk of accidents and incidents.
Components of the Weight And Balance Sheet
The Weight And Balance Sheet typically includes the following components:
- Empty Weight: The weight of the aircraft without any fuel, passengers, or cargo.
- Fuel Weight: The weight of the fuel on board, which can vary depending on the flight plan.
- Passenger Weight: The total weight of all passengers, including their baggage.
- Cargo Weight: The weight of any cargo or additional equipment being carried.
- Center of Gravity (CG): The point at which the aircraft would balance if suspended. It must be within specified limits for safe flight.
Calculating Weight And Balance
Calculating the weight and balance involves several steps:
- Determine the Empty Weight: This is usually provided by the aircraft manufacturer and can be found in the aircraft's documentation.
- Calculate the Fuel Weight: Multiply the volume of fuel by its specific gravity to get the weight.
- Estimate Passenger and Cargo Weight: Use standard weights for passengers and cargo, or weigh them directly if possible.
- Calculate the Total Weight: Add the empty weight, fuel weight, passenger weight, and cargo weight.
- Determine the Center of Gravity (CG): Use the moments (weight multiplied by the arm) to find the CG. The arm is the distance from a reference point to the CG of each component.
📝 Note: The reference point is usually the datum, a fixed point on the aircraft from which all measurements are taken.
Example of a Weight And Balance Sheet

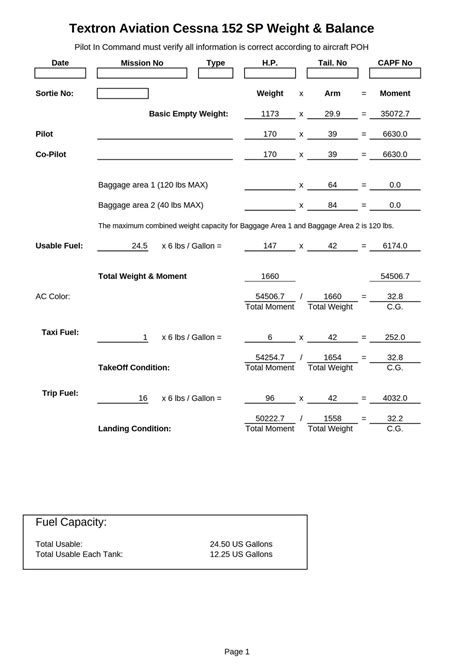

Here is an example of what a Weight And Balance Sheet might look like:
| Item | Weight (lbs) | Arm (inches) | Moment (in-lbs) |
|---|---|---|---|
| Empty Weight | 2,500 | 100 | 250,000 |
| Fuel | 500 | 120 | 60,000 |
| Passengers | 600 | 150 | 90,000 |
| Cargo | 300 | 180 | 54,000 |
| Total | 3,900 | 454,000 |
To find the CG, divide the total moment by the total weight:
CG = Total Moment / Total Weight = 454,000 in-lbs / 3,900 lbs = 116.4 inches
Ensuring Compliance with Regulations
Compliance with aviation regulations is mandatory for any aircraft operation. The Weight And Balance Sheet must adhere to the guidelines set by aviation authorities such as the Federal Aviation Administration (FAA) or the European Union Aviation Safety Agency (EASA). These regulations specify the acceptable weight and balance limits for different aircraft models.
Pilots and ground crew must ensure that the aircraft's weight and balance are within these limits before each flight. This involves:
- Accurately recording all weights and moments.
- Verifying that the CG is within the specified limits.
- Adjusting the load if necessary to achieve the correct balance.
📝 Note: Regular training and updates on weight and balance procedures are essential for all personnel involved in aircraft loading and flight operations.
Common Mistakes to Avoid
Several common mistakes can lead to improper weight and balance, compromising flight safety:
- Incorrect Weight Estimates: Using outdated or inaccurate weight estimates for passengers and cargo.
- Improper Loading: Loading heavy items in the wrong locations, which can shift the CG outside safe limits.
- Ignoring Fuel Weight: Failing to account for the weight of fuel, especially during long flights.
- Inadequate Documentation: Not maintaining accurate and up-to-date Weight And Balance Sheets for each flight.
Best Practices for Weight And Balance Management
To ensure the safety and efficiency of flight operations, follow these best practices:
- Regular Training: Provide ongoing training for pilots and ground crew on weight and balance procedures.
- Accurate Documentation: Maintain detailed and accurate Weight And Balance Sheets for each flight.
- Pre-Flight Checks: Conduct thorough pre-flight checks to verify the weight and balance of the aircraft.
- Use of Technology: Utilize weight and balance software to simplify calculations and ensure accuracy.
- Regular Audits: Conduct regular audits of weight and balance procedures to identify and correct any issues.
By adhering to these best practices, aviation professionals can ensure that the aircraft remains within safe weight and balance limits, enhancing overall flight safety and performance.
In conclusion, the Weight And Balance Sheet is a critical document in aviation safety. It ensures that an aircraft is loaded correctly, maintaining its center of gravity within safe limits. Proper weight and balance are essential for the stability and control of the aircraft, affecting its performance and safety during flight. By understanding the components of the Weight And Balance Sheet, calculating weight and balance accurately, and adhering to regulations and best practices, aviation professionals can ensure safe and efficient flight operations. Regular training, accurate documentation, and thorough pre-flight checks are key to maintaining the integrity of the Weight And Balance Sheet and enhancing overall flight safety.
