Wavelength Frequency Relationship

Understanding the relationship between wavelength and frequency is fundamental in the study of waves, whether they are electromagnetic, sound, or any other type of wave. This relationship is governed by a simple yet powerful equation that has wide-ranging applications in physics, engineering, and technology. In this post, we will delve into the wavelength frequency relationship, exploring its significance, applications, and how it is derived.

Table of Contents

Understanding Wavelength and Frequency

Before we dive into the wavelength frequency relationship, it's essential to understand what wavelength and frequency represent.

Wavelength

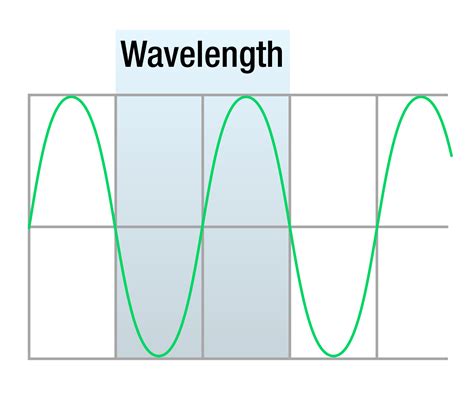

Wavelength is the distance between two successive crests or troughs of a wave. It is typically denoted by the Greek letter lambda (λ) and is measured in units such as meters, centimeters, or nanometers. Wavelength is a spatial characteristic of a wave, describing how far apart the peaks are.

Frequency

Frequency, on the other hand, is the number of cycles a wave completes in one second. It is measured in Hertz (Hz) and is denoted by the letter f. Frequency is a temporal characteristic, describing how often the wave oscillates.

The Wavelength Frequency Relationship

The wavelength frequency relationship is described by the equation:

c = λf

Where:

c is the speed of the wave (in meters per second, m/s).
λ is the wavelength (in meters, m).
f is the frequency (in Hertz, Hz).

This equation shows that the speed of a wave is equal to the product of its wavelength and frequency. This relationship is crucial in various fields of science and engineering.

Derivation of the Wavelength Frequency Relationship

The derivation of the wavelength frequency relationship is straightforward. Consider a wave traveling at a constant speed c. In one second, the wave will travel a distance equal to its speed. This distance is also equal to the number of wavelengths that pass a given point in one second, which is the frequency of the wave.

Mathematically, this can be expressed as:

c = λf

This equation can be rearranged to solve for either wavelength or frequency:

λ = c/f

f = c/λ

These rearrangements are useful in various applications where either the wavelength or frequency needs to be determined.

Applications of the Wavelength Frequency Relationship

The wavelength frequency relationship has numerous applications across different fields. Some of the key areas where this relationship is applied include:

Electromagnetic Waves

Electromagnetic waves, including light, radio waves, and X-rays, travel at the speed of light in a vacuum, which is approximately 3 x 10⁸ meters per second. The wavelength frequency relationship is used to determine the properties of these waves. For example, visible light has wavelengths ranging from about 400 nanometers (violet) to 700 nanometers (red). Using the relationship, we can calculate the corresponding frequencies.

Sound Waves

Sound waves travel at different speeds depending on the medium. In air, the speed of sound is approximately 343 meters per second at room temperature. The wavelength frequency relationship is used to determine the wavelength of sound waves, which is crucial in acoustics and audio engineering. For example, the wavelength of a 440 Hz sound wave (A4 note) in air is about 0.77 meters.

Communication Systems

In communication systems, the wavelength frequency relationship is used to design and optimize transmission and reception of signals. For example, radio waves used in AM and FM broadcasting have specific wavelengths and frequencies that are carefully chosen to minimize interference and maximize range.

Medical Imaging

In medical imaging, such as MRI and ultrasound, the wavelength frequency relationship is used to generate images of the body's internal structures. The wavelengths and frequencies of the waves used in these techniques are carefully controlled to ensure accurate and safe imaging.

Examples of the Wavelength Frequency Relationship

Let's look at a few examples to illustrate the wavelength frequency relationship in action.

Example 1: Visible Light

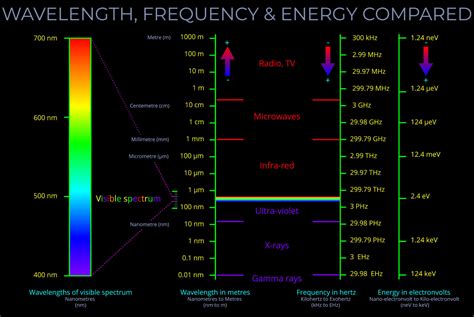

Visible light has a wavelength range of approximately 400 nm to 700 nm. Using the speed of light (3 x 10⁸ m/s), we can calculate the corresponding frequencies:

Wavelength (nm)	Frequency (Hz)
400	7.5 x 10¹⁴
700	4.3 x 10¹⁴

These frequencies correspond to the violet and red ends of the visible spectrum, respectively.

Example 2: Radio Waves

Radio waves used in AM broadcasting have frequencies ranging from 535 kHz to 1.7 MHz. Using the speed of light, we can calculate the corresponding wavelengths:

Frequency (kHz)	Wavelength (m)
535	560.7
1700	176.5

These wavelengths are much longer than those of visible light, which is why radio waves can travel long distances and penetrate buildings.

💡 Note: The speed of light in a vacuum is a constant, but it can vary in different media. For example, the speed of light in water is slower than in air, which affects the wavelength frequency relationship in those media.

Importance of the Wavelength Frequency Relationship

The wavelength frequency relationship is a cornerstone of wave theory and has far-reaching implications in various fields. Understanding this relationship allows scientists and engineers to:

Design and optimize communication systems.
Develop medical imaging techniques.
Study the properties of electromagnetic waves.
Analyze sound waves and acoustics.

By mastering the wavelength frequency relationship, professionals can make significant advancements in technology and science, leading to innovations that improve our daily lives.

In summary, the wavelength frequency relationship is a fundamental concept in the study of waves. It provides a simple yet powerful equation that relates the speed of a wave to its wavelength and frequency. This relationship has wide-ranging applications in physics, engineering, and technology, making it an essential tool for scientists and engineers alike. By understanding and applying this relationship, we can unlock new possibilities and drive innovation in various fields.
