Watts Versus Volts

Understanding the fundamentals of electrical systems is crucial for anyone working with electronics, whether you're a hobbyist, a professional engineer, or someone simply curious about how things work. Two of the most basic yet essential concepts in this field are Watts and Volts. These terms are often used interchangeably in casual conversation, but they represent distinct and important aspects of electrical power. This post will delve into the differences between Watts and Volts, their significance in electrical systems, and how they relate to each other.

Table of Contents

Understanding Watts

Watts are a unit of power, named after the Scottish engineer James Watt. Power, in the context of electricity, refers to the rate at which electrical energy is transferred or converted. In simpler terms, it measures how much work can be done by an electrical system in a given amount of time.

To understand Watts better, consider the following formula:

Power (Watts) = Voltage (Volts) × Current (Amperes)

This formula, often referred to as Watt’s Law, shows that power is the product of voltage and current. For example, if you have a device that operates at 12 Volts and draws 2 Amperes of current, the power consumption would be:

12 Volts × 2 Amperes = 24 Watts

This means the device is using 24 Watts of power.

Understanding Volts

Volts, on the other hand, are a unit of electrical potential difference, also known as voltage. Voltage is the force that drives electric current through a circuit. It is analogous to the pressure in a water pipe; the higher the pressure, the more water flows through the pipe. Similarly, the higher the voltage, the more current flows through a circuit, assuming the resistance remains constant.

Voltage is measured using a voltmeter, and it is crucial for determining the power requirements of electrical devices. For instance, a typical AA battery has a voltage of 1.5 Volts, while a standard household outlet in the United States provides 120 Volts.

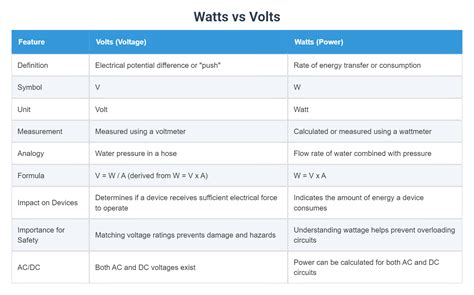

Watts Versus Volts: The Key Differences

While both Watts and Volts are fundamental to understanding electrical systems, they serve different purposes and have distinct characteristics:

Definition: Watts measure power, while Volts measure electrical potential difference.
Formula: Watts are calculated as the product of Volts and Amperes (Power = Voltage × Current), whereas Volts are a standalone measurement of potential difference.
Application: Watts are used to determine the power consumption of devices, while Volts are used to ensure that devices receive the correct electrical potential to function properly.

The Relationship Between Watts and Volts

Although Watts and Volts are different, they are interconnected through the concept of electrical power. The relationship between them is best understood through Ohm’s Law and Watt’s Law. Ohm’s Law states that:

Voltage (Volts) = Current (Amperes) × Resistance (Ohms)

Combining Ohm’s Law with Watt’s Law, we get:

Power (Watts) = (Current (Amperes) × Resistance (Ohms)) × Current (Amperes)

This relationship is crucial for designing and troubleshooting electrical circuits. For example, if you know the resistance of a component and the voltage applied to it, you can calculate the current and power consumption.

Practical Examples of Watts Versus Volts

To illustrate the practical differences between Watts and Volts, consider the following examples:

Light Bulbs

Light bulbs are often rated in Watts, indicating their power consumption. For instance, a 60-Watt light bulb consumes 60 Watts of power. However, the voltage required to operate the bulb depends on the electrical system it is connected to. In the United States, a 60-Watt bulb typically operates at 120 Volts, while in Europe, it might operate at 230 Volts.

Batteries

Batteries are rated in both Volts and Ampere-hours (Ah), which is a measure of capacity. For example, a 12-Volt, 100-Ah battery can provide 12 Volts of potential difference and has a capacity to deliver 100 Amperes of current for one hour. The power it can deliver is calculated as:

12 Volts × 100 Amperes = 1200 Watts

This means the battery can deliver 1200 Watts of power for one hour.

Electrical Outlets

Electrical outlets are rated in Volts and Amperes, indicating the maximum power they can safely deliver. For example, a standard household outlet in the United States is rated at 120 Volts and 15 Amperes. The maximum power it can deliver is:

120 Volts × 15 Amperes = 1800 Watts

This means the outlet can safely power devices that consume up to 1800 Watts.

Importance of Understanding Watts Versus Volts

Understanding the difference between Watts and Volts is essential for several reasons:

Safety: Knowing the voltage requirements of devices ensures that they are connected to the correct power source, preventing electrical hazards.
Efficiency: Understanding power consumption (Watts) helps in selecting energy-efficient devices and optimizing electrical systems.
Design: For engineers and designers, knowing the relationship between Watts and Volts is crucial for creating reliable and efficient electrical circuits.

💡 Note: Always ensure that the voltage and power requirements of devices match the electrical system they are connected to. Mismatches can lead to device failure or electrical hazards.

Calculating Watts and Volts

To calculate Watts and Volts, you can use the following formulas:

Power (Watts) = Voltage (Volts) × Current (Amperes)

Voltage (Volts) = Current (Amperes) × Resistance (Ohms)

Current (Amperes) = Power (Watts) / Voltage (Volts)

These formulas are essential for troubleshooting electrical issues and designing circuits. For example, if you know the resistance of a component and the voltage applied to it, you can calculate the current and power consumption.

Common Misconceptions About Watts Versus Volts

There are several common misconceptions about Watts and Volts that can lead to confusion:

Watts and Volts are the same: This is incorrect. Watts measure power, while Volts measure electrical potential difference.
Higher Volts mean higher power: Not necessarily. Power depends on both voltage and current. A device with higher voltage but lower current may consume less power than one with lower voltage but higher current.
Watts and Amperes are interchangeable: This is also incorrect. Amperes measure current, while Watts measure power. They are related but distinct concepts.

💡 Note: Always double-check your calculations and ensure that you are using the correct units when working with electrical systems.

Conclusion

In summary, Watts and Volts are fundamental concepts in electrical systems, each serving a unique purpose. Watts measure power, indicating how much work can be done by an electrical system, while Volts measure electrical potential difference, driving the flow of current. Understanding the relationship between these two concepts is crucial for designing, troubleshooting, and optimizing electrical circuits. Whether you’re a hobbyist, a professional engineer, or someone curious about electronics, grasping the differences between Watts and Volts will enhance your knowledge and skills in the field.
