Water Well Installation

Water is a fundamental necessity for life, and ensuring a reliable water supply is crucial for both residential and commercial properties. One of the most effective ways to secure a consistent water source is through water well installation. This process involves drilling into the ground to access underground water sources, providing a sustainable and often cost-effective solution for water needs.

Table of Contents

Understanding Water Well Installation

Water well installation is a complex process that requires careful planning and execution. It involves several steps, from site selection to the final installation of the well pump. Understanding the basics of water well installation can help property owners make informed decisions and ensure a successful project.

Site Selection and Preparation

Choosing the right location for your water well is the first and most critical step. Several factors need to be considered, including:

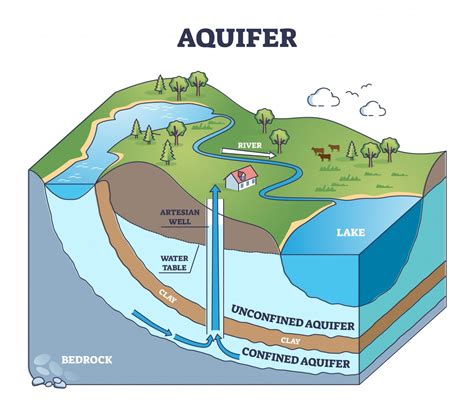

Water Table Depth: The depth of the water table in your area will determine how deep the well needs to be drilled.
Soil and Rock Composition: The type of soil and rock in the area can affect the drilling process and the well's longevity.
Proximity to Contaminants: Ensure the well is not located near potential sources of contamination, such as septic systems, chemical storage areas, or agricultural runoff.
Local Regulations: Check local regulations and obtain any necessary permits before beginning the water well installation process.

Once the site is selected, the next step is to prepare the area. This involves clearing the site of any debris, vegetation, and obstacles that could interfere with the drilling process. It's also important to mark the site with stakes or flags to ensure accurate drilling.

Drilling the Well

The drilling process is the core of water well installation. There are several methods of drilling, each suited to different types of soil and rock. The most common methods include:

Rotary Drilling: This method uses a rotating drill bit to cut through the soil and rock. It is suitable for a wide range of soil types and can drill to great depths.
Cable Tool Drilling: This traditional method uses a heavy drill bit that is raised and dropped to break through the soil and rock. It is effective in areas with hard rock formations.
Hydraulic Drilling: This method uses high-pressure water to break up the soil and rock. It is often used in areas with soft soil or clay.

During the drilling process, it's important to monitor the water quality and flow rate. This can help determine the best depth for the well and ensure that it will provide a sufficient water supply.

Installing the Well Casing and Screen

Once the well is drilled to the desired depth, the next step is to install the well casing and screen. The casing is a pipe that lines the well bore, providing structural support and preventing contamination. The screen is a perforated section at the bottom of the casing that allows water to enter the well while keeping out sediment and debris.

The casing and screen are typically made of materials such as PVC, stainless steel, or galvanized steel. The choice of material depends on the soil and water conditions, as well as local regulations.

It's crucial to ensure that the casing and screen are properly sealed and secured to prevent contamination and ensure the well's longevity.

Gravel Packing and Development

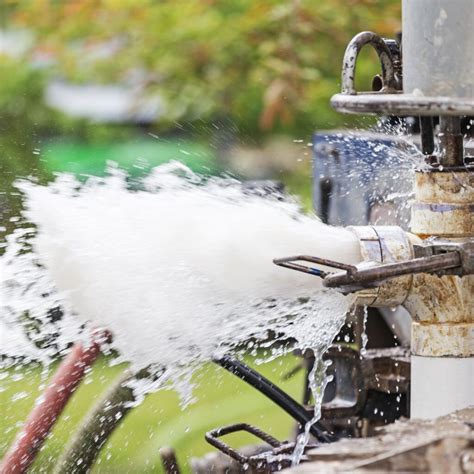

After installing the casing and screen, the next step is gravel packing and well development. Gravel packing involves placing a layer of gravel around the screen to improve water flow and prevent sediment from entering the well. Well development involves pumping water out of the well to remove any remaining drilling fluids and sediment, ensuring that the well produces clean, clear water.

This process can take several hours or even days, depending on the well's depth and the soil conditions. It's important to monitor the water quality during this process to ensure that the well is producing clean water.

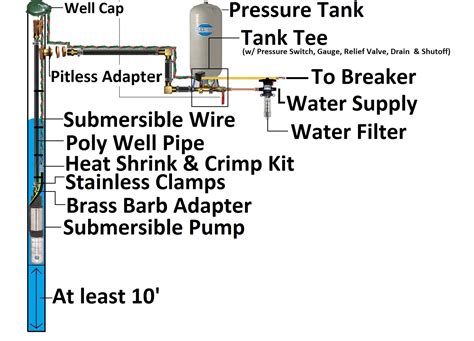

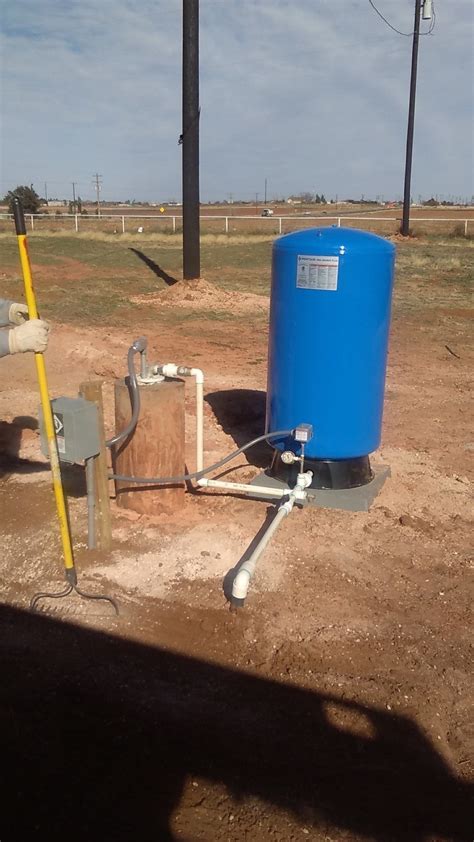

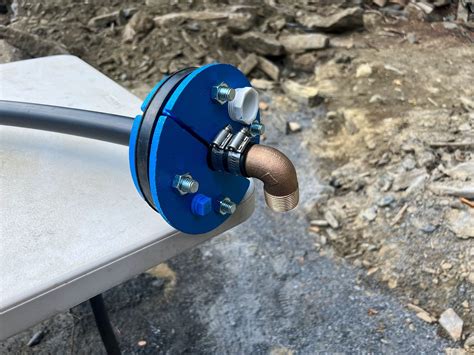

Installing the Well Pump

The final step in water well installation is installing the well pump. The pump is responsible for drawing water from the well and delivering it to your property. There are several types of well pumps, including:

Submersible Pumps: These pumps are installed below the water level and are ideal for deep wells.
Jet Pumps: These pumps are installed above the water level and are suitable for shallow wells.
Hand Pumps: These manual pumps are a cost-effective option for shallow wells and are often used in rural or off-grid areas.

Choosing the right pump depends on the well's depth, the water flow rate, and your specific water needs. It's important to consult with a professional to ensure that you select the appropriate pump for your well.

Once the pump is installed, it should be tested to ensure that it is functioning properly and delivering the required water flow rate.

📝 Note: Regular maintenance of the well pump is essential to ensure its longevity and efficiency. This includes periodic inspections, cleaning, and replacing any worn-out parts.

Testing and Certification

After the water well installation is complete, it's important to test the water quality and flow rate. This involves collecting water samples and sending them to a certified laboratory for analysis. The test results will help determine if the water is safe for drinking and other uses.

In many areas, it is required by law to have the well tested and certified by a licensed professional. This ensures that the well meets all local regulations and standards for water quality and safety.

It's also a good idea to have the well tested periodically to monitor water quality and detect any potential issues early.

Maintenance and Upkeep

Regular maintenance is crucial for the longevity and efficiency of your water well. Some key maintenance tasks include:

Annual Inspections: Have a professional inspect the well annually to check for any signs of wear, damage, or contamination.
Water Testing: Test the water quality regularly to ensure it remains safe for drinking and other uses.
Pump Maintenance: Inspect and maintain the well pump to ensure it is functioning properly. This includes cleaning, lubricating, and replacing any worn-out parts.
Casing and Screen Inspection: Check the well casing and screen for any signs of damage or corrosion. Repair or replace them as needed.
Bacteria and Contaminant Testing: Periodically test for bacteria and other contaminants to ensure the water remains safe.

By following a regular maintenance schedule, you can extend the life of your well and ensure a reliable water supply for years to come.

📝 Note: If you notice any changes in water quality, flow rate, or other issues, it's important to contact a professional immediately. Early detection and repair of problems can prevent more serious and costly issues down the line.

Common Issues and Troubleshooting

Even with proper installation and maintenance, water wells can encounter issues over time. Some common problems and their potential solutions include:

Issue	Potential Causes	Solutions
Low Water Pressure	Clogged pump, low water table, or damaged casing	Clean or replace the pump, check the water table, or repair the casing
Dirty or Discolored Water	Contamination, sediment buildup, or bacterial growth	Test the water, clean the well, or treat for bacteria
No Water Flow	Pump failure, power outage, or dry well	Check the pump, restore power, or drill a deeper well
Unusual Odors or Tastes	Contamination, bacterial growth, or chemical leaching	Test the water, clean the well, or install a water treatment system

If you encounter any of these issues, it's important to address them promptly to prevent further damage and ensure a reliable water supply.

Regular inspections and maintenance can help detect and prevent many of these issues before they become serious problems.

In some cases, it may be necessary to consult with a professional to diagnose and repair the issue. A qualified well driller or water treatment specialist can provide expert advice and services to ensure your well remains in good working order.

By understanding the common issues and taking proactive steps to maintain your well, you can enjoy a reliable and safe water supply for years to come.

In conclusion, water well installation is a complex but rewarding process that provides a sustainable and cost-effective water source. By carefully selecting the site, drilling the well, installing the necessary components, and maintaining the well regularly, you can ensure a reliable water supply for your property. Regular testing and inspections are crucial to detect and address any issues early, ensuring the longevity and efficiency of your well. With proper care and maintenance, a well-installed water well can provide clean, safe water for generations to come.
