Understanding the voltage from an AA battery is crucial for anyone working with electronics, whether you're a hobbyist or a professional. AA batteries are ubiquitous in various devices, from remote controls to flashlights, and knowing their voltage characteristics can help you make informed decisions about your projects. This post will delve into the specifics of AA battery voltage, including types, voltage ranges, and practical applications.
Understanding AA Battery Voltage

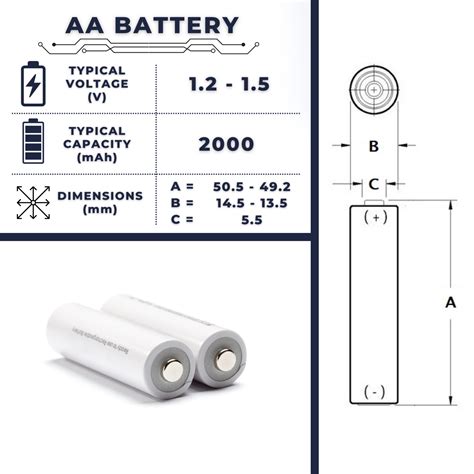

AA batteries are cylindrical dry cells with a standard size of 14.5 mm in diameter and 50.5 mm in length. They are available in various chemistries, each with its own voltage characteristics. The most common types are alkaline, nickel-metal hydride (NiMH), and lithium.
Alkaline AA Batteries

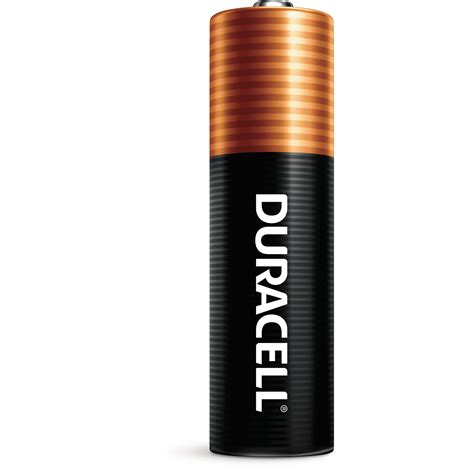

Alkaline AA batteries are the most widely used type due to their affordability and availability. They have a nominal voltage of 1.5 volts. However, the actual voltage from an AA battery can vary depending on its state of charge. When fully charged, an alkaline AA battery can provide up to 1.65 volts, but this voltage drops as the battery is used.
Nickel-Metal Hydride (NiMH) AA Batteries

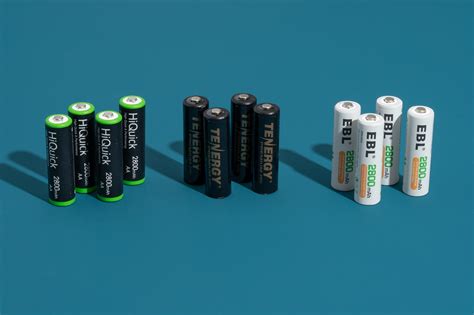

NiMH AA batteries are rechargeable and have a nominal voltage of 1.2 volts. Unlike alkaline batteries, NiMH batteries maintain a more consistent voltage level throughout their discharge cycle. This makes them ideal for high-drain devices like digital cameras and toys. The voltage from an AA NiMH battery remains relatively stable at around 1.2 volts until it is nearly depleted, at which point it drops rapidly.
Lithium AA Batteries
Lithium AA batteries offer a higher voltage and longer shelf life compared to alkaline and NiMH batteries. They have a nominal voltage of 1.5 volts, similar to alkaline batteries, but can provide a higher voltage of up to 1.8 volts when fully charged. Lithium batteries are often used in low-drain devices like remote controls and clocks due to their long lifespan and consistent voltage output.
Voltage Characteristics of AA Batteries
The voltage from an AA battery can vary based on several factors, including the battery's chemistry, age, and usage. Understanding these characteristics is essential for optimizing the performance of your devices.
Nominal Voltage vs. Actual Voltage
The nominal voltage is the standard voltage rating of a battery, while the actual voltage can vary based on its state of charge. For example, a fully charged alkaline AA battery may have an actual voltage of 1.65 volts, but as it discharges, this voltage will drop to around 1.2 volts before it is considered depleted.
Voltage Drop Over Time
All batteries experience a voltage drop as they discharge. The rate and extent of this drop depend on the battery's chemistry and the device's power requirements. Alkaline batteries, for instance, experience a gradual voltage drop, while NiMH batteries maintain a more consistent voltage until they are nearly depleted.
Temperature Effects
Temperature can also affect the voltage from an AA battery. Extreme cold or heat can reduce a battery's performance and voltage output. It's essential to store and use batteries within their recommended temperature range to ensure optimal performance.
Practical Applications of AA Battery Voltage
AA batteries are used in a wide range of devices, from simple remote controls to complex electronic gadgets. Understanding the voltage characteristics of AA batteries can help you choose the right type for your specific application.
Low-Drain Devices
Low-drain devices, such as remote controls, clocks, and calculators, require a consistent and stable voltage output. Lithium AA batteries are ideal for these applications due to their long shelf life and consistent voltage. Alkaline batteries can also be used, but they may not last as long in low-drain devices.
High-Drain Devices
High-drain devices, like digital cameras, flashlights, and toys, require a steady voltage output even under heavy load. NiMH AA batteries are the best choice for these applications due to their ability to maintain a consistent voltage throughout their discharge cycle. Alkaline batteries can be used in high-drain devices, but they may not perform as well under heavy load.
Rechargeable vs. Non-Rechargeable
When choosing between rechargeable and non-rechargeable AA batteries, consider the cost, environmental impact, and convenience. Rechargeable NiMH batteries are more cost-effective in the long run and are better for the environment, but they require a charger and may not be as convenient for one-time use. Non-rechargeable alkaline batteries are more convenient for occasional use but are less cost-effective and have a greater environmental impact.
Measuring AA Battery Voltage
Measuring the voltage from an AA battery is straightforward with the right tools. A multimeter is the most common tool used for this purpose. Here’s a step-by-step guide to measuring AA battery voltage:
Tools Needed
- Multimeter
- AA battery
- Battery holder (optional)
Steps to Measure Voltage
- Turn on your multimeter and set it to the DC voltage setting. Most multimeters have a setting for 20V DC, which is suitable for measuring AA battery voltage.
- Insert the AA battery into the battery holder if you are using one. If not, hold the battery securely.
- Touch the red probe of the multimeter to the positive terminal of the battery and the black probe to the negative terminal.
- Read the voltage displayed on the multimeter. This is the actual voltage from the AA battery.
🔍 Note: Always ensure the multimeter is set to the correct voltage range to avoid damaging the device or getting inaccurate readings.
Comparing AA Battery Voltages
To better understand the differences in voltage from various types of AA batteries, let's compare their characteristics in a table:
| Battery Type | Nominal Voltage | Fully Charged Voltage | Discharged Voltage | Typical Use Cases |
|---|---|---|---|---|
| Alkaline | 1.5V | 1.65V | 0.9V | Remote controls, flashlights, toys |
| NiMH | 1.2V | 1.4V | 1.0V | Digital cameras, high-drain devices |
| Lithium | 1.5V | 1.8V | 1.2V | Remote controls, clocks, low-drain devices |
Conclusion
Understanding the voltage from an AA battery is essential for optimizing the performance of your electronic devices. Whether you’re using alkaline, NiMH, or lithium batteries, knowing their voltage characteristics can help you make informed decisions about your projects. By measuring the voltage and choosing the right type of battery for your application, you can ensure that your devices run efficiently and reliably. Always consider the specific needs of your device and the environmental impact of your battery choices to make the best decision for your needs.
