Volt And Ampere Difference

Understanding the fundamentals of electricity is crucial for anyone working with electrical systems, whether you're an engineer, electrician, or hobbyist. Two of the most basic and essential units in this field are volts and amperes. While both are integral to electrical measurements, they represent different aspects of electrical flow. This post will delve into the volt and ampere difference, explaining what each unit measures, how they relate to each other, and their practical applications.

Table of Contents

What is a Volt?

A volt is a unit of electrical potential difference or electromotive force. It measures the amount of energy required to move a charge of one coulomb through an electrical circuit. In simpler terms, volts indicate the “pressure” or “force” that pushes electrons through a conductor.

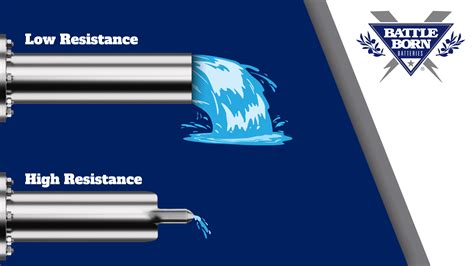

Imagine a water pipe: the voltage is like the water pressure pushing the water through the pipe. The higher the voltage, the more force is available to push the electrons through the circuit. This is why high-voltage systems can transmit power over long distances more efficiently than low-voltage systems.

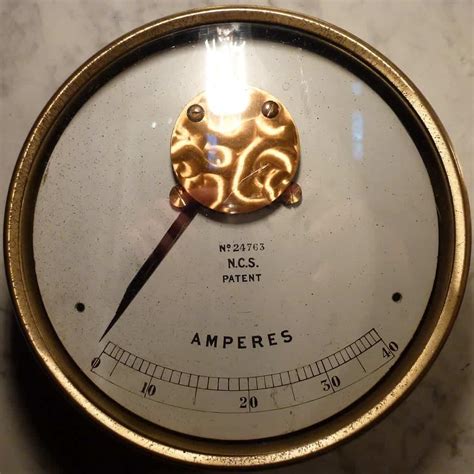

What is an Ampere?

An ampere, often shortened to “amp,” is a unit of electrical current. It measures the rate of flow of electric charge. One ampere is equal to one coulomb of charge moving past a point in one second. In the water pipe analogy, the current is like the flow rate of the water through the pipe. The higher the current, the more electrons are flowing through the circuit per second.

Amperes are crucial for understanding the capacity of electrical systems. For example, a circuit breaker rated at 15 amps can safely handle up to 15 amps of current before tripping to prevent overheating and potential fires.

Volt and Ampere Difference: Key Distinctions

While volts and amperes are both essential for understanding electrical systems, they measure different aspects of electricity. Here are the key distinctions:

Voltage (Volts): Measures the electrical potential difference or the force pushing electrons through a circuit.
Current (Amperes): Measures the rate of flow of electric charge through a circuit.

To further illustrate the volt and ampere difference, consider a simple electrical circuit with a battery and a resistor. The battery provides the voltage, pushing electrons through the resistor. The resistor, in turn, limits the flow of current. If you increase the voltage (volts), the current (amperes) will also increase, assuming the resistance remains constant.

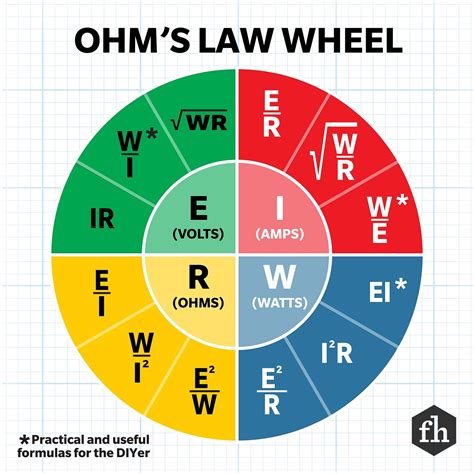

Ohm’s Law and the Relationship Between Volts and Amperes

Ohm’s Law is a fundamental principle in electricity that relates voltage, current, and resistance. It is expressed as:

V = IR

Where:

V is the voltage in volts
I is the current in amperes
R is the resistance in ohms

This law shows that voltage is directly proportional to current when resistance is constant. If you know any two of these values, you can calculate the third. For example, if you have a 9-volt battery and a resistor of 3 ohms, you can calculate the current as follows:

I = V / R = 9V / 3Ω = 3A

So, the current flowing through the circuit would be 3 amperes.

Practical Applications of Volts and Amperes

Understanding the volt and ampere difference is crucial for various practical applications. Here are a few examples:

Electrical Wiring

When wiring a house or building, electricians must ensure that the wiring can handle the expected current without overheating. This involves selecting the appropriate gauge of wire based on the amperage requirements. For example, a 15-amp circuit typically requires 14-gauge wire, while a 20-amp circuit requires 12-gauge wire.

Battery Selection

Choosing the right battery for a device involves considering both voltage and current requirements. For instance, a device that requires 5 volts and 2 amps will need a power source that can provide at least 10 watts (5V * 2A = 10W). Understanding the volt and ampere difference helps in selecting the appropriate battery to ensure the device operates correctly.

Solar Panels

In solar energy systems, the voltage and current produced by solar panels are critical for determining the system’s efficiency and compatibility with other components. Solar panels are often rated in terms of their voltage and current output, which helps in designing systems that can efficiently convert solar energy into usable electricity.

Safety Considerations

Both volts and amperes play crucial roles in electrical safety. High voltages can cause severe shocks, while high currents can lead to overheating and fires. It’s essential to understand the volt and ampere difference to ensure safe handling of electrical systems. Here are some safety tips:

Always use insulated tools when working with electrical components.
Ensure that circuits are properly grounded to prevent electrical shocks.
Use circuit breakers and fuses to protect against overcurrent situations.
Follow local electrical codes and regulations to ensure safety.

By understanding the volt and ampere difference and their roles in electrical systems, you can take appropriate safety measures to protect yourself and others.

🔧 Note: Always consult with a licensed electrician for complex electrical work to ensure safety and compliance with regulations.

Common Misconceptions

There are several misconceptions about volts and amperes that can lead to confusion. Here are a few common ones:

Misconception 1: Higher voltage means higher current. This is not always true. While higher voltage can lead to higher current in some cases, the actual current depends on the resistance of the circuit. For example, a 12-volt battery with a high resistance load may have a lower current than a 9-volt battery with a low resistance load.
Misconception 2: Amperes and watts are the same. Amperes measure current, while watts measure power. Power (in watts) is the product of voltage and current (P = VI). For example, a 12-volt system with 2 amps of current has a power output of 24 watts (12V * 2A = 24W).
Misconception 3: Voltage is always dangerous. While high voltages can be dangerous, low voltages can also be hazardous under certain conditions. For example, a low-voltage circuit with high current can cause severe burns or fires.

Understanding these misconceptions can help clarify the volt and ampere difference and their roles in electrical systems.

Conclusion

In summary, volts and amperes are fundamental units in the world of electricity, each measuring different aspects of electrical flow. Volts represent the electrical potential difference or force pushing electrons through a circuit, while amperes measure the rate of flow of electric charge. Understanding the volt and ampere difference is essential for designing, maintaining, and troubleshooting electrical systems safely and efficiently. By grasping the principles of voltage and current, you can ensure that your electrical projects are both functional and safe.
