Visualizing Data Using Tsne

Data visualization is a powerful tool that helps transform complex datasets into understandable and insightful visual representations. One of the most effective techniques for visualizing high-dimensional data is Visualizing Data Using t-SNE. t-SNE, or t-Distributed Stochastic Neighbor Embedding, is a machine learning algorithm designed to reduce the dimensionality of data while preserving the structure and relationships within the dataset. This makes it particularly useful for exploring and understanding complex datasets in fields such as biology, finance, and computer vision.

Table of Contents

Understanding t-SNE

t-SNE is a non-linear dimensionality reduction technique that is particularly well-suited for visualizing high-dimensional data. It works by converting the high-dimensional Euclidean distances between data points into conditional probabilities that represent similarities. These probabilities are then used to minimize the divergence between the distributions of the high-dimensional and low-dimensional data points.

There are two main phases in the t-SNE algorithm:

Stochastic Neighbor Embedding (SNE): This phase involves converting the high-dimensional Euclidean distances into conditional probabilities. The idea is to model the pairwise similarities between data points in the high-dimensional space.
t-Distribution: In this phase, the algorithm uses a t-distribution to model the similarities in the low-dimensional space. The t-distribution is chosen because it has heavier tails than a Gaussian distribution, which helps to preserve the structure of the data.

Why Use t-SNE for Data Visualization?

t-SNE offers several advantages that make it a popular choice for data visualization:

Preservation of Local Structure: t-SNE is particularly good at preserving the local structure of the data, meaning that points that are close together in the high-dimensional space will also be close together in the low-dimensional space.
Non-Linear Mapping: Unlike linear dimensionality reduction techniques like PCA (Principal Component Analysis), t-SNE can capture non-linear relationships in the data, making it more effective for complex datasets.
Visual Clarity: By reducing the data to two or three dimensions, t-SNE makes it easier to visualize and interpret the data, revealing patterns and structures that might not be apparent in higher dimensions.

Steps to Visualize Data Using t-SNE

To visualize data using t-SNE, follow these steps:

Step 1: Prepare Your Data

Ensure your data is in a suitable format for t-SNE. Typically, this means having a matrix where each row represents a data point and each column represents a feature. Preprocessing steps such as normalization or standardization may be necessary depending on the nature of your data.

Step 2: Choose the Parameters

t-SNE has several parameters that you can adjust to optimize the visualization:

Perplexity: This parameter controls the balance between local and global aspects of the data. A higher perplexity value will focus more on the global structure, while a lower value will focus on local structure.
Learning Rate: This parameter controls the step size during the optimization process. A higher learning rate will result in faster convergence but may also lead to a less accurate embedding.
Number of Iterations: This parameter determines how many iterations the algorithm will run. More iterations generally result in a better embedding but take longer to compute.

Step 3: Apply t-SNE

Use a library that supports t-SNE, such as scikit-learn in Python, to apply the algorithm to your data. Here is an example code snippet:


from sklearn.manifold import TSNE
import matplotlib.pyplot as plt

# Assuming X is your high-dimensional data
X = ...  # Your data here

# Apply t-SNE
tsne = TSNE(n_components=2, perplexity=30, learning_rate=200, n_iter=1000)
X_tsne = tsne.fit_transform(X)

# Plot the results
plt.scatter(X_tsne[:, 0], X_tsne[:, 1])
plt.title('t-SNE Visualization')
plt.xlabel('Component 1')
plt.ylabel('Component 2')
plt.show()

📝 Note: The choice of parameters can significantly affect the quality of the visualization. Experiment with different values to find the best settings for your data.

Step 4: Interpret the Results

After applying t-SNE, you will have a low-dimensional representation of your data. This can be visualized using scatter plots, where each point represents a data point and its position in the plot reflects its similarity to other points. Look for clusters, patterns, and outliers in the visualization to gain insights into your data.

Applications of t-SNE

t-SNE has a wide range of applications across various fields. Some notable examples include:

Biological Data Analysis

In biology, t-SNE is often used to analyze gene expression data. By reducing the dimensionality of gene expression profiles, researchers can identify clusters of genes that are co-expressed and gain insights into biological processes and pathways.

Image Recognition

In computer vision, t-SNE can be used to visualize high-dimensional feature vectors extracted from images. This helps in understanding the structure of the feature space and identifying patterns that can be used for image classification and recognition tasks.

Financial Data Analysis

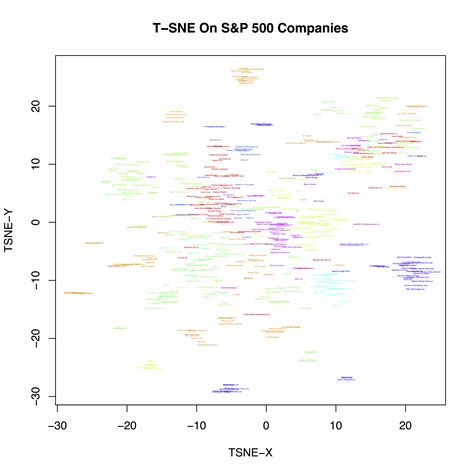

In finance, t-SNE can be applied to visualize high-dimensional financial data, such as stock prices or market indicators. This can help in identifying trends, correlations, and anomalies in the data, aiding in investment decisions and risk management.

Challenges and Limitations

While t-SNE is a powerful tool, it also has some challenges and limitations:

Computational Complexity: t-SNE can be computationally intensive, especially for large datasets. The algorithm requires significant memory and processing power, which can be a limitation for very large datasets.
Parameter Sensitivity: The quality of the t-SNE visualization is highly dependent on the choice of parameters. Finding the optimal settings can be challenging and may require extensive experimentation.
Global Structure Preservation: t-SNE is better at preserving local structure than global structure. This means that while nearby points are well-preserved, the overall layout of the data may not be as accurate.

Despite these limitations, t-SNE remains a valuable tool for data visualization, providing deep insights into high-dimensional data that would otherwise be difficult to interpret.

To further illustrate the effectiveness of t-SNE, consider the following example. Imagine you have a dataset of handwritten digits, such as the MNIST dataset. By applying t-SNE to this dataset, you can visualize the digits in a 2D plot, where each point represents a digit and its position reflects its similarity to other digits. The resulting visualization will show distinct clusters for each digit, making it easy to identify and interpret the data.

Here is an example of how the MNIST dataset might look after applying t-SNE:

In this visualization, each color represents a different digit (0-9). The distinct clusters show that t-SNE has successfully preserved the local structure of the data, making it easy to identify and interpret the digits.

In summary, Visualizing Data Using t-SNE is a powerful technique for exploring and understanding high-dimensional data. By reducing the dimensionality of the data while preserving its structure, t-SNE provides clear and insightful visualizations that can reveal patterns and relationships that might otherwise go unnoticed. Whether you are working in biology, finance, computer vision, or any other field, t-SNE is a valuable tool for data visualization that can help you gain deeper insights into your data.
