Understanding the fundamentals of computer graphics and display technologies is crucial for anyone involved in IT, gaming, or multimedia. One of the key components in this realm is the Video Graphics Array, commonly known as VGA. But what exactly is VGA, and why is it still relevant today? This post will delve into the intricacies of VGA, its history, technical specifications, and its modern-day applications.
What is VGA?
VGA, or Video Graphics Array, is a graphics display system introduced by IBM in 1987. It was designed to provide a higher resolution and color depth compared to its predecessors, such as CGA (Color Graphics Adapter) and EGA (Enhanced Graphics Adapter). VGA quickly became a standard for computer displays, offering a resolution of 640x480 pixels with 16 colors. This resolution was a significant leap forward at the time, making it possible to display more detailed graphics and text.
The Evolution of VGA
Since its introduction, VGA has undergone several iterations and improvements. The original VGA standard supported a maximum resolution of 640x480 pixels, but later enhancements allowed for higher resolutions and better color depth. These improvements were crucial for the development of more advanced graphics applications, including video games, multimedia software, and professional design tools.
One of the key advancements in VGA technology was the introduction of Super VGA (SVGA). SVGA extended the capabilities of the original VGA standard, offering resolutions up to 1024x768 pixels and supporting millions of colors. This made SVGA a popular choice for high-end graphics applications and multimedia presentations.
Technical Specifications of VGA
To understand VGA what is and how it works, it’s essential to delve into its technical specifications. The VGA standard defines several key parameters that govern its performance:
- Resolution: The original VGA standard supported a resolution of 640x480 pixels. Later enhancements allowed for higher resolutions, including 800x600, 1024x768, and even 1280x1024 pixels.
- Color Depth: VGA initially supported 16 colors, but this was later increased to 256 colors and eventually millions of colors with the introduction of SVGA.
- Refresh Rate: The refresh rate of a VGA display typically ranges from 60 to 85 Hz, although higher refresh rates are possible with certain configurations.
- Interface: VGA uses a 15-pin D-subminiature connector, which has been a standard for many years. This connector is used to transmit analog video signals from the computer to the display.

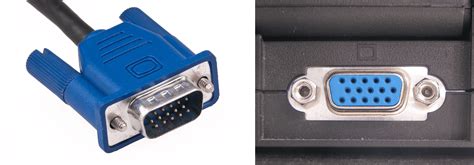

VGA Connectors and Cables
The VGA connector is a 15-pin D-subminiature connector that has been widely used for connecting computers to monitors and other display devices. The connector is designed to transmit analog video signals, which are then converted into digital signals by the display device. The 15 pins on the VGA connector are arranged in three rows, with five pins in each row. The pins are used to transmit various signals, including red, green, and blue video signals, as well as horizontal and vertical sync signals.
VGA cables are typically made of shielded twisted pair wires, which help to reduce interference and ensure a clear video signal. The cables are available in various lengths, ranging from a few feet to several meters. It's important to use high-quality VGA cables to ensure optimal performance and minimize signal degradation.

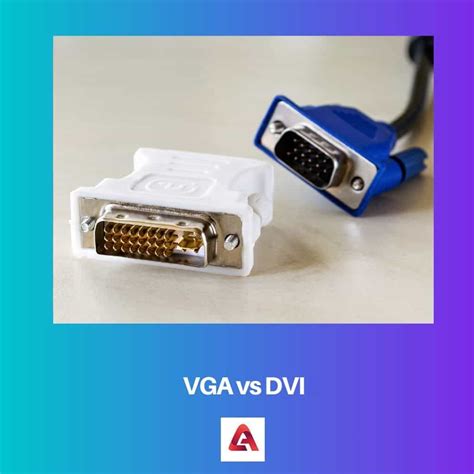

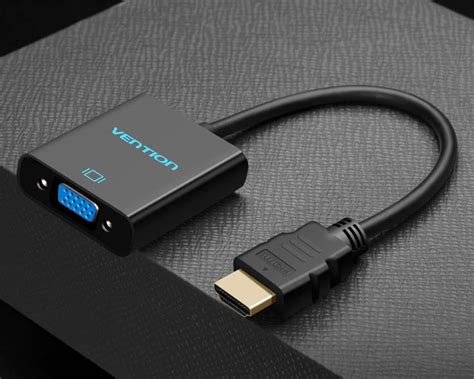

VGA vs. Other Display Standards
While VGA was a groundbreaking technology in its time, it has since been surpassed by more advanced display standards. Some of the most notable alternatives to VGA include DVI, HDMI, and DisplayPort. Each of these standards offers unique advantages and is suited to different applications.
| Standard | Resolution | Color Depth | Interface |
|---|---|---|---|
| VGA | Up to 1280x1024 | Millions of colors | 15-pin D-subminiature connector |
| DVI | Up to 1920x1200 | Millions of colors | 24-pin or 29-pin connector |
| HDMI | Up to 4K | Billions of colors | 19-pin connector |
| DisplayPort | Up to 8K | Billions of colors | 20-pin connector |
DVI (Digital Visual Interface) is a digital display interface that offers higher resolutions and better color depth compared to VGA. DVI is commonly used in professional settings, such as graphic design and video editing, where high-quality visuals are essential.
HDMI (High-Definition Multimedia Interface) is a digital interface that supports both audio and video signals. HDMI is widely used in home entertainment systems, including televisions, Blu-ray players, and gaming consoles. It offers high resolutions, including 4K, and supports billions of colors.
DisplayPort is a digital display interface that supports high resolutions and refresh rates. It is commonly used in professional settings, such as graphic design and video editing, and is also used in gaming applications. DisplayPort supports resolutions up to 8K and offers advanced features, such as multi-stream transport and adaptive sync.
💡 Note: While VGA is still used in some legacy systems, it is generally recommended to use more modern display standards, such as HDMI or DisplayPort, for better performance and compatibility.
Applications of VGA
Despite the advent of more advanced display standards, VGA remains relevant in certain applications. One of the primary uses of VGA is in legacy systems, where older hardware and software require VGA connectivity. Many older computers, monitors, and projectors still use VGA connectors, making it a necessary component for maintaining compatibility with older technology.
VGA is also used in educational settings, where it is often employed to connect computers to projectors or large displays for presentations and demonstrations. The simplicity and reliability of VGA make it a popular choice for these applications, even though more modern standards are available.
In addition to its use in legacy systems and educational settings, VGA is also employed in industrial and commercial applications. Many industrial machines and control systems use VGA displays to provide visual feedback and monitoring. The durability and reliability of VGA make it a suitable choice for these demanding environments.
Advantages and Disadvantages of VGA
VGA offers several advantages that have contributed to its longevity, but it also has some limitations. Understanding these pros and cons can help determine when VGA is the best choice for a particular application.
Advantages of VGA
- Compatibility: VGA is widely compatible with a broad range of devices, including older computers, monitors, and projectors.
- Simplicity: VGA connectors and cables are straightforward to use, making them a popular choice for simple display setups.
- Reliability: VGA connections are generally reliable and durable, making them suitable for demanding environments.
- Cost-Effective: VGA components are often less expensive than more modern display standards, making them a cost-effective solution for budget-conscious users.
Disadvantages of VGA
- Limited Resolution: VGA supports lower resolutions compared to more modern display standards, which can result in lower image quality.
- Analog Signal: VGA uses an analog signal, which is more susceptible to interference and signal degradation compared to digital signals.
- Limited Color Depth: While VGA supports millions of colors, it does not offer the same level of color depth as more modern standards like HDMI and DisplayPort.
- Outdated Technology: VGA is an older technology that has been largely superseded by more advanced display standards, which offer better performance and features.
💡 Note: While VGA has its limitations, it remains a viable option for certain applications where compatibility and simplicity are more important than high-resolution graphics.
Future of VGA
As technology continues to evolve, the role of VGA in modern computing and display systems is likely to diminish. More advanced display standards, such as HDMI and DisplayPort, offer superior performance and features, making them the preferred choice for most applications. However, VGA will likely continue to be used in legacy systems and specific niche applications where its simplicity and reliability are valued.
In conclusion, VGA has played a pivotal role in the development of computer graphics and display technologies. From its introduction in 1987 to its continued use in legacy systems and educational settings, VGA has proven to be a reliable and versatile display standard. While it may not offer the same level of performance as more modern standards, VGA remains an important part of the technological landscape, providing a bridge between the past and the present. Understanding VGA what is and its applications can help users make informed decisions about display technologies and ensure compatibility with older hardware and software.
