In the realm of industrial and process engineering, accurate measurement of fluid flow is crucial for maintaining efficiency, safety, and quality control. One of the most reliable and widely used devices for this purpose is the Venturi Flow Meter. This instrument leverages the principles of fluid dynamics to provide precise measurements of flow rates in various applications, from water treatment to oil and gas industries.
Understanding the Venturi Flow Meter

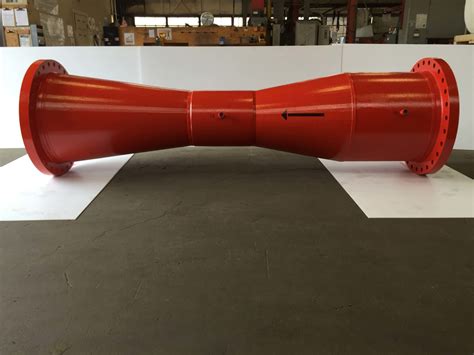

A Venturi Flow Meter operates on the principle of the Venturi effect, which describes the relationship between the velocity and pressure of a fluid flowing through a constricted section of a pipe. The meter consists of a converging section, a throat, and a diverging section. As the fluid passes through the constricted throat, its velocity increases while its pressure decreases. This pressure difference is measured and used to calculate the flow rate.

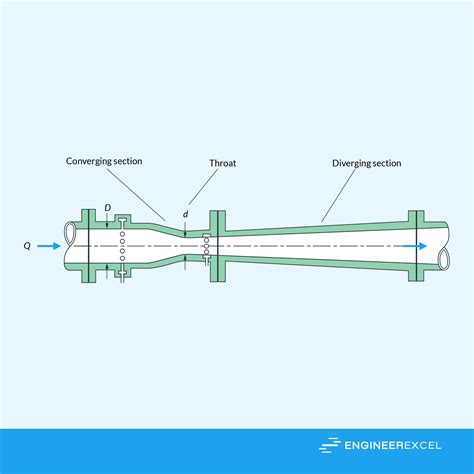

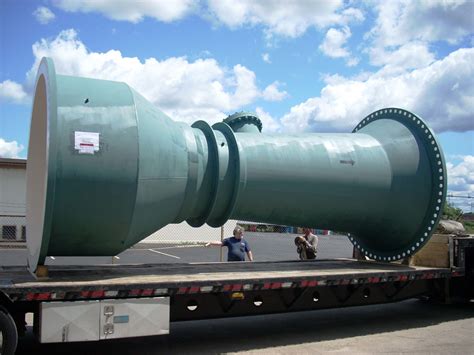

Components of a Venturi Flow Meter
The primary components of a Venturi Flow Meter include:
- Inlet Section: The section where the fluid enters the meter.
- Converging Section: The section where the fluid's velocity increases and pressure decreases.
- Throat: The narrowest part of the meter where the fluid's velocity is highest and pressure is lowest.
- Diverging Section: The section where the fluid's velocity decreases and pressure increases.
- Outlet Section: The section where the fluid exits the meter.
- Pressure Taps: Points where the pressure is measured, typically located at the inlet and throat.
Working Principle of a Venturi Flow Meter
The working principle of a Venturi Flow Meter is based on Bernoulli's equation, which states that the sum of all forms of energy in a steady, ideal flow is constant. The equation is given by:
P + (1/2)ρv² + ρgh = constant
Where:
- P is the pressure
- ρ is the density of the fluid
- v is the velocity of the fluid
- g is the acceleration due to gravity
- h is the elevation

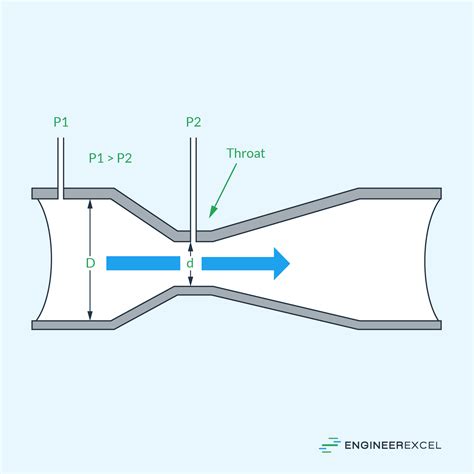

As the fluid flows through the converging section, its velocity increases, and its pressure decreases. This pressure difference is measured using pressure taps located at the inlet and throat. The flow rate can then be calculated using the following formula:
Q = A₂ * √[2 * (P₁ - P₂) / (ρ * (1 - β⁴))]
Where:
- Q is the volumetric flow rate
- A₂ is the cross-sectional area of the throat
- P₁ is the pressure at the inlet
- P₂ is the pressure at the throat
- ρ is the density of the fluid
- β is the ratio of the throat diameter to the inlet diameter
Advantages of Using a Venturi Flow Meter
The Venturi Flow Meter offers several advantages that make it a popular choice for flow measurement:
- High Accuracy: Venturi meters provide highly accurate measurements, making them suitable for applications requiring precise flow control.
- Low Pressure Loss: Compared to other flow meters, Venturi meters have a lower permanent pressure loss, which helps in reducing energy costs.
- Durability: Venturi meters are robust and can withstand high pressures and temperatures, making them ideal for harsh industrial environments.
- Low Maintenance: With no moving parts, Venturi meters require minimal maintenance, reducing downtime and operational costs.
- Versatility: Venturi meters can be used to measure the flow of various fluids, including liquids, gases, and steam.
Applications of Venturi Flow Meters
Venturi Flow Meters are used in a wide range of industries and applications, including:
- Oil and Gas: For measuring the flow of crude oil, natural gas, and refined products.
- Water Treatment: For monitoring the flow of water in treatment plants and distribution systems.
- Chemical Processing: For measuring the flow of chemicals in production processes.
- Power Generation: For monitoring the flow of steam and other fluids in power plants.
- Food and Beverage: For measuring the flow of ingredients and finished products.
Installation and Calibration of Venturi Flow Meters
Proper installation and calibration are crucial for the accurate operation of a Venturi Flow Meter. Here are the key steps involved:
Installation
1. Select the Installation Location: Choose a straight section of the pipe where the flow is fully developed and free from turbulence.
2. Align the Meter: Ensure the meter is aligned with the pipe to avoid any misalignment that could affect the flow measurement.
3. Install Pressure Taps: Connect the pressure taps to the inlet and throat of the meter using appropriate fittings.
4. Connect to the Measurement System: Connect the pressure taps to a differential pressure transmitter or other measurement system.
5. Verify Installation: Check for any leaks or misalignments and ensure the meter is securely installed.
🔧 Note: Always follow the manufacturer's guidelines for installation to ensure optimal performance.
Calibration

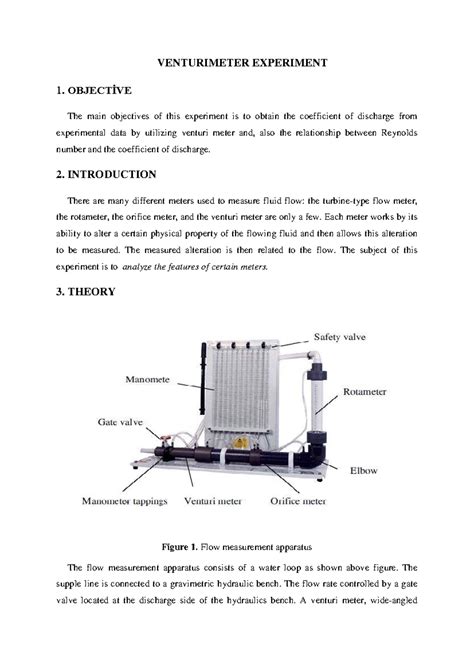

1. Prepare the Calibration Setup: Use a calibration rig or a known flow rate to calibrate the meter.
2. Measure the Flow Rate: Pass a known flow rate through the meter and record the differential pressure.
3. Adjust the Meter: Compare the measured flow rate with the actual flow rate and adjust the meter's settings if necessary.
4. Verify Calibration: Repeat the calibration process to ensure the meter is accurately measuring the flow rate.
🔧 Note: Regular calibration is essential to maintain the accuracy of the Venturi Flow Meter.
Maintenance of Venturi Flow Meters
Maintaining a Venturi Flow Meter involves regular inspections and cleaning to ensure its accuracy and longevity. Here are some key maintenance tasks:
- Inspect for Wear and Tear: Regularly check the meter for any signs of wear, corrosion, or damage.
- Clean the Meter: Remove any deposits or debris that may have accumulated in the meter.
- Check Pressure Taps: Ensure the pressure taps are clean and free from blockages.
- Calibrate Regularly: Perform regular calibration to maintain the meter's accuracy.
By following these maintenance tasks, you can ensure the Venturi Flow Meter operates efficiently and provides accurate measurements over its lifespan.
Comparison with Other Flow Meters
While the Venturi Flow Meter is a reliable choice for many applications, it is essential to compare it with other types of flow meters to understand its strengths and limitations. Here is a comparison with some commonly used flow meters:
| Flow Meter Type | Working Principle | Advantages | Disadvantages |
|---|---|---|---|
| Orifice Plate | Pressure difference across a constriction | Simple and inexpensive | High pressure loss, prone to wear |
| Turbine Flow Meter | Rotation of a turbine proportional to flow rate | High accuracy, suitable for clean fluids | Sensitive to fluid properties, moving parts |
| Electromagnetic Flow Meter | Induced voltage proportional to flow rate | No moving parts, suitable for conductive fluids | Expensive, not suitable for non-conductive fluids |
| Ultrasonic Flow Meter | Sound waves to measure flow rate | Non-invasive, suitable for various fluids | Sensitive to flow profile, expensive |
| Venturi Flow Meter | Pressure difference across a constriction | High accuracy, low pressure loss, durable | Larger size, higher cost |
Each type of flow meter has its unique advantages and disadvantages, making them suitable for different applications. The choice of flow meter depends on the specific requirements of the application, including accuracy, cost, and maintenance considerations.
Conclusion
The Venturi Flow Meter is a highly accurate and reliable device for measuring fluid flow in various industrial applications. Its working principle, based on the Venturi effect, ensures precise measurements with minimal pressure loss. The meter’s durability, low maintenance requirements, and versatility make it a popular choice for industries ranging from oil and gas to water treatment. Proper installation, calibration, and maintenance are crucial for ensuring the meter’s accuracy and longevity. By understanding the advantages and limitations of the Venturi Flow Meter and comparing it with other flow meters, engineers and technicians can make informed decisions to optimize their flow measurement systems.
