The Vacuum Filtration Apparatus is a crucial tool in laboratories, used for separating solids from liquids through the application of vacuum pressure. This method is widely employed in various scientific and industrial processes due to its efficiency and precision. Understanding the components, setup, and operation of a Vacuum Filtration Apparatus is essential for anyone working in a laboratory setting.
Components of a Vacuum Filtration Apparatus

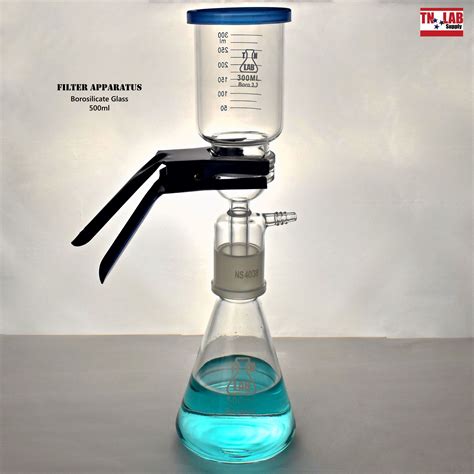

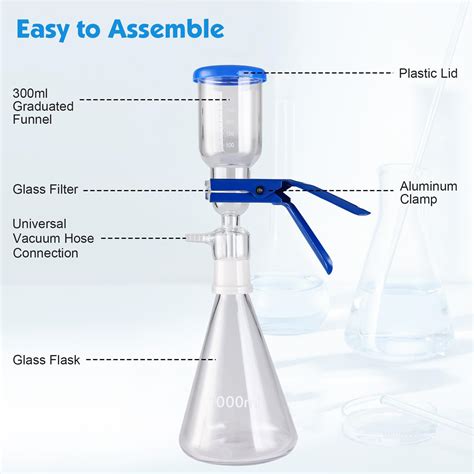

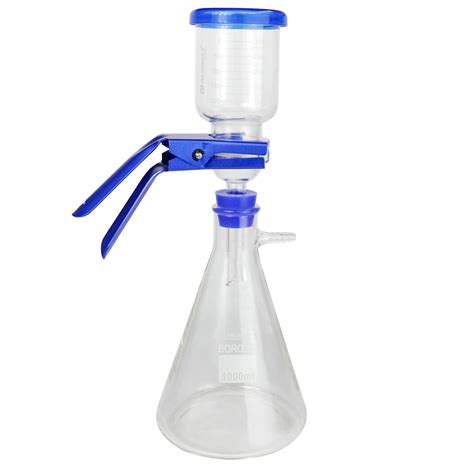

A typical Vacuum Filtration Apparatus consists of several key components:
- Vacuum Pump: Creates the necessary vacuum pressure to draw the liquid through the filter.
- Filter Flask: A flask designed to collect the filtrate (the liquid that passes through the filter).
- Filter Paper: A porous material that retains the solid particles while allowing the liquid to pass through.
- Buchner Funnel: A funnel with a perforated plate that holds the filter paper and allows the liquid to be drawn through.
- Vacuum Tubing: Connects the vacuum pump to the filter flask.
- Support Stand: Provides stability and support for the apparatus.

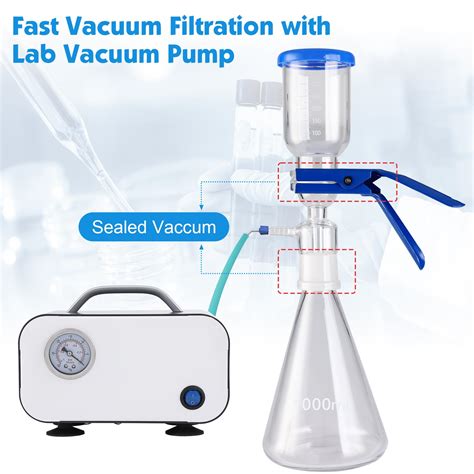

Setting Up the Vacuum Filtration Apparatus
Setting up a Vacuum Filtration Apparatus involves several steps. Here is a detailed guide to ensure proper setup:
- Prepare the Filter Paper: Place a circular filter paper in the Buchner funnel. Ensure it fits snugly and covers the perforations.
- Connect the Vacuum Tubing: Attach one end of the vacuum tubing to the side arm of the filter flask and the other end to the vacuum pump.
- Position the Buchner Funnel: Place the Buchner funnel on top of the filter flask, ensuring a tight seal. This can be achieved using a rubber stopper or a clamp.
- Turn on the Vacuum Pump: Activate the vacuum pump to create the necessary suction. Ensure all connections are secure to prevent air leaks.
🔧 Note: Always check for leaks in the tubing and connections before starting the filtration process. Leaks can reduce the efficiency of the vacuum and prolong the filtration time.
Operating the Vacuum Filtration Apparatus
Once the Vacuum Filtration Apparatus is set up, the filtration process can begin. Here are the steps to operate the apparatus effectively:
- Pour the Mixture: Slowly pour the mixture of solids and liquids into the Buchner funnel. The vacuum will draw the liquid through the filter paper, leaving the solids behind.
- Monitor the Filtration: Keep an eye on the filtration process. If the filter paper becomes clogged, it may be necessary to replace it with a new one.
- Collect the Filtrate: The liquid that passes through the filter paper will collect in the filter flask. This is the filtrate.
- Turn off the Vacuum Pump: Once all the liquid has been filtered, turn off the vacuum pump and disconnect the tubing.
- Remove the Solids: Carefully remove the Buchner funnel and discard the filter paper with the retained solids. The solids can be collected for further analysis or disposal.
🔬 Note: Always handle the filter paper and solids with care to avoid contamination. Use appropriate personal protective equipment (PPE) when handling chemicals.
Applications of Vacuum Filtration
The Vacuum Filtration Apparatus is used in a variety of applications across different fields. Some of the most common uses include:
- Chemical Analysis: Separating precipitates from solutions in chemical reactions.
- Pharmaceuticals: Purifying drugs and removing impurities from solutions.
- Environmental Science: Filtering water samples to analyze contaminants.
- Food and Beverage Industry: Clarifying liquids and removing solids from beverages.
- Biotechnology: Isolating cells and proteins from biological samples.
Maintenance and Safety
Maintaining the Vacuum Filtration Apparatus is crucial for its longevity and effectiveness. Regular cleaning and inspection of the components can prevent malfunctions and ensure accurate results. Here are some maintenance tips:
- Clean the Filter Flask: Rinse the filter flask with distilled water and dry it thoroughly after each use.
- Inspect the Filter Paper: Ensure the filter paper is not damaged or clogged before each use.
- Check the Vacuum Pump: Regularly inspect the vacuum pump for any signs of wear or damage.
- Store Properly: Store the apparatus in a clean, dry place to prevent contamination.
Safety is paramount when using a Vacuum Filtration Apparatus. Always follow these safety guidelines:
- Wear PPE: Use gloves, safety glasses, and lab coats to protect against chemical splashes.
- Ventilation: Ensure the workspace is well-ventilated to avoid inhaling harmful fumes.
- Handle Chemicals Carefully: Follow proper disposal procedures for chemicals and waste materials.
- Avoid Overloading: Do not overload the filter paper with too much solid material.
⚠️ Note: Always refer to the safety data sheets (SDS) for specific chemicals being used and follow the recommended safety protocols.
Troubleshooting Common Issues
Even with proper setup and maintenance, issues can arise when using a Vacuum Filtration Apparatus. Here are some common problems and their solutions:
| Problem | Solution |
|---|---|
| Slow Filtration | Check for clogs in the filter paper and replace if necessary. Ensure the vacuum pump is functioning correctly. |
| Leaks in the System | Inspect all connections and tubing for leaks. Tighten or replace any faulty components. |
| Incomplete Filtration | Ensure the mixture is poured slowly and evenly. Check the filter paper for any tears or damage. |
| Contamination | Clean all components thoroughly before and after use. Use fresh filter paper for each filtration. |
🛠️ Note: Regular maintenance and inspection can prevent many of these issues. Always follow the manufacturer's guidelines for troubleshooting and maintenance.
In conclusion, the Vacuum Filtration Apparatus is an indispensable tool in laboratories, offering efficient and precise separation of solids from liquids. Understanding its components, setup, operation, and maintenance is essential for achieving accurate results. By following the guidelines and safety protocols outlined, users can ensure the effective and safe use of this apparatus in various scientific and industrial applications.
