Vacuum Arc Remelting (VAR) is a critical process in the production of high-quality metals, particularly those used in aerospace, defense, and other high-performance applications. This advanced metallurgical technique ensures the production of materials with exceptional purity and uniformity, making it indispensable in industries where reliability and performance are paramount.
Understanding Vacuum Arc Remelting
Vacuum Arc Remelting is a secondary melting process used to refine metals and alloys. The process involves melting a consumable electrode in a vacuum environment using an electric arc. This method is particularly effective in removing impurities and inhomogeneities from the metal, resulting in a product with superior mechanical properties.

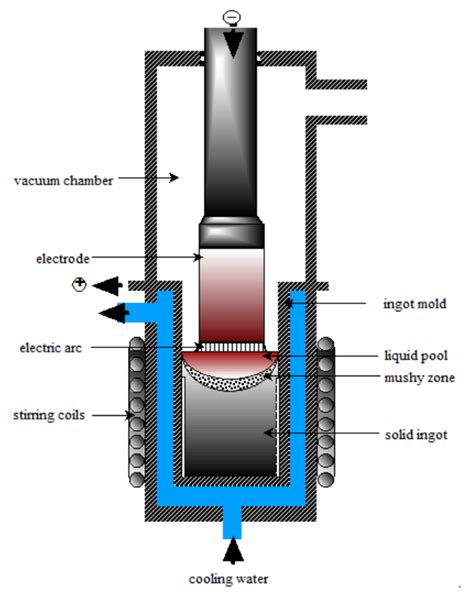

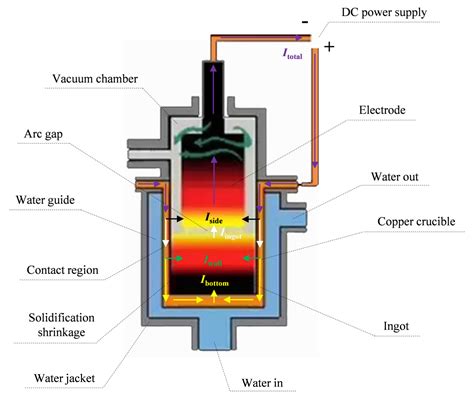

The VAR process begins with a consumable electrode, which is typically a cast ingot of the metal or alloy to be refined. This electrode is placed in a water-cooled copper crucible within a vacuum chamber. An electric arc is struck between the electrode and the crucible, melting the electrode from the bottom up. The molten metal drips into a water-cooled mold, where it solidifies into a refined ingot.
The Benefits of Vacuum Arc Remelting
Vacuum Arc Remelting offers several advantages over other refining methods. Some of the key benefits include:
- High Purity: The vacuum environment prevents contamination from atmospheric gases, ensuring the production of high-purity metals.
- Uniformity: The controlled melting and solidification process results in a homogeneous microstructure, enhancing the mechanical properties of the final product.
- Impurity Removal: The electric arc effectively removes impurities such as oxides, sulfides, and other inclusions, leading to a cleaner and more reliable material.
- Versatility: VAR can be used with a wide range of metals and alloys, making it a versatile tool in the metallurgical industry.
The Vacuum Arc Remelting Process
The VAR process can be broken down into several key steps:
Preparation of the Consumable Electrode
The first step in the VAR process is the preparation of the consumable electrode. This electrode is typically a cast ingot of the metal or alloy to be refined. The electrode must be free of surface defects and contaminants to ensure a smooth melting process.
Loading the Vacuum Chamber
The consumable electrode is then loaded into the vacuum chamber. The chamber is equipped with a water-cooled copper crucible, which serves as the mold for the refined ingot. The electrode is positioned above the crucible, and the chamber is sealed.
Creating a Vacuum Environment
The vacuum chamber is evacuated to remove all atmospheric gases. This step is crucial as it prevents contamination of the molten metal. The vacuum level is typically maintained at a pressure of less than 10-3 torr.
Striking the Electric Arc
An electric arc is struck between the consumable electrode and the copper crucible. The arc melts the electrode from the bottom up, allowing the molten metal to drip into the crucible. The electric arc provides the necessary heat to melt the metal, and its intensity can be adjusted to control the melting rate.
Solidification and Cooling
As the molten metal drips into the crucible, it begins to solidify. The water-cooled crucible ensures rapid and uniform cooling, resulting in a refined ingot with a homogeneous microstructure. The solidification process is carefully controlled to minimize the formation of defects and inclusions.
Removal of the Refined Ingot
Once the melting and solidification processes are complete, the vacuum chamber is vented, and the refined ingot is removed from the crucible. The ingot is then ready for further processing, such as forging, rolling, or machining.
🔍 Note: The VAR process requires precise control of the melting and solidification parameters to ensure the production of high-quality metals. Any deviations from the optimal conditions can result in defects and impurities in the final product.
Applications of Vacuum Arc Remelting
Vacuum Arc Remelting is widely used in various industries where high-purity and high-performance metals are required. Some of the key applications include:
- Aerospace: VAR is used to produce high-strength, corrosion-resistant alloys for aircraft components, such as turbine blades and landing gear.
- Defense: The process is employed to manufacture armor plating, weapon components, and other critical defense materials.
- Automotive: VAR-refined metals are used in the production of high-performance engine components, such as pistons and connecting rods.
- Energy: The process is utilized to produce materials for nuclear reactors, turbines, and other energy-related applications.
- Medical: VAR-refined metals are used in the manufacture of medical implants and surgical instruments, where biocompatibility and corrosion resistance are essential.
Key Parameters in Vacuum Arc Remelting
The success of the VAR process depends on several key parameters, including:
- Vacuum Level: The vacuum level in the chamber must be maintained at a low pressure to prevent contamination. A typical vacuum level is less than 10-3 torr.
- Arc Current: The electric arc current determines the melting rate and the heat input to the metal. The current must be carefully controlled to ensure uniform melting and solidification.
- Melting Rate: The rate at which the electrode is melted affects the microstructure and properties of the final product. A controlled melting rate is essential for producing high-quality metals.
- Cooling Rate: The cooling rate of the molten metal in the crucible influences the microstructure and mechanical properties of the refined ingot. Rapid and uniform cooling is crucial for minimizing defects.
Challenges in Vacuum Arc Remelting
Despite its advantages, the VAR process also presents several challenges. Some of the key challenges include:
- High Energy Consumption: The electric arc used in the VAR process requires a significant amount of energy, making it an expensive process.
- Equipment Costs: The specialized equipment required for VAR, including the vacuum chamber and water-cooled crucible, can be costly to purchase and maintain.
- Process Control: The VAR process requires precise control of various parameters, such as vacuum level, arc current, and melting rate. Any deviations from the optimal conditions can result in defects and impurities.
- Material Limitations: While VAR can be used with a wide range of metals and alloys, some materials may not be suitable for the process due to their melting points or chemical properties.
🔍 Note: Addressing these challenges requires continuous research and development to improve the efficiency and cost-effectiveness of the VAR process.
Future Trends in Vacuum Arc Remelting
The field of Vacuum Arc Remelting is continually evolving, driven by advancements in technology and the increasing demand for high-performance materials. Some of the future trends in VAR include:
- Automation and Control Systems: The integration of advanced automation and control systems can enhance the precision and efficiency of the VAR process. These systems can monitor and adjust key parameters in real-time, ensuring optimal conditions for melting and solidification.
- Energy-Efficient Technologies: Developing energy-efficient technologies can reduce the high energy consumption associated with the VAR process. This includes the use of more efficient power sources and improved insulation techniques.
- Material Innovation: Research into new materials and alloys that can be refined using VAR can expand the applications of the process. This includes the development of high-strength, lightweight materials for aerospace and automotive industries.
- Sustainable Practices: Implementing sustainable practices in the VAR process can reduce its environmental impact. This includes the use of recycled materials and the development of eco-friendly refining techniques.
Comparing Vacuum Arc Remelting with Other Refining Methods

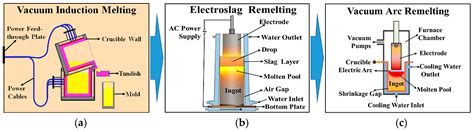

Vacuum Arc Remelting is just one of several refining methods used in the metallurgical industry. Other common methods include Electro-Slag Remelting (ESR) and Vacuum Induction Melting (VIM). Each method has its own advantages and limitations. Below is a comparison of VAR with ESR and VIM:
| Method | Process Description | Advantages | Limitations |
|---|---|---|---|
| Vacuum Arc Remelting (VAR) | Melting a consumable electrode in a vacuum using an electric arc. | High purity, uniform microstructure, effective impurity removal. | High energy consumption, equipment costs, process control challenges. |
| Electro-Slag Remelting (ESR) | Melting a consumable electrode in a slag bath using an electric current. | Excellent impurity removal, good surface quality, suitable for large ingots. | Lower purity compared to VAR, slower process, higher slag consumption. |
| Vacuum Induction Melting (VIM) | Melting metal in a vacuum using induction heating. | High purity, uniform heating, suitable for reactive metals. | Lower productivity, higher equipment costs, limited to smaller ingots. |
🔍 Note: The choice of refining method depends on the specific requirements of the application, including the desired purity, microstructure, and mechanical properties of the final product.
Vacuum Arc Remelting is a cornerstone of modern metallurgy, offering unparalleled benefits in terms of purity, uniformity, and performance. Its applications span across various industries, from aerospace to defense, automotive to energy, and medical to industrial. As technology advances, the VAR process continues to evolve, driven by the need for higher efficiency, cost-effectiveness, and sustainability. By addressing the challenges and embracing future trends, the metallurgical industry can further enhance the capabilities and applications of Vacuum Arc Remelting, ensuring the production of high-quality materials for a wide range of critical applications.
