Understanding the intricacies of V belt sizes is crucial for anyone involved in machinery maintenance or repair. A V belt, also known as a Vee belt, is a mechanical belt with a trapezoidal cross-section designed to fit into a corresponding groove on a pulley. The V Belt Size Chart is an essential tool that helps in selecting the correct belt for your specific application. This guide will walk you through the importance of the V Belt Size Chart, how to read it, and how to choose the right V belt for your needs.
Understanding V Belts
V belts are widely used in various industrial and automotive applications due to their efficiency and reliability. They are designed to transmit power between pulleys and are known for their ability to handle high loads and speeds. The trapezoidal shape of the belt allows it to wedge into the pulley groove, providing a secure grip and reducing the risk of slippage.
The Importance of the V Belt Size Chart
The V Belt Size Chart is a comprehensive guide that lists the dimensions and specifications of different V belts. It is essential for ensuring that you select the correct belt for your application. Using the wrong size can lead to inefficiencies, increased wear and tear, and even equipment failure. The chart typically includes information such as:
- Belt length
- Top width
- Height
- Pitch length
- Pulley groove dimensions
How to Read a V Belt Size Chart
Reading a V Belt Size Chart involves understanding the various dimensions and specifications listed. Here’s a step-by-step guide to help you navigate the chart:
1. Identify the Belt Type: V belts come in different types, such as classical V belts, narrow V belts, and wedge belts. Ensure you know the type of belt you need.
2. Determine the Belt Length: The belt length is crucial for ensuring a proper fit. Measure the distance between the centers of the pulleys and refer to the chart to find the corresponding belt length.
3. Check the Top Width and Height: These dimensions are essential for ensuring the belt fits correctly into the pulley grooves. The top width is the width of the belt at its widest point, while the height is the distance from the top to the bottom of the belt.
4. Verify the Pitch Length: The pitch length is the distance between the centers of the pulleys when the belt is installed. This measurement helps in determining the correct belt length.
5. Match the Pulley Groove Dimensions: Ensure that the pulley groove dimensions match the belt specifications. The groove angle and width should be compatible with the belt’s top width and height.
Choosing the Right V Belt
Selecting the right V belt involves considering several factors. Here are some key points to keep in mind:
1. Load Requirements: Determine the load requirements of your application. Different belts are designed to handle varying loads, so choose one that can handle the expected load without failing.
2. Speed Requirements: Consider the speed at which the belt will operate. High-speed applications require belts that can withstand the centrifugal forces and maintain their shape.
3. Environmental Conditions: Assess the environmental conditions where the belt will be used. Factors such as temperature, humidity, and exposure to chemicals can affect the belt’s performance and lifespan.
4. Maintenance Needs: Consider the maintenance requirements of the belt. Some belts may require more frequent replacement or adjustment, while others are designed for longer service life.
Common V Belt Sizes

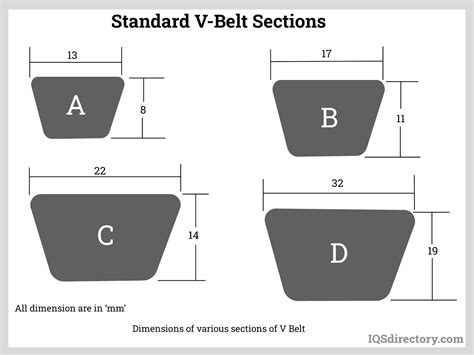

V belts come in various sizes to accommodate different applications. Here is a table of common V belt sizes and their specifications:
| Belt Type | Top Width (mm) | Height (mm) | Pitch Length (mm) |
|---|---|---|---|
| A | 13 | 8 | 1000-2000 |
| B | 17 | 11 | 1000-2000 |
| C | 22 | 14 | 1000-2000 |
| D | 32 | 19 | 1000-2000 |
| E | 38 | 22 | 1000-2000 |
📝 Note: The above table provides a general overview of common V belt sizes. Always refer to the specific V Belt Size Chart for your application to ensure accuracy.
Installing and Maintaining V Belts
Proper installation and maintenance are crucial for the longevity and performance of V belts. Here are some tips to ensure your belts are installed and maintained correctly:
1. Alignment: Ensure that the pulleys are properly aligned. Misalignment can cause uneven wear and reduce the belt’s lifespan.
2. Tension: Adjust the belt tension according to the manufacturer’s recommendations. Proper tension ensures efficient power transmission and reduces the risk of slippage.
3. Inspection: Regularly inspect the belts for signs of wear, cracks, or damage. Replace belts that show significant wear to prevent equipment failure.
4. Lubrication: Some belts may require lubrication to reduce friction and wear. Follow the manufacturer’s guidelines for lubrication.
Troubleshooting Common V Belt Issues
Even with proper installation and maintenance, issues can arise with V belts. Here are some common problems and their solutions:
1. Slippage: If the belt is slipping, check the tension and alignment. Ensure the belt is the correct size and type for your application.
2. Excessive Wear: Excessive wear can be caused by misalignment, improper tension, or environmental factors. Inspect the pulleys and belts for signs of wear and replace as needed.
3. Cracking: Cracking can occur due to age, heat, or chemical exposure. Replace cracked belts immediately to prevent failure.
4. Noise: Unusual noise can indicate misalignment, improper tension, or worn-out belts. Inspect the system and make necessary adjustments.
📝 Note: Regular maintenance and inspection can help prevent many common V belt issues. Always follow the manufacturer’s guidelines for installation and maintenance.
Conclusion
Understanding the V Belt Size Chart is essential for selecting the right V belt for your application. By following the guidelines outlined in this post, you can ensure that your V belts are properly sized, installed, and maintained. This will not only enhance the performance of your machinery but also extend the lifespan of your belts, saving you time and money in the long run. Always refer to the specific V Belt Size Chart for your application to ensure accuracy and reliability.
