Electrical panels are the backbone of any home's electrical system, distributing power to various circuits throughout the house. Over time, these panels can become outdated or insufficient to meet the growing power demands of modern households. Updating an electrical panel is a critical task that ensures safety, efficiency, and compliance with current electrical codes. This process involves several steps, from assessing the current panel to installing a new one. This guide will walk you through the essential aspects of updating an electrical panel, ensuring a smooth and safe transition.
Assessing the Need for an Electrical Panel Update

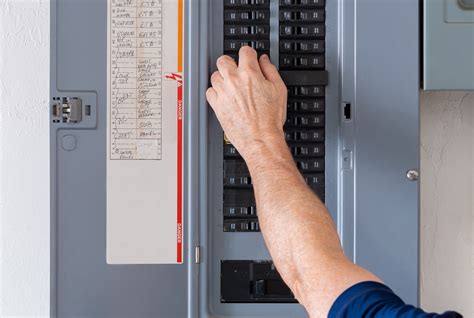

Before diving into the process of updating an electrical panel, it's crucial to determine whether your current panel meets your needs. Several factors can indicate the necessity for an update:
- Age of the Panel: Older panels, especially those from the 1960s or earlier, may not be equipped to handle modern electrical demands.
- Frequent Circuit Breaker Trips: If your circuit breakers trip frequently, it could be a sign that your panel is overloaded.
- Outdated Technology: Panels with fuses instead of circuit breakers are outdated and pose a higher risk of electrical fires.
- Home Renovations: Adding new appliances or extending your living space often requires more power than older panels can provide.
If any of these factors apply to your situation, it's time to consider updating your electrical panel.
Choosing the Right Electrical Panel
Selecting the appropriate electrical panel is essential for ensuring safety and efficiency. Here are some key considerations:
- Panel Size: The size of the panel, measured in amperes (amps), determines how much power it can handle. Common sizes include 100-amp, 200-amp, and 400-amp panels. For most homes, a 200-amp panel is sufficient.
- Number of Circuits: Ensure the panel has enough slots for all the circuits you need. This includes dedicated circuits for major appliances like refrigerators, air conditioners, and electric ranges.
- Brand and Quality: Opt for reputable brands known for their reliability and safety features. Some popular brands include Square D, Siemens, and GE.
- Additional Features: Consider panels with advanced features like arc fault circuit interrupters (AFCIs) and ground fault circuit interrupters (GFCIs) for added safety.
Consulting with a licensed electrician can help you make an informed decision based on your specific needs.
Preparing for the Update
Before beginning the updating electrical panel process, thorough preparation is essential. Here are the steps to follow:
- Turn Off Power: Ensure the main power supply is turned off at the meter or the main breaker. This is crucial for safety.
- Gather Tools and Materials: You will need a new electrical panel, circuit breakers, wire strippers, screwdrivers, pliers, and a voltage tester.
- Obtain Permits: Check with your local building department to see if you need a permit for the update. Most jurisdictions require permits for electrical work.
- Plan the Layout: Determine the layout of the new panel, including the placement of circuit breakers and any additional features like surge protectors.
Having a clear plan and all necessary tools and materials will streamline the updating electrical panel process.
Installing the New Electrical Panel
Installing a new electrical panel involves several steps. Here is a detailed guide to help you through the process:
Removing the Old Panel
Begin by carefully removing the old electrical panel. Follow these steps:
- Disconnect Wires: Label each wire connected to the old panel for easy identification during the reinstallation process.
- Remove the Panel: Unscrew the old panel from the wall and carefully remove it, ensuring no wires are damaged.
- Inspect the Wiring: Check the wiring for any signs of damage or wear. Replace any damaged wires before proceeding.
Once the old panel is removed, you can proceed with installing the new one.

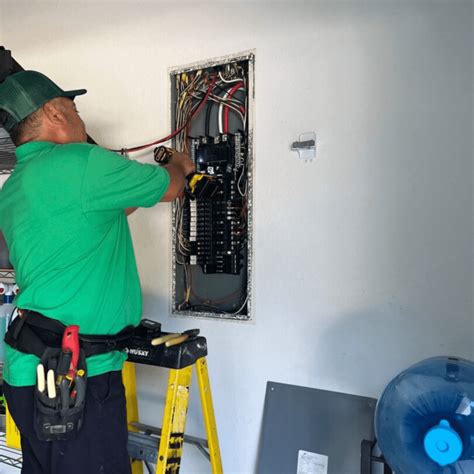

Installing the New Panel
Follow these steps to install the new electrical panel:
- Mount the Panel: Attach the new panel to the wall using the provided mounting screws. Ensure it is level and securely fastened.
- Connect the Wires: Connect the labeled wires to the corresponding circuit breakers in the new panel. Ensure all connections are tight and secure.
- Install the Main Breaker: Connect the main breaker to the power supply. This breaker controls the power to the entire panel.
- Test the Panel: Use a voltage tester to ensure all connections are secure and the panel is functioning correctly.
Once the new panel is installed and tested, you can restore power to your home.
🛑 Note: Always follow local electrical codes and regulations. If you are unsure about any part of the process, consult a licensed electrician.
Testing and Finalizing the Update
After installing the new electrical panel, it's crucial to test and finalize the update to ensure everything is working correctly. Here are the steps to follow:
- Turn On Power: Restore power to the main breaker and check if the panel is functioning correctly.
- Test Each Circuit: Turn on each circuit breaker one by one and test the corresponding outlets and switches to ensure they are working.
- Inspect for Issues: Look for any signs of issues, such as sparking, overheating, or unusual noises. Address any problems immediately.
- Label the Panel: Clearly label each circuit breaker in the new panel for easy identification. This includes labeling the main breaker and any dedicated circuits.
Once you have completed these steps, your updating electrical panel process is finished.
Maintaining Your New Electrical Panel
Maintaining your new electrical panel is essential for ensuring its longevity and safety. Here are some tips for maintaining your panel:
- Regular Inspections: Conduct regular inspections of your panel to check for any signs of wear or damage.
- Keep It Clean: Ensure the panel is kept clean and free of debris. Dust and dirt can accumulate and cause issues over time.
- Avoid Overloading: Be mindful of the power demands on your panel. Avoid overloading circuits by distributing power evenly.
- Professional Maintenance: Consider hiring a professional electrician for periodic maintenance and inspections. They can identify potential issues before they become major problems.
By following these maintenance tips, you can ensure your new electrical panel remains safe and efficient for years to come.
Updating an electrical panel is a significant task that requires careful planning and execution. By assessing your needs, choosing the right panel, preparing thoroughly, and following the installation steps, you can ensure a smooth and safe transition. Regular maintenance will help keep your new panel in optimal condition, providing reliable power to your home.
