Units Of Strain

Understanding the concept of Units of Strain is crucial for anyone involved in materials science, engineering, and related fields. Strain is a measure of deformation representing the displacement between particles in the material body. It is a dimensionless quantity, often expressed as a ratio or percentage. This blog post delves into the intricacies of Units of Strain, their significance, and how they are applied in various engineering disciplines.

Table of Contents

What is Strain?

Strain is a fundamental concept in the study of materials and structures. It quantifies the amount of deformation a material experiences under stress. There are different types of strain, including tensile strain, compressive strain, and shear strain, each relevant to specific applications. Tensile strain occurs when a material is stretched, compressive strain when it is compressed, and shear strain when it is subjected to forces that cause layers within the material to slide over one another.

Units of Strain

Units of Strain are typically dimensionless, as they represent a ratio of change in length to the original length. The most common Units of Strain are:

Microstrain (µε): Often used in materials science and engineering, especially when dealing with small deformations. 1 microstrain is equal to 0.0001% strain.
Millistrain (mε): Used for slightly larger deformations. 1 millistrain is equal to 0.1% strain.
Percent Strain (%): A straightforward way to express strain, where 1% strain means the material has elongated or compressed by 1% of its original length.

Importance of Units of Strain in Engineering

In engineering, Units of Strain are essential for several reasons:

Material Selection: Engineers use strain measurements to select materials that can withstand specific loads without failing.
Design and Analysis: Strain data helps in designing structures and components that can safely operate under expected loads.
Quality Control: Strain measurements are used to ensure that manufactured parts meet the required specifications.
Failure Analysis: Understanding strain can help identify the causes of material failure and prevent future issues.

Measuring Strain

Strain can be measured using various methods, each with its own advantages and limitations. Some common techniques include:

Strain Gauges: These are electrical resistance devices that change resistance when deformed. They are widely used due to their accuracy and ease of application.
Extensometers: These devices measure the change in length of a specimen directly. They are often used in laboratory settings for precise measurements.
Digital Image Correlation (DIC): This non-contact method uses cameras to capture images of a specimen before and after deformation. Software then analyzes these images to calculate strain.

Applications of Strain Measurement

Strain measurement has a wide range of applications across various industries. Some key areas include:

Civil Engineering: Monitoring the strain in bridges, buildings, and other structures to ensure safety and longevity.
Aerospace Engineering: Ensuring that aircraft components can withstand the stresses of flight.
Automotive Engineering: Designing and testing vehicle components to meet performance and safety standards.
Biomedical Engineering: Studying the mechanical properties of biological tissues and implants.

Calculating Strain

Strain can be calculated using the formula:

ε = ΔL / L₀

Where:

ε is the strain
ΔL is the change in length
L₀ is the original length

For example, if a material with an original length of 100 mm is stretched to 105 mm, the strain would be calculated as follows:

ε = (105 mm - 100 mm) / 100 mm = 0.05 or 5%

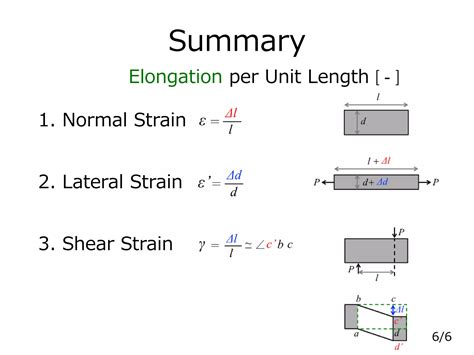

Types of Strain

Different types of strain are relevant in various engineering contexts. Understanding these types is crucial for accurate analysis and design.

Tensile Strain: Occurs when a material is stretched. It is positive when the material elongates.
Compressive Strain: Occurs when a material is compressed. It is negative when the material shortens.
Shear Strain: Occurs when layers within a material slide over one another. It is often denoted by γ (gamma).

Strain in Different Materials

Different materials exhibit different strain behaviors under stress. Understanding these behaviors is essential for selecting the right material for a given application.

Metals: Typically exhibit elastic strain up to a certain point, beyond which plastic deformation occurs.
Polymers: Can exhibit both elastic and viscoelastic behavior, depending on the type of polymer and the loading conditions.
Ceramics: Generally brittle, with limited strain before failure.
Composites: Can have complex strain behaviors due to the interaction between different material phases.

Strain and Stress Relationship

The relationship between strain and stress is fundamental in materials science. This relationship is often described by Hooke’s Law, which states that within the elastic limit, stress is directly proportional to strain. The constant of proportionality is known as Young’s Modulus (E).

σ = Eε

Where:

σ is the stress
E is Young’s Modulus
ε is the strain

This relationship is crucial for understanding how materials deform under load and for designing structures that can withstand specific stresses.

Advanced Strain Analysis Techniques

In addition to traditional strain measurement methods, advanced techniques are used for more complex analyses. These include:

Finite Element Analysis (FEA): A numerical method used to solve complex engineering problems. FEA can simulate strain distributions in structures under various loading conditions.
X-ray Diffraction: Used to measure strain at the microscopic level by analyzing the diffraction patterns of X-rays passing through a material.
Neutron Diffraction: Similar to X-ray diffraction but uses neutrons, providing deeper penetration and the ability to measure strain in bulk materials.

Challenges in Strain Measurement

Despite the advancements in strain measurement techniques, several challenges remain. These include:

Accuracy: Ensuring that strain measurements are accurate and reliable, especially in dynamic or high-stress environments.
Resolution: Achieving high spatial and temporal resolution in strain measurements.
Environmental Factors: Accounting for environmental factors such as temperature, humidity, and vibration, which can affect strain measurements.

Future Trends in Strain Measurement

The field of strain measurement is continually evolving, driven by advancements in technology and increasing demands for precision and reliability. Some future trends include:

Smart Materials: Materials that can sense and respond to strain, enabling real-time monitoring and control.
Advanced Sensors: Development of more sensitive and robust strain sensors, including nanoscale sensors.
Machine Learning: Integration of machine learning algorithms to analyze strain data and predict material behavior.

🔍 Note: The accuracy of strain measurements is crucial for reliable engineering analysis and design. Always calibrate your measurement tools and consider environmental factors that may affect the results.

In summary, Units of Strain play a pivotal role in understanding and analyzing the behavior of materials under stress. From basic strain calculations to advanced measurement techniques, the study of strain is essential for ensuring the safety, reliability, and performance of engineered structures and components. By mastering the concepts and applications of Units of Strain, engineers and scientists can make informed decisions that drive innovation and progress in various fields.
