Unit Of Stress

Understanding the concept of a unit of stress is crucial for anyone involved in engineering, materials science, or any field that deals with the behavior of materials under load. Stress, in the context of physics and engineering, refers to the force per unit area acting on a material. This fundamental concept helps in predicting how materials will respond to various forces, ensuring the safety and reliability of structures and components.

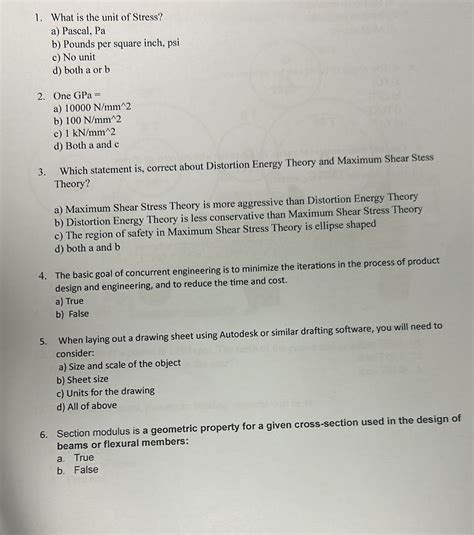

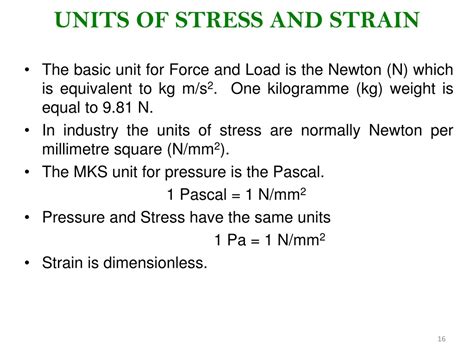

What is a Unit of Stress?

A unit of stress is a measure of the internal forces acting within a deformed body. It is typically expressed in pascals (Pa), which is equivalent to one newton per square meter (N/m²). Stress can be categorized into different types, including tensile stress, compressive stress, and shear stress, each affecting materials differently.

Types of Stress

Understanding the different types of stress is essential for analyzing how materials behave under various conditions. The primary types of stress are:

Tensile Stress: This occurs when a material is pulled apart, causing it to elongate. Tensile stress is crucial in applications like bridges and suspension cables.
Compressive Stress: This happens when a material is pushed together, causing it to compress. Compressive stress is important in structures like columns and foundations.
Shear Stress: This type of stress occurs when forces are applied parallel to the surface of a material, causing layers to slide over each other. Shear stress is relevant in applications like bolts and rivets.

Calculating Stress

To calculate stress, you need to know the force applied to the material and the area over which this force is distributed. The formula for stress (σ) is:

σ = F / A

Where:

F is the force applied to the material.
A is the cross-sectional area over which the force is applied.

For example, if a force of 1000 N is applied to a rod with a cross-sectional area of 0.01 m², the stress would be:

σ = 1000 N / 0.01 m² = 100,000 Pa

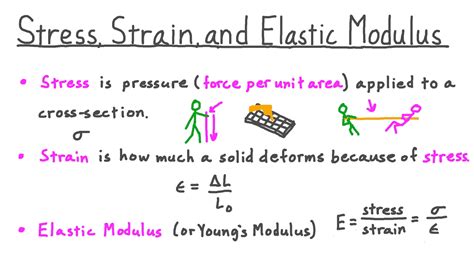

Stress-Strain Relationship

The relationship between stress and strain is fundamental in understanding material behavior. Strain is the deformation of a material under stress, and the stress-strain curve provides valuable insights into a material’s properties. Key points on the stress-strain curve include:

Elastic Region: In this region, the material returns to its original shape once the stress is removed. The slope of this region is known as Young’s modulus.
Yield Point: This is the point at which the material begins to deform plastically and does not return to its original shape.
Ultimate Strength: This is the maximum stress the material can withstand before failure.
Fracture Point: This is the point at which the material breaks.

Importance of Stress Analysis

Stress analysis is vital in various fields, including civil engineering, mechanical engineering, and aerospace engineering. It helps in designing structures and components that can withstand the expected loads without failing. Key applications include:

Structural Integrity: Ensuring that buildings, bridges, and other structures can safely support their intended loads.
Material Selection: Choosing the right materials for specific applications based on their stress-strain behavior.
Failure Prevention: Identifying potential failure points and designing components to avoid catastrophic failures.

Factors Affecting Stress

Several factors can influence the stress experienced by a material. Understanding these factors is crucial for accurate stress analysis. Key factors include:

Material Properties: Different materials have different stress-strain behaviors. For example, metals like steel have high tensile strength, while polymers may have lower strength but higher flexibility.
Loading Conditions: The way a load is applied can affect the stress distribution. For instance, a sudden impact load can cause higher stress than a gradually applied load.
Temperature: High temperatures can weaken materials, reducing their ability to withstand stress. Conversely, low temperatures can make materials more brittle.
Environmental Factors: Corrosion, fatigue, and other environmental factors can degrade materials over time, affecting their stress resistance.

Stress Concentration

Stress concentration occurs when the stress distribution in a material is not uniform, leading to higher stress in certain areas. This can happen due to geometric discontinuities, such as holes, notches, or sharp corners. Stress concentration factors (Kt) are used to quantify the increase in stress at these points. The formula for stress concentration is:

σ_max = Kt * σ_nominal

Where:

σ_max is the maximum stress at the point of concentration.
Kt is the stress concentration factor.
σ_nominal is the nominal stress away from the concentration point.

For example, if a material has a nominal stress of 50 MPa and a stress concentration factor of 2.5, the maximum stress at the concentration point would be:

σ_max = 2.5 * 50 MPa = 125 MPa

Stress Relaxation

Stress relaxation is a phenomenon where the stress in a material decreases over time under constant strain. This is particularly relevant in materials that are subjected to long-term loads, such as polymers and composites. Stress relaxation can be quantified using the relaxation modulus, which describes the time-dependent stress response. The relaxation modulus (E(t)) is given by:

E(t) = σ(t) / ε_0

Where:

σ(t) is the stress at time t.
ε_0 is the constant strain.

Stress relaxation is important in applications where materials are subjected to sustained loads, such as in seals, gaskets, and adhesives.

Stress and Fatigue

Fatigue is the progressive and localized structural damage that occurs when a material is subjected to cyclic loading. Over time, this can lead to cracks and eventual failure, even if the stresses are below the material’s yield strength. Fatigue life is often characterized by the S-N curve, which plots the stress amplitude (S) against the number of cycles to failure (N). Key factors affecting fatigue include:

Stress Amplitude: Higher stress amplitudes generally lead to shorter fatigue lives.
Mean Stress: The average stress level can affect fatigue life, with higher mean stresses reducing fatigue resistance.
Loading Frequency: The rate at which loads are applied can influence fatigue behavior, with higher frequencies sometimes leading to shorter fatigue lives.
Environmental Factors: Corrosion, temperature, and other environmental conditions can accelerate fatigue failure.

Stress and Creep

Creep is the time-dependent deformation of a material under constant stress. This is particularly relevant in high-temperature applications, such as in turbines and engines. Creep behavior is characterized by the creep strain rate, which describes how the strain changes over time. The creep strain rate (ε̇) is given by:

ε̇ = dε / dt

Where:

ε is the strain.
t is the time.

Creep can be divided into three stages:

Primary Creep: The initial stage where the strain rate decreases over time.
Secondary Creep: The steady-state stage where the strain rate is constant.
Tertiary Creep: The final stage where the strain rate increases rapidly, leading to failure.

Stress and Fracture Mechanics

Fracture mechanics is the study of how cracks propagate in materials under stress. It is crucial for understanding and predicting the failure of structures and components. Key concepts in fracture mechanics include:

Stress Intensity Factor (K): This parameter describes the stress field around a crack tip and is used to predict crack growth.
Fracture Toughness (Kc): This is the critical value of the stress intensity factor at which a crack will propagate rapidly, leading to failure.
Crack Growth Rate (da/dN): This describes how the length of a crack increases with each loading cycle.

Fracture mechanics is essential in applications where crack propagation is a concern, such as in aircraft structures and pressure vessels.

Stress and Material Selection

Selecting the right material for a given application involves considering its stress-strain behavior, fatigue resistance, and creep properties. Key factors to consider include:

Yield Strength: The stress at which a material begins to deform plastically.
Ultimate Strength: The maximum stress a material can withstand before failure.
Fatigue Life: The number of cycles a material can withstand before failing under cyclic loading.
Creep Resistance: The ability of a material to resist deformation under constant stress over time.

For example, in high-temperature applications, materials with high creep resistance, such as nickel-based superalloys, are often preferred. In applications subject to cyclic loading, materials with high fatigue resistance, such as titanium alloys, may be more suitable.

Stress and Design Considerations

Designing structures and components to withstand stress involves several considerations. Key design principles include:

Load Path: Ensuring that loads are distributed evenly and that there are no stress concentrations.
Material Selection: Choosing materials with appropriate stress-strain properties for the intended application.
Safety Factors: Incorporating safety factors to account for uncertainties in loading conditions and material properties.
Redundancy: Designing structures with redundant load paths to prevent catastrophic failure if one component fails.

For example, in bridge design, engineers must consider the load path to ensure that the weight of the bridge and the traffic it carries is distributed evenly across the supports. They must also select materials with appropriate strength and fatigue resistance and incorporate safety factors to account for unexpected loads.

Stress and Failure Analysis

Failure analysis involves investigating the causes of component or structure failure to prevent future occurrences. Key steps in failure analysis include:

Visual Inspection: Examining the failed component for signs of stress, such as cracks, deformation, or corrosion.
Material Testing: Conducting tests to determine the material’s stress-strain properties and identify any defects.
Stress Analysis: Using analytical or numerical methods to calculate the stress distribution in the component and identify potential failure points.
Simulation: Using computer simulations to model the loading conditions and predict failure modes.

For example, if a component fails due to fatigue, failure analysis might involve examining the fracture surface for signs of crack initiation and propagation, conducting material tests to determine the fatigue properties, and using stress analysis to identify the stress concentrations that led to failure.

Stress and Non-Destructive Testing

Non-destructive testing (NDT) methods are used to evaluate the integrity of materials and components without causing damage. Key NDT methods for stress analysis include:

Ultrasonic Testing: Using high-frequency sound waves to detect internal flaws and measure material thickness.
Radiographic Testing: Using X-rays or gamma rays to inspect the internal structure of a component for defects.
Magnetic Particle Testing: Using magnetic fields to detect surface and near-surface cracks in ferromagnetic materials.
Liquid Penetrant Testing: Using a liquid penetrant to detect surface-breaking cracks and other defects.

For example, ultrasonic testing can be used to detect internal cracks in a weld, while magnetic particle testing can identify surface cracks in a steel component.

Stress and Finite Element Analysis

Finite Element Analysis (FEA) is a powerful tool for simulating the stress distribution in complex structures and components. FEA involves dividing the structure into a mesh of small elements and solving the equations of equilibrium for each element. Key steps in FEA include:

Modeling: Creating a geometric model of the structure and defining the material properties.
Meshing: Dividing the model into a mesh of small elements.
Boundary Conditions: Applying the loads and constraints to the model.
Solving: Using numerical methods to solve the equations of equilibrium and calculate the stress distribution.
Post-Processing: Analyzing the results to identify stress concentrations and potential failure points.

For example, FEA can be used to simulate the stress distribution in a complex aircraft wing, identifying areas of high stress and potential failure points.

🔍 Note: FEA is a complex process that requires specialized software and expertise. It is often used in conjunction with other analysis methods to ensure accurate results.

Stress and Experimental Methods

Experimental methods are used to measure the stress distribution in materials and components under controlled conditions. Key experimental methods include:

Strain Gauges: Using electrical resistance strain gauges to measure the deformation of a material under stress.
Photoelasticity: Using polarized light to visualize the stress distribution in transparent materials.
Moire Interferometry: Using interference patterns to measure the deformation of a material under stress.
Digital Image Correlation: Using digital cameras and image processing techniques to measure the deformation of a material under stress.

For example, strain gauges can be used to measure the stress distribution in a bridge under load, while photoelasticity can visualize the stress distribution in a transparent plastic component.

Stress and Advanced Materials

Advanced materials, such as composites and nanomaterials, offer unique stress-strain behaviors that can be exploited in various applications. Key properties of advanced materials include:

High Strength-to-Weight Ratio: Advanced materials often have a higher strength-to-weight ratio than traditional materials, making them ideal for lightweight structures.
Anisotropic Behavior: Many advanced materials exhibit anisotropic behavior, meaning their properties vary depending on the direction of the applied stress.
Fatigue Resistance: Some advanced materials, such as carbon fiber composites, have excellent fatigue resistance, making them suitable for applications subject to cyclic loading.
Creep Resistance: Advanced materials like ceramic matrix composites have high creep resistance, making them suitable for high-temperature applications.

For example, carbon fiber composites are used in aerospace applications due to their high strength-to-weight ratio and excellent fatigue resistance. Ceramic matrix composites are used in high-temperature applications, such as in gas turbines, due to their high creep resistance.

Stress and Biomechanics

Biomechanics is the study of the mechanical properties of biological systems. Understanding the stress distribution in biological tissues is crucial for developing medical devices and treatments. Key applications of stress analysis in biomechanics include:

Implant Design: Designing implants that can withstand the stresses and strains of the human body.
Tissue Engineering: Developing scaffolds and biomaterials that can support tissue growth and regeneration.
Orthopedic Surgery: Planning surgical procedures to minimize stress on bones and joints.
Sports Medicine: Analyzing the stresses and strains on athletes’ bodies to prevent injuries and optimize performance.

For example, stress analysis can be used to design hip implants that can withstand the stresses and strains of walking and other activities. In tissue engineering, stress analysis can help develop scaffolds that support cell growth and differentiation.

Stress and Environmental Factors

Environmental factors, such as temperature, humidity, and corrosion, can significantly affect the stress distribution in materials. Key environmental factors to consider include:

Temperature: High temperatures can weaken materials, reducing their ability to withstand stress. Conversely, low temperatures can make materials more brittle.
Humidity: High humidity can cause materials to absorb moisture, leading to swelling and changes in mechanical properties.
Corrosion: Corrosion can degrade materials over time, reducing their strength and fatigue resistance.
Radiation: Exposure to radiation can cause materials to become brittle and more susceptible to stress-induced failure.

For example, in nuclear power plants, materials must be selected and designed to withstand the effects of radiation and high temperatures. In marine environments, materials must be resistant to corrosion and the effects of saltwater.

Stress and Additive Manufacturing

Additive manufacturing, or 3D printing, is a rapidly evolving field that allows for the creation of complex geometries and structures. Understanding the stress distribution in additively manufactured parts is crucial for ensuring their reliability and performance. Key considerations in additive manufacturing include:

Layer-by-Layer Deposition: The layer-by-layer deposition process can introduce residual stresses and defects, affecting the mechanical properties of the part.
Material Properties: The mechanical properties of additively manufactured parts can differ from those of traditionally manufactured parts due to differences in microstructure and porosity.
Design Optimization: Additive manufacturing allows for the creation of optimized designs that can reduce stress concentrations and improve performance.
Post-Processing: Post-processing techniques, such as heat treatment and
