The unit circle is a fundamental concept in trigonometry, serving as a visual representation of the relationships between angles and their corresponding sine and cosine values. Understanding the unit circle filled out can significantly enhance one's grasp of trigonometric functions and their applications. This post will delve into the intricacies of the unit circle, explaining how to fill it out, its significance, and practical examples to solidify your understanding.
Understanding the Unit Circle
The unit circle is a circle with a radius of one unit, centered at the origin (0,0) of a Cartesian coordinate system. It is used to define the trigonometric functions sine and cosine for all angles. The circle is divided into four quadrants, each representing a different range of angles.
Filling Out the Unit Circle
To fill out the unit circle, you need to identify key points and angles. Here are the steps to do so:
- Identify Key Angles: Start with the primary angles: 0°, 90°, 180°, and 270°. These angles correspond to the points (1,0), (0,1), (-1,0), and (0,-1) respectively.
- Divide the Circle: Divide the circle into 30° increments. This will help you locate the points for angles like 30°, 60°, 120°, etc.
- Calculate Coordinates: For each angle, calculate the corresponding (x, y) coordinates using the formulas x = cos(θ) and y = sin(θ), where θ is the angle in degrees.
- Plot the Points: Plot these points on the unit circle. Connect the points to visualize the sine and cosine waves.
Here is a table of some key angles and their corresponding coordinates on the unit circle:
| Angle (degrees) | Angle (radians) | Cosine (x) | Sine (y) |
|---|---|---|---|
| 0° | 0 | 1 | 0 |
| 30° | π/6 | √3/2 | 1/2 |
| 45° | π/4 | √2/2 | √2/2 |
| 60° | π/3 | 1/2 | √3/2 |
| 90° | π/2 | 0 | 1 |
| 120° | 2π/3 | -1/2 | √3/2 |
| 135° | 3π/4 | -√2/2 | √2/2 |
| 150° | 5π/6 | -√3/2 | 1/2 |
| 180° | π | -1 | 0 |
| 210° | 7π/6 | -√3/2 | -1/2 |
| 225° | 5π/4 | -√2/2 | -√2/2 |
| 240° | 4π/3 | -1/2 | -√3/2 |
| 270° | 3π/2 | 0 | -1 |
| 300° | 5π/3 | 1/2 | -√3/2 |
| 315° | 7π/4 | √2/2 | -√2/2 |
| 330° | 11π/6 | √3/2 | -1/2 |
| 360° | 2π | 1 | 0 |
📝 Note: The table above provides a comprehensive list of key angles and their corresponding coordinates on the unit circle. These points are crucial for understanding the periodic nature of trigonometric functions.
Significance of the Unit Circle Filled Out
The unit circle filled out is more than just a visual aid; it is a powerful tool for understanding trigonometric identities and relationships. Here are some key points to consider:
- Periodicity: The unit circle illustrates the periodic nature of sine and cosine functions. As you move around the circle, the values of sine and cosine repeat every 360 degrees.
- Symmetry: The unit circle helps in understanding the symmetry properties of trigonometric functions. For example, sine is an odd function, and cosine is an even function.
- Trigonometric Identities: The unit circle can be used to derive and verify trigonometric identities. For instance, the Pythagorean identity sin²(θ) + cos²(θ) = 1 is evident from the coordinates of any point on the unit circle.
Practical Examples
Let’s look at some practical examples to see how the unit circle filled out can be applied.
Example 1: Finding Sine and Cosine Values
Suppose you want to find the sine and cosine of 120 degrees. Using the unit circle:
- Locate the point corresponding to 120 degrees. This point is in the second quadrant.
- The coordinates of this point are (-1/2, √3/2).
- Therefore, cos(120°) = -1/2 and sin(120°) = √3/2.
Example 2: Verifying Trigonometric Identities
To verify the identity sin(θ) = cos(90° - θ), consider the following:
- For any angle θ, the point (cos(θ), sin(θ)) lies on the unit circle.
- The point (cos(90° - θ), sin(90° - θ)) is the reflection of (cos(θ), sin(θ)) across the line y = x.
- Since reflection across y = x swaps the x and y coordinates, sin(θ) = cos(90° - θ).
📝 Note: These examples demonstrate how the unit circle can be used to solve problems and verify identities in trigonometry. Understanding the unit circle filled out can significantly enhance your problem-solving skills in this area.
Visualizing the Unit Circle

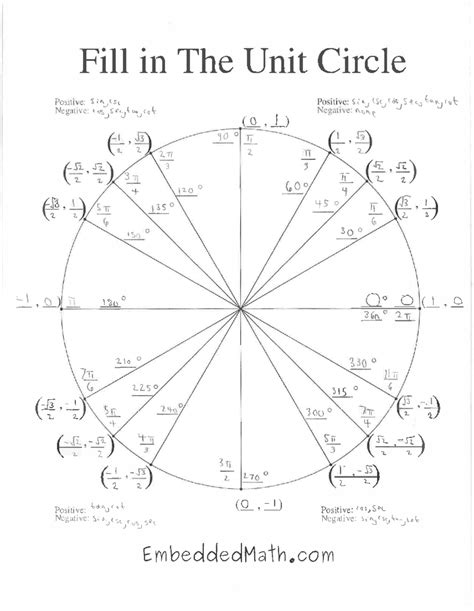

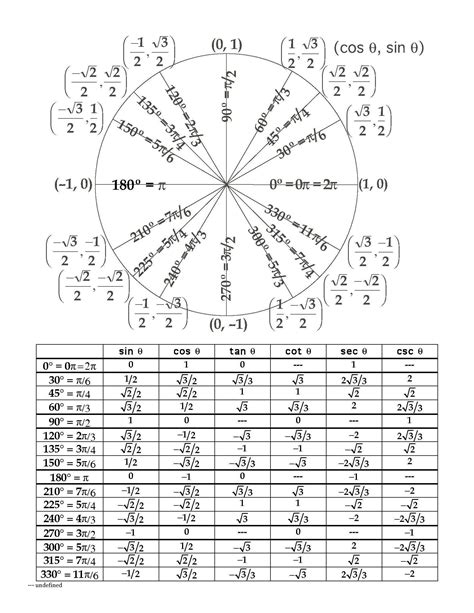

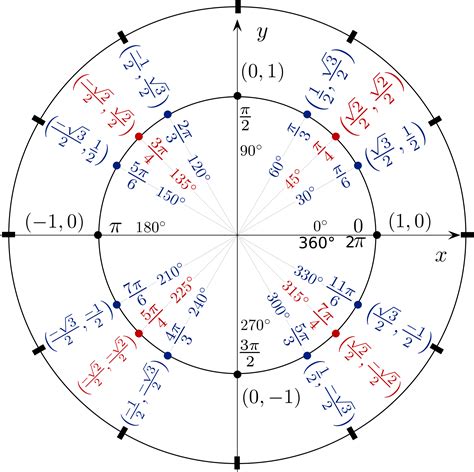

Visualizing the unit circle can be incredibly helpful. Here is an image of a unit circle filled out with key points and angles:
This image shows the unit circle with key angles and their corresponding coordinates. It serves as a useful reference for understanding the relationships between angles and trigonometric functions.
By studying this image and practicing with various angles, you can gain a deeper understanding of the unit circle and its applications.
In summary, the unit circle filled out is a fundamental concept in trigonometry that provides a visual representation of the relationships between angles and their corresponding sine and cosine values. By understanding how to fill out the unit circle, you can enhance your grasp of trigonometric functions and their applications. The unit circle helps in understanding the periodic nature, symmetry, and identities of trigonometric functions, making it an essential tool for anyone studying trigonometry. Through practical examples and visual aids, you can solidify your understanding and apply this knowledge to solve complex problems.
