Underground Feeder Cable

Underground feeder cable (UFC) is a critical component in electrical systems, providing a reliable and safe means of power distribution. Whether you're a professional electrician or a DIY enthusiast, understanding the intricacies of underground feeder cable is essential for ensuring the safety and efficiency of your electrical installations. This post will delve into the various aspects of underground feeder cable, including its types, installation procedures, and best practices.

Table of Contents

Understanding Underground Feeder Cable

Underground feeder cable is designed to transmit electrical power from a source to various distribution points. It is typically used in residential, commercial, and industrial settings where overhead wiring is not feasible or desirable. The primary advantage of underground feeder cable is its ability to withstand environmental factors such as weather, moisture, and physical damage, making it a durable and long-lasting solution.

Types of Underground Feeder Cable

There are several types of underground feeder cable, each suited for different applications and environmental conditions. The most common types include:

Non-Metallic Sheathed Cable (NM-B): This type of cable is commonly used in residential settings. It consists of two or more insulated conductors enclosed in a non-metallic sheath.

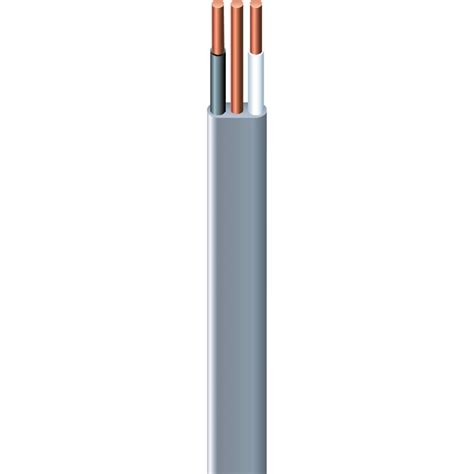

Underground Feeder and Branch Circuit Cable (UF-B): UF-B cable is designed for direct burial and is often used in outdoor applications. It features a moisture-resistant jacket and is suitable for both feeder and branch circuit wiring.
Service Entrance Cable (SE): SE cable is used for the main power supply to a building. It is typically installed underground and is designed to withstand the rigors of outdoor environments.
Direct Burial Cable: This type of cable is specifically designed for direct burial in the ground. It has a robust outer jacket that protects the conductors from moisture, chemicals, and physical damage.

Installation Procedures for Underground Feeder Cable

Installing underground feeder cable requires careful planning and adherence to safety standards. Here are the key steps involved in the installation process:

Planning and Preparation

Before beginning the installation, it is crucial to plan the route of the cable and obtain any necessary permits. Consider the following factors:

Determine the length and gauge of the cable required based on the power needs and distance.
Identify any underground obstacles such as water pipes, gas lines, or other utilities.
Ensure that the cable is rated for the voltage and current requirements of the application.

Trenching

Digging a trench for the underground feeder cable is a critical step. The trench should be deep enough to protect the cable from freezing temperatures and physical damage. The depth of the trench will depend on local codes and regulations, but it is typically between 18 and 24 inches deep.

When digging the trench, ensure that it is straight and level to avoid any sharp bends or kinks in the cable. Use a shovel or trenching machine to create a smooth path for the cable.

Laying the Cable

Once the trench is prepared, lay the underground feeder cable along the path. Ensure that the cable is not stretched or kinked, as this can damage the insulation and conductors. Use cable supports or anchors to secure the cable in place and prevent movement.

If the cable is not direct burial rated, it should be placed in a conduit to protect it from moisture and physical damage. Use PVC or metal conduit that is appropriate for the application and local codes.

Connecting the Cable

After laying the cable, connect it to the power source and the distribution points. Use appropriate connectors and fittings to ensure a secure and reliable connection. Follow the manufacturer's instructions for proper installation and termination of the cable.

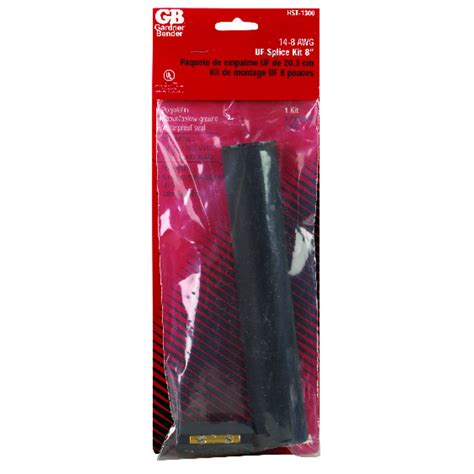

Ensure that all connections are properly insulated and protected from moisture and physical damage. Use waterproof connectors and sealants to prevent water ingress and corrosion.

Backfilling the Trench

Once the cable is installed and connected, backfill the trench with soil or gravel. Compact the soil to prevent settling and ensure that the cable remains secure. Avoid using heavy machinery near the trench to prevent damage to the cable.

After backfilling, restore the surface to its original condition, ensuring that there are no visible signs of the trench. This will help maintain the aesthetic appeal of the area and prevent accidental damage to the cable.

🔧 Note: Always follow local codes and regulations when installing underground feeder cable. Consult with a licensed electrician if you are unsure about any aspect of the installation process.

Best Practices for Underground Feeder Cable Installation

To ensure the safety and longevity of your underground feeder cable installation, follow these best practices:

Use Appropriate Cable: Select a cable that is rated for the specific application and environmental conditions. Ensure that the cable is suitable for direct burial if it will be installed underground.
Proper Trenching: Dig a trench that is deep enough to protect the cable from freezing temperatures and physical damage. Ensure that the trench is straight and level to avoid sharp bends or kinks in the cable.
Secure Connections: Use appropriate connectors and fittings to ensure a secure and reliable connection. Follow the manufacturer's instructions for proper installation and termination of the cable.
Protect from Moisture: Use waterproof connectors and sealants to prevent water ingress and corrosion. If the cable is not direct burial rated, place it in a conduit to protect it from moisture and physical damage.
Regular Inspection: Inspect the cable and connections regularly to ensure that they are in good condition. Look for signs of wear, damage, or corrosion, and address any issues promptly.

Common Issues and Troubleshooting

Despite careful installation, issues can arise with underground feeder cable. Here are some common problems and troubleshooting tips:

Cable Damage

Cable damage can occur due to physical impact, moisture ingress, or corrosion. Inspect the cable for any visible signs of damage, such as cuts, cracks, or discoloration. If damage is detected, replace the affected section of the cable and repair any connections.

Connection Problems

Loose or corroded connections can cause intermittent power outages or reduced performance. Inspect all connections for signs of wear, corrosion, or looseness. Tighten any loose connections and replace any corroded components. Use waterproof connectors and sealants to prevent future issues.

Overheating

Overheating can occur due to excessive current flow or poor ventilation. Ensure that the cable is properly sized for the application and that it is not overloaded. Provide adequate ventilation around the cable and connections to dissipate heat effectively.

🔧 Note: If you encounter persistent issues with your underground feeder cable, consult with a licensed electrician to diagnose and resolve the problem.

Safety Considerations

Safety is paramount when working with underground feeder cable. Follow these safety considerations to ensure a safe installation:

Use Personal Protective Equipment (PPE): Wear appropriate PPE, including gloves, safety glasses, and protective clothing, to protect yourself from electrical hazards and physical injuries.
Follow Electrical Codes: Adhere to local electrical codes and regulations to ensure a safe and compliant installation. Consult with a licensed electrician if you are unsure about any aspect of the installation process.
Avoid Water and Moisture: Keep the cable and connections dry to prevent electrical shorts and corrosion. Use waterproof connectors and sealants to protect against moisture ingress.
Proper Grounding: Ensure that the cable and all connected equipment are properly grounded to prevent electrical shocks and equipment damage.

By following these safety considerations, you can ensure a safe and reliable installation of underground feeder cable.

Underground feeder cable is a versatile and reliable solution for power distribution in various settings. By understanding the types of cable, installation procedures, and best practices, you can ensure a safe and efficient electrical system. Regular inspection and maintenance will help prolong the life of your underground feeder cable and prevent potential issues. Always prioritize safety and adhere to local codes and regulations to ensure a successful installation.
