Ubuntu Configure Static Ip

Configuring a static IP address on your Ubuntu system can be crucial for various networking tasks, such as setting up a server, ensuring consistent access to network resources, or simplifying network management. This guide will walk you through the process of configuring a static IP address on Ubuntu, covering both graphical and command-line methods. By the end of this guide, you will have a clear understanding of how to Ubuntu Configure Static IP effectively.

Table of Contents

Understanding Static IP Addresses

A static IP address is a fixed IP address assigned to a device that does not change over time. Unlike dynamic IP addresses, which are assigned by a DHCP server and can change periodically, a static IP address remains constant. This consistency is beneficial for servers, network devices, and other critical systems that require stable network access.

Prerequisites

Before you begin, ensure you have the following:

Administrative access to the Ubuntu system.
Basic knowledge of networking concepts.
The desired static IP address, subnet mask, gateway, and DNS servers.

Method 1: Configuring Static IP Using the Graphical Interface

If you prefer using a graphical interface, Ubuntu’s Network Manager makes it easy to configure a static IP address. Follow these steps:

Step 1: Open Network Settings

Click on the network icon in the system tray and select “Settings” or “Network Settings.”

Step 2: Select the Network Interface

In the Network settings window, select the network interface you want to configure (e.g., Ethernet or Wi-Fi).

Step 3: Configure IP Address

Click on the gear icon next to the network interface to open the settings for that interface. In the IPv4 tab, select the “Manual” option. Then, enter the following details:

Address: The static IP address you want to assign.
Netmask: The subnet mask for your network.
Gateway: The default gateway for your network.
DNS: The DNS servers for your network.

Step 4: Apply the Changes

Click “Apply” to save the changes. Your network interface will now use the static IP address you configured.

💡 Note: If you encounter any issues, ensure that the static IP address is within the correct subnet and does not conflict with other devices on the network.

Method 2: Configuring Static IP Using the Command Line

For those who prefer the command line, configuring a static IP address on Ubuntu can be done using the terminal. This method is particularly useful for headless servers or systems without a graphical interface.

Step 1: Open the Terminal

Open a terminal window on your Ubuntu system.

Step 2: Edit the Netplan Configuration File

Ubuntu uses Netplan for network configuration. The configuration files are typically located in the /etc/netplan directory. Open the configuration file using a text editor, such as nano:

sudo nano /etc/netplan/01-netcfg.yaml

Step 3: Modify the Configuration File

Edit the configuration file to include the static IP settings. Here is an example configuration:

network:
  version: 2
  ethernets:
    eth0:
      dhcp4: no
      addresses:
        - 192.168.1.¹⁰⁰⁄₂₄
      gateway4: 192.168.1.1
      nameservers:
        addresses:
          - 8.8.8.8
          - 8.8.4.4

Replace eth0 with your network interface name, and update the IP address, subnet mask, gateway, and DNS servers as needed.

Step 4: Apply the Changes

Save the file and exit the text editor. Then, apply the changes using the following command:

sudo netplan apply

Your network interface will now use the static IP address you configured.

💡 Note: Ensure that the Netplan configuration file is correctly formatted. YAML files are sensitive to indentation and syntax errors.

Verifying the Static IP Configuration

After configuring the static IP address, it is essential to verify that the settings have been applied correctly. You can do this using the following commands:

Using the Command Line

Open a terminal and run the following commands:

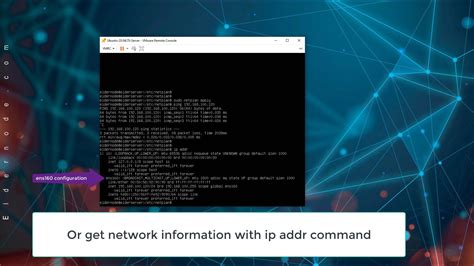

ip addr show

This command will display the current IP address configuration for all network interfaces. Look for your network interface (e.g., eth0) and verify that it has the static IP address you configured.

Using the Graphical Interface

Click on the network icon in the system tray and select “Connection Information” or “Network Details.” This will display the current network settings, including the IP address, subnet mask, gateway, and DNS servers.

Troubleshooting Common Issues

If you encounter issues while configuring a static IP address, here are some common problems and their solutions:

IP Address Conflict

If another device on the network is using the same static IP address, you will encounter an IP address conflict. Ensure that the static IP address you configure is unique within your network.

Incorrect Subnet Mask or Gateway

If the subnet mask or gateway is incorrect, your device may not be able to communicate with other devices on the network. Double-check the subnet mask and gateway settings to ensure they are correct.

DNS Resolution Issues

If you are experiencing DNS resolution issues, verify that the DNS servers are correctly configured. You can test DNS resolution using the nslookup or dig commands.

Netplan Configuration Errors

If you encounter errors while applying the Netplan configuration, check the configuration file for syntax errors. Ensure that the file is correctly formatted and that all required fields are present.

💡 Note: If you are unsure about any settings, consult your network administrator or refer to your network documentation for guidance.

Additional Considerations

When configuring a static IP address, there are a few additional considerations to keep in mind:

DHCP Reservations

If your network uses DHCP, you can reserve a static IP address for a specific device. This ensures that the device always receives the same IP address from the DHCP server. Consult your DHCP server documentation for instructions on configuring reservations.

Firewall and Security Settings

Ensure that your firewall and security settings allow traffic to and from the static IP address. You may need to configure firewall rules or security group settings to permit the necessary traffic.

Network Documentation

Document the static IP address configuration for future reference. Include details such as the IP address, subnet mask, gateway, and DNS servers. This documentation will be helpful for troubleshooting and network management.

Example Configuration

Here is an example of a complete Netplan configuration file for configuring a static IP address:

network:
  version: 2
  ethernets:
    eth0:
      dhcp4: no
      addresses:
        - 192.168.1.¹⁰⁰⁄₂₄
      gateway4: 192.168.1.1
      nameservers:
        addresses:
          - 8.8.8.8
          - 8.8.4.4

In this example, the network interface eth0 is configured with a static IP address of 192.168.1.100, a subnet mask of /24, a gateway of 192.168.1.1, and DNS servers 8.8.8.8 and 8.8.4.4.

Static IP Configuration for Multiple Interfaces

If your system has multiple network interfaces and you need to configure static IP addresses for each, you can extend the Netplan configuration file as follows:

network:
  version: 2
  ethernets:
    eth0:
      dhcp4: no
      addresses:
        - 192.168.1.¹⁰⁰⁄₂₄
      gateway4: 192.168.1.1
      nameservers:
        addresses:
          - 8.8.8.8
          - 8.8.4.4
    eth1:
      dhcp4: no
      addresses:
        - 192.168.2.¹⁰⁰⁄₂₄
      gateway4: 192.168.2.1
      nameservers:
        addresses:
          - 8.8.8.8
          - 8.8.4.4

In this example, both eth0 and eth1 are configured with static IP addresses. Adjust the settings as needed for your specific network configuration.

Static IP Configuration for Wi-Fi

Configuring a static IP address for a Wi-Fi interface is similar to configuring it for an Ethernet interface. Here is an example Netplan configuration for a Wi-Fi interface:

network:
  version: 2
  wifis:
    wlan0:
      dhcp4: no
      addresses:
        - 192.168.1.¹⁰⁰⁄₂₄
      gateway4: 192.168.1.1
      nameservers:
        addresses:
          - 8.8.8.8
          - 8.8.4.4
      access-points:
        “your_ssid”:
          password: “your_password”

Replace wlan0 with your Wi-Fi interface name, and update the SSID and password as needed. This configuration will assign a static IP address to the Wi-Fi interface and connect to the specified access point.

Static IP Configuration for Virtual Machines

When configuring a static IP address for a virtual machine (VM), ensure that the VM’s network settings are compatible with the host system’s network configuration. Here is an example Netplan configuration for a VM:

network:
  version: 2
  ethernets:
    ens33:
      dhcp4: no
      addresses:
        - 192.168.1.¹⁰⁰⁄₂₄
      gateway4: 192.168.1.1
      nameservers:
        addresses:
          - 8.8.8.8
          - 8.8.4.4

In this example, the VM’s network interface ens33 is configured with a static IP address. Adjust the interface name and settings as needed for your specific VM configuration.

Static IP Configuration for Containers

Configuring a static IP address for a container can be more complex, as containers typically use the host system’s network stack. However, you can use network namespaces and bridges to assign a static IP address to a container. Here is an example configuration using Docker:

docker network create –driver bridge –subnet=192.168.1.0/24 –gateway=192.168.1.1 my_bridge_network

docker run -d –name my_container –net my_bridge_network –ip 192.168.1.100 my_image

In this example, a custom bridge network is created with a subnet of 192.168.1.0/24 and a gateway of 192.168.1.1. The container my_container is then run with a static IP address of 192.168.1.100.

Static IP Configuration for Kubernetes Pods

In a Kubernetes cluster, pods typically do not have static IP addresses, as they are ephemeral and can be scheduled on any node. However, you can use services and persistent volumes to provide stable network access. Here is an example configuration for a Kubernetes service:

apiVersion: v1
kind: Service
metadata:
  name: my-service
spec:
  selector:
    app: my-app
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
  type: LoadBalancer

In this example, a Kubernetes service is created to expose the application my-app on port 80. The service will provide a stable IP address for accessing the application, even as pods are scheduled and rescheduled across the cluster.

Static IP Configuration for Cloud Instances

When configuring a static IP address for a cloud instance, such as an Amazon EC2 instance or a Google Cloud VM, you typically use the cloud provider’s management console or API. Here is an example of configuring a static IP address for an Amazon EC2 instance:

Step	Description
1	Open the Amazon EC2 console.
2	Select “Elastic IPs” from the navigation pane.
3	Click “Allocate Elastic IP address.”
4	Select the appropriate region and allocate the Elastic IP address.
5	Associate the Elastic IP address with your EC2 instance.

In this example, an Elastic IP address is allocated and associated with an EC2 instance, providing a static IP address for the instance.

💡 Note: Cloud providers typically charge for Elastic IP addresses, so ensure that you understand the pricing and usage policies before allocating a static IP address.

Configuring a static IP address on Ubuntu is a straightforward process, whether you use the graphical interface or the command line. By following the steps outlined in this guide, you can effectively Ubuntu Configure Static IP for your network needs. Whether you are setting up a server, managing network devices, or ensuring consistent access to network resources, a static IP address provides the stability and reliability required for critical systems.
