Types Of Polar Graphs

Polar graphs are a fascinating way to visualize mathematical functions and data sets. Unlike Cartesian graphs, which use a rectangular coordinate system, polar graphs employ a coordinate system based on a point's distance from a reference point and the angle it makes with a reference direction. This unique approach allows for the representation of various complex shapes and patterns that are not easily depicted in Cartesian coordinates. In this post, we will delve into the different types of polar graphs, their characteristics, and how to create them.

Table of Contents

Understanding Polar Coordinates

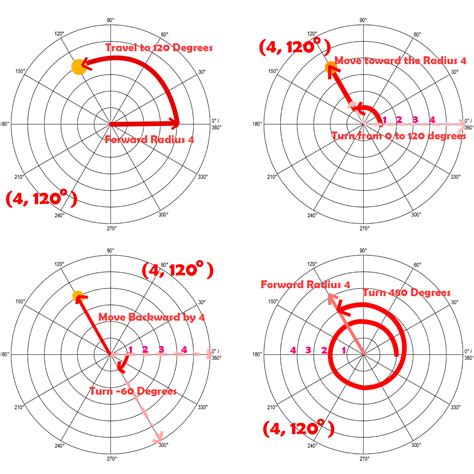

Before exploring the types of polar graphs, it’s essential to understand the basics of polar coordinates. In a polar coordinate system, a point is defined by two values: the radius ® and the angle (θ). The radius is the distance from the origin (or pole) to the point, while the angle is the measure of the direction from the positive x-axis to the point.

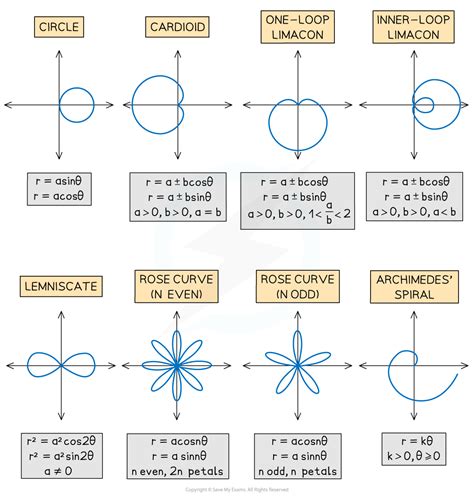

Basic Types of Polar Graphs

There are several basic types of polar graphs that are commonly used in mathematics and engineering. These include:

Circles
Cardioids
Lemniscates
Spirals
Rose Curves

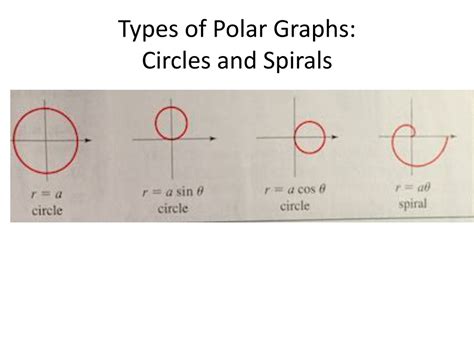

Circles

One of the simplest types of polar graphs is the circle. The equation for a circle in polar coordinates is given by:

r = a

where a is the radius of the circle. This equation represents a circle centered at the origin with a constant radius.

Cardioids

A cardioid is a heart-shaped curve that can be represented in polar coordinates. The equation for a cardioid is:

r = a(1 + cos(θ))

where a is a constant that determines the size of the cardioid. Cardioids are often used in acoustics and optics to model the shape of certain wavefronts.

Lemniscates

A lemniscate is a figure-eight-shaped curve that can be represented in polar coordinates. The equation for a lemniscate is:

r² = a² cos(2θ)

where a is a constant that determines the size of the lemniscate. Lemniscates are often used in mathematics to study the properties of curves and surfaces.

Spirals

Spirals are curves that wind around a central point. The equation for a spiral in polar coordinates is:

r = aθ

where a is a constant that determines the tightness of the spiral. Spirals are commonly found in nature, such as in the shape of seashells and galaxies.

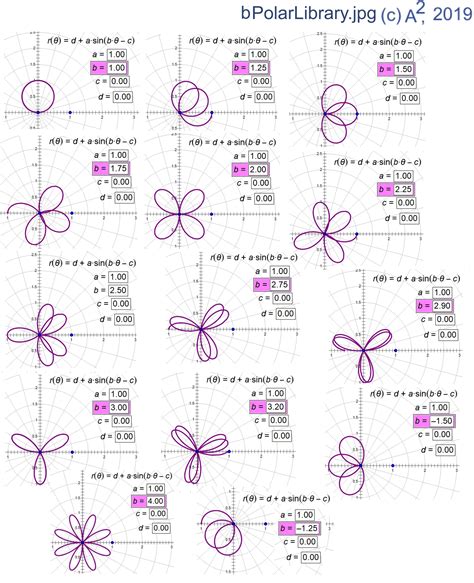

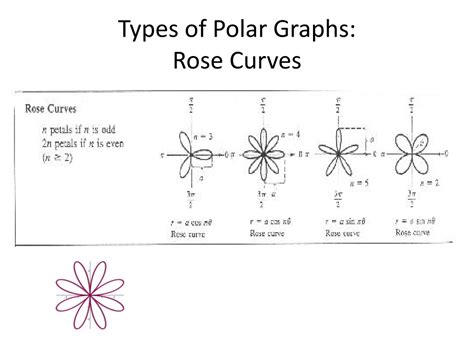

Rose Curves

Rose curves are a family of curves that can have petal-like shapes. The equation for a rose curve in polar coordinates is:

r = a cos(nθ)

where a is a constant that determines the size of the curve, and n is an integer that determines the number of petals. Rose curves are often used in art and design to create intricate patterns.

Creating Polar Graphs

Creating types of polar graphs involves plotting points based on the polar coordinates derived from the given equations. Here are the steps to create a polar graph:

Choose the equation for the desired polar graph.
Select a range of values for the angle θ.
Calculate the corresponding radius r for each value of θ using the equation.
Plot the points (r, θ) on a polar coordinate system.
Connect the points to form the graph.

📝 Note: When plotting polar graphs, it’s important to consider the periodicity of the angle θ. For example, a full rotation around the origin corresponds to an angle of 2π radians (or 360 degrees).

Applications of Polar Graphs

Polar graphs have a wide range of applications in various fields, including:

Physics: Modeling the motion of objects in circular or spiral paths.
Engineering: Designing antennas, lenses, and other optical components.
Mathematics: Studying the properties of curves and surfaces.
Art and Design: Creating intricate patterns and designs.

Advanced Types of Polar Graphs

In addition to the basic types of polar graphs, there are more advanced curves that can be represented in polar coordinates. These include:

Conic Sections
Limacons
Cissoids

Conic Sections

Conic sections are curves that can be represented in polar coordinates. The equation for a conic section in polar coordinates is:

r = l / (1 + e cos(θ))

where l is the semi-latus rectum, and e is the eccentricity of the conic section. Conic sections include circles, ellipses, parabolas, and hyperbolas.

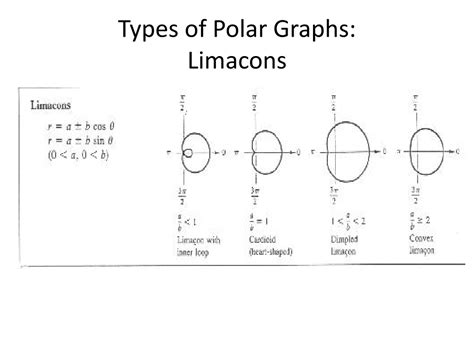

Limacons

A limacon is a curve that can be represented in polar coordinates. The equation for a limacon is:

r = a + b cos(θ)

where a and b are constants that determine the shape of the limacon. Limacons can have various shapes, including loops and dimples.

Cissoids

A cissoid is a curve that can be represented in polar coordinates. The equation for a cissoid is:

r = a sin(θ) / (1 + cos(θ))

where a is a constant that determines the size of the cissoid. Cissoids are often used in mathematics to study the properties of curves and surfaces.

Conclusion

Polar graphs offer a unique and powerful way to visualize mathematical functions and data sets. By understanding the different types of polar graphs and their characteristics, we can gain insights into complex shapes and patterns that are not easily depicted in Cartesian coordinates. Whether you’re a student, engineer, or artist, exploring polar graphs can open up new avenues for creativity and problem-solving.
