Types Of Fuses

Electrical systems are integral to modern life, powering everything from homes to industries. However, these systems are not without risks. Overloading, short circuits, and other electrical faults can lead to fires, equipment damage, and even fatalities. This is where fuses come into play. Fuses are essential safety devices designed to protect electrical circuits from excessive current. Understanding the types of fuses and their applications is crucial for ensuring the safety and efficiency of electrical systems.

What is a Fuse?

A fuse is a safety device that protects an electrical circuit from overcurrent. It consists of a metal wire or strip that melts and breaks the circuit when the current exceeds a safe level. Fuses are designed to fail safely, preventing damage to the circuit and potential hazards.

How Fuses Work

Fuses operate on the principle of heat generation. When an electrical current flows through a fuse, it generates heat. Under normal conditions, the heat is dissipated safely. However, if the current exceeds the fuse’s rating, the heat generated melts the fuse element, breaking the circuit and stopping the flow of current. This simple yet effective mechanism makes fuses indispensable in electrical safety.

Types of Fuses

There are several types of fuses available, each designed for specific applications and current ratings. Understanding these types is essential for selecting the right fuse for a given electrical system.

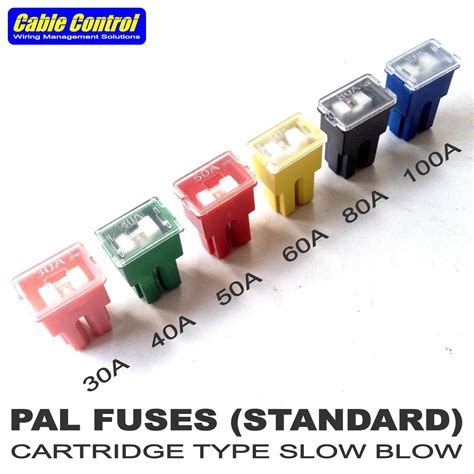

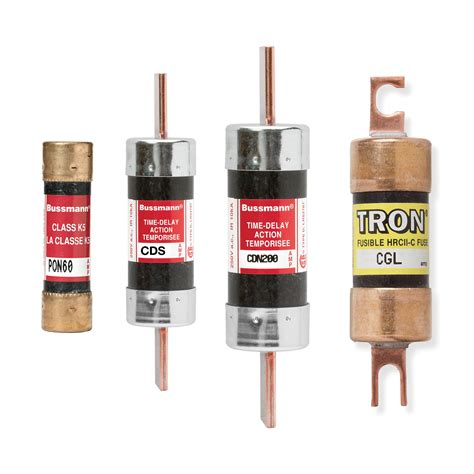

Cartridge Fuses

Cartridge fuses are cylindrical in shape and are commonly used in low-voltage applications. They consist of a glass or ceramic body containing a fuse element. These fuses are available in various current ratings and are easy to replace. Cartridge fuses are often used in household appliances, automotive systems, and industrial equipment.

Plug Fuses

Plug fuses, also known as Edison fuses, are designed to be inserted into a socket. They are commonly used in older electrical systems and household appliances. Plug fuses have a metal cap and a glass or ceramic body containing the fuse element. These fuses are easy to replace but are generally being phased out in favor of more modern and safer fuse types.

Blade Fuses

Blade fuses are rectangular in shape and are commonly used in automotive applications. They consist of a plastic body with metal blades that connect to the fuse holder. Blade fuses are available in various current ratings and are easy to replace. These fuses are designed to protect the electrical systems in vehicles from overcurrent and short circuits.

High-Rupture Capacity (HRC) Fuses

High-Rupture Capacity (HRC) fuses are designed to handle high currents and voltages. They are commonly used in industrial and commercial applications where the risk of high fault currents is present. HRC fuses have a ceramic body and a silver or copper fuse element. These fuses are designed to rupture safely, preventing damage to the circuit and potential hazards.

Dual Element Fuses

Dual element fuses are designed to protect against both overcurrent and short circuits. They consist of two fuse elements: one for overcurrent protection and one for short circuit protection. Dual element fuses are commonly used in industrial and commercial applications where both types of protection are required.

Semiconductor Fuses

Semiconductor fuses are designed to protect semiconductor devices from overcurrent and short circuits. They are commonly used in electronic circuits and power supplies. Semiconductor fuses have a low resistance and are designed to fail safely, preventing damage to the semiconductor devices and potential hazards.

Resettable Fuses

Resettable fuses, also known as polyfuses or PTC fuses, are designed to reset automatically after a fault condition. They consist of a polymer material that heats up and increases its resistance when the current exceeds a safe level. Once the fault condition is cleared, the polymer cools down, and the resistance returns to normal. Resettable fuses are commonly used in electronic devices and power supplies where automatic reset is desirable.

Applications of Fuses

Fuses are used in a wide range of applications, from household appliances to industrial equipment. Understanding the specific applications of different types of fuses is essential for selecting the right fuse for a given electrical system.

Household Appliances

In household appliances, fuses are used to protect the electrical circuits from overcurrent and short circuits. Common types of fuses used in household appliances include cartridge fuses and plug fuses. These fuses are designed to fail safely, preventing damage to the appliance and potential hazards.

Automotive Systems

In automotive systems, fuses are used to protect the electrical circuits from overcurrent and short circuits. Blade fuses are commonly used in automotive applications due to their ease of replacement and reliability. These fuses are designed to protect the electrical systems in vehicles from potential hazards.

Industrial Equipment

In industrial equipment, fuses are used to protect the electrical circuits from high fault currents. High-Rupture Capacity (HRC) fuses and dual element fuses are commonly used in industrial applications due to their ability to handle high currents and voltages. These fuses are designed to rupture safely, preventing damage to the equipment and potential hazards.

Electronic Circuits

In electronic circuits, fuses are used to protect semiconductor devices from overcurrent and short circuits. Semiconductor fuses and resettable fuses are commonly used in electronic circuits due to their low resistance and ability to fail safely. These fuses are designed to protect the electronic devices from potential hazards.

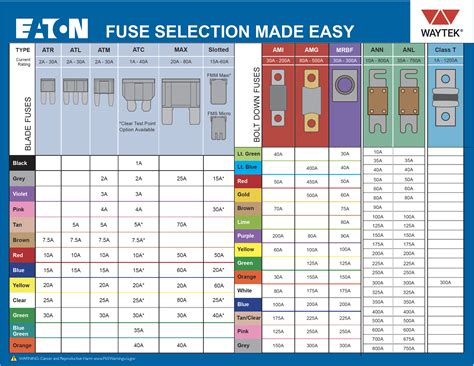

Selecting the Right Fuse

Selecting the right fuse for a given electrical system is crucial for ensuring safety and efficiency. Several factors should be considered when choosing a fuse, including the current rating, voltage rating, and the type of protection required.

Current Rating

The current rating of a fuse is the maximum current that the fuse can safely handle without melting. It is essential to select a fuse with a current rating that matches the requirements of the electrical circuit. Choosing a fuse with a lower current rating can result in frequent fuse failures, while choosing a fuse with a higher current rating can compromise safety.

Voltage Rating

The voltage rating of a fuse is the maximum voltage that the fuse can safely handle. It is essential to select a fuse with a voltage rating that matches the requirements of the electrical circuit. Choosing a fuse with a lower voltage rating can result in fuse failure, while choosing a fuse with a higher voltage rating can compromise safety.

Type of Protection

The type of protection required depends on the specific application and the potential hazards. For example, in household appliances, overcurrent protection is typically sufficient. In industrial equipment, both overcurrent and short circuit protection may be required. It is essential to select a fuse that provides the appropriate type of protection for the given application.

Maintenance and Safety

Maintaining fuses and ensuring their proper use is crucial for electrical safety. Regular inspection and replacement of fuses can prevent potential hazards and ensure the reliability of electrical systems.

Regular Inspection

Regular inspection of fuses is essential to ensure their proper functioning. Fuses should be checked for signs of damage, such as cracks or discoloration, and replaced if necessary. It is also important to ensure that fuses are properly installed and securely fastened.

Proper Replacement

When replacing a fuse, it is essential to use a fuse with the same current and voltage ratings as the original. Using a fuse with different ratings can compromise safety and result in potential hazards. It is also important to ensure that the fuse is properly installed and securely fastened.

Safety Precautions

When working with fuses, it is important to follow safety precautions to prevent potential hazards. Always turn off the power supply before handling fuses, and use insulated tools to avoid electrical shock. It is also important to wear appropriate personal protective equipment (PPE), such as gloves and safety glasses.

🔧 Note: Always refer to the manufacturer's guidelines for specific instructions on fuse replacement and maintenance.

Conclusion

Fuses play a critical role in protecting electrical circuits from overcurrent and short circuits. Understanding the types of fuses and their applications is essential for ensuring the safety and efficiency of electrical systems. From household appliances to industrial equipment, fuses are indispensable in preventing potential hazards and ensuring the reliability of electrical systems. By selecting the right fuse, maintaining proper inspection and replacement, and following safety precautions, we can ensure the safe and efficient operation of electrical systems.
