Bearings are essential components in machinery and equipment, enabling smooth and efficient motion by reducing friction between moving parts. Understanding the various types of bearings and their applications is crucial for engineers, technicians, and anyone involved in mechanical systems. This post delves into the different types of bearings, their characteristics, and their specific uses.
What Are Bearings?
Bearings are mechanical components designed to support and guide moving parts, allowing them to rotate or slide with minimal friction. They are used in a wide range of applications, from simple household items to complex industrial machinery. The primary function of a bearing is to reduce friction and wear, thereby enhancing the efficiency and lifespan of the equipment.

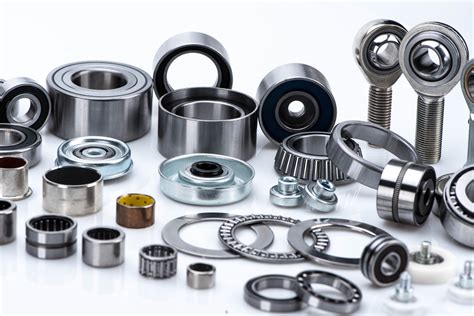

Types of Bearings
Bearings can be categorized into several types based on their design, function, and application. The most common types include:
- Ball Bearings
- Roller Bearings
- Plain Bearings
- Thrust Bearings
- Needle Bearings
- Linear Bearings

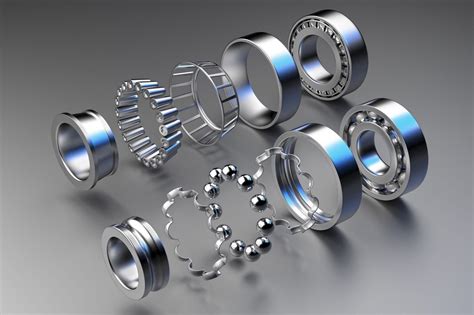

Ball Bearings
Ball bearings are one of the most common types of bearings. They consist of a set of balls held in a cage, which rolls between two races (inner and outer). These bearings are designed to handle both radial and axial loads and are widely used in applications requiring high-speed rotation and low friction.
There are several subtypes of ball bearings, including:
- Deep Groove Ball Bearings
- Angular Contact Ball Bearings
- Self-Aligning Ball Bearings
- Thrust Ball Bearings
Deep groove ball bearings are versatile and can handle both radial and axial loads. Angular contact ball bearings are designed for applications with combined loads and high speeds. Self-aligning ball bearings can accommodate misalignment, making them ideal for applications where shaft deflection is a concern. Thrust ball bearings are specifically designed to handle axial loads.
Roller Bearings
Roller bearings use cylindrical rollers instead of balls to support loads. They are designed to handle heavier loads compared to ball bearings and are commonly used in applications requiring high load capacity and low friction. Roller bearings can be further categorized into several types:
- Cylindrical Roller Bearings
- Tapered Roller Bearings
- Spherical Roller Bearings
- Needle Roller Bearings
Cylindrical roller bearings are designed to handle heavy radial loads and are often used in applications like gearboxes and electric motors. Tapered roller bearings can handle both radial and axial loads and are commonly used in automotive applications. Spherical roller bearings can accommodate misalignment and are ideal for heavy-duty applications. Needle roller bearings have a small diameter and are used in applications with limited space.
Plain Bearings
Plain bearings, also known as sleeve bearings or bushings, consist of a shaft rotating within a cylindrical sleeve. They are designed to handle both radial and axial loads and are commonly used in applications requiring low-speed rotation and high load capacity. Plain bearings can be made from various materials, including bronze, brass, and plastic, depending on the application requirements.
There are several types of plain bearings, including:
- Journal Bearings
- Thrust Bearings
- Bushing Bearings
Journal bearings are designed to handle radial loads and are commonly used in applications like pumps and compressors. Thrust bearings are designed to handle axial loads and are used in applications like turbines and propellers. Bushing bearings are used in applications requiring low friction and high load capacity.
Thrust Bearings
Thrust bearings are designed to handle axial loads, which are loads parallel to the shaft. They are commonly used in applications where the primary load is in the axial direction, such as in automotive transmissions and helicopter rotors. Thrust bearings can be further categorized into several types:
- Thrust Ball Bearings
- Thrust Roller Bearings
- Thrust Tapered Roller Bearings
Thrust ball bearings are designed to handle axial loads and are commonly used in applications like automotive transmissions. Thrust roller bearings are designed to handle heavier axial loads and are used in applications like helicopter rotors. Thrust tapered roller bearings can handle both radial and axial loads and are used in applications requiring high load capacity.
Needle Bearings
Needle bearings are a type of roller bearing that uses long, thin rollers. They are designed to handle high radial loads and are commonly used in applications with limited space. Needle bearings can be further categorized into several types:
- Drawn Cup Needle Roller Bearings
- Machined Ring Needle Roller Bearings
- Needle Roller and Cage Assemblies
Drawn cup needle roller bearings are designed to handle high radial loads and are commonly used in applications like automotive transmissions. Machined ring needle roller bearings are designed to handle heavier radial loads and are used in applications like gearboxes. Needle roller and cage assemblies are used in applications requiring high load capacity and low friction.
Linear Bearings
Linear bearings are designed to support and guide linear motion. They are commonly used in applications requiring precise linear movement, such as in CNC machines and automated assembly lines. Linear bearings can be further categorized into several types:
- Linear Ball Bearings
- Linear Roller Bearings
- Linear Plain Bearings
Linear ball bearings use balls to support linear motion and are commonly used in applications requiring high precision and low friction. Linear roller bearings use rollers to support linear motion and are used in applications requiring high load capacity. Linear plain bearings use a sleeve to support linear motion and are used in applications requiring low-speed rotation and high load capacity.
Applications of Different Types of Bearings
Different types of bearings are used in a wide range of applications across various industries. Understanding the specific applications of each type of bearing can help in selecting the right bearing for a particular task. Here are some common applications for different types of bearings:
| Type of Bearing | Common Applications |
|---|---|
| Ball Bearings | Electric motors, fans, pumps, and automotive components |
| Roller Bearings | Gearboxes, electric motors, and automotive transmissions |
| Plain Bearings | Pumps, compressors, and automotive components |
| Thrust Bearings | Automotive transmissions, helicopter rotors, and turbines |
| Needle Bearings | Automotive transmissions, gearboxes, and automotive components |
| Linear Bearings | CNC machines, automated assembly lines, and linear actuators |
Each type of bearing has its unique characteristics and advantages, making them suitable for specific applications. Selecting the right type of bearing is crucial for ensuring the efficiency and longevity of the equipment.
🔍 Note: When selecting a bearing, consider factors such as load capacity, speed, operating environment, and maintenance requirements to ensure optimal performance.
Bearings are essential components in mechanical systems, enabling smooth and efficient motion by reducing friction between moving parts. Understanding the various types of bearings and their applications is crucial for engineers, technicians, and anyone involved in mechanical systems. This post has provided an overview of the different types of bearings, their characteristics, and their specific uses. By selecting the right type of bearing for a particular application, you can enhance the efficiency and longevity of your equipment.
