Twisted Pair Cable

In the realm of networking and telecommunications, the Twisted Pair Cable stands as a cornerstone technology. It is ubiquitous in both residential and commercial settings, facilitating the transmission of data and voice signals over considerable distances. This blog post delves into the intricacies of Twisted Pair Cable, exploring its types, applications, advantages, and best practices for installation and maintenance.

Table of Contents

Understanding Twisted Pair Cable

Twisted Pair Cable is a type of wiring in which two conductors of a single circuit are twisted together for the purposes of canceling out electromagnetic interference (EMI) from external sources and crosstalk between neighboring pairs. This design is crucial for maintaining signal integrity and ensuring reliable data transmission.

Types of Twisted Pair Cable

Twisted Pair Cables are broadly categorized into two types: Unshielded Twisted Pair (UTP) and Shielded Twisted Pair (STP). Each type has its own set of characteristics and use cases.

Unshielded Twisted Pair (UTP)

UTP cables are the most common type of Twisted Pair Cable. They do not have any shielding to protect the twisted pairs from external interference. UTP cables are further classified into categories based on their performance specifications:

Category 3 (Cat 3): Supports data rates up to 10 Mbps and is typically used for voice and low-speed data applications.
Category 5 (Cat 5): Supports data rates up to 100 Mbps and is commonly used for Ethernet networks.
Category 5e (Cat 5e): An enhanced version of Cat 5, supporting data rates up to 1 Gbps and improved performance.
Category 6 (Cat 6): Supports data rates up to 10 Gbps and is designed for high-speed data applications.
Category 6a (Cat 6a): An augmented version of Cat 6, supporting data rates up to 10 Gbps over longer distances.
Category 7 (Cat 7): Supports data rates up to 10 Gbps and is designed for high-speed data applications with improved shielding.
Category 8 (Cat 8): Supports data rates up to 40 Gbps and is designed for data center applications.

Shielded Twisted Pair (STP)

STP cables include an additional layer of shielding around the twisted pairs to protect against EMI and crosstalk. This shielding can be in the form of a foil or braided mesh, providing enhanced protection compared to UTP cables. STP cables are often used in environments with high levels of electromagnetic interference, such as industrial settings or areas with heavy machinery.

Applications of Twisted Pair Cable

Twisted Pair Cables are used in a wide range of applications, from simple voice communications to complex data networks. Some of the most common applications include:

Ethernet Networks: Twisted Pair Cables are the backbone of Ethernet networks, providing reliable data transmission for both residential and commercial settings.

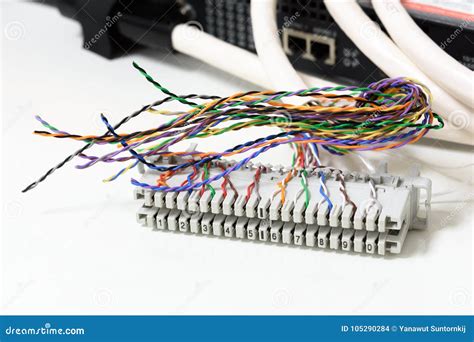

Telephone Systems: Traditional telephone systems rely on Twisted Pair Cables to transmit voice signals over long distances.
Security Systems: Twisted Pair Cables are used in security systems for transmitting video and audio signals from cameras and sensors.
Industrial Automation: In industrial settings, Twisted Pair Cables are used to connect sensors, actuators, and control systems, ensuring reliable communication in harsh environments.

Advantages of Twisted Pair Cable

Twisted Pair Cables offer several advantages that make them a popular choice for various applications:

Cost-Effective: Twisted Pair Cables are generally less expensive than other types of cables, such as fiber optic cables.
Easy to Install: The flexibility and simplicity of Twisted Pair Cables make them easy to install and maintain.
Versatile: Twisted Pair Cables can be used in a wide range of applications, from simple voice communications to complex data networks.
Reliable: The twisted design of the cable helps to minimize interference and crosstalk, ensuring reliable data transmission.

Best Practices for Installing Twisted Pair Cable

Proper installation of Twisted Pair Cable is crucial for ensuring optimal performance and reliability. Here are some best practices to follow:

Plan the Layout: Before installing the cable, plan the layout to ensure that the cable runs are as short and direct as possible. Avoid sharp bends and kinks, which can damage the cable.
Use Appropriate Connectors: Use high-quality connectors that are compatible with the type of Twisted Pair Cable being installed. Ensure that the connectors are properly crimped to avoid loose connections.
Avoid Electromagnetic Interference: Keep Twisted Pair Cables away from sources of electromagnetic interference, such as power cables and motors. If necessary, use STP cables or additional shielding to protect against interference.
Test the Cable: After installation, test the cable to ensure that it is functioning properly. Use a cable tester to check for continuity, shorts, and other issues.

🔧 Note: Always follow local building codes and regulations when installing Twisted Pair Cable. Ensure that the cable is properly secured and protected from physical damage.

Maintaining Twisted Pair Cable

Maintaining Twisted Pair Cable is essential for ensuring long-term reliability and performance. Regular maintenance can help to identify and address potential issues before they become major problems. Here are some tips for maintaining Twisted Pair Cable:

Inspect the Cable: Regularly inspect the cable for signs of damage, such as cuts, kinks, or frayed insulation. Replace any damaged sections of cable as soon as possible.
Check Connections: Ensure that all connections are secure and free from corrosion. Use a cable tester to check for continuity and proper termination.
Clean the Cable: Keep the cable clean and free from dust and debris, which can interfere with signal transmission. Use a soft cloth or compressed air to clean the cable.
Monitor Performance: Regularly monitor the performance of the cable to ensure that it is functioning properly. Use network monitoring tools to detect any issues with data transmission.

🔧 Note: Always follow the manufacturer's guidelines for maintaining Twisted Pair Cable. Use only approved cleaning and maintenance products to avoid damaging the cable.

Common Issues with Twisted Pair Cable

Despite their reliability, Twisted Pair Cables can encounter various issues that affect their performance. Some common issues include:

Electromagnetic Interference (EMI): EMI can disrupt signal transmission, leading to data loss or corruption. Use STP cables or additional shielding to protect against EMI.
Crosstalk: Crosstalk occurs when signals from one pair of wires interfere with signals from another pair. Proper cable design and installation can help to minimize crosstalk.
Physical Damage: Physical damage, such as cuts or kinks, can compromise the integrity of the cable. Handle the cable with care and avoid sharp bends or excessive force.
Improper Termination: Improper termination of the cable can lead to poor connections and signal loss. Use high-quality connectors and ensure proper crimping.

Troubleshooting Twisted Pair Cable

When issues arise with Twisted Pair Cable, it is essential to troubleshoot the problem systematically. Here are some steps to follow:

Identify the Problem: Determine the nature of the problem, such as intermittent connectivity, slow data transfer, or complete loss of signal.
Check Connections: Inspect all connections to ensure they are secure and properly terminated. Use a cable tester to check for continuity and proper termination.
Inspect the Cable: Look for signs of physical damage, such as cuts, kinks, or frayed insulation. Replace any damaged sections of cable.
Test for EMI: Use a cable tester to check for electromagnetic interference. If EMI is detected, consider using STP cables or additional shielding.
Monitor Performance: Use network monitoring tools to track the performance of the cable and identify any patterns or trends that may indicate a recurring issue.

🔧 Note: Always document the troubleshooting process and any actions taken to resolve the issue. This information can be valuable for future reference and maintenance.

Future Trends in Twisted Pair Cable Technology

The technology behind Twisted Pair Cables continues to evolve, driven by the increasing demand for higher data rates and improved performance. Some emerging trends in Twisted Pair Cable technology include:

Higher Categories: New categories of Twisted Pair Cables, such as Cat 8 and beyond, are being developed to support even higher data rates and longer distances.
Enhanced Shielding: Advanced shielding techniques are being employed to improve protection against EMI and crosstalk, ensuring reliable data transmission in challenging environments.
Integrated Solutions: Twisted Pair Cables are being integrated with other technologies, such as Power over Ethernet (PoE), to provide both data and power transmission over a single cable.
Smart Cables: Smart cables equipped with sensors and monitoring capabilities are being developed to provide real-time data on cable performance and environmental conditions.

Comparing Twisted Pair Cable with Other Cable Types

While Twisted Pair Cables are widely used, it is essential to understand how they compare to other types of cables. Here is a comparison of Twisted Pair Cables with fiber optic and coaxial cables:

Feature	Twisted Pair Cable	Fiber Optic Cable	Coaxial Cable
Data Rate	Up to 40 Gbps (Cat 8)	Up to 100 Gbps and beyond	Up to 10 Gbps
Distance	Up to 100 meters	Up to several kilometers	Up to 100 meters
Cost	Low	High	Moderate
Installation	Easy	Complex	Moderate
Interference	Moderate (UTP), Low (STP)	None	Low

Each type of cable has its own strengths and weaknesses, and the choice between them depends on the specific requirements of the application.

Twisted Pair Cables remain a vital component in modern networking and telecommunications. Their versatility, cost-effectiveness, and reliability make them an excellent choice for a wide range of applications. By understanding the different types of Twisted Pair Cables, their applications, and best practices for installation and maintenance, you can ensure optimal performance and longevity for your network infrastructure.

As technology continues to advance, Twisted Pair Cables will likely evolve to meet the growing demands for higher data rates and improved performance. Staying informed about the latest trends and developments in Twisted Pair Cable technology will help you make informed decisions and stay ahead of the curve in the ever-changing world of networking and telecommunications.
