Understanding the fundamentals of wave motion is crucial in various fields of science and engineering. One of the key concepts in this area is the Transverse Wave Picture. This concept helps us visualize and analyze waves that oscillate perpendicular to the direction of energy transfer. In this blog post, we will delve into the Transverse Wave Picture, its characteristics, applications, and how it differs from other types of waves.

Table of Contents

What is a Transverse Wave?

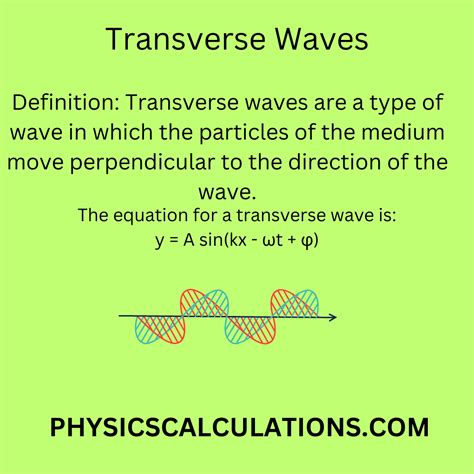

A transverse wave is a type of wave where the particles of the medium oscillate perpendicular to the direction of the wave’s propagation. This is in contrast to longitudinal waves, where the particles oscillate parallel to the direction of propagation. The Transverse Wave Picture provides a clear visual representation of how these waves move through a medium.

Characteristics of Transverse Waves

Transverse waves have several distinct characteristics that set them apart from other types of waves:

Perpendicular Oscillation: The particles of the medium move up and down or side to side, perpendicular to the direction of the wave.
Crests and Troughs: Transverse waves have peaks (crests) and valleys (troughs), which are the highest and lowest points of the wave, respectively.
Amplitude: The amplitude of a transverse wave is the maximum displacement of the particles from their equilibrium position.

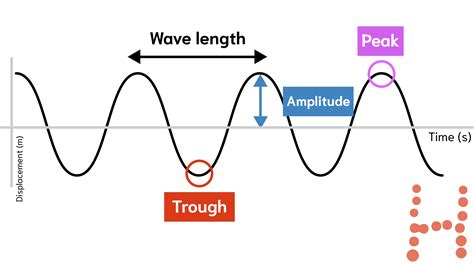

Wavelength: The wavelength is the distance between two successive crests or troughs.
Frequency: The frequency is the number of complete cycles that pass a given point per unit of time.

Examples of Transverse Waves

Transverse waves are prevalent in various natural phenomena and technological applications. Some common examples include:

Light Waves: Electromagnetic waves, including visible light, are transverse waves. The electric and magnetic fields oscillate perpendicular to the direction of wave propagation.
Water Waves: The waves on the surface of water, such as those created by dropping a pebble into a pond, are transverse waves. The water particles move up and down as the wave passes.
Seismic Waves (S-Waves): In seismology, S-waves are transverse waves that travel through the Earth’s interior, causing the ground to shake perpendicular to the direction of the wave.

The Transverse Wave Picture in Action

The Transverse Wave Picture is particularly useful in understanding the behavior of waves in different media. For instance, when a string is plucked, the resulting wave is transverse. The particles of the string move up and down, creating a wave that travels along the length of the string. This Transverse Wave Picture helps in analyzing the properties of the wave, such as its speed, amplitude, and frequency.

To better understand the Transverse Wave Picture, consider the following scenario:

A string is fixed at both ends and plucked in the middle. The resulting wave travels along the string, with the particles oscillating perpendicular to the direction of the wave.
The wave can be described by its amplitude, wavelength, and frequency. The amplitude is the maximum displacement of the particles from their equilibrium position, the wavelength is the distance between two successive crests or troughs, and the frequency is the number of complete cycles that pass a given point per unit of time.

By visualizing the Transverse Wave Picture, we can see how the wave propagates through the medium and how its properties affect its behavior.

Applications of Transverse Waves

Transverse waves have numerous applications in various fields. Some of the key applications include:

Communication: Electromagnetic waves, which are transverse, are used in communication technologies such as radio, television, and mobile phones. These waves carry information over long distances.
Medical Imaging: Ultrasound imaging uses transverse waves to create images of the body’s internal structures. The waves are reflected off different tissues and organs, providing detailed images.
Seismology: S-waves, which are transverse, are used to study the Earth’s interior. By analyzing the behavior of these waves, scientists can determine the composition and structure of the Earth’s layers.

Transverse vs. Longitudinal Waves

To fully appreciate the Transverse Wave Picture, it is essential to understand how transverse waves differ from longitudinal waves. Longitudinal waves, such as sound waves, have particles that oscillate parallel to the direction of wave propagation. In contrast, transverse waves have particles that oscillate perpendicular to the direction of propagation.

Here is a comparison of transverse and longitudinal waves:

Characteristic	Transverse Waves	Longitudinal Waves
Particle Oscillation	Perpendicular to the direction of propagation	Parallel to the direction of propagation
Examples	Light waves, water waves, S-waves	Sound waves, P-waves
Medium	Can travel through solids, liquids, and gases	Can travel through solids, liquids, and gases

📝 Note: While both types of waves can travel through various media, transverse waves require a medium with shear strength, such as solids, to propagate effectively. Longitudinal waves can travel through any medium, including gases.

Mathematical Representation of Transverse Waves

The behavior of transverse waves can be mathematically represented using wave equations. The general form of a transverse wave equation is:

y(x, t) = A sin(kx - ωt + φ)

Where:

y(x, t) is the displacement of the wave at position x and time t.
A is the amplitude of the wave.
k is the wave number, defined as 2π/λ, where λ is the wavelength.
ω is the angular frequency, defined as 2πf, where f is the frequency.
φ is the phase constant.

This equation describes how the wave propagates through the medium and how its properties, such as amplitude and frequency, affect its behavior.

Visualizing the Transverse Wave Picture

Visualizing the Transverse Wave Picture can be achieved through various methods, including animations and simulations. These tools help in understanding the behavior of transverse waves and their properties. For example, an animation of a string being plucked can show how the wave propagates along the string, with the particles oscillating perpendicular to the direction of the wave.

Simulations can also be used to study the behavior of transverse waves in different media. By adjusting the properties of the wave, such as its amplitude and frequency, users can observe how these changes affect the wave's behavior. This interactive approach enhances the understanding of the Transverse Wave Picture and its applications.

One effective way to visualize the Transverse Wave Picture is by using a ripple tank. A ripple tank is a shallow tray of water with a vibrating source that creates waves. By observing the waves on the surface of the water, one can see how the particles oscillate perpendicular to the direction of the wave. This hands-on approach provides a clear visual representation of the Transverse Wave Picture and its characteristics.

Another method is to use a slinky or a rope to demonstrate transverse waves. By holding one end of the slinky or rope and moving it up and down, one can create a transverse wave that travels along the length of the slinky or rope. This simple experiment helps in understanding the Transverse Wave Picture and its properties.

In addition to these methods, computer simulations and animations can provide a more detailed and interactive visualization of the Transverse Wave Picture. These tools allow users to adjust the properties of the wave and observe how these changes affect its behavior. This interactive approach enhances the understanding of transverse waves and their applications.

By using these visualization methods, one can gain a deeper understanding of the Transverse Wave Picture and its importance in various fields of science and engineering.

Here is an example of a simple experiment to visualize the Transverse Wave Picture:

Take a rope or a slinky and hold one end firmly.
Move the other end up and down to create a transverse wave.
Observe how the wave travels along the length of the rope or slinky, with the particles oscillating perpendicular to the direction of the wave.
Adjust the amplitude and frequency of the wave by changing the speed and distance of the movement.
Notice how these changes affect the behavior of the wave.

📝 Note: This experiment can be performed with different types of ropes or slinkies to observe how the material affects the behavior of the wave.

Challenges and Limitations

While the Transverse Wave Picture provides a clear visual representation of transverse waves, there are some challenges and limitations to consider. One of the main challenges is the complexity of the wave behavior in different media. For example, in solids, transverse waves can be affected by the material’s shear strength and elasticity, making it difficult to predict their behavior.

Another limitation is the difficulty in visualizing transverse waves in three dimensions. While two-dimensional visualizations, such as animations and simulations, can provide a clear representation of the Transverse Wave Picture, they may not fully capture the complexity of three-dimensional wave behavior. This can make it challenging to understand the behavior of transverse waves in real-world applications.

Additionally, the Transverse Wave Picture may not fully capture the behavior of waves in complex systems, such as those involving multiple wave types or interactions between waves. In these cases, more advanced mathematical models and simulations may be required to accurately describe the wave behavior.

Despite these challenges and limitations, the Transverse Wave Picture remains a valuable tool for understanding the behavior of transverse waves and their applications in various fields.

In conclusion, the Transverse Wave Picture is a fundamental concept in the study of wave motion. It provides a clear visual representation of how transverse waves propagate through a medium and how their properties, such as amplitude and frequency, affect their behavior. By understanding the Transverse Wave Picture, we can gain insights into the behavior of waves in various natural phenomena and technological applications. This knowledge is essential for advancing our understanding of wave motion and its role in science and engineering.
