Trailing Arm Suspension

The world of automotive engineering is a fascinating blend of art and science, where every component plays a crucial role in the overall performance and comfort of a vehicle. One such component that often goes unnoticed but is vital for a smooth ride is the Trailing Arm Suspension. This suspension system is designed to provide stability, control, and comfort, making it an essential part of modern vehicles. In this post, we will delve into the intricacies of the Trailing Arm Suspension, its components, how it works, and its advantages and disadvantages.

Understanding the Trailing Arm Suspension

The Trailing Arm Suspension is a type of independent suspension system that uses a pair of trailing arms to connect the axle to the vehicle's body. These arms are typically mounted at the front and pivot at the rear, allowing the wheels to move up and down independently. This design helps in absorbing shocks and vibrations, providing a smoother ride and better handling.

Components of the Trailing Arm Suspension

The Trailing Arm Suspension consists of several key components, each playing a specific role in the system's functionality. These components include:

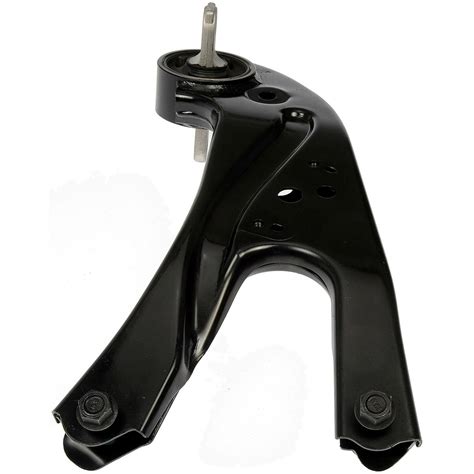

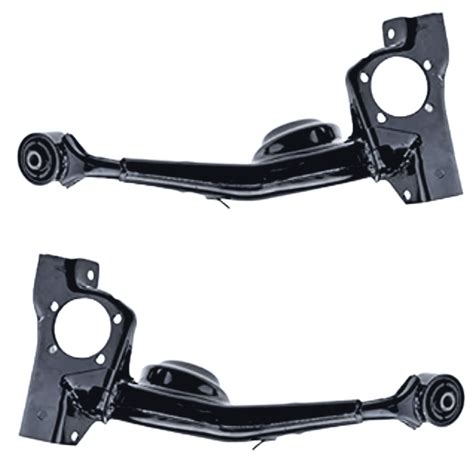

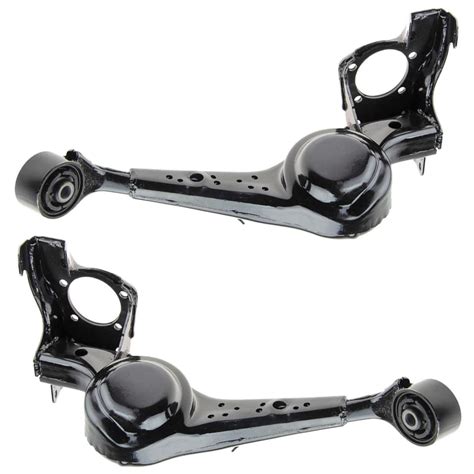

• Trailing Arms: These are the main components that connect the axle to the vehicle's body. They are designed to pivot at the front and move up and down at the rear, allowing the wheels to absorb shocks.
• Control Arms: These arms help in controlling the movement of the trailing arms, ensuring that the wheels stay aligned with the vehicle's body.
• Springs: Springs are used to support the weight of the vehicle and absorb shocks. They can be coil springs, leaf springs, or air springs, depending on the vehicle's design.
• Shock Absorbers: These devices help in damping the movement of the springs, preventing excessive bouncing and providing a smoother ride.

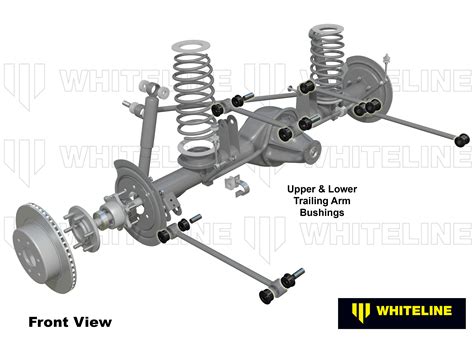

• Bushings: Bushings are used to reduce friction and noise between the moving parts of the suspension system. They are typically made of rubber or polyurethane.

How the Trailing Arm Suspension Works

The Trailing Arm Suspension works by allowing the wheels to move up and down independently, absorbing shocks and vibrations. When the vehicle encounters a bump or a pothole, the trailing arms pivot at the front, allowing the wheels to move up and down. The springs and shock absorbers work together to absorb the impact and dampen the movement, providing a smoother ride.

The control arms help in keeping the wheels aligned with the vehicle's body, ensuring that the vehicle remains stable and handles well. The bushings reduce friction and noise, making the suspension system more efficient and durable.

Advantages of the Trailing Arm Suspension

The Trailing Arm Suspension offers several advantages, making it a popular choice for many vehicles. Some of the key advantages include:

• Improved Handling: The independent movement of the wheels allows for better handling and stability, especially during cornering and braking.
• Enhanced Comfort: The suspension system absorbs shocks and vibrations, providing a smoother and more comfortable ride.
• Durability: The design of the Trailing Arm Suspension is robust and durable, making it suitable for various terrains and driving conditions.
• Cost-Effective: The components of the Trailing Arm Suspension are relatively inexpensive and easy to maintain, making it a cost-effective solution for many vehicles.

Disadvantages of the Trailing Arm Suspension

While the Trailing Arm Suspension offers several advantages, it also has some disadvantages. Some of the key disadvantages include:

• Limited Articulation: The design of the Trailing Arm Suspension limits the articulation of the wheels, which can affect the vehicle's off-road capabilities.
• Complexity: The system can be more complex than other suspension designs, requiring more maintenance and repairs.
• Weight: The Trailing Arm Suspension can be heavier than other suspension designs, which can affect the vehicle's fuel efficiency and performance.

Applications of the Trailing Arm Suspension

The Trailing Arm Suspension is used in a variety of vehicles, from passenger cars to SUVs and trucks. Some of the common applications include:

• Passenger Cars: Many passenger cars use the Trailing Arm Suspension for its improved handling and comfort.
• SUVs: SUVs often use the Trailing Arm Suspension for its durability and off-road capabilities.
• Trucks: Trucks use the Trailing Arm Suspension for its ability to handle heavy loads and rough terrains.

Maintenance and Care of the Trailing Arm Suspension

To ensure the longevity and performance of the Trailing Arm Suspension, regular maintenance and care are essential. Some of the key maintenance tasks include:

• Inspection: Regularly inspect the suspension components for signs of wear and tear, such as cracks, leaks, or excessive play.
• Lubrication: Lubricate the moving parts of the suspension system to reduce friction and noise.
• Replacement: Replace worn-out components, such as bushings, springs, and shock absorbers, to maintain the performance of the suspension system.

🛠️ Note: Always follow the manufacturer's guidelines for maintenance and replacement of suspension components.

Common Issues with the Trailing Arm Suspension

Despite its advantages, the Trailing Arm Suspension can face several issues over time. Some of the common issues include:

• Worn-out Bushings: Bushings can wear out over time, leading to excessive noise and vibration.
• Broken Springs: Springs can break or sag, affecting the vehicle's ride height and handling.
• Leaking Shock Absorbers: Shock absorbers can leak fluid, reducing their effectiveness and causing a bumpy ride.

If you encounter any of these issues, it is important to address them promptly to prevent further damage to the suspension system.

Comparing Trailing Arm Suspension with Other Suspension Systems

To better understand the Trailing Arm Suspension, it is helpful to compare it with other suspension systems. Here is a comparison of the Trailing Arm Suspension with some common suspension systems:

Each suspension system has its own set of advantages and disadvantages, and the choice of suspension system depends on the specific requirements of the vehicle and the driving conditions.

In conclusion, the Trailing Arm Suspension is a vital component of modern vehicles, offering improved handling, enhanced comfort, and durability. While it has some disadvantages, such as limited articulation and complexity, its advantages make it a popular choice for many vehicles. Regular maintenance and care are essential to ensure the longevity and performance of the Trailing Arm Suspension. By understanding the intricacies of this suspension system, you can make informed decisions about your vehicle’s suspension needs and enjoy a smoother, more comfortable ride.
